Audio TX Output Se Or Pp
$41.53In stock
Buy now

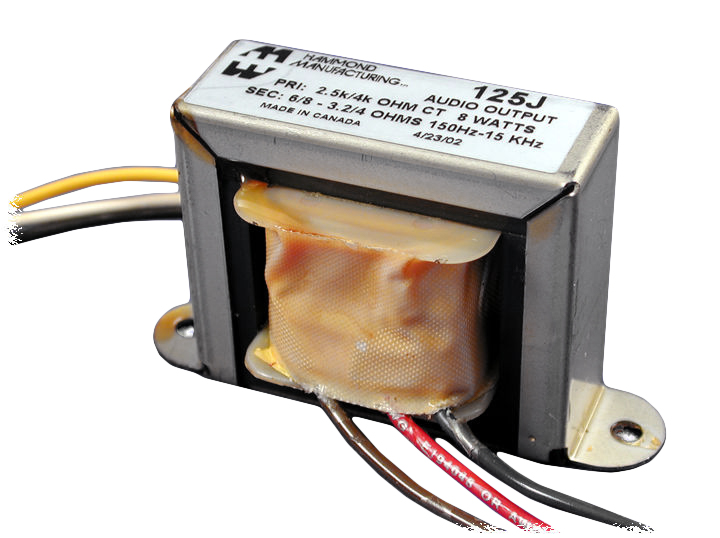

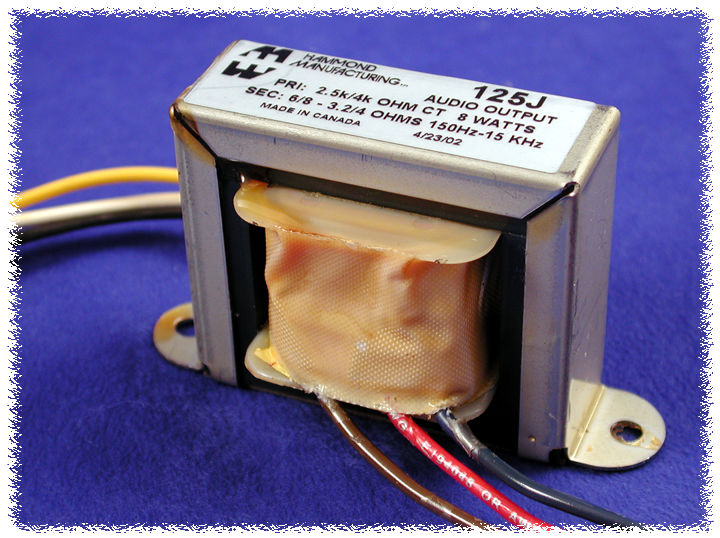

General Replacement Tube Output (8 Watt) Push-Pull · 125J Series
Brand: Hammond Manufacturing · 1 part number
Audio
- ■Designed for general purpose or replacement use in push-pull tube output circuits.
- ■Frequency response: 150 Hz. - 15 Khz (+/- 1db max. ref. 1 Khz)
- ■Open style with minimum 10" long primary & secondary leads.
- ■Also see our 125H Series .
- ■For single ended use, see our 125SE Series .
- ■For more impedance options, see our universal impedance push-pull 125 Series
from $41.53
1 of 1 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 125J Series part number
Filter 1 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
1 of 1 part numbers · 1 priced online
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Audio · Watts | Primary · Impedance · (Ohms) | Secondary · Impedance · (Ohms) | Primary · Inductance | Weight · (lbs.) | Overall Dimensions · A | Overall Dimensions · B | Overall Dimensions · C | Overall Dimensions · D | Mounting · Hole · G | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 125J | 8 | 2.5K or 4K | 6/8 or 3.2/4 | 5.60 H | 1 | 3.25 | 1.50 | 1.94 | 2.81 | 0.19 | $41.53In stock | Buy now |
Hook Up Data
| PRIMARY IMPEDANCE · Plate to Plate · Brown to Blue · (Ohms) | SECONDARY IMPEDANCE · (Ohms) | USE SECONDARY · LEAD CONNECTIONS | Price | Order |
|---|---|---|---|---|
| 4,000 C.T. | 6 - 8 | WHT - GRN | Quote | Quote |
| 4,000 C.T. | 3.2 - 4 | WHT -YEL | Quote | Quote |
| 2,500 C.T. | 6 - 8 | BLK - GRN | Quote | Quote |
| 2,500 C.T. | 3.2 / 4 | BLK - YEL | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
Features
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■Designed for general purpose or replacement use in push-pull tube output circuits.
- ■Frequency response: 150 Hz. - 15 Khz (+/- 1db max. ref. 1 Khz)
- ■Open style with minimum 10" long primary & secondary leads.
- ■Also see our 125H Series .
- ■For single ended use, see our 125SE Series .
- ■For more impedance options, see our universal impedance push-pull 125 Series
Documents
Additional information
Part Details
| Part No. | Audio · Watts | Primary · Impedance · (Ohms) | Secondary · Impedance · (Ohms) | Primary · Inductance | Weight · (lbs.) | Overall Dimensions · A | Overall Dimensions · B | Overall Dimensions · C | Overall Dimensions · D | Mounting · Hole · G |
|---|---|---|---|---|---|---|---|---|---|---|
| 125J | 8 | 2.5K or 4K | 6/8 or 3.2/4 | 5.60 H | 1 | 3.25 | 1.50 | 1.94 | 2.81 | 0.19 |
Hook Up Data
| PRIMARY IMPEDANCE · Plate to Plate · Brown to Blue · (Ohms) | SECONDARY IMPEDANCE · (Ohms) | USE SECONDARY · LEAD CONNECTIONS |
|---|---|---|
| 4,000 C.T. | 6 - 8 | WHT - GRN |
| 4,000 C.T. | 3.2 - 4 | WHT -YEL |
| 2,500 C.T. | 6 - 8 | BLK - GRN |
| 2,500 C.T. | 3.2 / 4 | BLK - YEL |
