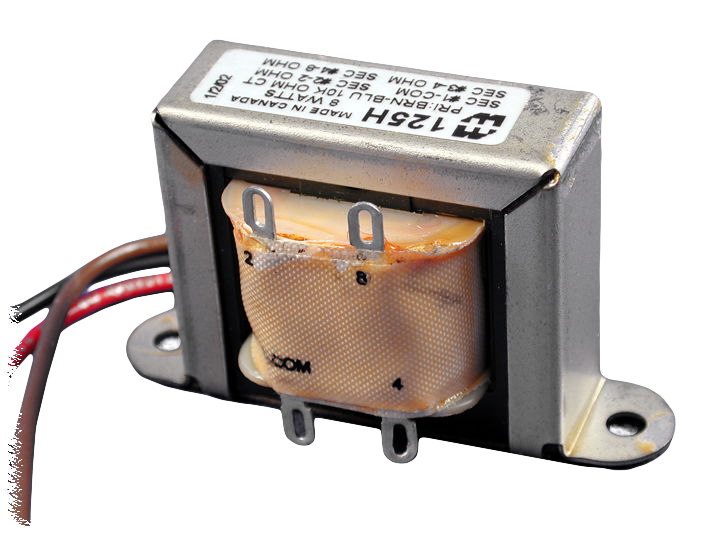

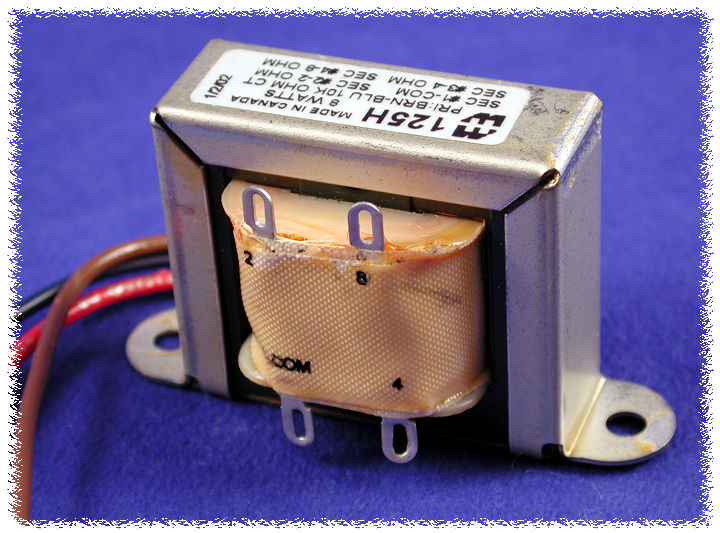

General Replacement Tube Output (8 Watt) Push-Pull · 125H Series

Brand: Hammond Manufacturing · 1 part number

■Designed for general purpose or replacement use in push-pull tube output circuits.
■Frequency response: 150 Hz. - 15 Khz (+/- 1db max. ref. 1 Khz)
■Open style with minimum 5" long primary leads, secondary solder lugs for convenient secondary connections.
■Also see our 125J Series .
■For single ended use, see our 125SE Series .
■For more impedance options, see our universal impedance push-pull 125 Series .

from $41.53

1 of 1 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents Additional information

Configure & price

Find your 125H Series part number

Filter 1 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

1 of 1 part numbers · 1 priced online

125H

Audio TX Output Se Or Pp

$41.53In stock

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.	Audio · Watts	Primary · Impedance · (Ohms)	Secondary · Impedance · (Ohms)	Primary · Inductance	Weight · (lbs.)	Overall Dimensions · A	Overall Dimensions · B	Overall Dimensions · C	Overall Dimensions · D	Mounting · Hole · G	Price	Order
125H	8	10K	2, 4 or 8	5.60 H	0.55	2.81	1.00	1.63	2.38	0.19	$41.53In stock	Buy now

Features

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch . Switch units to: mm

■Designed for general purpose or replacement use in push-pull tube output circuits.
■Frequency response: 150 Hz. - 15 Khz (+/- 1db max. ref. 1 Khz)
■Open style with minimum 5" long primary leads, secondary solder lugs for convenient secondary connections.
■Also see our 125J Series .
■For single ended use, see our 125SE Series .
■For more impedance options, see our universal impedance push-pull 125 Series .
