Audio TX Line Match
- Audio Power Taps 16, 8, 4, 2, 1
- Watts 16
- System Volts 70
- Voice Coil Impedan 3.2
$26.76In stock
Buy now

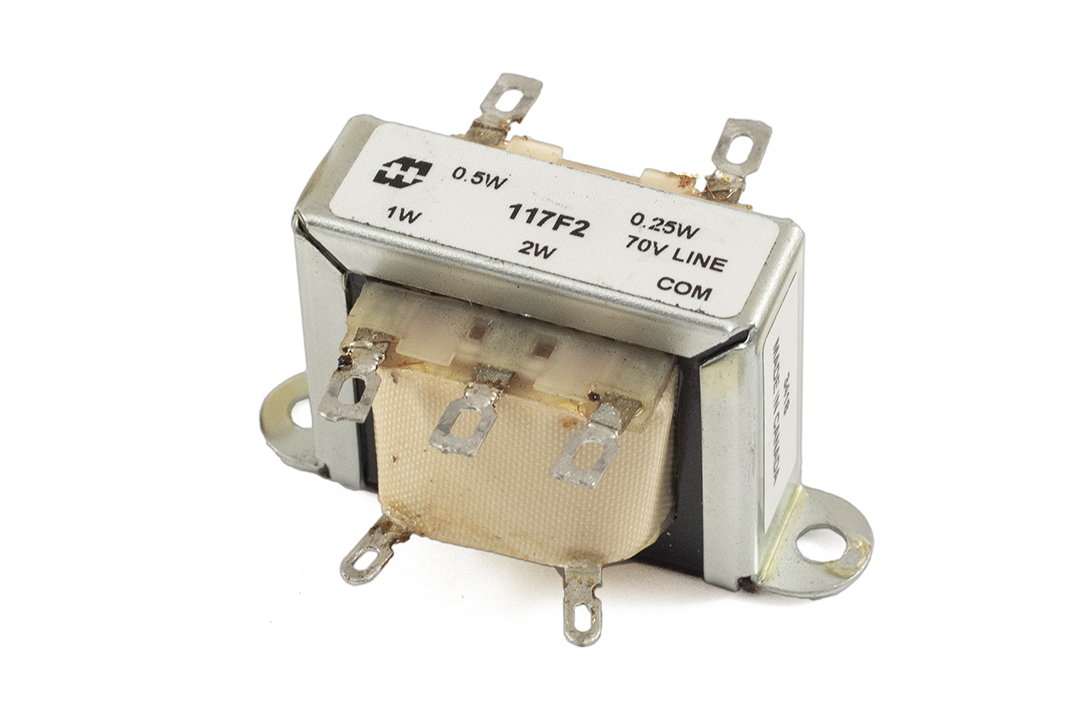

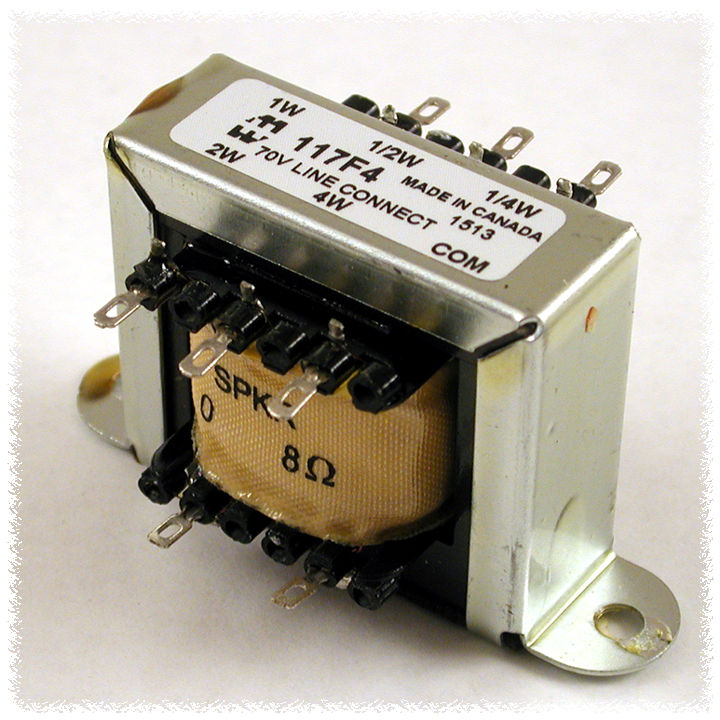

Audio Sound Distribution Line Matching · 117 Series
Brand: Hammond Manufacturing · 15 part numbers
- ■Couple 3.2, 8 or 16 ohm speakers to 25 or 70 volt line outputs of amplifiers.
- ■Up to 5 power tap levels available (except 117F2 which has 4).
- ■Primary taps marked in watts (no calculation necessary), to match speaker power.
- ■For speaker matching from older "Classic" 600 Ohm equipment - check out our 119DA matching transformer.
- ■Frequency response 100 Hz. to 9 Khz. (1 db. reference @1 Khz.)
- ■Insertion loss less than 2 db.
from $19.06
15 of 15 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 117 Series part number
Filter 15 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
15 of 15 part numbers · 15 priced online
Audio TX Line Match
- Audio Power Taps 4, 2, 1, 1/2, 1/4
- Watts 4
- System Volts 70
- Voice Coil Impedan 3.2
$21.09In stock
Buy nowAudio TX Line Match
- Audio Power Taps 8, 4, 2, 1, 1/2
- Watts 8
- System Volts 70
- Voice Coil Impedan 3.2
$22.72In stock
Buy nowAudio TX Line Match
- Audio Power Taps 16, 8, 4, 2, 1
- Watts 16
- System Volts 70
- Voice Coil Impedan 8
$24.33In stock
Buy now
Audio TX Line Match
- Audio Power Taps 2, 1, 1/2, 1/4
- Watts 2
- System Volts 70
- Voice Coil Impedan 8
$19.88In stock
Buy nowAudio TX Line Match
- Audio Power Taps 32, 16, 8, 4, 2
- Watts 32
- System Volts 70
- Voice Coil Impedan 8
$35.71In stock
Buy now
Audio TX Line Match
- Audio Power Taps 4, 2, 1, 1/2, 1/4
- Watts 4
- System Volts 70
- Voice Coil Impedan 8
$19.06In stock
Buy nowAudio TX Line Match
- Audio Power Taps 8, 4, 2, 1, 1/2
- Watts 8
- System Volts 70
- Voice Coil Impedan 8
$21.09In stock
Buy nowAudio TX Line Match
- Audio Power Taps 16, 8, 4, 2, 1
- Watts 16
- System Volts 70
- Voice Coil Impedan 16
$24.33In stock
Buy nowAudio TX Line Match
- Audio Power Taps 4, 2, 1, 1/2, 1/4
- Watts 4
- System Volts 25
- Voice Coil Impedan 3.2
$21.09In stock
Buy nowAudio TX Line Match
- Audio Power Taps 8, 4, 2, 1, 1/2
- Watts 8
- System Volts 25
- Voice Coil Impedan 3.2
$23.53In stock
Buy nowAudio TX Line Match
- Audio Power Taps 16, 8, 4, 2, 1
- Watts 16
- System Volts 25
- Voice Coil Impedan 8
$23.53In stock
Buy nowAudio TX Line Match
- Audio Power Taps 32, 16, 8, 4, 2
- Watts 32
- System Volts 25
- Voice Coil Impedan 8
$32.45In stock
Buy nowAudio TX Line Match
- Audio Power Taps 4, 2, 1, 1/2, 1/4
- Watts 4
- System Volts 25
- Voice Coil Impedan 8
$19.48In stock
Buy nowAudio TX Line Match
- Audio Power Taps 8, 4, 2, 1, 1/2
- Watts 8
- System Volts 25
- Voice Coil Impedan 8
$22.72In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | System · Volts | Power Rating · (Watts) | Audio Power · Taps | Voice Coil Impedance · (Ohms) | Mounting · Centers | Wt. · ( lbs.) | Overall Dimensions · A | Overall Dimensions · B | Overall Dimensions · C | Overall Dimensions · D | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 117F2 | 70 | 2 | 2, 1, 1/2, 1/4 | 8 | 2.00 | 0.5 | 2.38 | 1.38 | 1.38 | 2.00 | $19.88In stock | Buy now |
| 117E4 | 70 | 4 | 4, 2, 1, 1/2, 1/4 | 3.2 | 2.38 | 0.6 | 2.81 | 1.50 | 1.69 | 2.38 | $21.09In stock | Buy now |
| 117F4 | 70 | 4 | 4, 2, 1, 1/2, 1/4 | 8 | 2.38 | 0.6 | 2.81 | 1.50 | 1.69 | 2.38 | $19.06In stock | Buy now |
| 117E8 | 70 | 8 | 8, 4, 2, 1, 1/2 | 3.2 | 2.81 | 0.9 | 3.25 | 1.75 | 2.00 | 2.81 | $22.72In stock | Buy now |
| 117F8 | 70 | 8 | 8, 4, 2, 1, 1/2 | 8 | 2.81 | 0.9 | 3.25 | 1.75 | 2.00 | 2.81 | $21.09In stock | Buy now |
| 117E16 | 70 | 16 | 16, 8, 4, 2, 1 | 3.2 | 3.13 | 1.5 | 3.69 | 2.00 | 2.31 | 3.13 | $26.76In stock | Buy now |
| 117F16 | 70 | 16 | 16, 8, 4, 2, 1 | 8 | 3.13 | 1.5 | 3.69 | 2.00 | 2.31 | 3.13 | $24.33In stock | Buy now |
| 117G16 | 70 | 16 | 16, 8, 4, 2, 1 | 16 | 3.13 | 1.5 | 3.69 | 2.00 | 2.31 | 3.13 | $24.33In stock | Buy now |
| 117F32 | 70 | 32 | 32, 16, 8, 4, 2 | 8 | 3.56 | 2.3 | 4.03 | 2.25 | 2.63 | 3.56 | $35.71In stock | Buy now |
| 117J4 | 25 | 4 | 4, 2, 1, 1/2, 1/4 | 3.2 | 2.38 | 0.6 | 2.81 | 1.50 | 1.69 | 2.38 | $21.09In stock | Buy now |
| 117K4 | 25 | 4 | 4, 2, 1, 1/2, 1/4 | 8 | 2.38 | 0.6 | 2.81 | 1.50 | 1.69 | 2.38 | $19.48In stock | Buy now |
| 117J8 | 25 | 8 | 8, 4, 2, 1, 1/2 | 3.2 | 2.81 | 0.6 | 3.25 | 1.75 | 2.00 | 2.81 | $23.53In stock | Buy now |
| 117K8 | 25 | 8 | 8, 4, 2, 1, 1/2 | 8 | 2.81 | 0.6 | 3.25 | 1.75 | 2.00 | 2.81 | $22.72In stock | Buy now |
| 117K16 | 25 | 16 | 16, 8, 4, 2, 1 | 8 | 3.13 | 1.5 | 3.69 | 2.00 | 2.31 | 3.13 | $23.53In stock | Buy now |
| 117K32 | 25 | 32 | 32, 16, 8, 4, 2 | 8 | 3.56 | 2.3 | 4.03 | 2.25 | 2.63 | 3.56 | $32.45In stock | Buy now |
Features
- ■Couple 3.2, 8 or 16 ohm speakers to 25 or 70 volt line outputs of amplifiers.
- ■Up to 5 power tap levels available (except 117F2 which has 4).
- ■Primary taps marked in watts (no calculation necessary), to match speaker power.
- ■For speaker matching from older "Classic" 600 Ohm equipment - check out our 119DA matching transformer.
- ■Frequency response 100 Hz. to 9 Khz. (1 db. reference @1 Khz.)
- ■Insertion loss less than 2 db.
- ■Distortion is less than 1.25% @ 100 Hz. at maximum power.
- ■Horizontal, channel bracket, 2-hole (.187" dia.) mounting.
- ■All models have solder lugs, also suitable for slip on jumper connections.
- ■Total power requirements of speakers should not exceed the rated power of each transformer or rated power of the amplifier.
