Technodisc 080
$60.29Backorder
Buy now

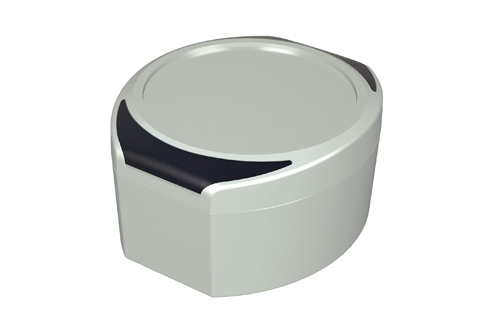

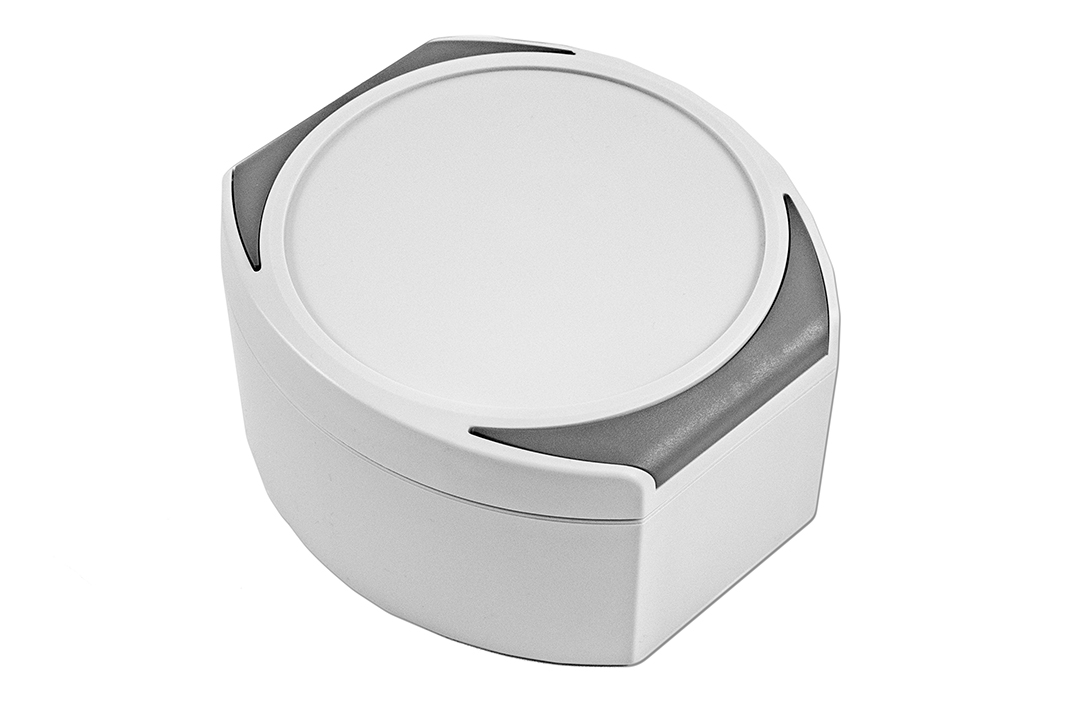

Luran Water-Tight Enclosures · R285 Series
Brand: Hammond Manufacturing · 4 part numbers
technoDISC
- ■Premium UV-resistant Luran plastic enclosures for outdoor applications
- ■Shallow lid, deep body

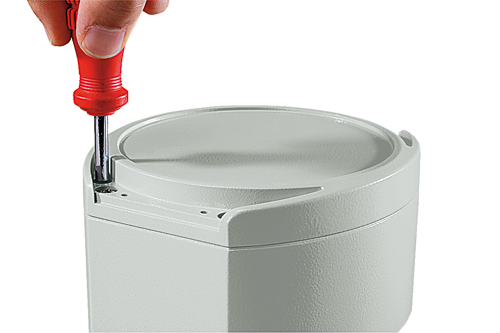

- ■Captive stainless steel lid screws
- ■Enclosure can be mounted to wall or shelf after closing the lid

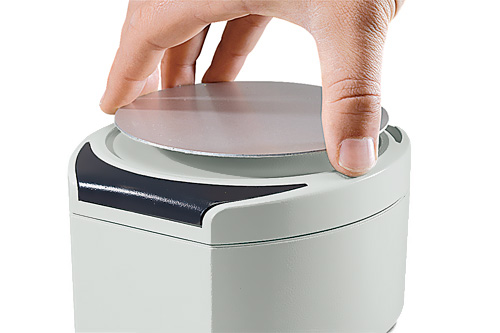

- ■Integrated 1.7 mm recess in lid for membrane keypads and front panels
- ■Silicone gasket included, rated -50ºC up to +140ºC (-58ºF to 284ºF)
from $60.29
4 of 4 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your R285 Series part number
Filter 4 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
| Part Number | Length (mm) | Width (mm) | Height (mm) | Price | Order |
|---|---|---|---|---|---|

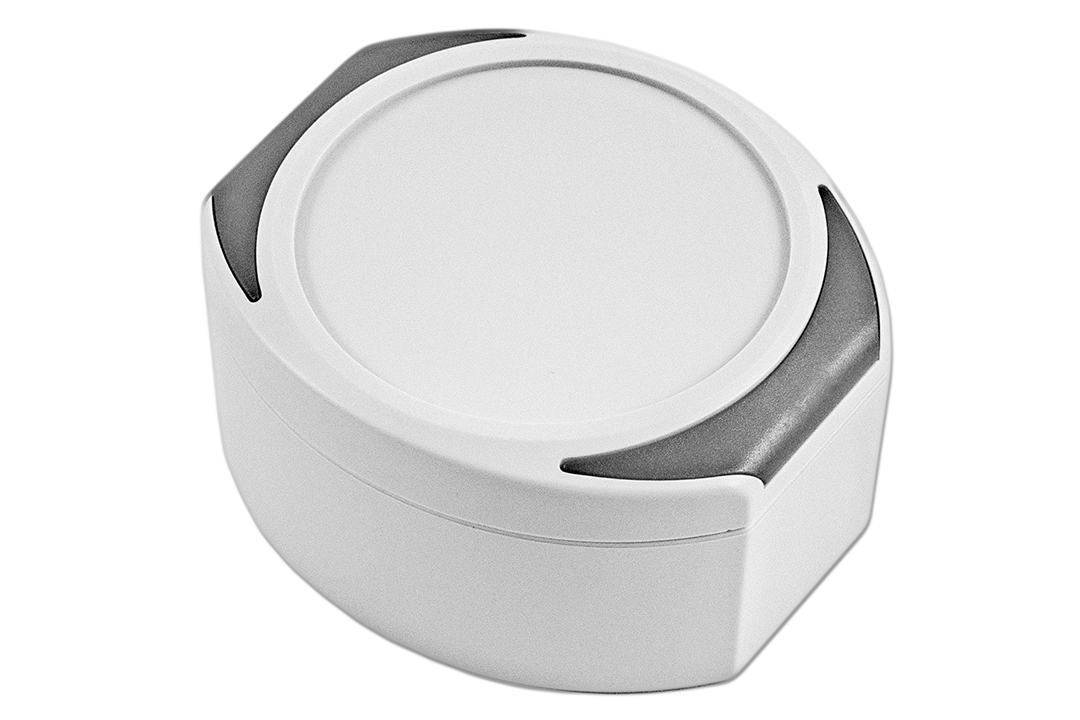

| R285-080-000 | 110 | 97 | 55 | $60.29Backorder | Buy now |

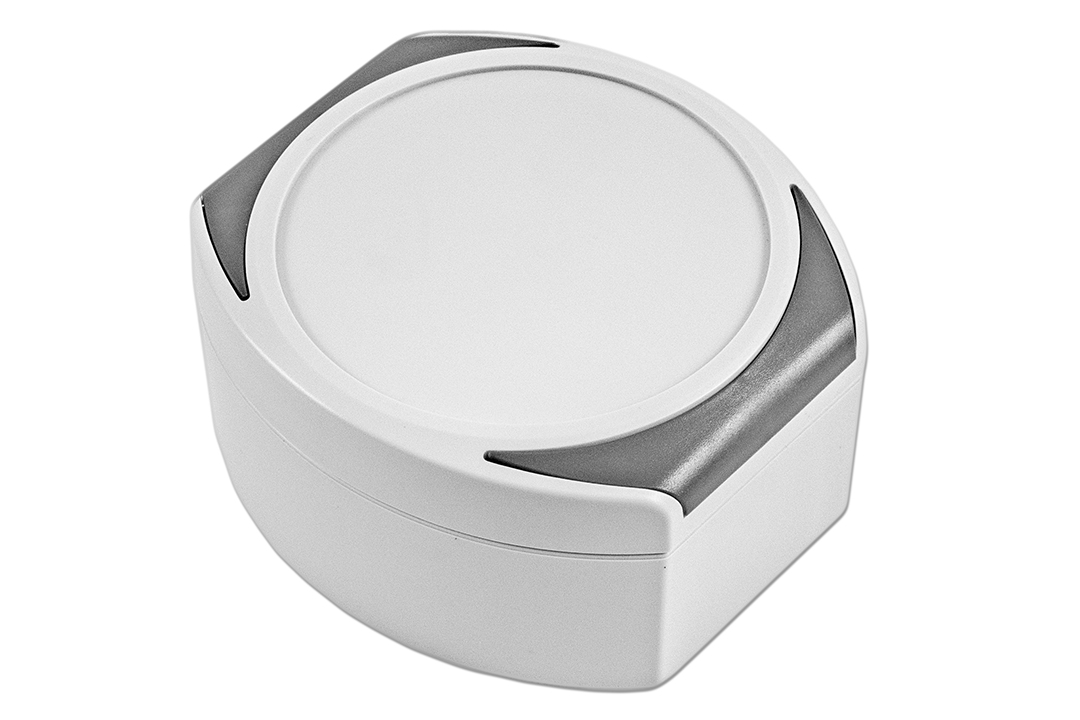

| R285-100-000 | 130 | 119 | 65 | $73.19In stock | Buy now |
| R285-120-000 | 150 | 139 | 80 | $85.76In stock | Buy now |

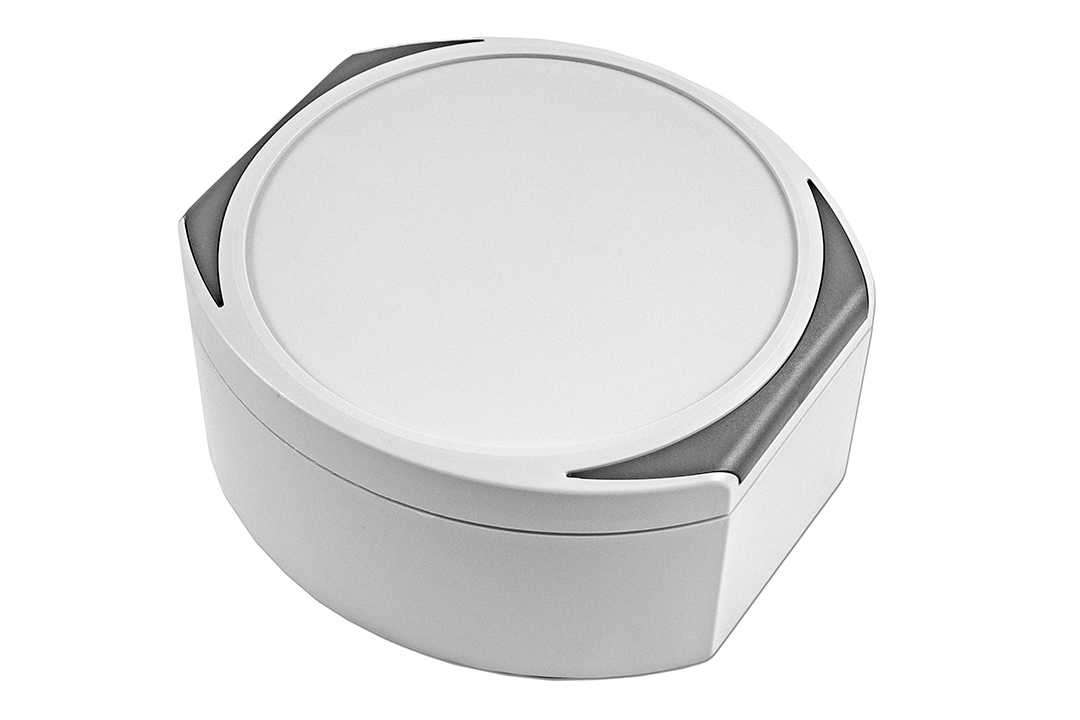

| R285-160-000 | 190 | 179 | 90 | $114.95In stock | Buy now |
Key Features:
- ■Premium UV-resistant Luran plastic enclosures for outdoor applications
- ■Shallow lid, deep body
- ■Captive stainless steel lid screws
- ■Enclosure can be mounted to wall or shelf after closing the lid
- ■Integrated 1.7 mm recess in lid for membrane keypads and front panels
- ■Silicone gasket included, rated -50ºC up to +140ºC (-58ºF to 284ºF)
- ■Degree of protection: NEMA 4X, IP 66
- ■Enclosure is light grey (RAL 7035) Luran with UL 94HB flammability rating

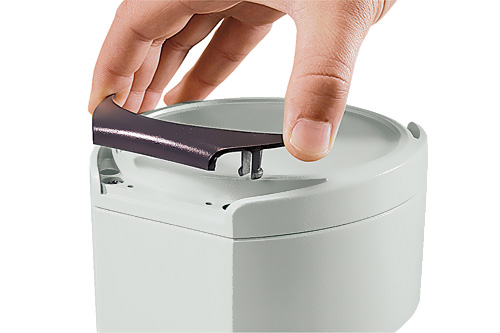

- ■Clip-on design covers made of plastic polypropylene (PP) in anthracite grey (RAL 7016)
- ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
Features:
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Documents
Additional information
Part Details
| Part Number | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|
| R285-080-000 | 110 | 97 | 55 |
| R285-100-000 | 130 | 119 | 65 |
| R285-120-000 | 150 | 139 | 80 |
| R285-160-000 | 190 | 179 | 90 |
