Starcase SC090
$52.58Backorder
Buy now

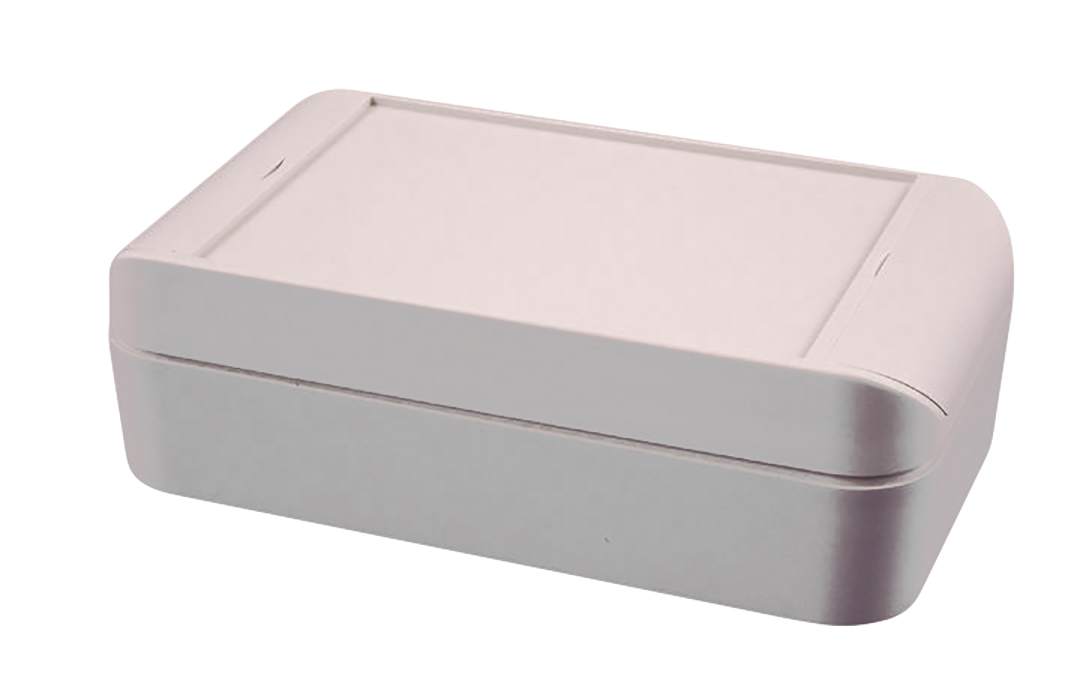

Water-Tight Plastic Enclosures · R230 Series
Brand: Hammond Manufacturing · 5 part numbers
starCASE
- ■ABS fire retardant plastic enclosures are designed for use as instrument enclosures, electrical junction boxes, or terminal wiring enclosures where metallic enclosures are not suitable.

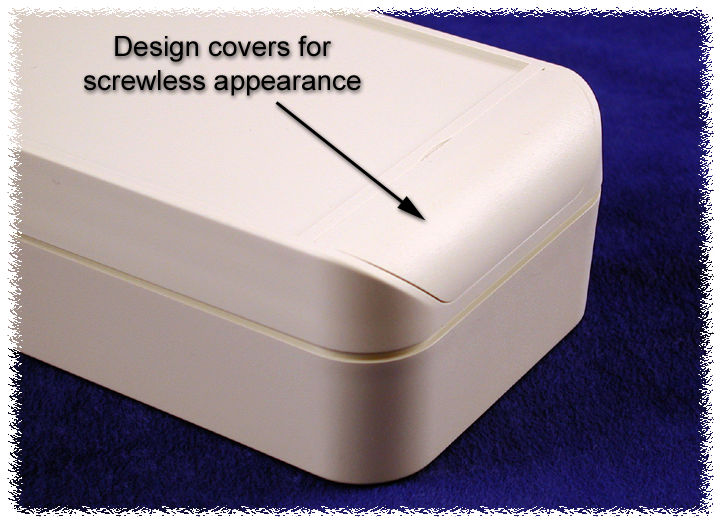

- ■Modern design with rounded edges and hidden assembly screws.
- ■Provide outstanding protection against dust, oil, and pressurized water.
- ■Impervious to atmospheric and marine corrosion.
- ■Meets NEMA Type 4, 4X, 12, and 13.
- ■Meets IP66.
from $52.58
5 of 5 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your R230 Series part number
Filter 5 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
| Part Number | Length (mm) | Width (mm) | Height (mm) | Price | Order |
|---|---|---|---|---|---|

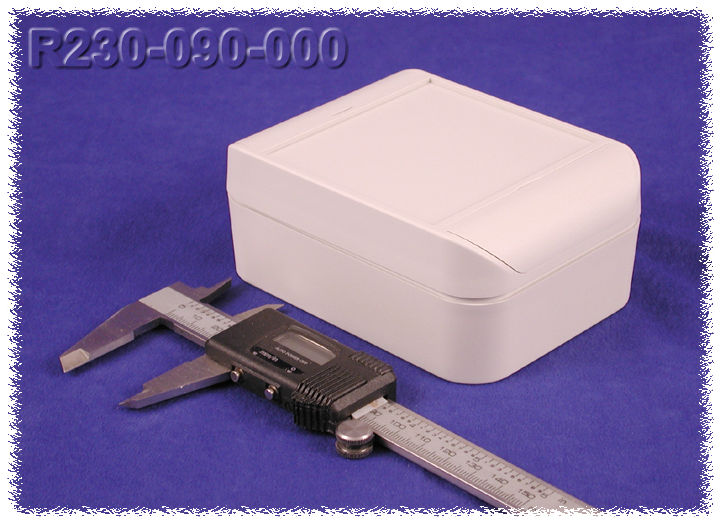

| R230-090-000 | 120 | 90 | 50 | $52.58Backorder | Buy now |

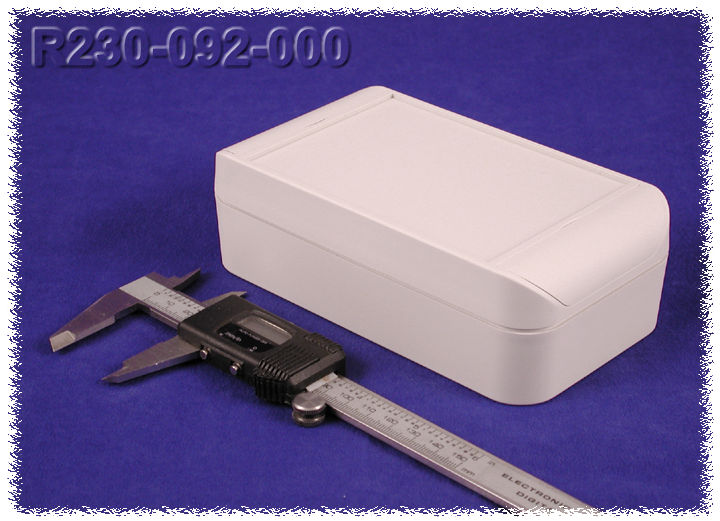

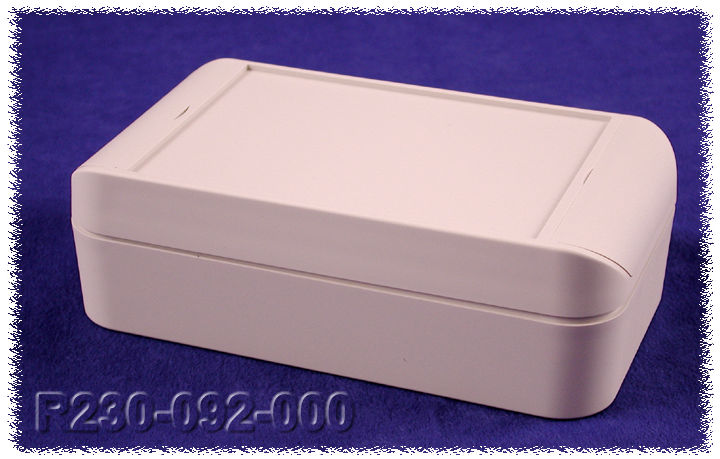

| R230-092-000 | 160 | 90 | 50 | $58.59Backorder | Buy now |

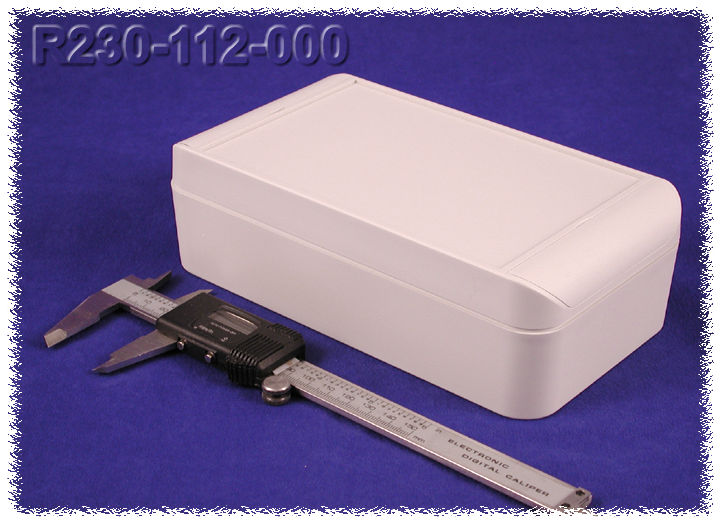

| R230-112-000 | 200 | 110 | 60 | $75.63Backorder | Buy now |

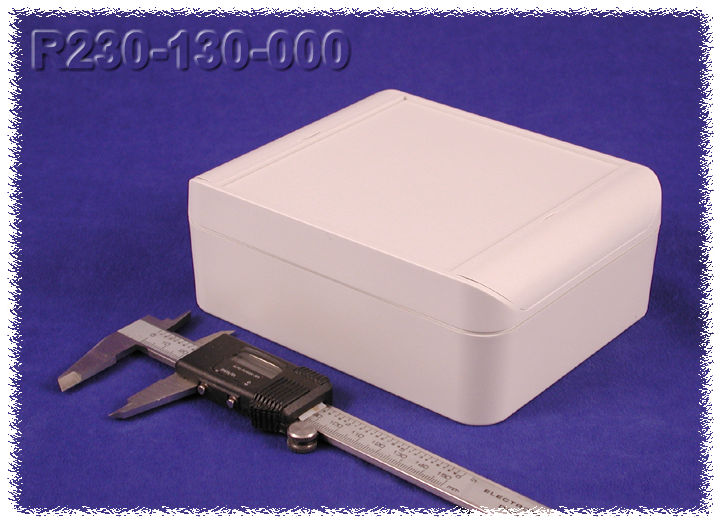

| R230-130-000 | 160 | 130 | 60 | $64.64Backorder | Buy now |

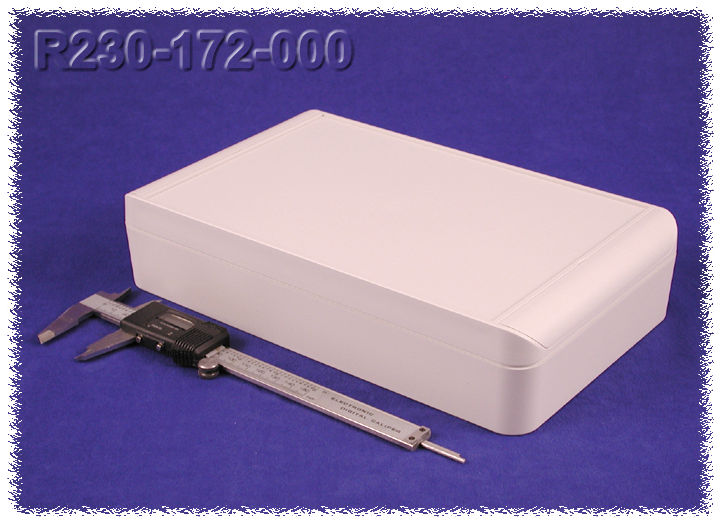

| R230-172-000 | 280 | 170 | 60 | $120.78In stock | Buy now |
Key Information:
- ■ABS fire retardant plastic enclosures are designed for use as instrument enclosures, electrical junction boxes, or terminal wiring enclosures where metallic enclosures are not suitable.
- ■Modern design with rounded edges and hidden assembly screws.
- ■Provide outstanding protection against dust, oil, and pressurized water.
- ■Impervious to atmospheric and marine corrosion.
- ■Meets NEMA Type 4, 4X, 12, and 13.
- ■Meets IP66.
- ■ABS plastic material carries UL94 V-0 flammability rating.
- ■Molded in ABS fire retardant plastic.
- ■Lid is recessed for membrane keypads or labels.

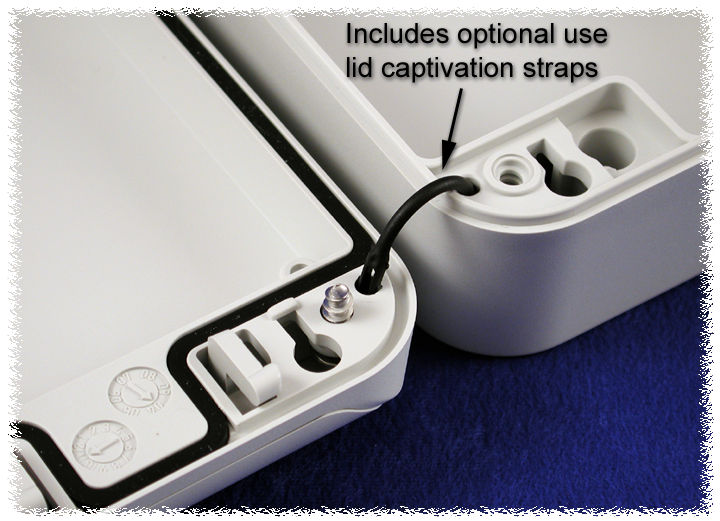

- ■Includes plastic lid supports (to keep lid captive to box).

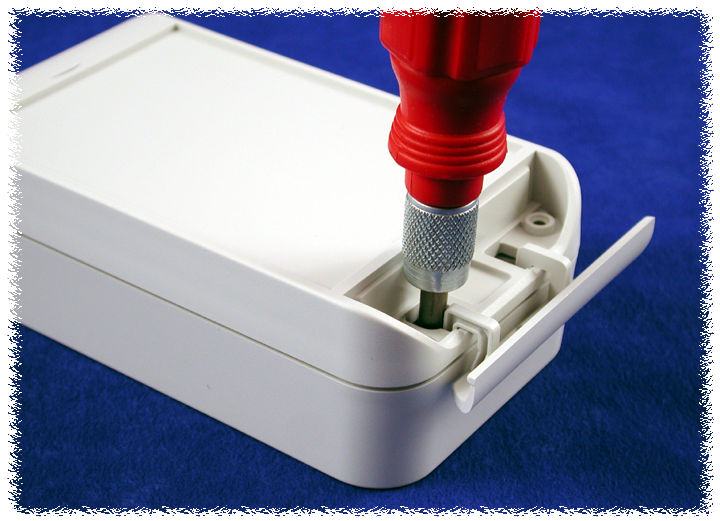

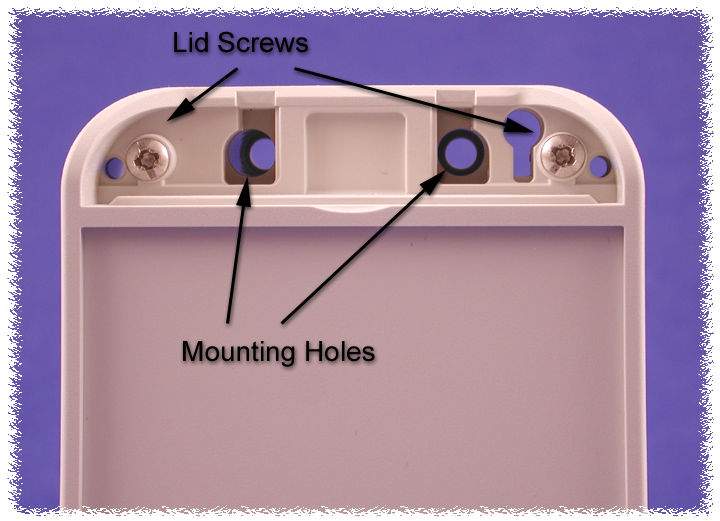

- ■Separate mounting channels and lid channels all outside of the interior and gasket seal.
- ■Recessed silicone gasket with tongue and groove construction.
- ■Captive stainless steel lid screws are provided.
- ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
- ■Light grey RAL 7035 - light texture
Photo Features
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Documents
Additional information
Part Details
| Part Number | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|
| R230-090-000 | 120 | 90 | 50 |
| R230-092-000 | 160 | 90 | 50 |
| R230-112-000 | 200 | 110 | 60 |
| R230-130-000 | 160 | 130 | 60 |
| R230-172-000 | 280 | 170 | 60 |
