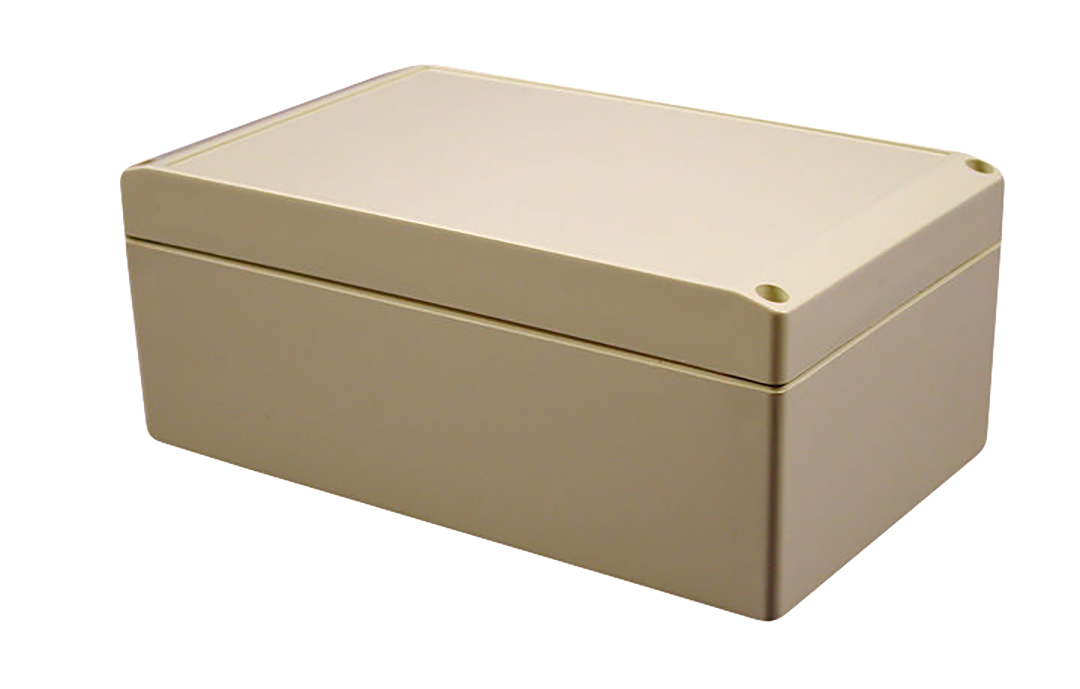

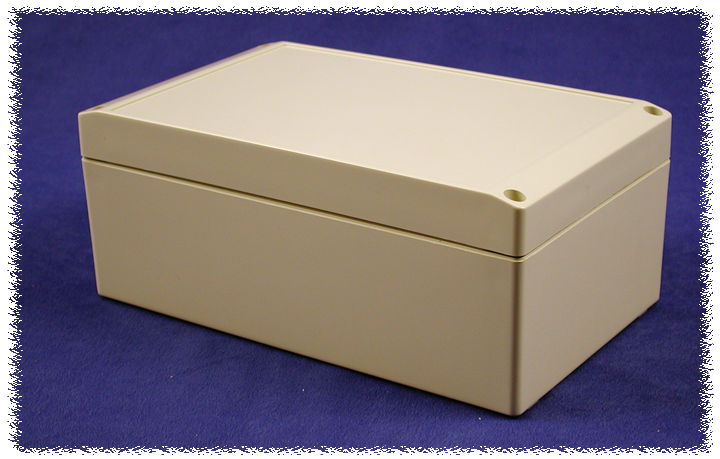

Water-Tight ABS Plastic · R220 Series

Key Information:

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

• ■ABS plastic enclosures are designed for use as instrument enclosures, electrical junction boxes, or terminal wiring enclosures where metallic enclosures are not suitable.
• ■Modern design with slanted top edges.
• ■Provide outstanding protection against dust, oil, and pressurized water.
• ■Impervious to atmospheric and marine corrosion.
• ■NEMA Type 4, 4X, 12 and 13
• ■IP66
• ■UL94 HB Flammability Rating
• ■Molded in ABS plastic.

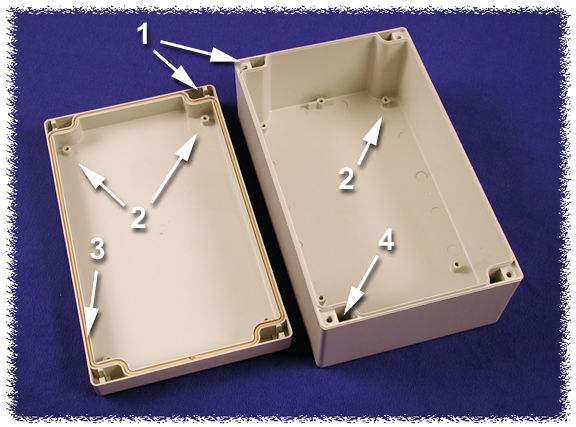

• ■Separate mounting channels and lid channels.
• ■Recessed polyurethane gasket with tongue and groove construction.
• ■Interlocking lip on lid and bottom sections.
• ■Captive stainless steel lid screws are provided.
• ■Cover screws fasten into pre-threaded holes.
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
• ■Light grey RAL 7035
• ■Separate screw channels outside of the gasket seal (lid screws & enclosure mounting screws).
• ■There are many mounting posts for self tapping screws in both the enclosure & the lid. Can also be used for mounting P.C. boards or plates.
• ■Thermoplastic forpene gasket.
• ■Enclosure mounts through channel and bottom holes, concealed when lid is attached.
