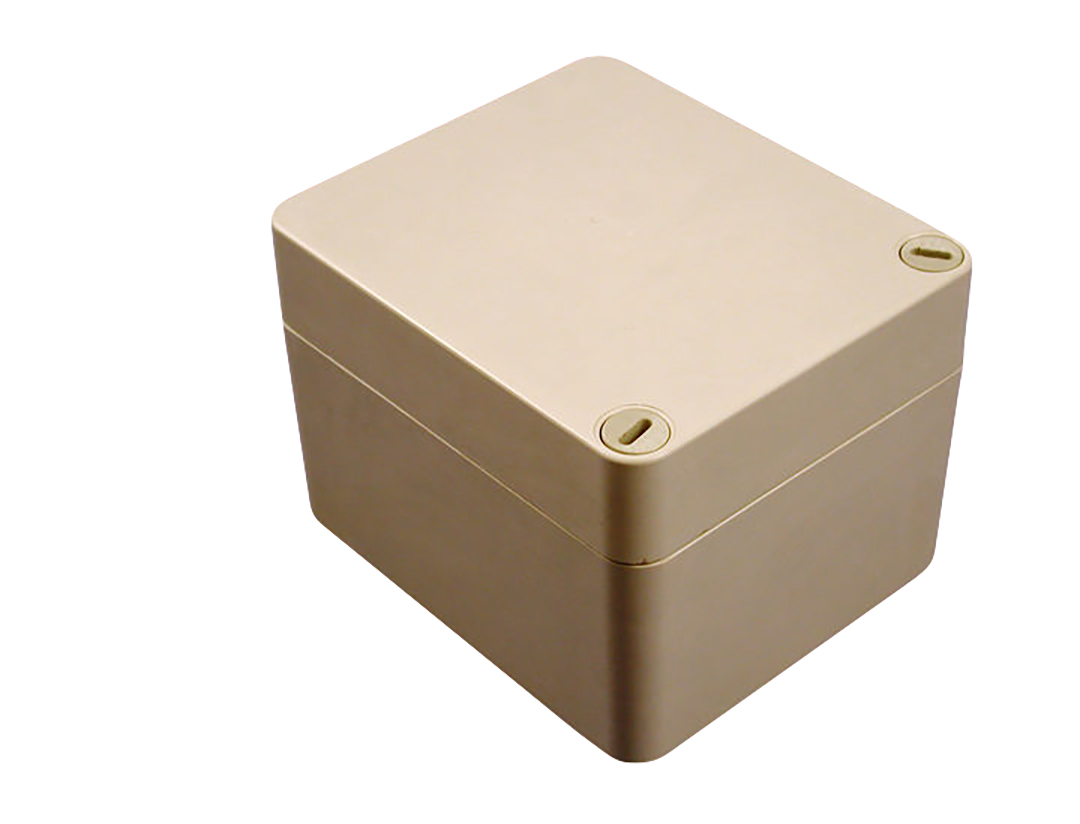

Water-Tight Polyester · R130-131-132 Series

Key Information:

• ■Designed for use as instrument enclosures, electrical junction boxes or terminal wiring enclosures.
• ■Provide outstanding protection against dust, oil and pressurized water.
• ■Impervious to atmospheric and marine corrosion.
• ■Two piece molded fiberglass reinforced polyester construction.
• ■Captive polyfiber cover screws are provided with a standard slot head.
• ■Cover screws fasten into pre-threaded holes.
• ■The threaded cover screw holes also provide single channel access to rear mounting positions.
• ■Recessed neoprene gasket with tongue and groove construction is oil and petroleum resistant.
• ■Threaded stainless steel inserts provide for internal mounting.
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
• ■Light beige RAL 7032, Pantone 413
• ■Spring loaded stainless steel hinge pins are standard, allowing for quick lid removal . (R130 & R131 Series only)
• ■NEMA Type 1, 2, 3, 3R, 4, 4X, 5, 12 and 13
• ■IEC 529, IP66
• ■V0 Flammability Rating
• ■CSA certified, Type 4, for use with industrial control equipment

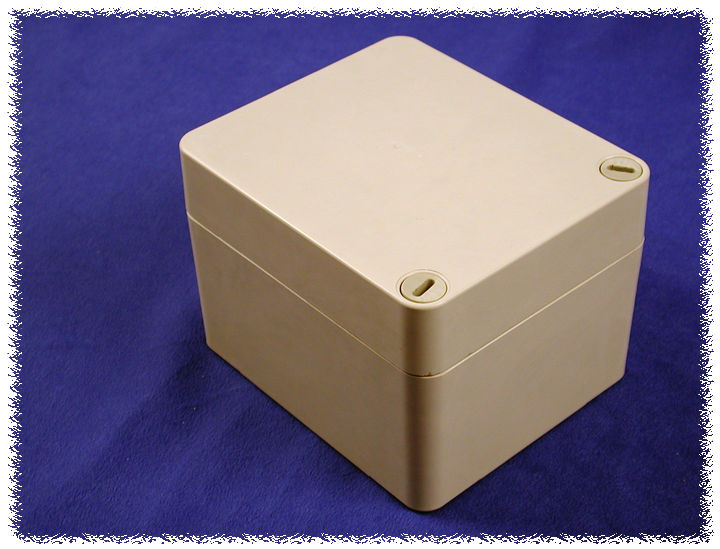

Photo Features

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

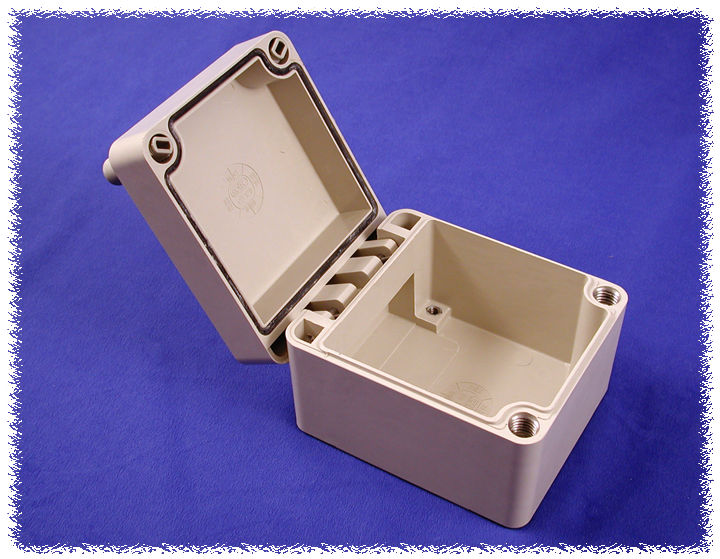

• ■Captive screws made of strong polyamide, corrosion free.
• ■Oil resistant CR gasket.
• ■Easily removable stainless steel hinge pin.
• ■Four stainless steel M6 inserts in bottom of enclosure (screws not included).
• ■Single channel lid and enclosure fastening access - for maximum internal space (ie, lid mounting hole doubles as the access to the bottom hole to mount enclosure to the wall). Outside the gasket seal and includes stainless steel inserts.
