USB 35 X 20 X 15.5MM ABS Black
- Color Black
- Color Black
$1.44In stock
Buy now
ABS Plastic Miniature USB Enclosures · 1551USB Series
Brand: Hammond Manufacturing · 15 part numbers
For Use With USB A Type Connectors
- ■Ideally suited for dongles and mounting small printed circuit boards with male USB-A connectors.
- ■Molded in ABS plastic with a UL94-HB flammability rating.

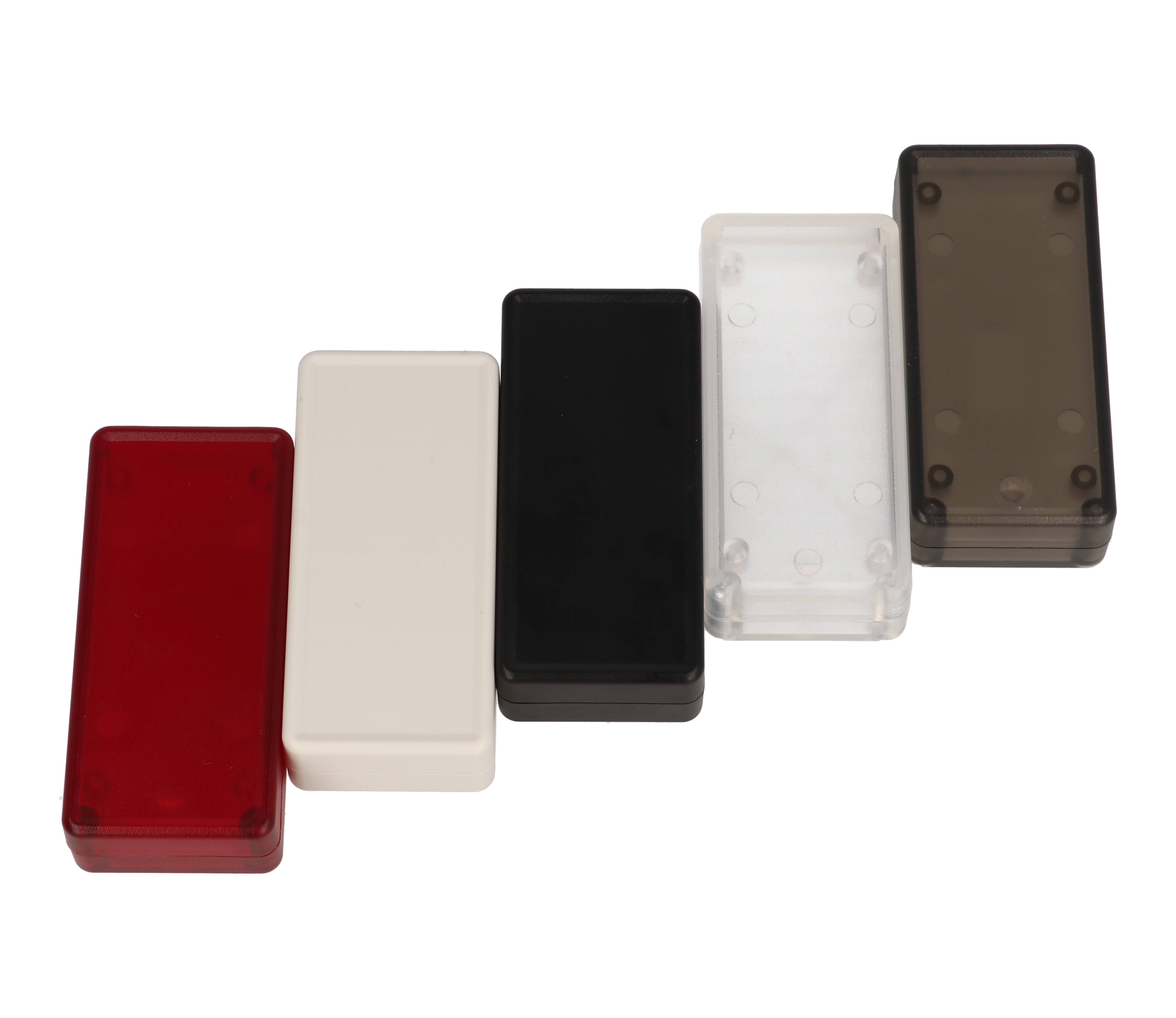

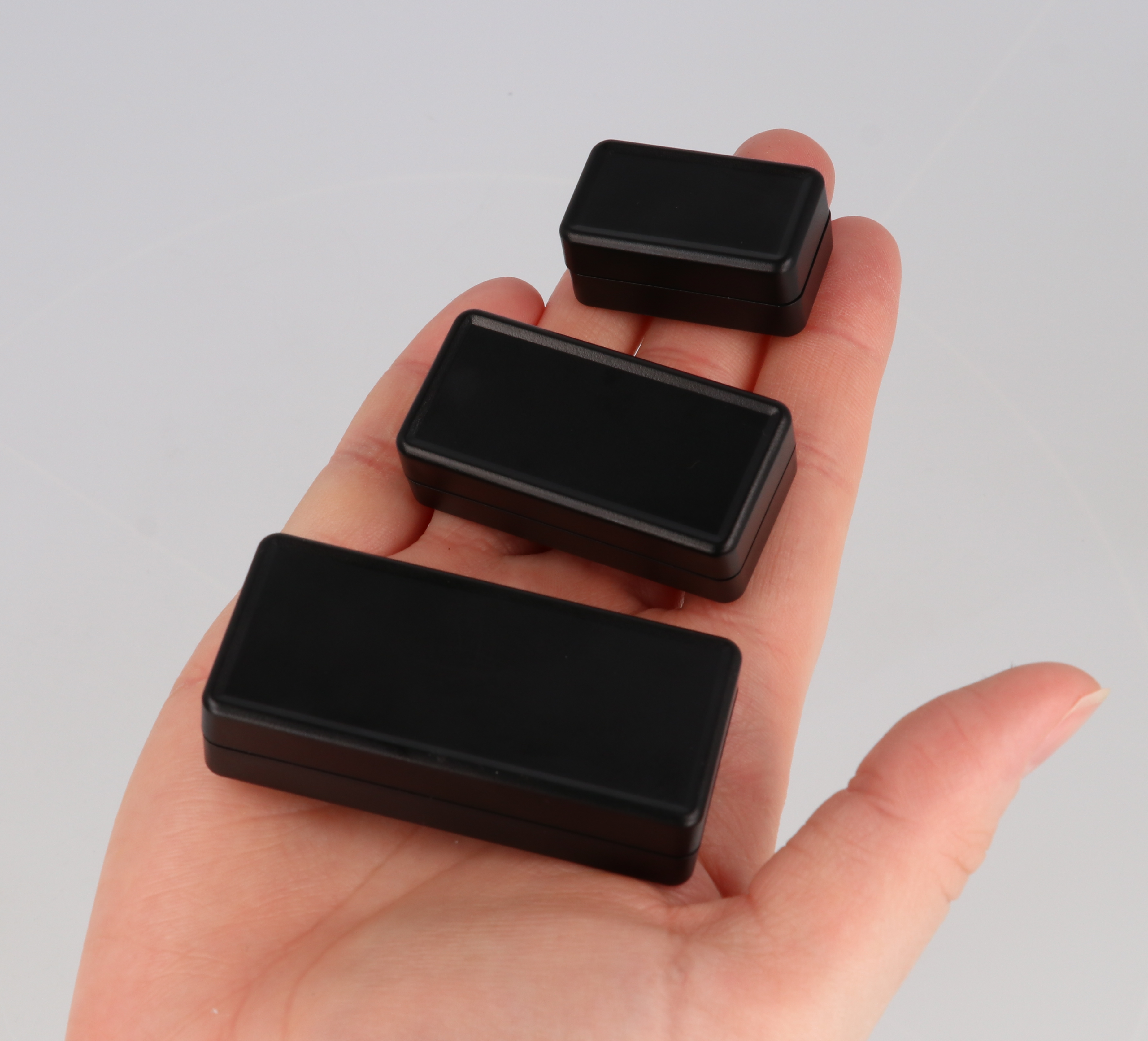

- ■Choice of three sizes in five colors: black, light grey, translucent clear, translucent smoke, and translucent red.
- ■Satin texture finish.
- ■Cover is recessed for easy label installation.

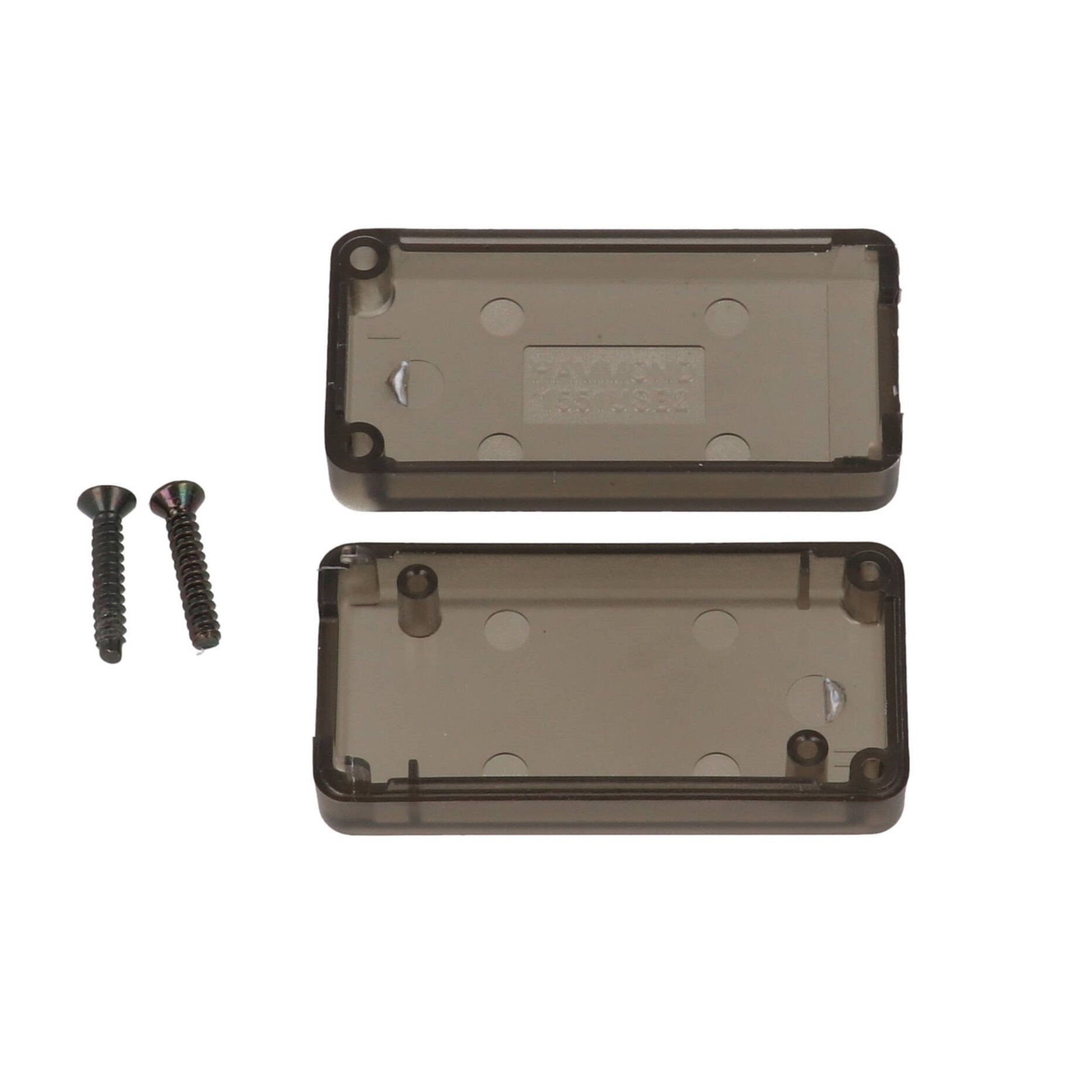

- ■Complete with lid and two self-tapping screws. Silver screws are provided with grey and clear boxes, and black screws are provided for black, smoke, and red boxes.
from $1.44
15 of 15 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1551USB Series part number
Filter 15 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
15 of 15 part numbers · 15 priced online
USB 35 X 20 X 15.5MM ABS Clear
- Color Trans. Clear
- Color TransClear
$1.60In stock
Buy now
USB 35 X 20 X 15.5MM ABS Grey
- Color Light Gray
- Color Grey
$1.44In stock
Buy now
USB 35 X 20 X 15.5MM Trans Red
- Color Trans. Red
- Color TransRed
$1.60In stock
Buy now
USB 35 X 20 X 15.5MM Trans Smk
- Color Trans. Smoke
- Color TransSmoke
$1.60In stock
Buy now
USB 50 X 25 X 15.5MM ABS Black
- Color Black
- Color Black
$1.60In stock
Buy now
USB 50 X 25 X 15.5MM ABS Clear
- Color Trans. Clear
- Color TransClear
$1.77In stock
Buy now
USB 50 X 25 X 15.5MM ABS Grey
- Color Light Gray
- Color Grey
$1.60In stock
Buy now
USB 50 X 25 X 15.5MM Trans Red
- Color Trans. Red
- Color TransRed
$1.77In stock
Buy now
USB 50 X 25 X 15.5MM Trans Smk
- Color Trans. Smoke
- Color TransSmoke
$1.77In stock
Buy now
USB 65 X 30 X 15.5MM ABS Black
- Color Black
- Color Black
$1.77In stock
Buy now
USB 65 X 30 X 15.5MM ABS Clear
- Color Trans. Clear
- Color TransClear
$1.91In stock
Buy now
USB 65 X 30 X 15.5MM ABS Grey
- Color Light Gray
- Color Grey
$1.77In stock
Buy now
USB 65 X 30 X 15.5MM Trans Red
- Color Trans. Red
- Color TransRed
$1.91In stock
Buy now
USB 65 X 30 X 15.5MM Trans Smk
- Color Trans. Smoke
- Color TransSmoke
$1.91In stock
Buy nowDimension tables (inches / mm)
Part Numbers
Units shown: mm . Switch units to: inch
| Part Number | Color | Length | Width | Depth | Price | Order |
|---|---|---|---|---|---|---|
| 1551USB1BK | Black | 1.38 | 0.79 | 0.63 | $1.44In stock | Buy now |
| 1551USB1GY | Grey | 1.38 | 0.79 | 0.63 | $1.44In stock | Buy now |
| 1551USB1CLR | TransClear | 1.38 | 0.79 | 0.63 | $1.60In stock | Buy now |
| 1551USB1TSK | TransSmoke | 1.38 | 0.79 | 0.63 | $1.60In stock | Buy now |
| 1551USB1TRD | TransRed | 1.38 | 0.79 | 0.63 | $1.60In stock | Buy now |
| 1551USB2BK | Black | 1.97 | 0.98 | 0.63 | $1.60In stock | Buy now |
| 1551USB2GY | Grey | 1.97 | 0.98 | 0.63 | $1.60In stock | Buy now |
| 1551USB2CLR | TransClear | 1.97 | 0.98 | 0.63 | $1.77In stock | Buy now |
| 1551USB2TSK | TransSmoke | 1.97 | 0.98 | 0.63 | $1.77In stock | Buy now |
| 1551USB2TRD | TransRed | 1.97 | 0.98 | 0.63 | $1.77In stock | Buy now |
| 1551USB3BK | Black | 2.56 | 1.18 | 0.63 | $1.77In stock | Buy now |
| 1551USB3GY | Grey | 2.56 | 1.18 | 0.63 | $1.77In stock | Buy now |
| 1551USB3CLR | TransClear | 2.56 | 1.18 | 0.63 | $1.91In stock | Buy now |
| 1551USB3TSK | TransSmoke | 2.56 | 1.18 | 0.63 | $1.91In stock | Buy now |
| 1551USB3TRD | TransRed | 2.56 | 1.18 | 0.63 | $1.91In stock | Buy now |
Key Features:
- ■Ideally suited for dongles and mounting small printed circuit boards with male USB-A connectors.
- ■Molded in ABS plastic with a UL94-HB flammability rating.
- ■Choice of three sizes in five colors: black, light grey, translucent clear, translucent smoke, and translucent red.
- ■Satin texture finish.
- ■Cover is recessed for easy label installation.
- ■Complete with lid and two self-tapping screws. Silver screws are provided with grey and clear boxes, and black screws are provided for black, smoke, and red boxes.
- ■Two or four standoffs, depending on size, are molded into interior for board mounting.
- ■Designed to meet IP51.
- ■USB connector is not included.
- ■For these same sizes without a USB cutout, see our 1551MINI series.
- ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
Notes:
- ■Self-tapping lid screws are #2 x 1/2". For extra screws, order 1551USB50 (silver, pack of 50) or 1551USB50BK (black, pack of 50).
- ■Standoffs for PCB mounting are sized for #2 x 3/16" screws, not included with enclosure. Order part number 1553WTS100 (pack of 100).
Documents
Additional information
Part Numbers
| Part Number | Color | Length | Width | Depth |
|---|---|---|---|---|
| 1551USB1BK | Black | 35 | 20 | 16 |
| 1551USB1GY | Grey | 35 | 20 | 16 |
| 1551USB1CLR | TransClear | 35 | 20 | 16 |
| 1551USB1TSK | TransSmoke | 35 | 20 | 16 |
| 1551USB1TRD | TransRed | 35 | 20 | 16 |
| 1551USB2BK | Black | 50 | 25 | 16 |
| 1551USB2GY | Grey | 50 | 25 | 16 |
| 1551USB2CLR | TransClear | 50 | 25 | 16 |
| 1551USB2TSK | TransSmoke | 50 | 25 | 16 |
| 1551USB2TRD | TransRed | 50 | 25 | 16 |
| 1551USB3BK | Black | 65 | 30 | 16 |
| 1551USB3GY | Grey | 65 | 30 | 16 |
| 1551USB3CLR | TransClear | 65 | 30 | 16 |
| 1551USB3TSK | TransSmoke | 65 | 30 | 16 |
| 1551USB3TRD | TransRed | 65 | 30 | 16 |
