Panel/Case
- Slope 15 Degrees
- Rear Surface Mater Steel
$28.96In stock
Buy now

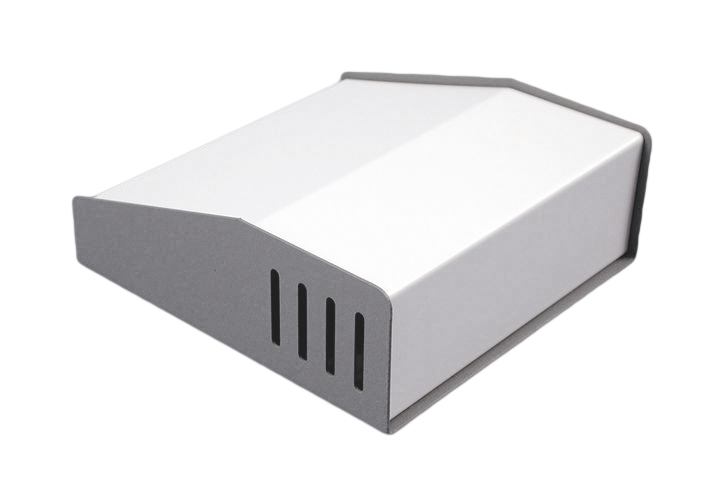

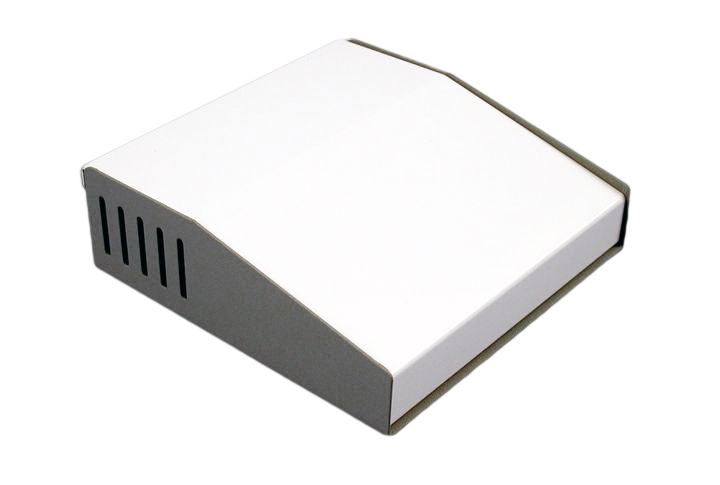

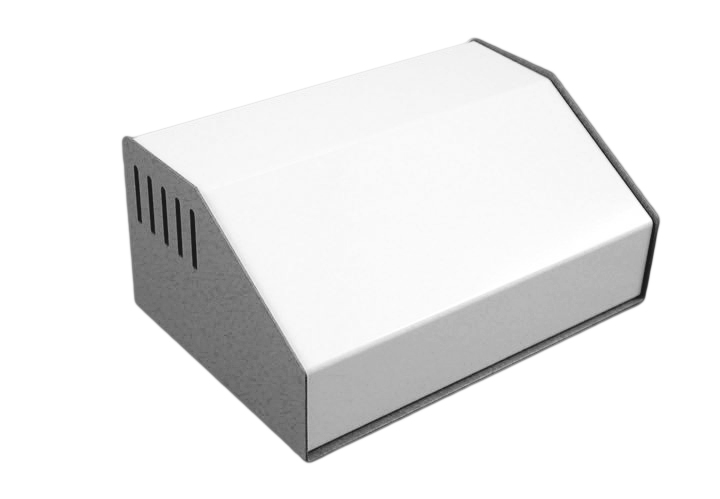

Sloped Aluminum & Steel Consoles · 500-515-519 Series
Brand: Hammond Manufacturing · 10 part numbers
w/ Side Ventilation
- ■18 ga. steel base for extra strength
- ■Easy to machine - aluminum top panels are 0.064” thick aluminum.

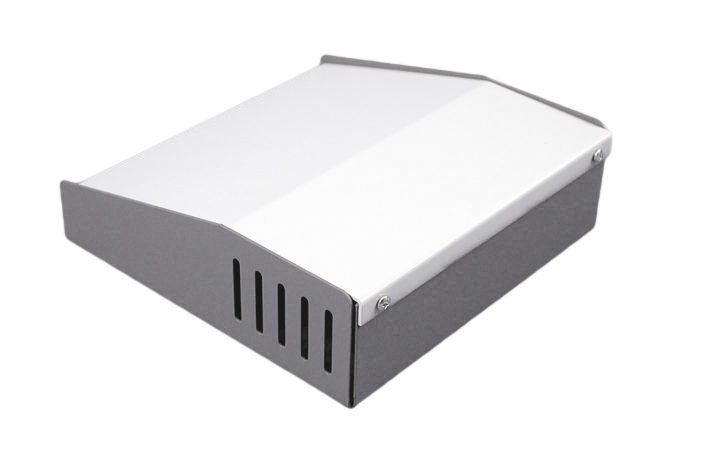

- ■Sides include vertical rows of ventilation

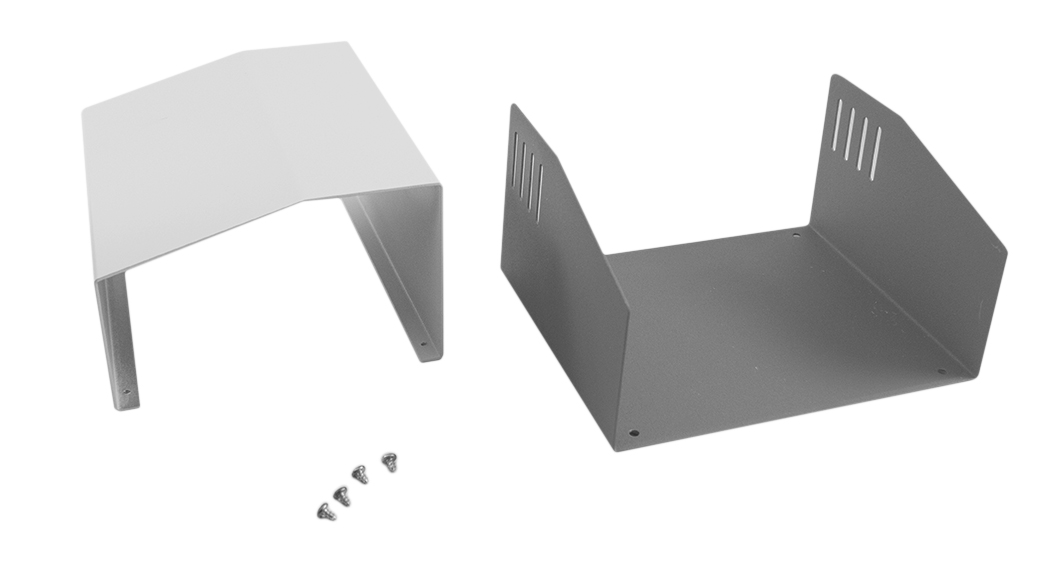

- ■Sold pre-assembled with a two tone grey powder paint finish (base is dark satin gray, slope top is smooth light grey).
- ■Comes with four self adhesive rubber feet and required hardware.
- ■Replacement screws SC19482-50 (Pkg. of 50, Philips head - #6 X 1/4” self tapping screws).
from $24.02
10 of 10 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 500-515-519 Series part number
Filter 10 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
10 of 10 part numbers · 10 priced online
Panel/Case
- Slope 15 Degrees
- Rear Surface Mater Steel
$29.57In stock
Buy now
Panel/Case
- Slope 15 Degrees
- Rear Surface Mater Steel
$35.74In stock
Buy now
Panel/Case
- Slope 15 Degrees
- Rear Surface Mater Aluminum
$24.02In stock
Buy now
Panel/Case
- Slope 15 Degrees
- Rear Surface Mater Aluminum
$26.49In stock
Buy now
Panel/Case
- Slope 15 Degrees
- Rear Surface Mater Aluminum
$27.10In stock
Buy now
Panel/Case
- Slope 15 Degrees
- Rear Surface Mater Aluminum
$28.33In stock
Buy now
Panel/Case
- Slope 15 Degrees
- Rear Surface Mater Aluminum
$34.62In stock
Buy now
Panel/Case
- Slope 30 Degrees
- Rear Surface Mater Aluminum
$30.82In stock
Buy now
Panel/Case
- Slope 30 Degrees
- Rear Surface Mater Aluminum
$36.93In stock
Buy nowDimension tables (inches / mm)
Enclosures
Units shown: inch . Switch units to: mm
| Part Number | Width | Depth | Rear Height | Front Height | Slope | Rear Surface Material | Price | Order |
|---|---|---|---|---|---|---|---|---|

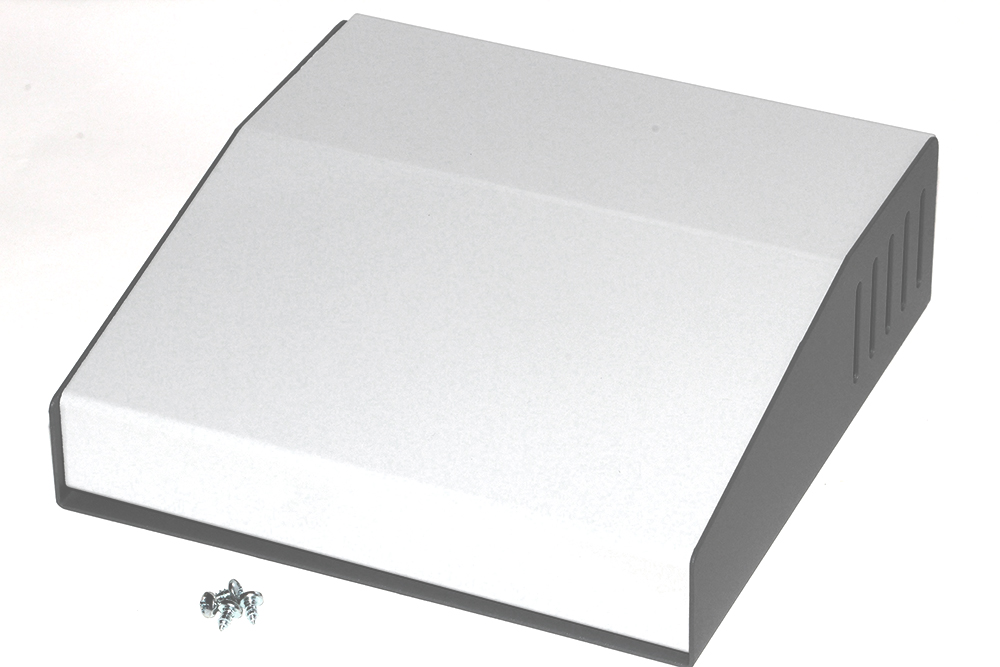

| 500-0930 | 7.00 | 7.00 | 2.13 | 1.20 | 15 Degrees | Steel | $28.96In stock | Buy now |

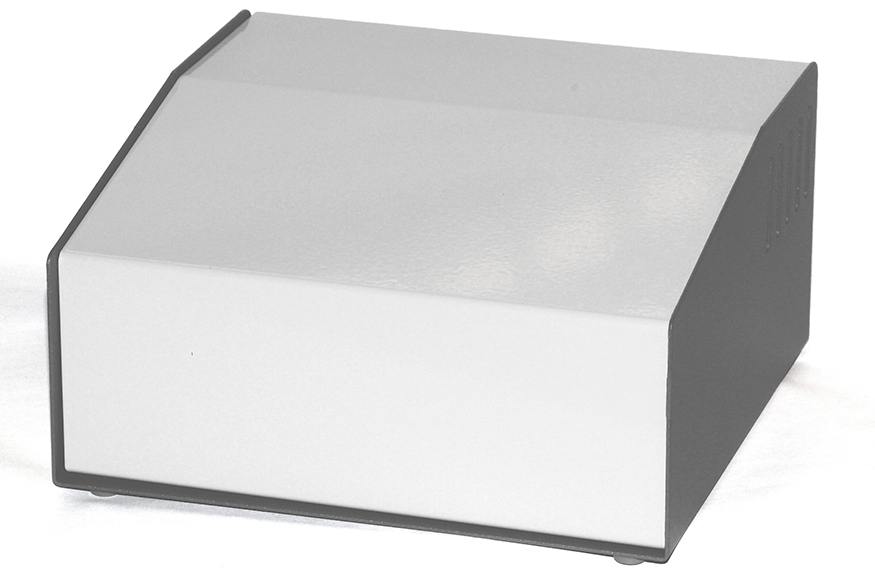

| 500-0940 | 7.60 | 7.00 | 3.78 | 2.86 | 15 Degrees | Steel | $29.57In stock | Buy now |

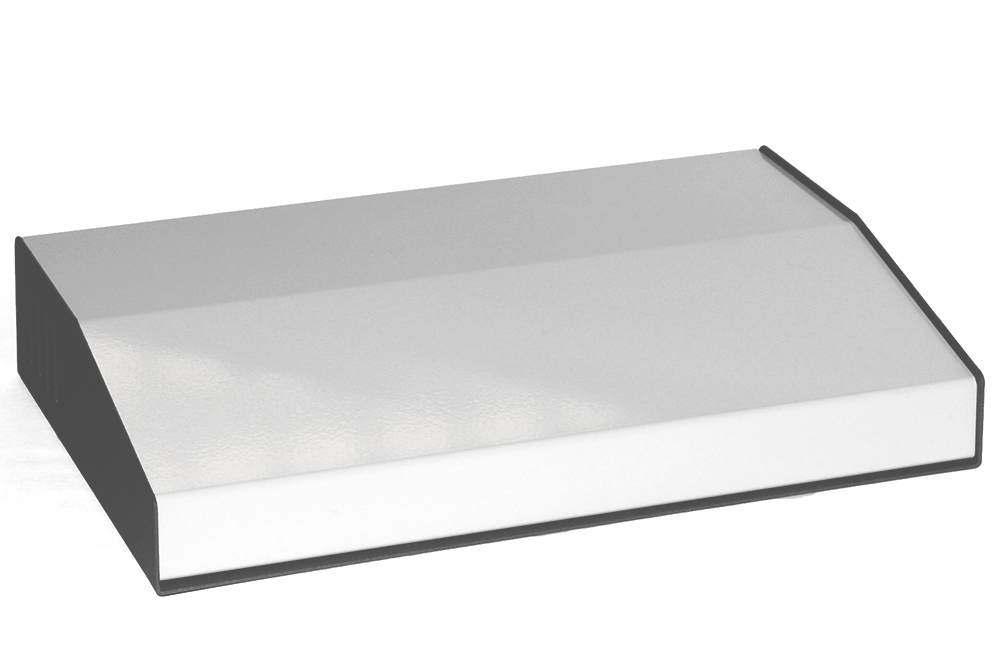

| 500-0950 | 11.70 | 7.83 | 2.13 | 1.20 | 15 Degrees | Steel | $35.74In stock | Buy now |

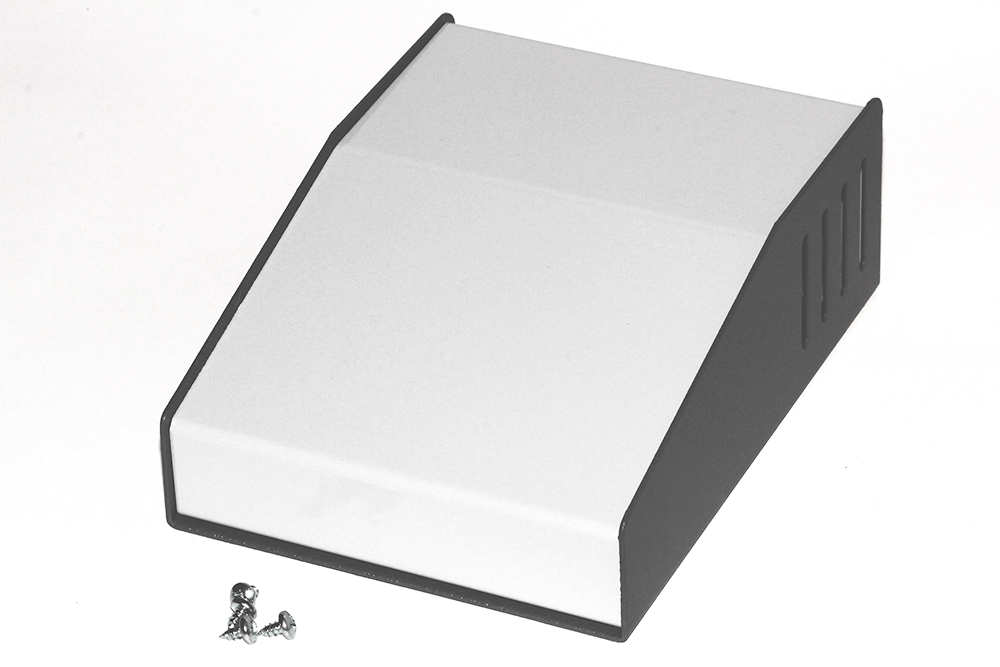

| 515-0910 | 4.50 | 6.00 | 2.13 | 1.13 | 15 Degrees | Aluminum | $24.02In stock | Buy now |

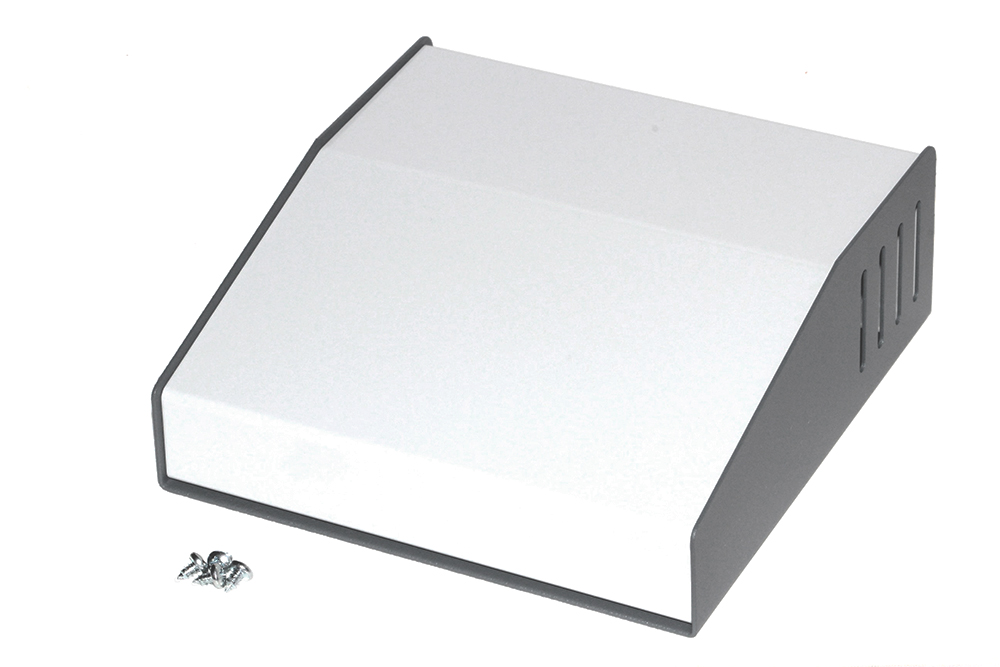

| 515-0920 | 6.00 | 6.00 | 2.13 | 1.13 | 15 Degrees | Aluminum | $26.49In stock | Buy now |

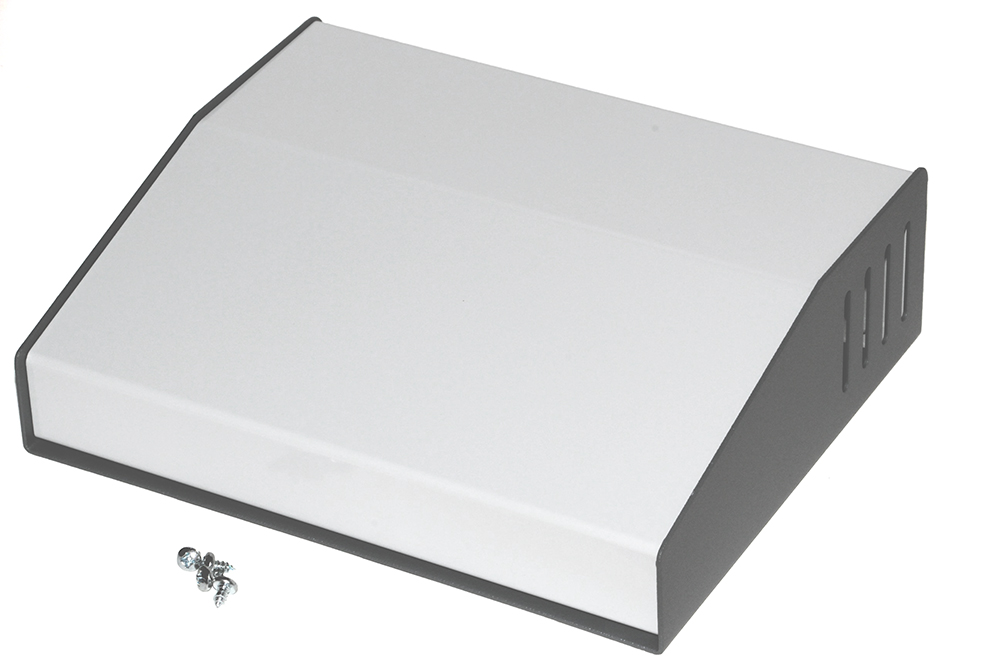

| 515-0930 | 7.40 | 6.00 | 2.13 | 1.13 | 15 Degrees | Aluminum | $27.10In stock | Buy now |

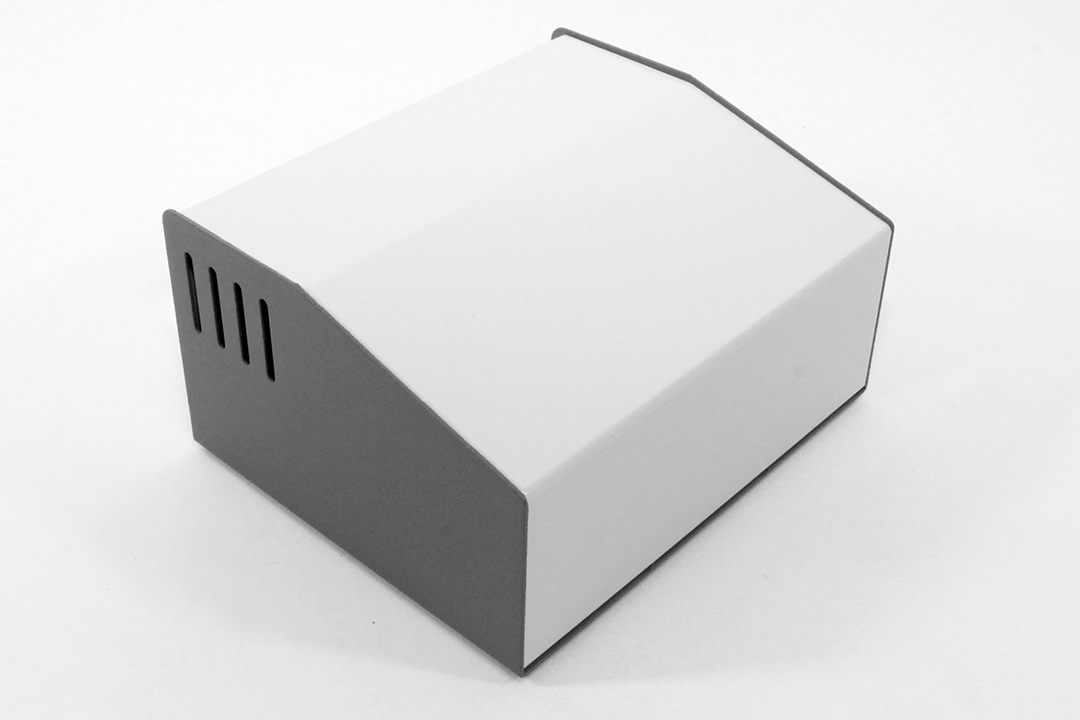

| 515-0940 | 7.40 | 6.00 | 3.78 | 2.78 | 15 Degrees | Aluminum | $28.33In stock | Buy now |

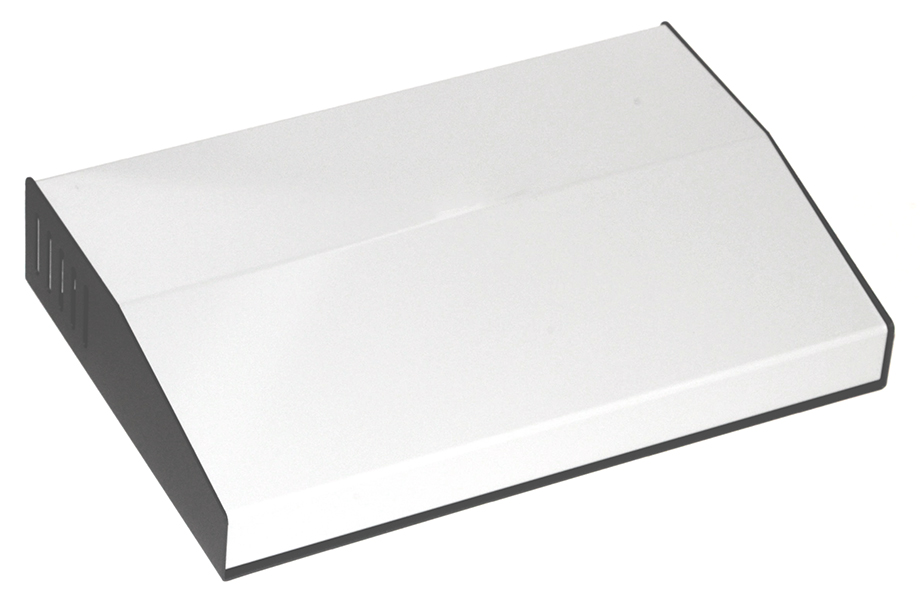

| 515-0950 | 11.70 | 7.70 | 2.13 | 1.20 | 15 Degrees | Aluminum | $34.62In stock | Buy now |

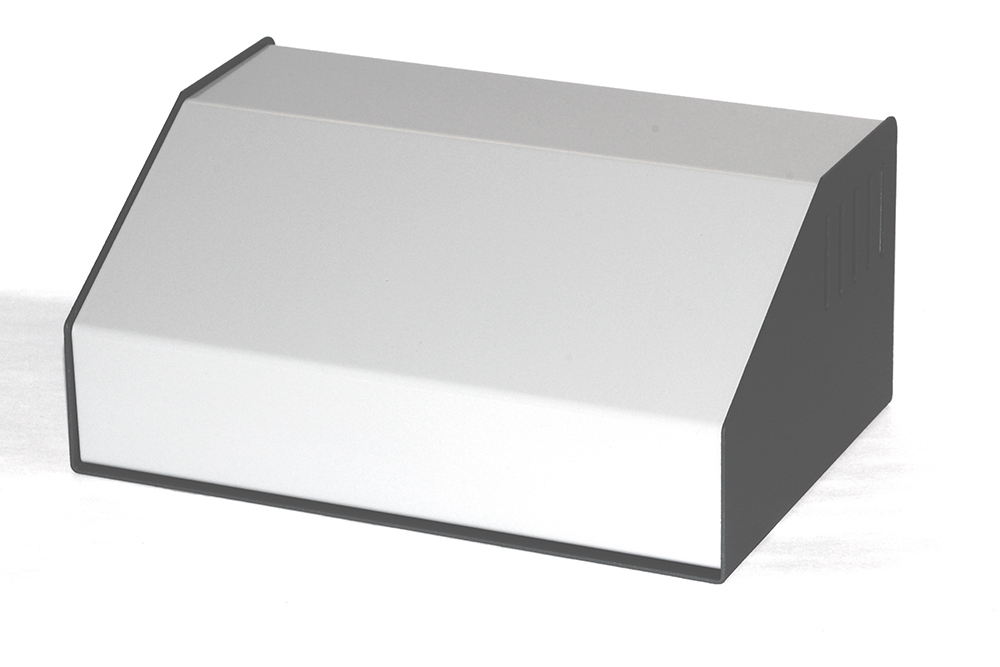

| 519-0910 | 8.50 | 5.70 | 3.78 | 1.86 | 30 Degrees | Aluminum | $30.82In stock | Buy now |

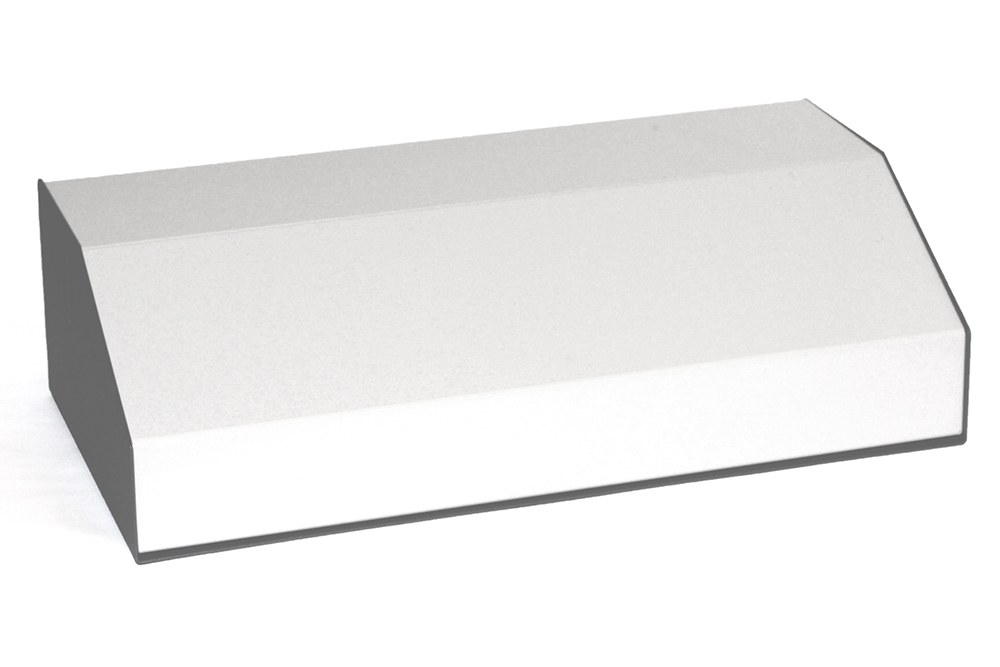

| 519-0920 | 13.70 | 6.90 | 3.78 | 1.86 | 30 Degrees | Aluminum | $36.93In stock | Buy now |
Key Features:
- ■18 ga. steel base for extra strength
- ■Easy to machine - aluminum top panels are 0.064” thick aluminum.
- ■Sides include vertical rows of ventilation
- ■Sold pre-assembled with a two tone grey powder paint finish (base is dark satin gray, slope top is smooth light grey).
- ■Comes with four self adhesive rubber feet and required hardware.
- ■Replacement screws SC19482-50 (Pkg. of 50, Philips head - #6 X 1/4” self tapping screws).
