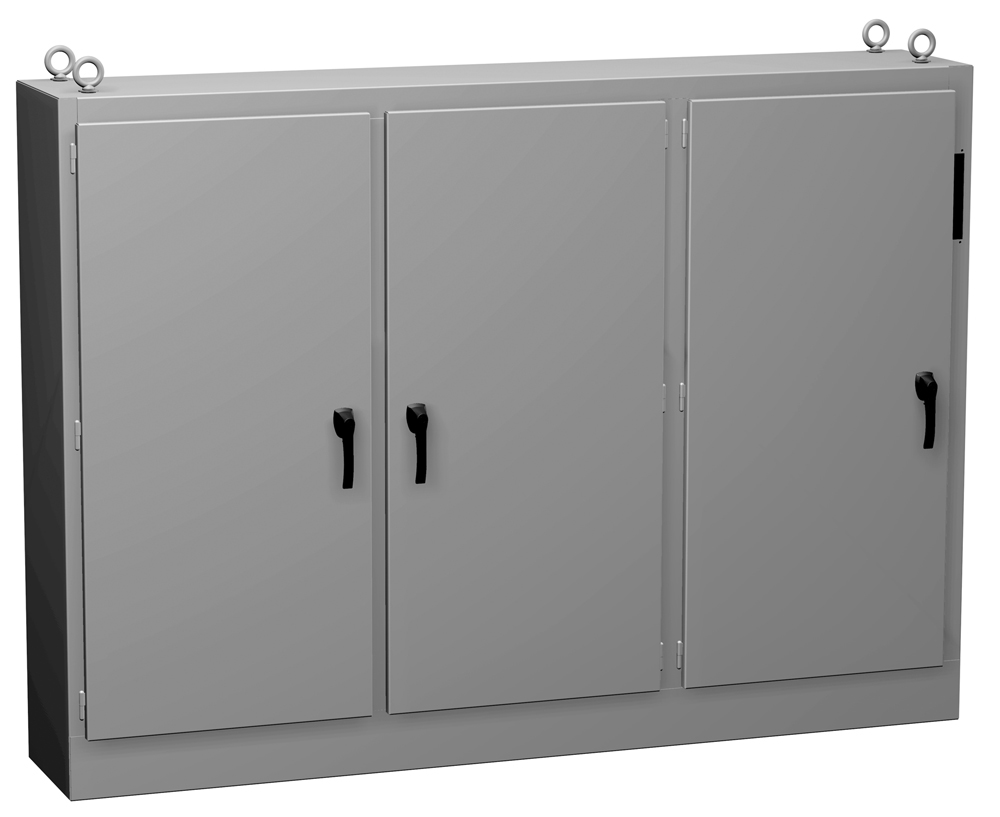

Type 4/12 Mild Steel Multi-Door Freestanding Disconnect Enclosure · UHD Series
Brand: Hammond Manufacturing · 24 part numbers
Hinge Door with Handle (Flange w/ multi-vendor cutout)
- ■ABB Controls flange mounted variable depth operating mechanisms for disconnect switches and circuit breakers.
- ■Allen Bradley 1494V and 1494U variable depth flange mounted disconnect switches and circuit breaker mechanisms.
- ■C-H Westinghouse type C361 disconnect switches and operator mechanism. Cutler Hammer Type C371 circuit breaker operating mechanisms. Flex-Shaft™ handle operators for circuit breakers.
- ■General Electric type STDA flange handles and variable depth operating mechanisms for disconnect switches and circuit breakers. Also Spectra-Flex™ cable operators for circuit breakers.
- ■Siemens I-T-E Max-Flex™ flange mounted variable depth operating handles for disconnect switches and circuit breakers.
- ■Square D disconnect switches and circuit breakers used with Class 9422 flange mounted variable depth operating mechanisms or cable mechanisms. These enclosures will not receive Class 9422 bracket mounted disconnect devices or class 9422TG1 or TG2 devices.
from $2,637.67
24 of 24 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your UHD Series part number
Filter 24 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
24 of 24 part numbers · 24 priced online
Single Dr. Safety Encl. Ftc
$2,923.24Backorder
Buy nowSingle Dr. Safety Encl. Ftc
$3,207.24Backorder
Buy nowSingle Dr. Safety Encl. Ftc
$3,563.43In stock
Buy nowSingle Dr. Safety Enclosure, Ftc
$3,740.33In stock
Buy nowSingle Dr. Safety Enclosure, Ftc
$3,591.19In stock
Buy nowSingle Dr. Safety Encl. Ftc
$3,968.00Backorder
Buy nowSingle Dr. Safety Encl. Ftc
$4,201.22Backorder
Buy now2UHDFTC - Assembly
$4,621.66Backorder
Buy now2UHDFTC - Assembly
$5,206.31Backorder
Buy now2UHDFTC - Assembly
$5,786.99Backorder
Buy now2UHDFTC - Assembly
$6,380.36Backorder
Buy now2UHDFTC - Assembly
$6,423.21Backorder
Buy now2UHDFTC - Assembly
$6,585.83In stock
Buy now2UHDFTC - Assembly
$6,482.71Backorder
Buy now2UHDFTC - Assembly
$7,095.11Backorder
Buy now2UHDFTC - Assembly
$7,407.66Backorder
Buy now3UHDFTC - Assembly
$7,381.50Backorder
Buy now3UHDFTC - Assembly
$8,315.19Backorder
Buy now3UHDFTC - Assembly
$8,970.43Backorder
Buy now3UHDFTC - Assembly
$9,273.47Backorder
Buy now3UHDFTC - Assembly
$10,363.44Backorder
Buy now4UHDFTC - Assembly
$11,682.67Backorder
Buy now4UHDFTC - Assembly
$12,099.93Backorder
Buy nowDimension tables (inches / mm)
Single Door
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|
| 1UHD722918FTC | 72.13 | 28.75 | 18.13 | 60.00 | 21.75 | $2,637.67Backorder | Buy now |
| 1UHD723518FTC | 72.13 | 34.75 | 18.13 | 60.00 | 27.75 | $2,923.24Backorder | Buy now |
| 1UHD724118FTC | 72.13 | 40.75 | 18.13 | 60.00 | 33.75 | $3,207.24Backorder | Buy now |
| 1UHD844118FTC | 84.13 | 40.75 | 18.13 | 72.00 | 33.75 | $3,563.43In stock | Buy now |
| 1UHD844124FTC | 84.13 | 40.75 | 24.13 | 72.00 | 33.75 | $3,740.33In stock | Buy now |
| 1UHD904118FTC | 90.13 | 40.75 | 18.13 | 78.00 | 33.75 | $3,591.19In stock | Buy now |
| 1UHD904120FTC | 90.13 | 40.75 | 20.13 | 78.00 | 33.75 | $3,968.00Backorder | Buy now |
| 1UHD904124FTC | 90.13 | 40.75 | 24.13 | 78.00 | 33.75 | $4,201.22Backorder | Buy now |
2 Door
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|
| 2UHD725518FTC | 72.13 | 55.00 | 18.13 | 60.00 | 48.00 | $4,621.66Backorder | Buy now |
| 2UHD726718FTC | 72.13 | 67.00 | 18.13 | 60.00 | 60.00 | $5,206.31Backorder | Buy now |
| 2UHD727918FTC | 72.13 | 79.00 | 18.13 | 60.00 | 72.00 | $5,786.99Backorder | Buy now |
| 2UHD727924FTC | 72.13 | 79.00 | 24.13 | 60.00 | 72.00 | $6,380.36Backorder | Buy now |
| 2UHD847918FTC | 84.13 | 79.00 | 18.13 | 72.00 | 72.00 | $6,423.21Backorder | Buy now |
| 2UHD847924FTC | 84.13 | 79.00 | 24.13 | 72.00 | 72.00 | $6,585.83In stock | Buy now |
| 2UHD907918FTC | 90.13 | 79.00 | 18.13 | 78.00 | 72.00 | $6,482.71Backorder | Buy now |
| 2UHD907920FTC | 90.13 | 79.00 | 20.13 | 78.00 | 72.00 | $7,095.11Backorder | Buy now |
| 2UHD907924FTC | 90.13 | 79.00 | 24.13 | 78.00 | 72.00 | $7,407.66Backorder | Buy now |
3 Door
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panels · H | Inner Panels · W1 | Inner Panels · W2 | Price | Order |
|---|---|---|---|---|---|---|---|---|
| 3UHD7210118FTC | 72.13 | 100.25 | 18.13 | 60.00 | 27.75 | 60.00 | $7,381.50Backorder | Buy now |
| 3UHD7211918FTC | 72.13 | 118.25 | 18.13 | 60.00 | 33.75 | 72.00 | $8,315.19Backorder | Buy now |
| 3UHD8411918FTC | 84.13 | 118.25 | 18.13 | 72.00 | 33.75 | 72.00 | $8,970.43Backorder | Buy now |
| 3UHD8411924FTC | 84.13 | 118.25 | 24.13 | 72.00 | 33.75 | 72.00 | $9,273.47Backorder | Buy now |
| 3UHD9011924FTC | 90.13 | 118.25 | 24.13 | 78.00 | 33.75 | 72.00 | $10,363.44Backorder | Buy now |
4 Door
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panels · H | Inner Panels · W1 | Inner Panels · W2 | Price | Order |
|---|---|---|---|---|---|---|---|---|
| 4UHD8415718FTC | 84.13 | 156.50 | 18.13 | 72.00 | 72.00 | 72.00 | $11,682.67Backorder | Buy now |
| 4UHD9015718FTC | 90.13 | 156.50 | 18.13 | 78.00 | 72.00 | 72.00 | $12,099.93Backorder | Buy now |
Application
- ■ABB Controls flange mounted variable depth operating mechanisms for disconnect switches and circuit breakers.
- ■Allen Bradley 1494V and 1494U variable depth flange mounted disconnect switches and circuit breaker mechanisms.
- ■C-H Westinghouse type C361 disconnect switches and operator mechanism. Cutler Hammer Type C371 circuit breaker operating mechanisms. Flex-Shaft™ handle operators for circuit breakers.
- ■General Electric type STDA flange handles and variable depth operating mechanisms for disconnect switches and circuit breakers. Also Spectra-Flex™ cable operators for circuit breakers.
- ■Siemens I-T-E Max-Flex™ flange mounted variable depth operating handles for disconnect switches and circuit breakers.
- ■Square D disconnect switches and circuit breakers used with Class 9422 flange mounted variable depth operating mechanisms or cable mechanisms. These enclosures will not receive Class 9422 bracket mounted disconnect devices or class 9422TG1 or TG2 devices.
- ■Refer to the Universal Heavy Duty Disconnect Selection Guide.
Standards
- ■UL 508A Type 12, 4
- ■CSA Type 12, 4
- ■Complies with NEMA Type 12, 4 IEC 60529, IP66
- ■NEMA Type 12, 4
- ■IEC 60529, IP66
- ■Appropriate components are required to maintain these standards.
Construction
- ■Formed from 10 gauge steel with smooth, continuously welded seams.
- ■Body stiffeners are provided in the larger enclosures for extra rigidity.
- ■Flange trough collar (FTC) around door opening excludes liquids and contaminants.
- ■Heavy duty lifting eyes are anchored into reinforced top corners.
- ■Removable doors are secured with heavy duty lift off hinges.
- ■Formed 10 gauge steel inner panels are provided on collar studs.
- ■Panel supports are provided.
- ■Center post is removable, providing easy panel installation.
- ■Heavy duty three point latching mechanism with heavy duty roller ends is provided for ease of door closing.
- ■Oil resistant gaskets are permanently secured.
- ■The right-hand door on all enclosures is the main door.
- ■Main door handle complete with screw defeater and padlock hasp.
- ■Secondary door handle complete with padlock hasp.
- ■A mechanical interlock activated by the main door prevents the auxiliary door from being opened first.
- ■The universal flange cutout provides mounting for disconnect operators by use of the appropriate operator adaptor kit.
- ■A provision for mounting fluorescent lighting is provided.
- ■A bonding stud is provided in the door and a grounding stud is provided in the enclosure for each door.
- ■A literature pocket is provided for the inside of the door.
Note:
- ■Disconnect switches, circuit breakers and operators are not provided with the enclosure, and must be ordered separately from the manufacturer.
Finish
- ■Cover and enclosure are phosphatized and finished in recoatable smooth ANSI 61 gray powder coating.
- ■Inner panel is finished in white powder coating.
Documents
Additional information
Single Door
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W |
|---|---|---|---|---|---|
| 1UHD722918FTC | 72.13 | 28.75 | 18.13 | 60.00 | 21.75 |
| 1UHD723518FTC | 72.13 | 34.75 | 18.13 | 60.00 | 27.75 |
| 1UHD724118FTC | 72.13 | 40.75 | 18.13 | 60.00 | 33.75 |
| 1UHD844118FTC | 84.13 | 40.75 | 18.13 | 72.00 | 33.75 |
| 1UHD844124FTC | 84.13 | 40.75 | 24.13 | 72.00 | 33.75 |
| 1UHD904118FTC | 90.13 | 40.75 | 18.13 | 78.00 | 33.75 |
| 1UHD904120FTC | 90.13 | 40.75 | 20.13 | 78.00 | 33.75 |
| 1UHD904124FTC | 90.13 | 40.75 | 24.13 | 78.00 | 33.75 |
2 Door
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W |
|---|---|---|---|---|---|
| 2UHD725518FTC | 72.13 | 55.00 | 18.13 | 60.00 | 48.00 |
| 2UHD726718FTC | 72.13 | 67.00 | 18.13 | 60.00 | 60.00 |
| 2UHD727918FTC | 72.13 | 79.00 | 18.13 | 60.00 | 72.00 |
| 2UHD727924FTC | 72.13 | 79.00 | 24.13 | 60.00 | 72.00 |
| 2UHD847918FTC | 84.13 | 79.00 | 18.13 | 72.00 | 72.00 |
| 2UHD847924FTC | 84.13 | 79.00 | 24.13 | 72.00 | 72.00 |
| 2UHD907918FTC | 90.13 | 79.00 | 18.13 | 78.00 | 72.00 |
| 2UHD907920FTC | 90.13 | 79.00 | 20.13 | 78.00 | 72.00 |
| 2UHD907924FTC | 90.13 | 79.00 | 24.13 | 78.00 | 72.00 |
3 Door
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panels · H | Inner Panels · W1 | Inner Panels · W2 |
|---|---|---|---|---|---|---|
| 3UHD7210118FTC | 72.13 | 100.25 | 18.13 | 60.00 | 27.75 | 60.00 |
| 3UHD7211918FTC | 72.13 | 118.25 | 18.13 | 60.00 | 33.75 | 72.00 |
| 3UHD8411918FTC | 84.13 | 118.25 | 18.13 | 72.00 | 33.75 | 72.00 |
| 3UHD8411924FTC | 84.13 | 118.25 | 24.13 | 72.00 | 33.75 | 72.00 |
| 3UHD9011924FTC | 90.13 | 118.25 | 24.13 | 78.00 | 33.75 | 72.00 |
4 Door
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panels · H | Inner Panels · W1 | Inner Panels · W2 |
|---|---|---|---|---|---|---|
| 4UHD8415718FTC | 84.13 | 156.50 | 18.13 | 72.00 | 72.00 | 72.00 |
| 4UHD9015718FTC | 90.13 | 156.50 | 18.13 | 78.00 | 72.00 | 72.00 |
