Surface Mounting Enclosure 10X8X4
$102.34In stock
Buy now

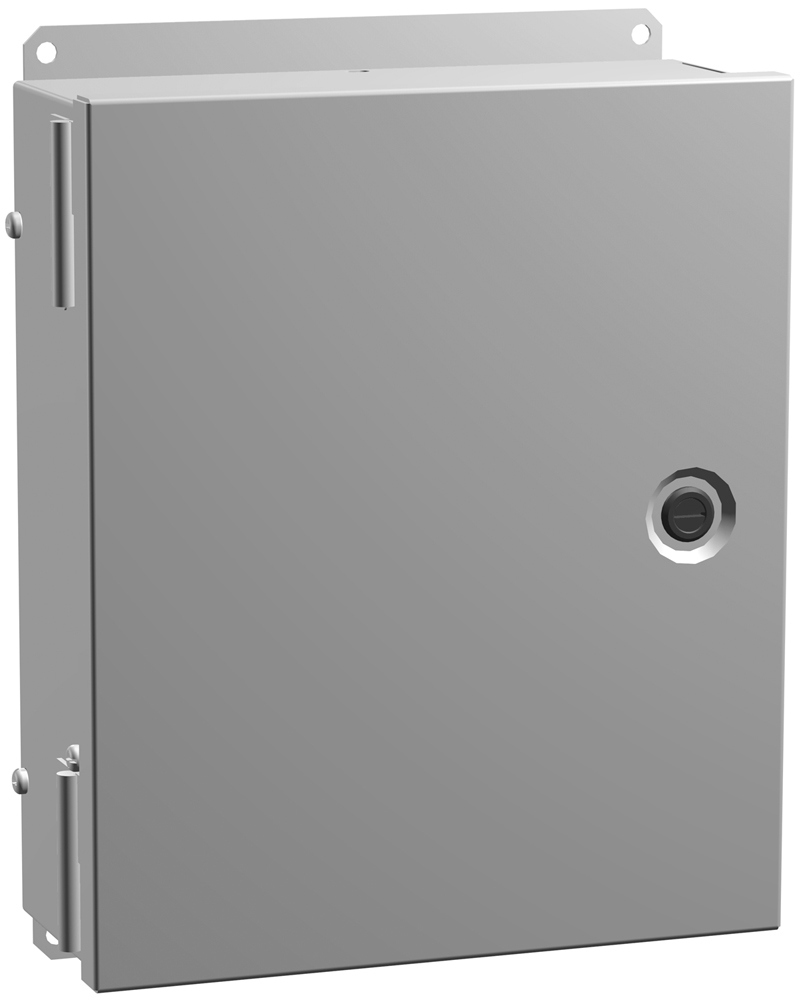

Type 1 Mild Steel 3 Piece Wallmount Enclosure · N1W S Series
Brand: Hammond Manufacturing · 18 part numbers
Hinge Door with Quarter Turn
- ■Designed for indoor use to enclose controls, instruments, and components which do not require oil-tight or dust-tight protection.
- ■Ideal for applications where components may be easily mounted and wired prior to installation of wrapper and door.
- ■UL 50 Type 1
- ■CSA Type 1
- ■Complies with NEMA Type 1 IEC 60529, IP20
- ■NEMA Type 1
from $87.86
18 of 18 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your N1W S Series part number
Filter 18 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
18 of 18 part numbers · 18 priced online
Surface Mounting Enclosure 10X8X6
$96.29In stock
Buy nowSurface Mounting Enclosure 10X8X8
$114.82In stock
Buy nowSurface Mounting Enclosure 12X10X4
$105.00In stock
Buy nowSurface Mounting Enclosure 12X10X6
$112.01In stock
Buy nowSurface Mounting Enclosure 12X10X8
$124.28In stock
Buy nowSurface Mounting Enclosure 16X12X4
$121.11In stock
Buy nowSurface Mounting Enclosure 16X12X6
$135.58In stock
Buy nowSurface Mounting Enclosure 16X12X8
$148.14In stock
Buy nowSurface Mounting Enclosure 20X16X4
$187.61In stock
Buy nowSurface Mounting Enclosure 20X16X6
$190.10In stock
Buy nowSurface Mounting Enclosure 20X16X8
$206.43In stock
Buy nowSurface Mounting Enclosure 24X20X4
$208.04In stock
Buy nowSurface Mounting Enclosure 24X20X6
$215.11In stock
Buy nowSurface Mounting Enclosure 24X20X8
$230.38In stock
Buy nowSurface Mounting Enclosure 8X6X4
$87.86In stock
Buy nowSurface Mounting Enclosure 8X6X6
$94.03In stock
Buy nowSurface Mounting Enclosure 8X6X8
$103.09In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|
| N1WS864 | 8.00 | 6.00 | 4.00 | $87.86In stock | Buy now |
| N1WS1084 | 10.00 | 8.00 | 4.00 | $102.34In stock | Buy now |
| N1WS12104 | 12.00 | 10.00 | 4.00 | $105.00In stock | Buy now |
| N1WS16124 | 16.00 | 12.00 | 4.00 | $121.11In stock | Buy now |
| N1WS20164 | 20.00 | 16.00 | 4.00 | $187.61In stock | Buy now |
| N1WS24204 | 24.00 | 20.00 | 4.00 | $208.04In stock | Buy now |
| N1WS866 | 8.00 | 6.00 | 6.00 | $94.03In stock | Buy now |
| N1WS1086 | 10.00 | 8.00 | 6.00 | $96.29In stock | Buy now |
| N1WS12106 | 12.00 | 10.00 | 6.00 | $112.01In stock | Buy now |
| N1WS16126 | 16.00 | 12.00 | 6.00 | $135.58In stock | Buy now |
| N1WS20166 | 20.00 | 16.00 | 6.00 | $190.10In stock | Buy now |
| N1WS24206 | 24.00 | 20.00 | 6.00 | $215.11In stock | Buy now |
| N1WS868 | 8.00 | 6.00 | 8.00 | $103.09In stock | Buy now |
| N1WS1088 | 10.00 | 8.00 | 8.00 | $114.82In stock | Buy now |
| N1WS12108 | 12.00 | 10.00 | 8.00 | $124.28In stock | Buy now |
| N1WS16128 | 16.00 | 12.00 | 8.00 | $148.14In stock | Buy now |
| N1WS20168 | 20.00 | 16.00 | 8.00 | $206.43In stock | Buy now |
| N1WS24208 | 24.00 | 20.00 | 8.00 | $230.38In stock | Buy now |
Application
- ■Designed for indoor use to enclose controls, instruments, and components which do not require oil-tight or dust-tight protection.
- ■Ideal for applications where components may be easily mounted and wired prior to installation of wrapper and door.
Standards
- ■UL 50 Type 1
- ■CSA Type 1
- ■Complies with NEMA Type 1 IEC 60529, IP20
- ■NEMA Type 1
- ■IEC 60529, IP20
Construction
- ■Three piece assembly consisting of a base, wrapper, and door.
- ■Components are attached and secured with metal screws.
- ■14 gauge reverse formed base acts as mounting surface (no separate inner panel) and provides clearance for mounting hardware.
- ■Wrapper is available in three depths: 4", 6", and 8".
- ■Wrapper is formed from 16 gauge steel, with no knock-outs in the sides.
- ■Door assembly formed from 16 gauge steel.
- ■Removable door is mounted on slip hinges.
- ■A bonding stud is provided on the door and a grounding screw is provided for the enclosure.
- ■Door is fastened with a slotted quarter turn latch.
Finish
- ■Base, wrapper and door are finished in ANSI 61 gray powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D |
|---|---|---|---|
| N1WS864 | 8.00 | 6.00 | 4.00 |
| N1WS1084 | 10.00 | 8.00 | 4.00 |
| N1WS12104 | 12.00 | 10.00 | 4.00 |
| N1WS16124 | 16.00 | 12.00 | 4.00 |
| N1WS20164 | 20.00 | 16.00 | 4.00 |
| N1WS24204 | 24.00 | 20.00 | 4.00 |
| N1WS866 | 8.00 | 6.00 | 6.00 |
| N1WS1086 | 10.00 | 8.00 | 6.00 |
| N1WS12106 | 12.00 | 10.00 | 6.00 |
| N1WS16126 | 16.00 | 12.00 | 6.00 |
| N1WS20166 | 20.00 | 16.00 | 6.00 |
| N1WS24206 | 24.00 | 20.00 | 6.00 |
| N1WS868 | 8.00 | 6.00 | 8.00 |
| N1WS1088 | 10.00 | 8.00 | 8.00 |
| N1WS12108 | 12.00 | 10.00 | 8.00 |
| N1WS16128 | 16.00 | 12.00 | 8.00 |
| N1WS20168 | 20.00 | 16.00 | 8.00 |
| N1WS24208 | 24.00 | 20.00 | 8.00 |
