NEMA 1 W/Panel 10X10X4
$70.22In stock
Buy now
Type 1 Mild Steel Small Wallmount Enclosure · N1J Series
Brand: Hammond Manufacturing · 18 part numbers
Hinge Door with Quarter Turn
- ■Designed for indoor use to house controls, instruments and components not requiring oil-tight or dust-tight protection.
- ■UL-50 Type 1
- ■CSA Type 1
- ■Complies with NEMA Type 1 IEC 60529, IP20
- ■NEMA Type 1
- ■IEC 60529, IP20
from $46.65
18 of 18 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your N1J Series part number
Filter 18 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
18 of 18 part numbers · 18 priced online
NEMA 1 W/Panel 10X10X6
$79.17In stock
Buy now
NEMA 1 W/Panel 10X8X4
$63.01In stock
Buy now
NEMA 1 W/Panel 10X8X6
$70.99In stock
Buy now
NEMA 1 W/Panel 12X10X4
$78.57In stock
Buy now
NEMA 1 W/Panel 12X10X6
$86.92In stock
Buy now
NEMA 1 W/Panel 12X12X4
$86.21In stock
Buy now
NEMA 1 W/Panel 12X12X6
$96.94In stock
Buy now
NEMA 1 W/Panel 12X12X8
$107.10In stock
Buy now
NEMA 1 W/Panel 14X12X4
$95.16Backorder
Buy now
NEMA 1 W/Panel 14X12X6
$105.90In stock
Buy now
NEMA 1 W/Panel 14X12X8
$116.63In stock
Buy now
NEMA 1 W/Panel 16X12X6
$114.49In stock
Buy now
NEMA 1 W/Panel 20X12X6
$132.33In stock
Buy now
NEMA 1 W/Panel 6X6X4
$46.65In stock
Buy now
NEMA 1 W/Panel 8X6X4
$51.25In stock
Buy now
NEMA 1 W/Panel 8X8X4
$57.10In stock
Buy now
NEMA 1 W/Panel 8X8X6
$63.60In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|

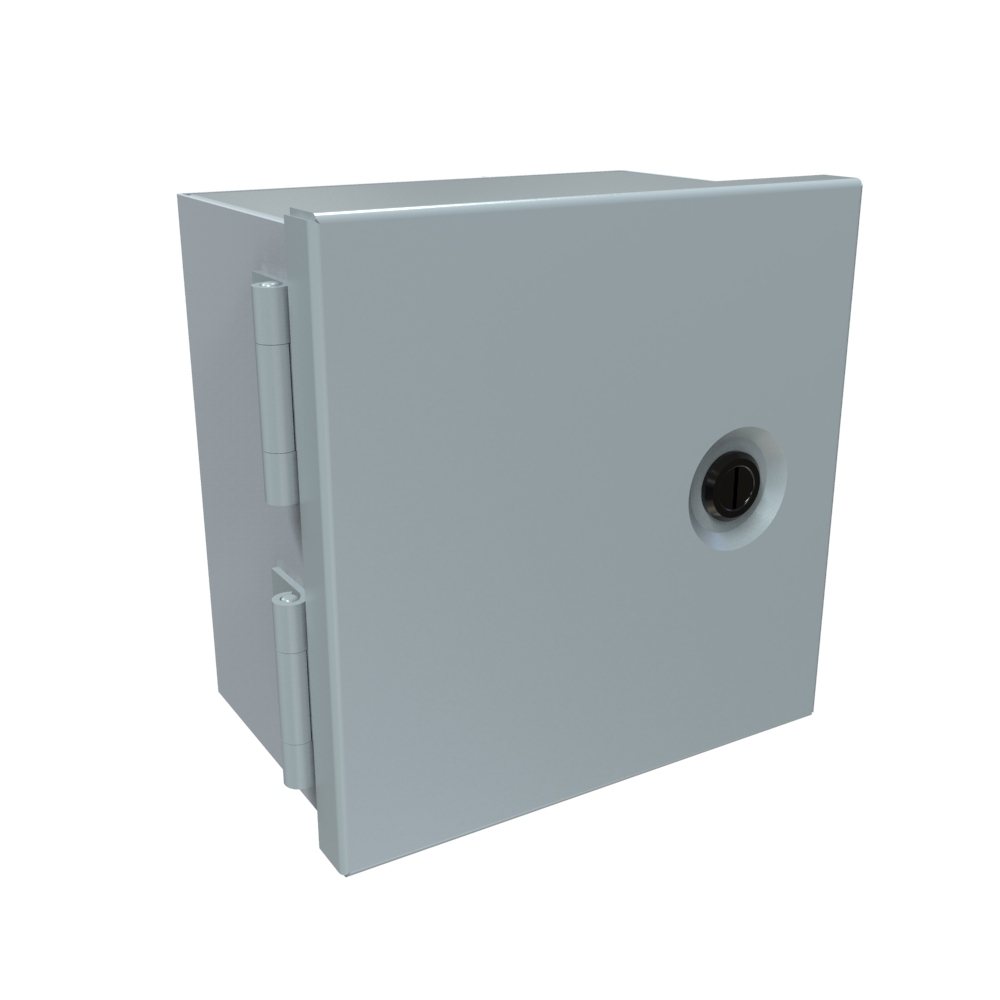

| N1J664 | 6.00 | 6.00 | 4.00 | 4.25 | 4.25 | $46.65In stock | Buy now |

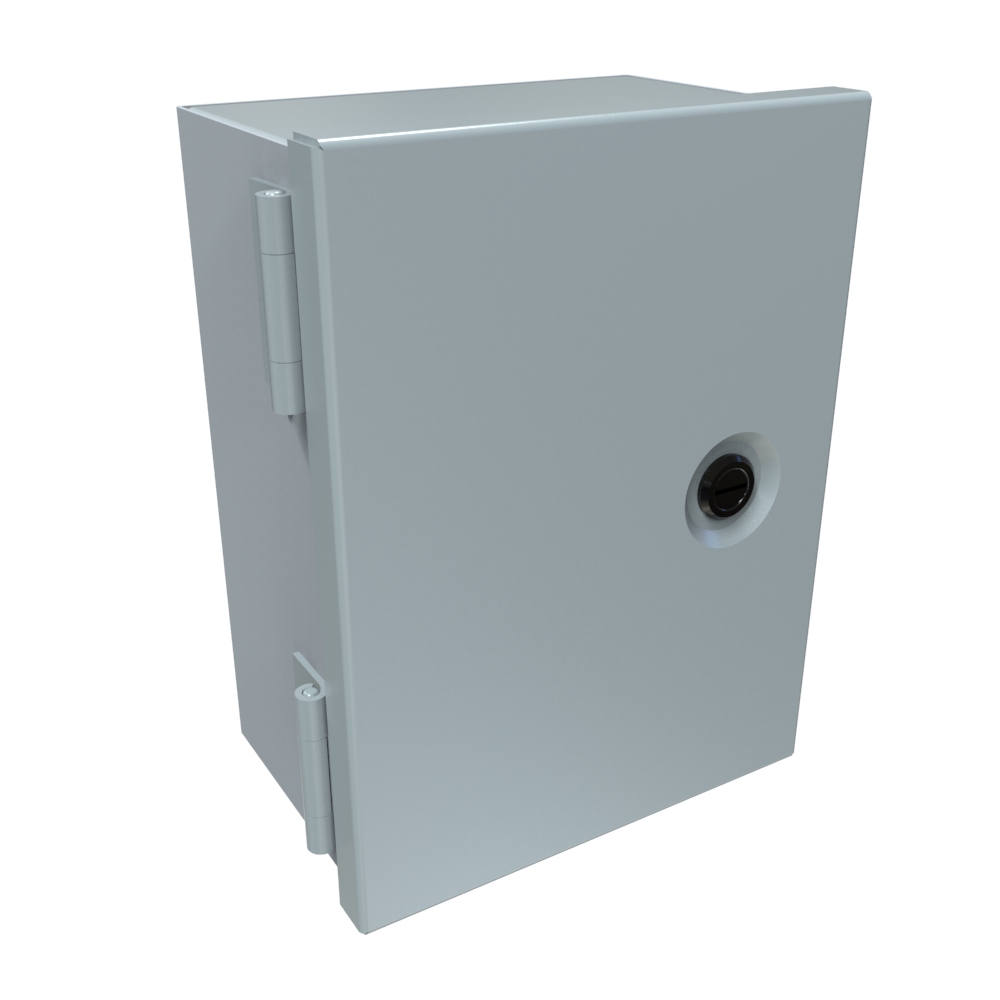

| N1J864 | 8.00 | 6.00 | 4.00 | 6.25 | 4.25 | $51.25In stock | Buy now |

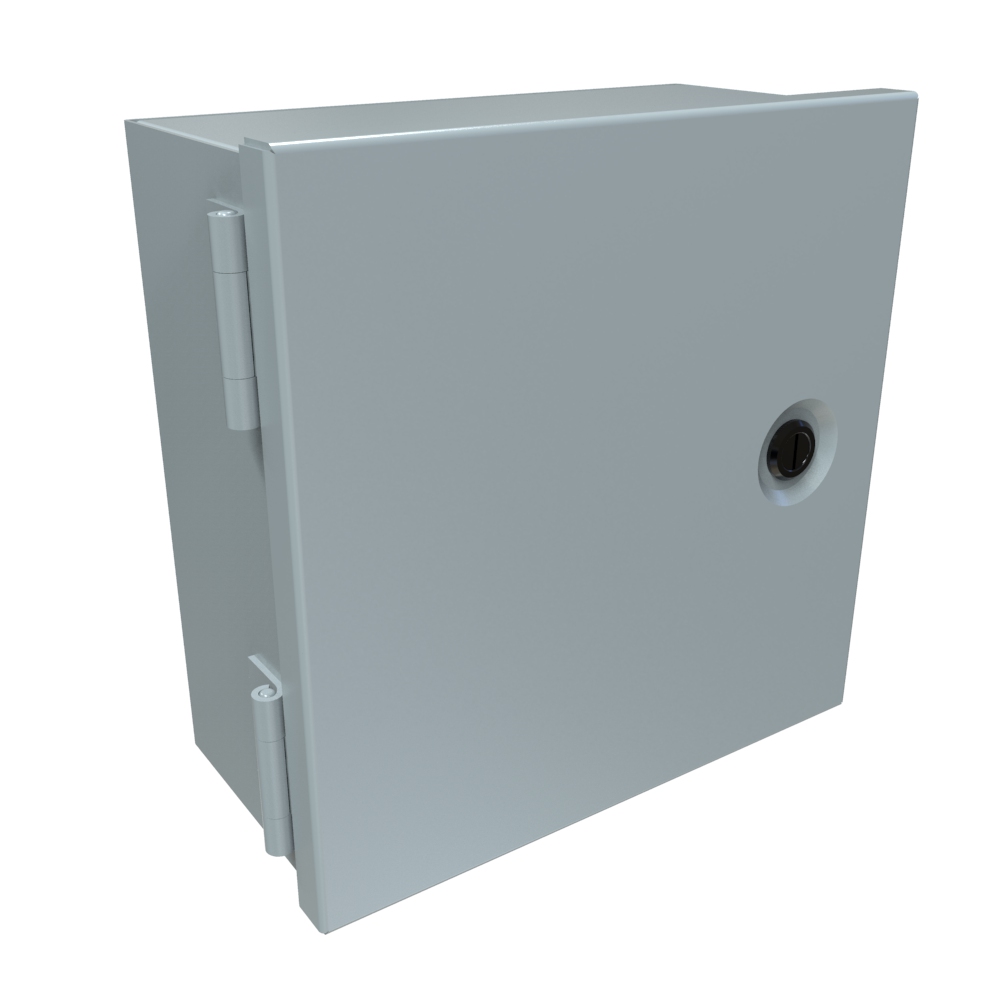

| N1J884 | 8.00 | 8.00 | 4.00 | 6.25 | 6.25 | $57.10In stock | Buy now |

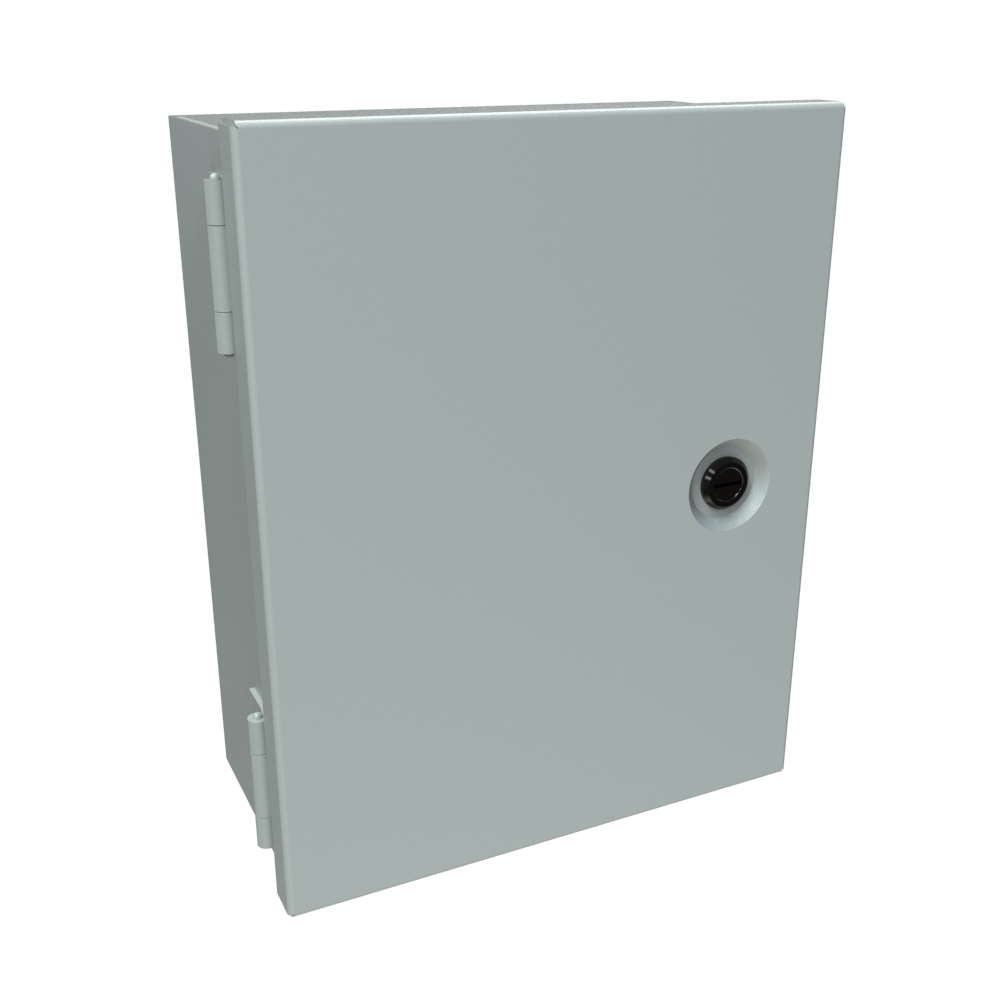

| N1J1084 | 10.00 | 8.00 | 4.00 | 8.25 | 6.25 | $63.01In stock | Buy now |

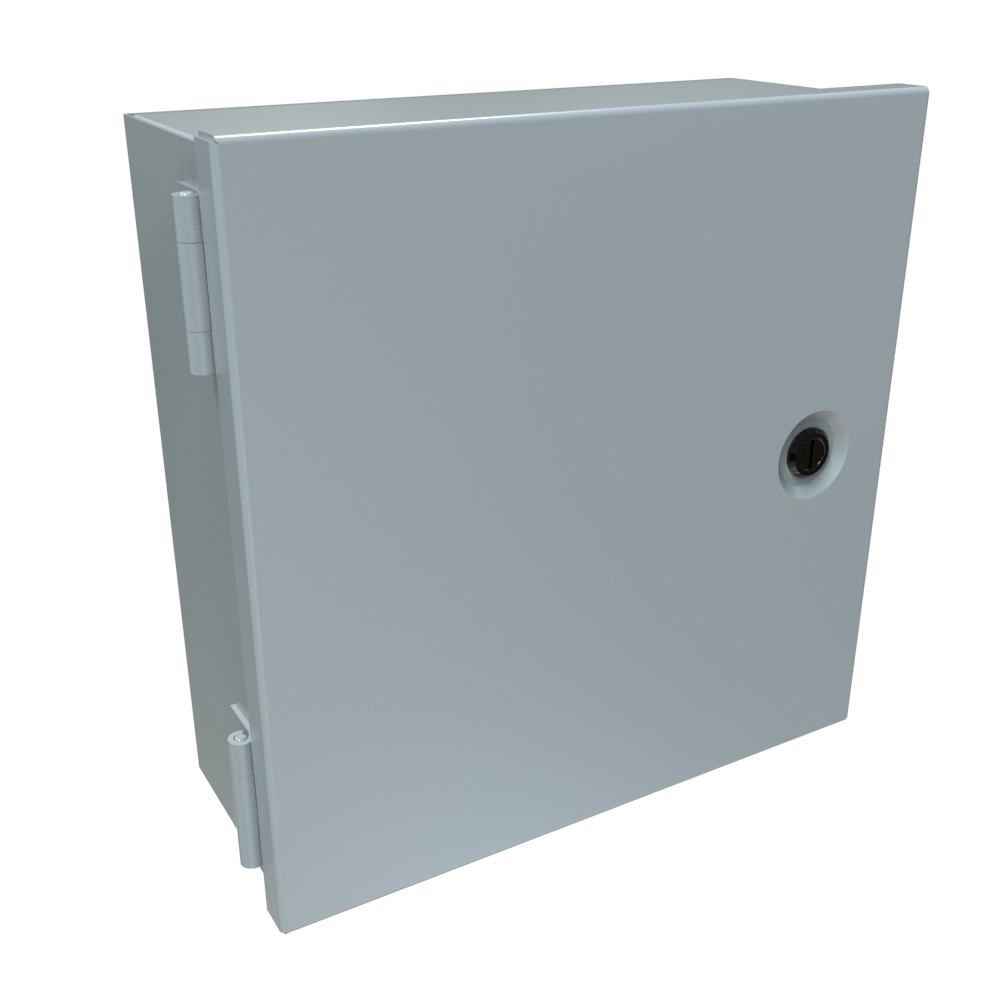

| N1J10104 | 10.00 | 10.00 | 4.00 | 8.25 | 8.25 | $70.22In stock | Buy now |

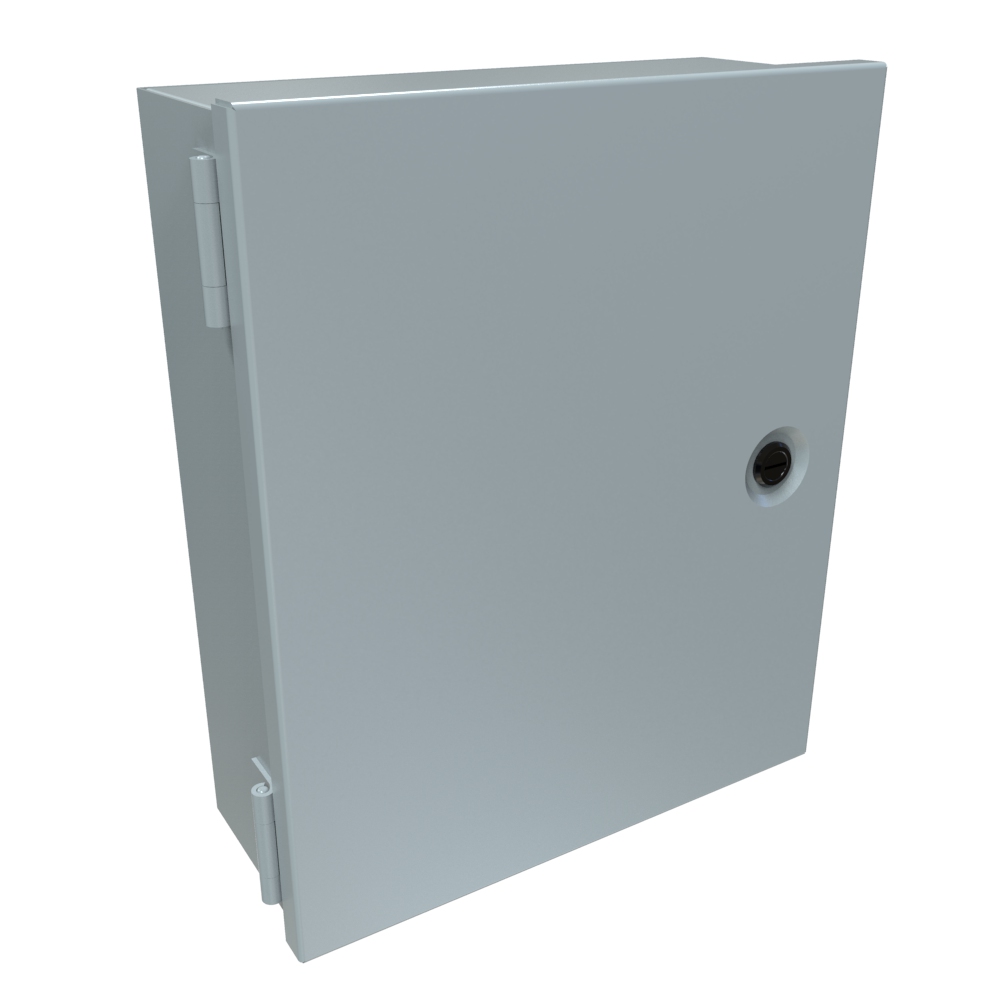

| N1J12104 | 12.00 | 10.00 | 4.00 | 10.25 | 8.25 | $78.57In stock | Buy now |

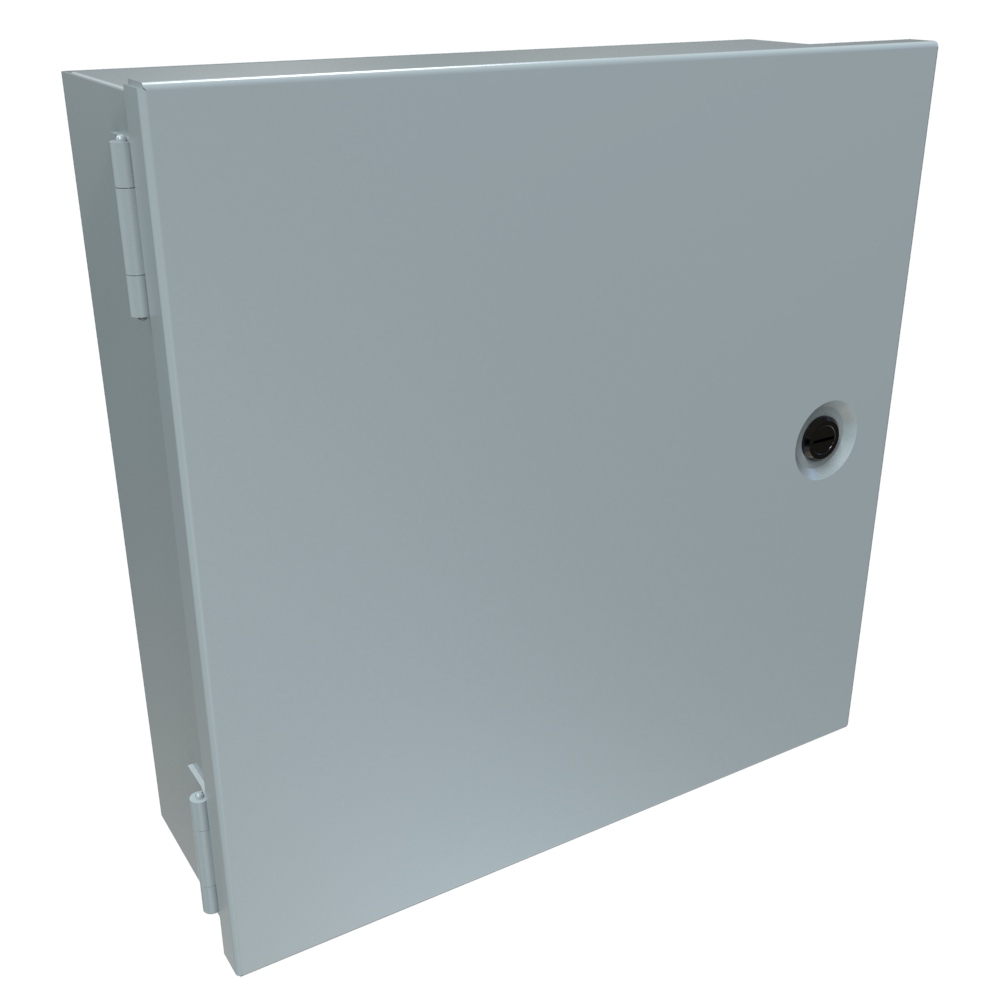

| N1J12124 | 12.00 | 12.00 | 4.00 | 10.25 | 10.25 | $86.21In stock | Buy now |

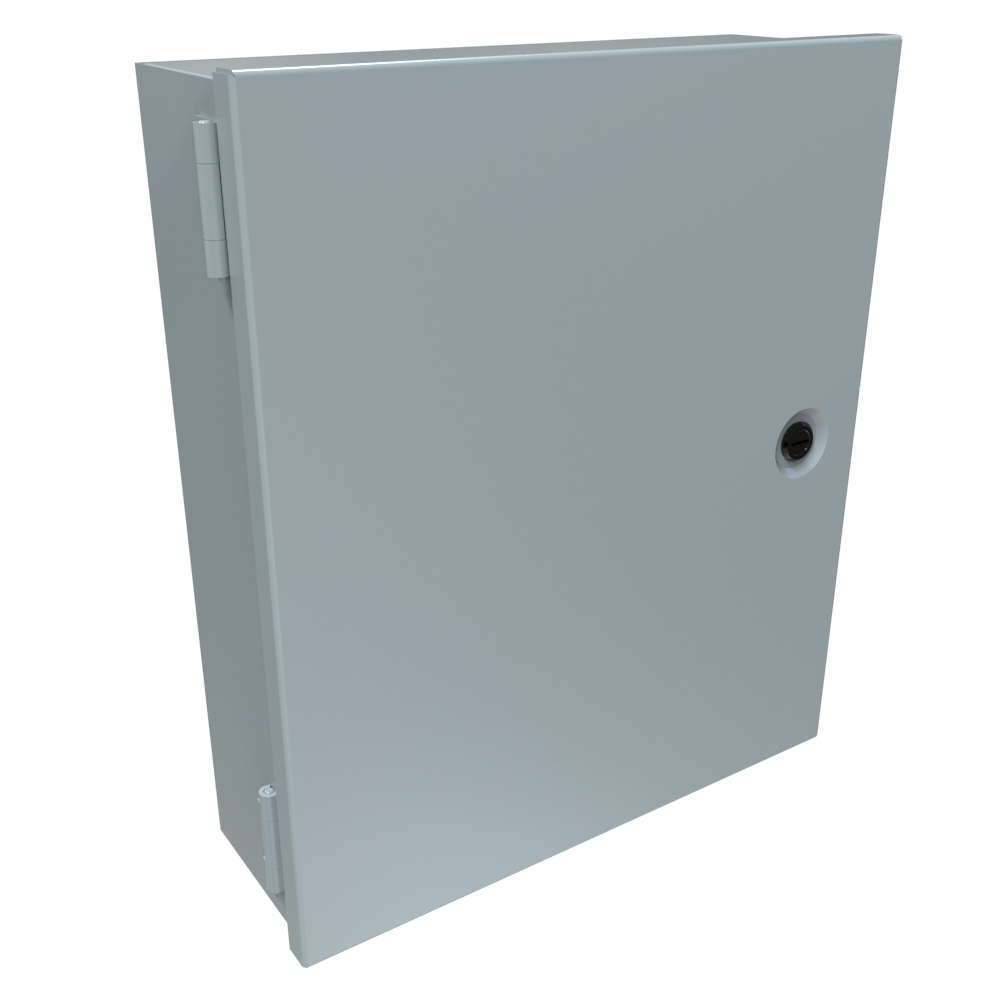

| N1J14124 | 14.00 | 12.00 | 4.00 | 12.25 | 10.25 | $95.16Backorder | Buy now |

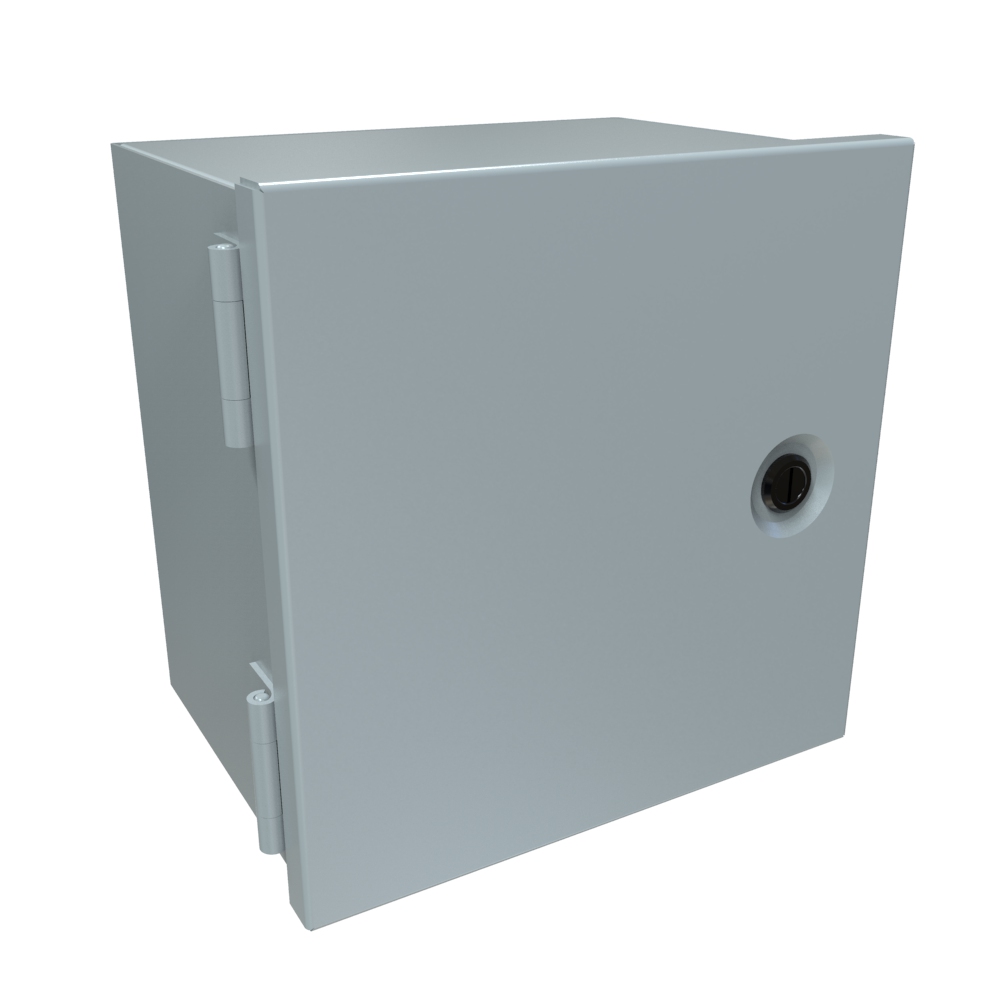

| N1J886 | 8.00 | 8.00 | 6.00 | 6.25 | 6.25 | $63.60In stock | Buy now |

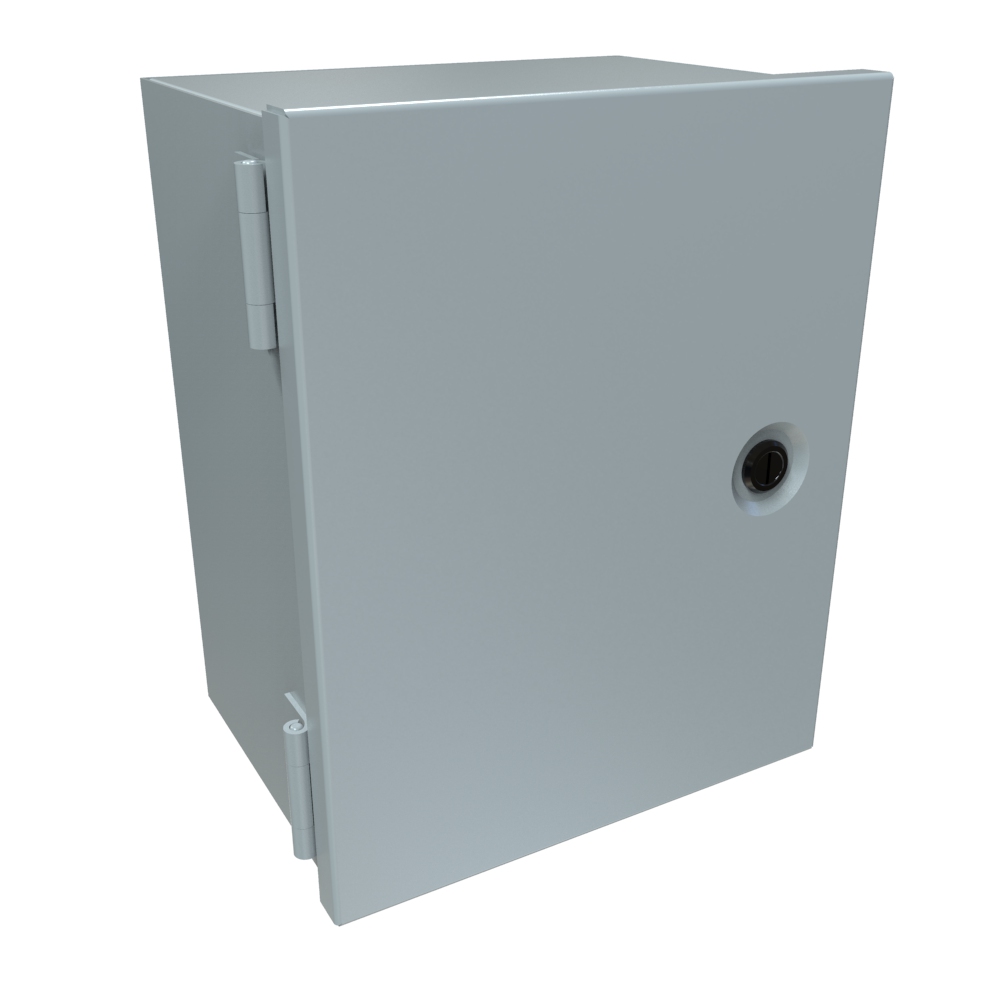

| N1J1086 | 10.00 | 8.00 | 6.00 | 8.25 | 6.25 | $70.99In stock | Buy now |

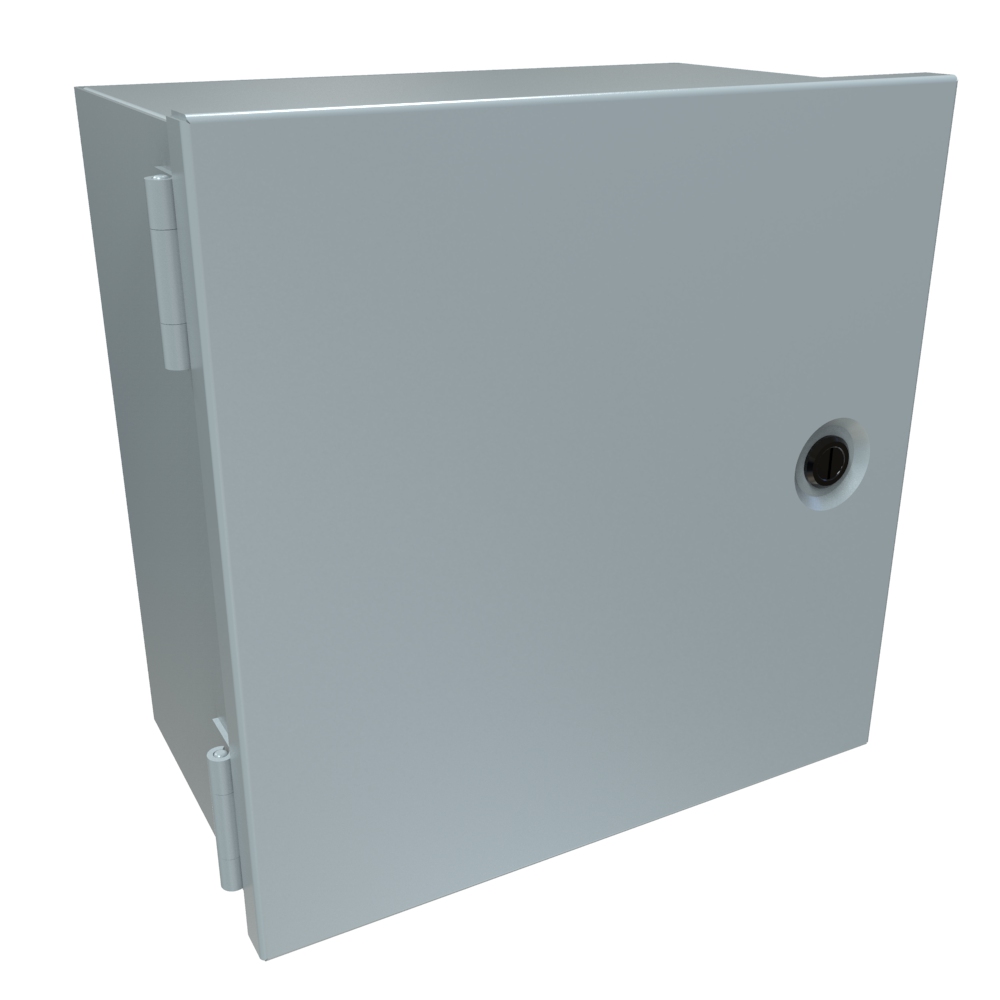

| N1J10106 | 10.00 | 10.00 | 6.00 | 8.25 | 8.25 | $79.17In stock | Buy now |

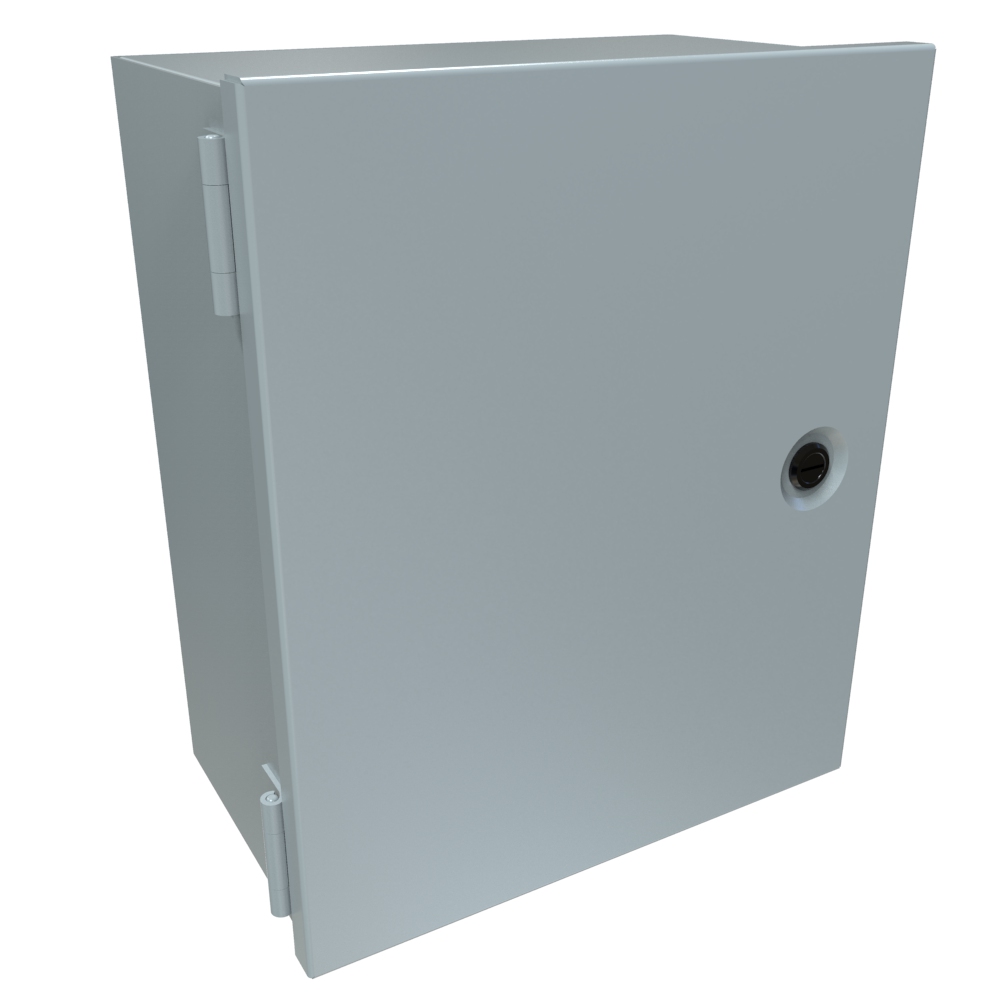

| N1J12106 | 12.00 | 10.00 | 6.00 | 10.25 | 8.25 | $86.92In stock | Buy now |

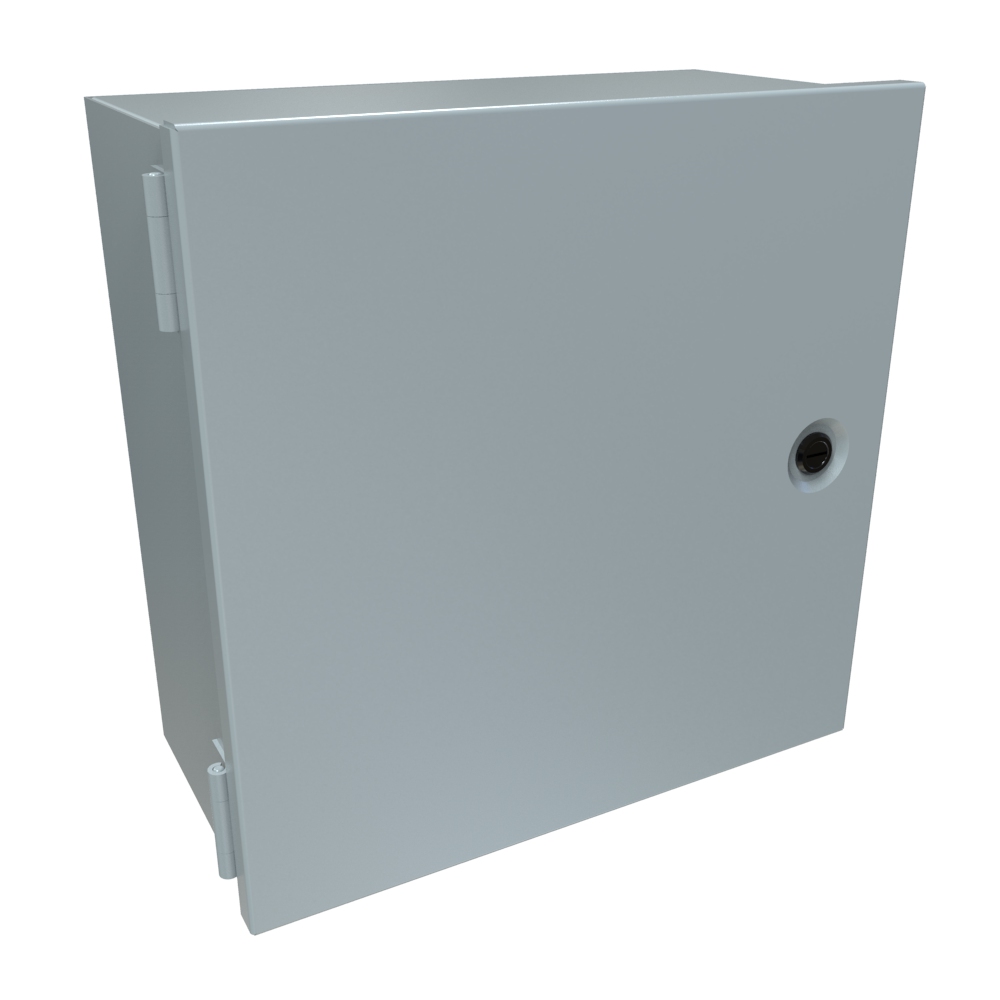

| N1J12126 | 12.00 | 12.00 | 6.00 | 10.25 | 10.25 | $96.94In stock | Buy now |

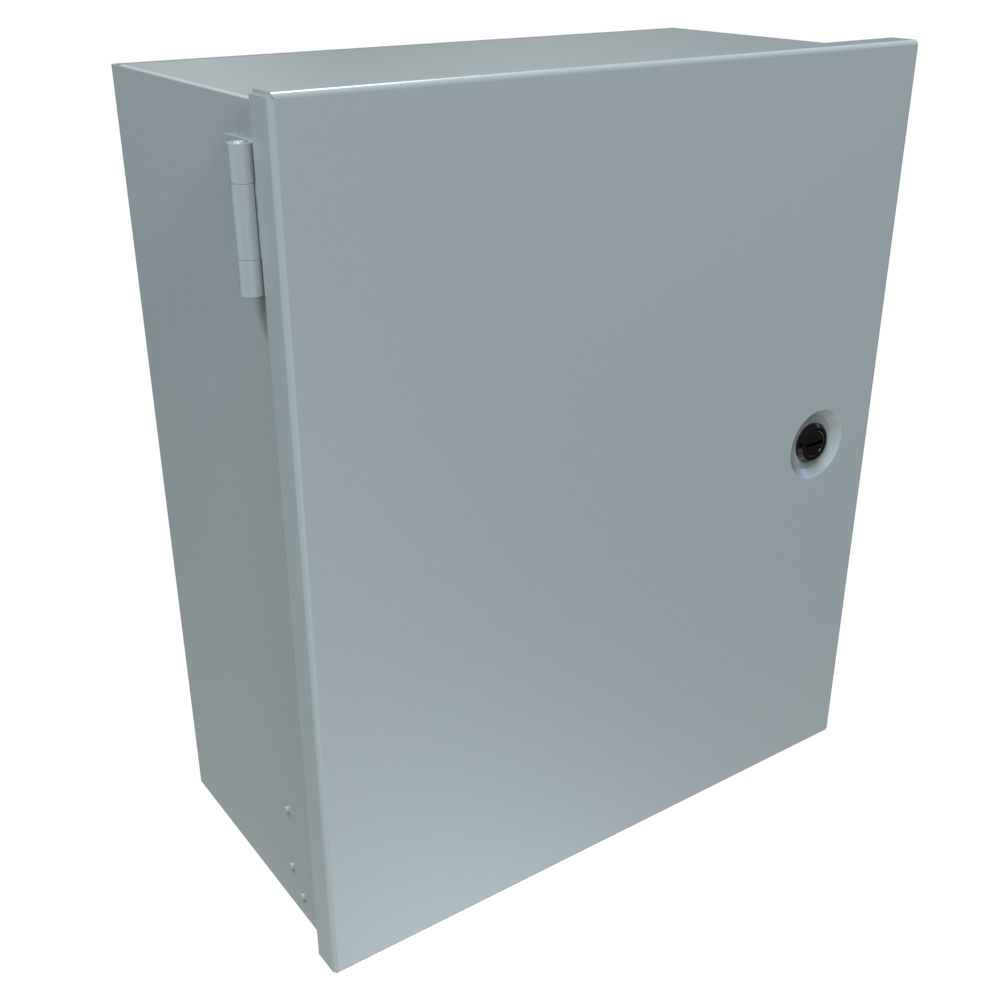

| N1J14126 | 14.00 | 12.00 | 6.00 | 12.25 | 10.25 | $105.90In stock | Buy now |

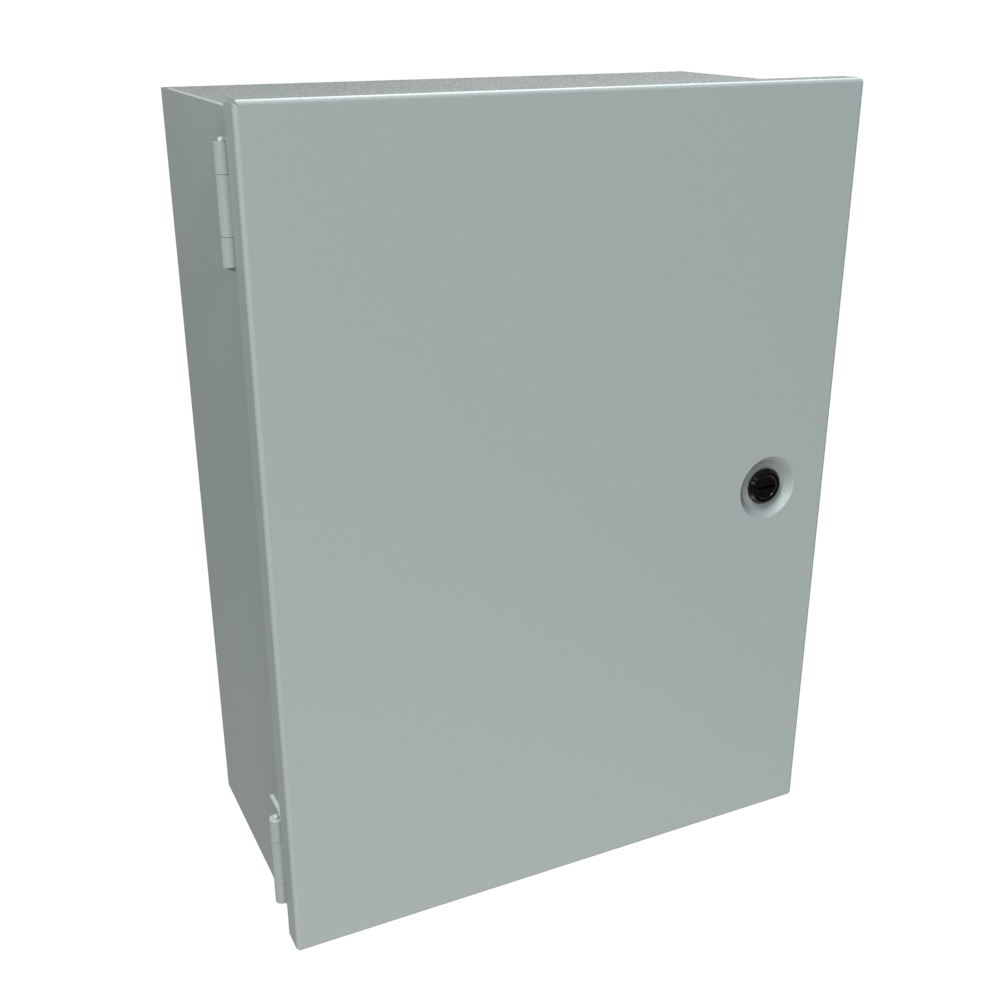

| N1J16126 | 16.00 | 12.00 | 6.00 | 14.25 | 10.25 | $114.49In stock | Buy now |

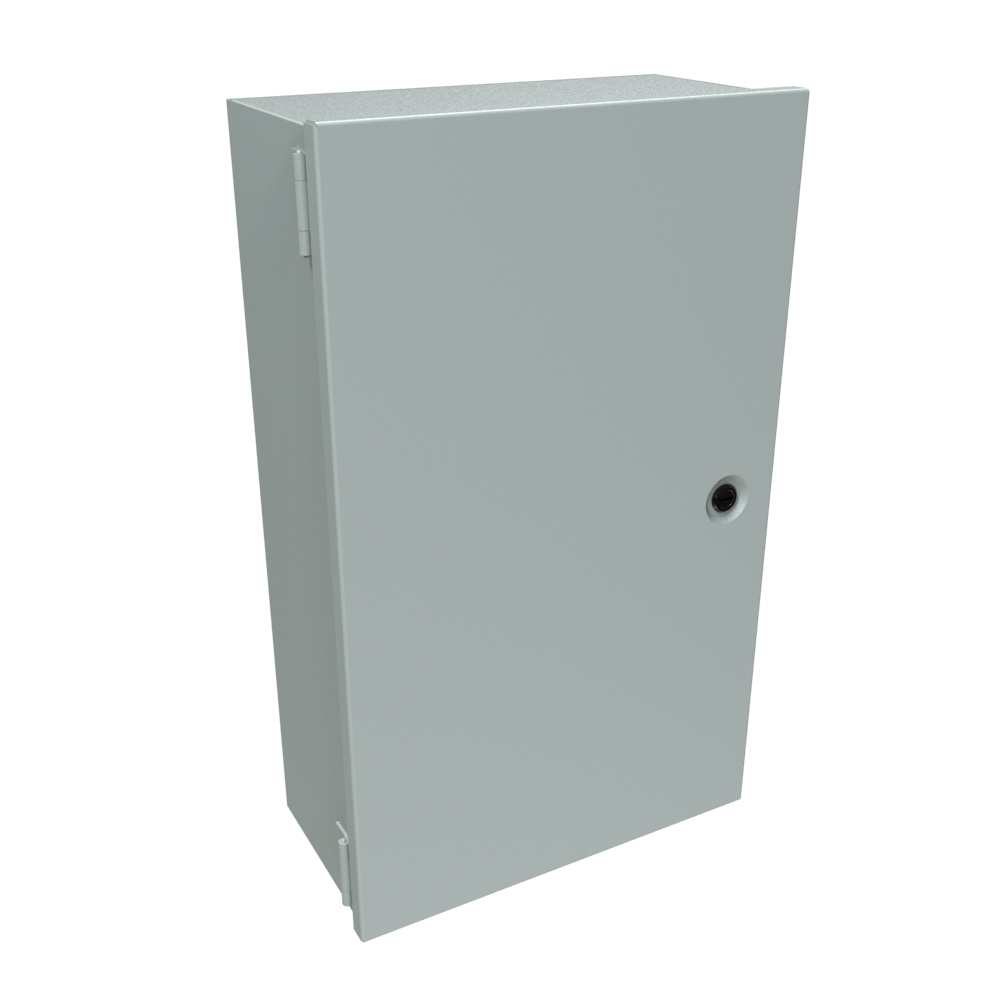

| N1J20126 | 20.00 | 12.00 | 6.00 | 18.25 | 10.25 | $132.33In stock | Buy now |

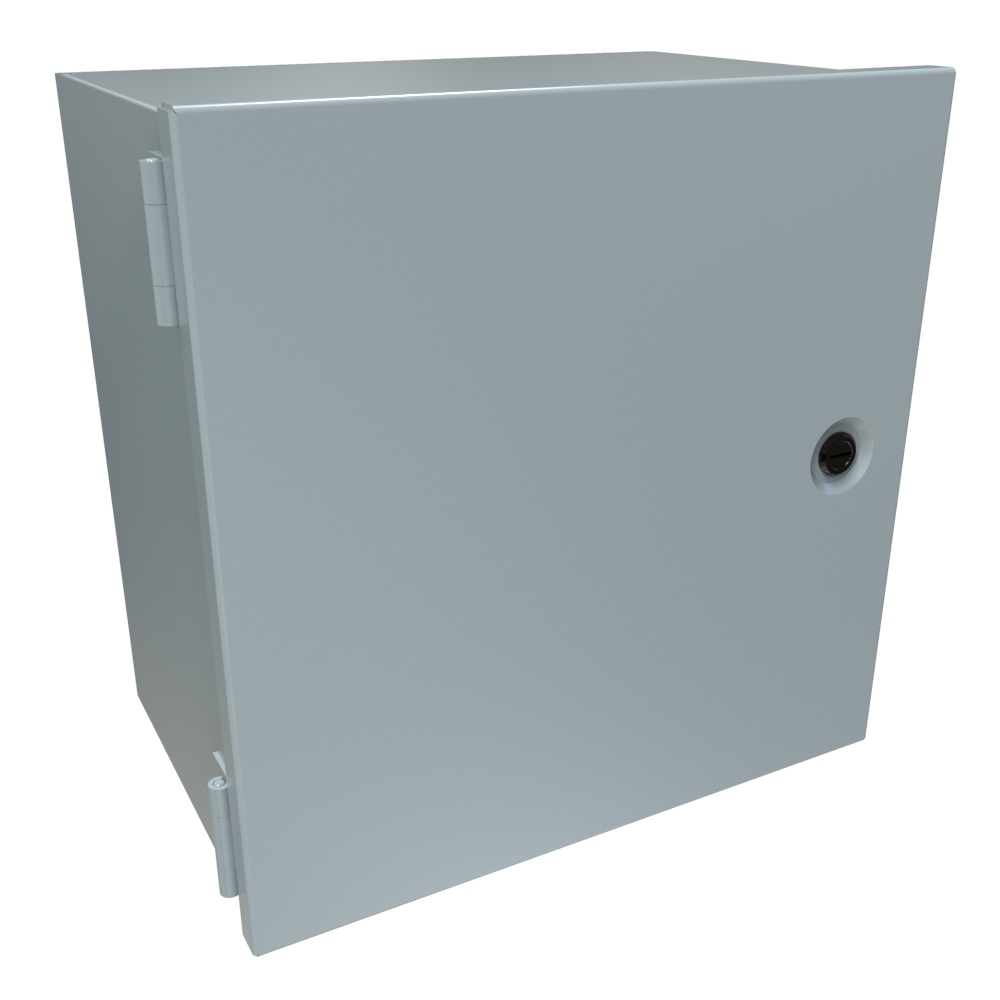

| N1J12128 | 12.00 | 12.00 | 8.00 | 10.25 | 10.25 | $107.10In stock | Buy now |

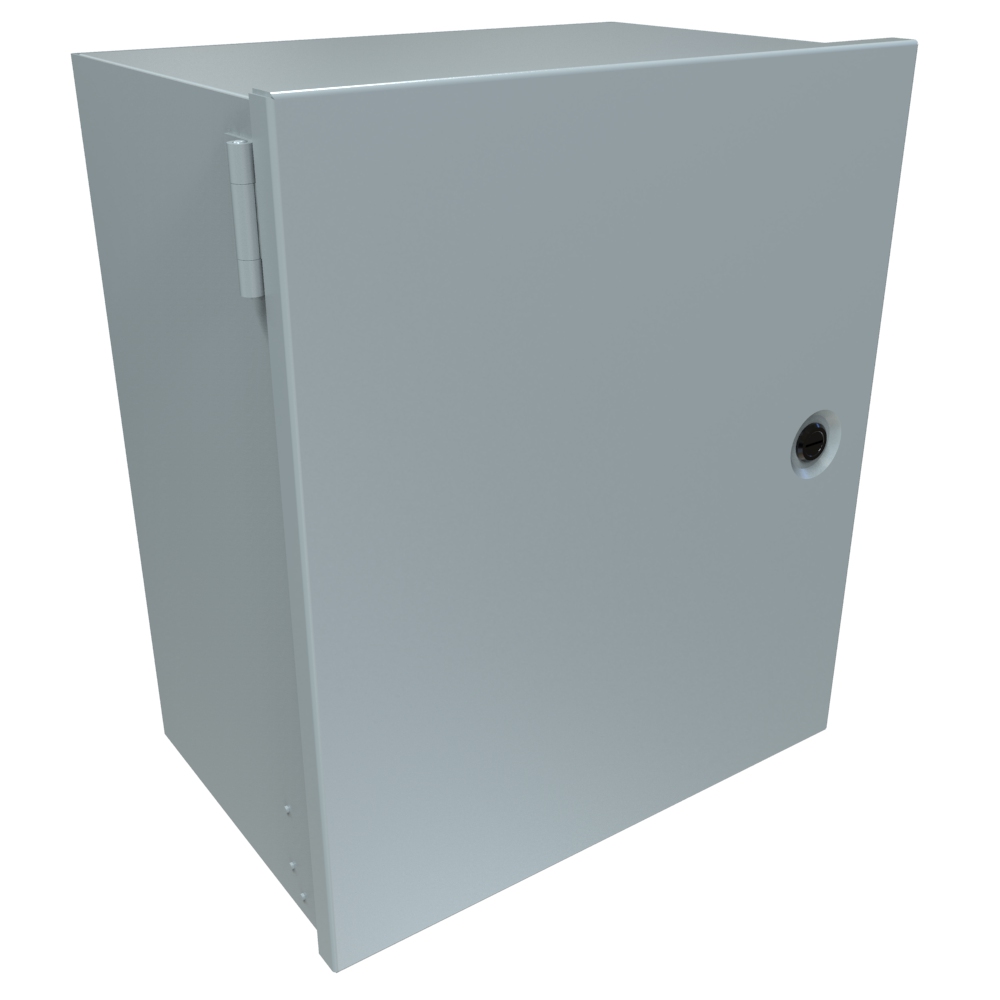

| N1J14128 | 14.00 | 12.00 | 8.00 | 12.25 | 10.25 | $116.63In stock | Buy now |
Application
- ■Designed for indoor use to house controls, instruments and components not requiring oil-tight or dust-tight protection.
Standards
- ■UL-50 Type 1
- ■CSA Type 1
- ■Complies with NEMA Type 1 IEC 60529, IP20
- ■NEMA Type 1
- ■IEC 60529, IP20
Construction
- ■Formed and spot welded from 16 gauge steel.
- ■Formed steel covers close by use of slotted quarter turn latch.
- ■Full swing door using butt hinges.
- ■Through holes in back for wall mounting.
- ■Bonding stud is provided on the door and a grounding stud is provided on the box.
- ■Includes 14 gauge steel inner panel.
Finish
- ■Enclosure and cover are finished in ANSI 61 gray powder coating.
- ■Inner panel is finished in white powder coating
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W |
|---|---|---|---|---|---|
| N1J664 | 6.00 | 6.00 | 4.00 | 4.25 | 4.25 |
| N1J864 | 8.00 | 6.00 | 4.00 | 6.25 | 4.25 |
| N1J884 | 8.00 | 8.00 | 4.00 | 6.25 | 6.25 |
| N1J1084 | 10.00 | 8.00 | 4.00 | 8.25 | 6.25 |
| N1J10104 | 10.00 | 10.00 | 4.00 | 8.25 | 8.25 |
| N1J12104 | 12.00 | 10.00 | 4.00 | 10.25 | 8.25 |
| N1J12124 | 12.00 | 12.00 | 4.00 | 10.25 | 10.25 |
| N1J14124 | 14.00 | 12.00 | 4.00 | 12.25 | 10.25 |
| N1J886 | 8.00 | 8.00 | 6.00 | 6.25 | 6.25 |
| N1J1086 | 10.00 | 8.00 | 6.00 | 8.25 | 6.25 |
| N1J10106 | 10.00 | 10.00 | 6.00 | 8.25 | 8.25 |
| N1J12106 | 12.00 | 10.00 | 6.00 | 10.25 | 8.25 |
| N1J12126 | 12.00 | 12.00 | 6.00 | 10.25 | 10.25 |
| N1J14126 | 14.00 | 12.00 | 6.00 | 12.25 | 10.25 |
| N1J16126 | 16.00 | 12.00 | 6.00 | 14.25 | 10.25 |
| N1J20126 | 20.00 | 12.00 | 6.00 | 18.25 | 10.25 |
| N1J12128 | 12.00 | 12.00 | 8.00 | 10.25 | 10.25 |
| N1J14128 | 14.00 | 12.00 | 8.00 | 12.25 | 10.25 |
