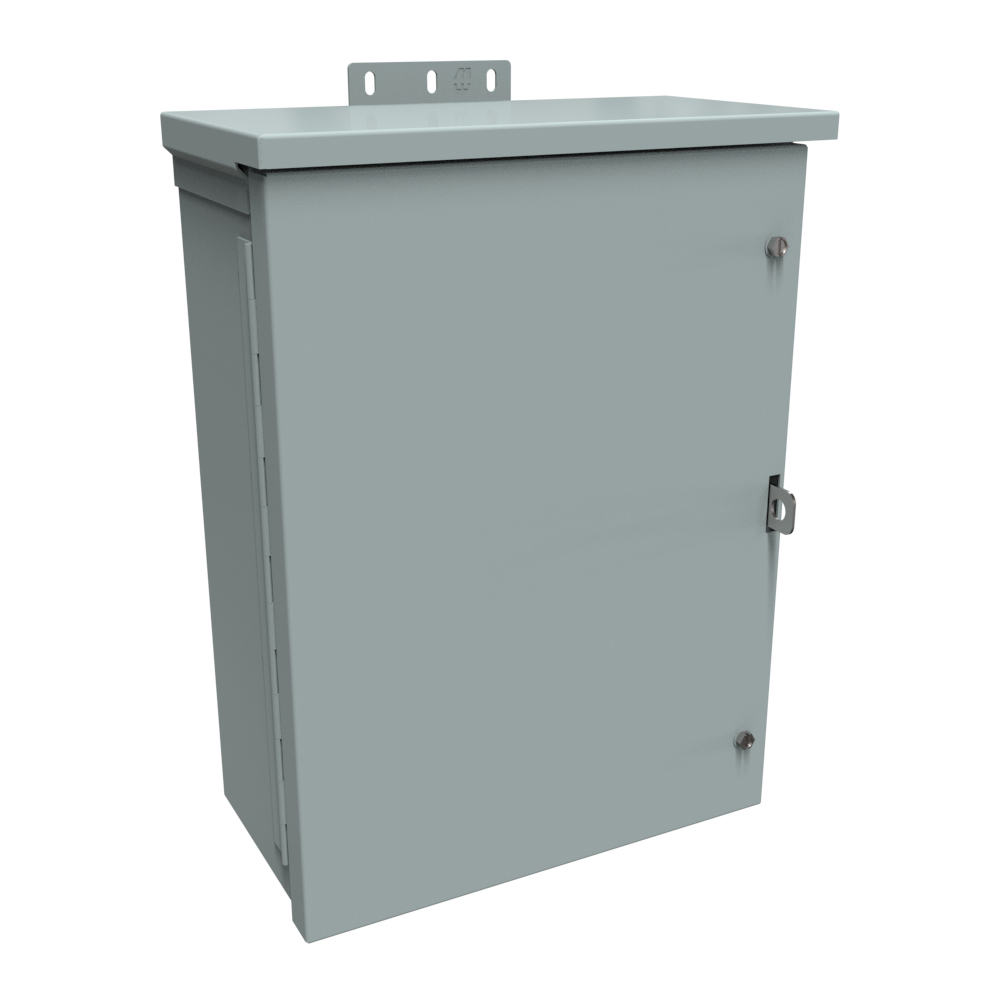

3R Hinge Cov 16X12X6
$110.88In stock
Buy now
Type 3R Painted Galvanized Steel Wallmount Enclosure · C3R HCRMD Series
Brand: Hammond Manufacturing · 39 part numbers
Continuous Hinge Door with Screws
- ■Designed for use as a wiring/junction box.
- ■Provides protection against rain, sleet, snow and dripping water.
- ■UL-50 Type 3R
- ■CSA Type 3R Complies with NEMA Type 3R IEC 60529, IP24
- ■Complies with
- ■NEMA Type 3R
from $28.22
39 of 39 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your C3R HCRMD Series part number
Filter 23 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
23 of 23 part numbers · 23 priced online
3R Hinge Cov 16X16X6
$129.98In stock
Buy now

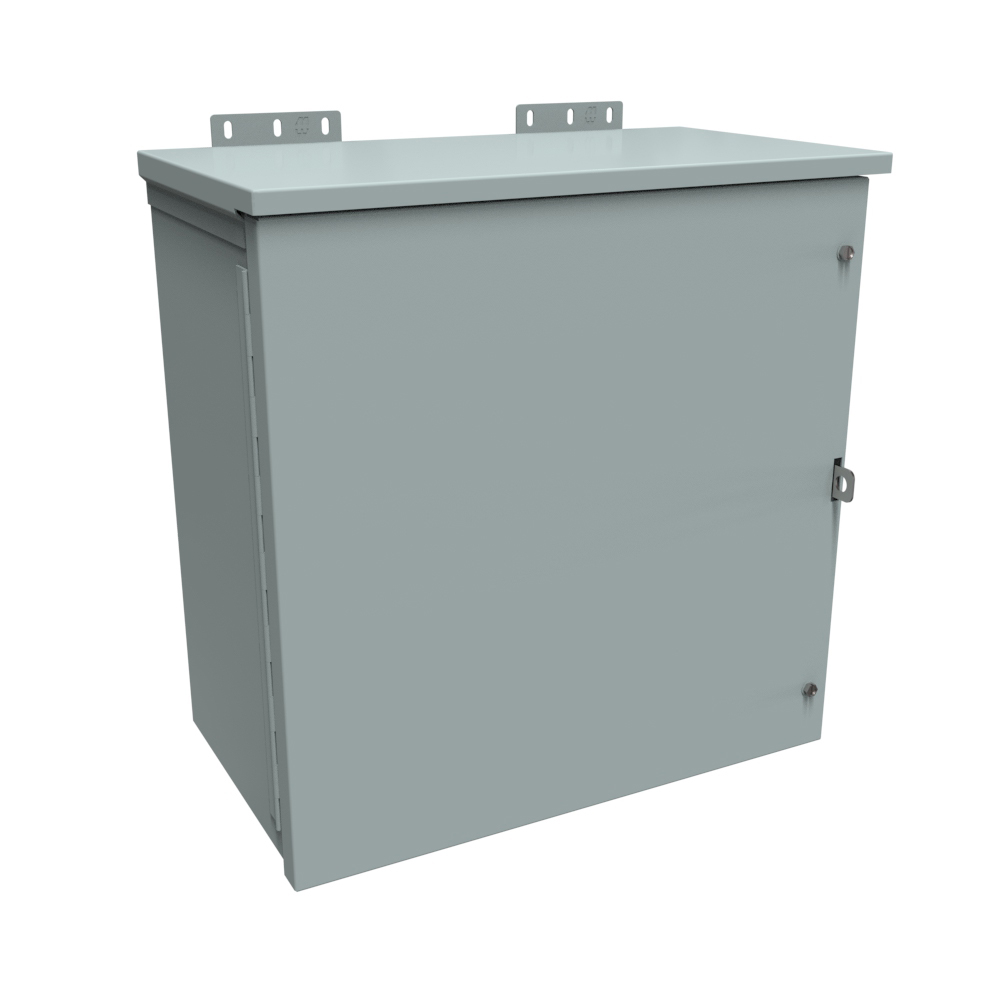

3R Hinge Cov 18X18X10
$237.46In stock
Buy now

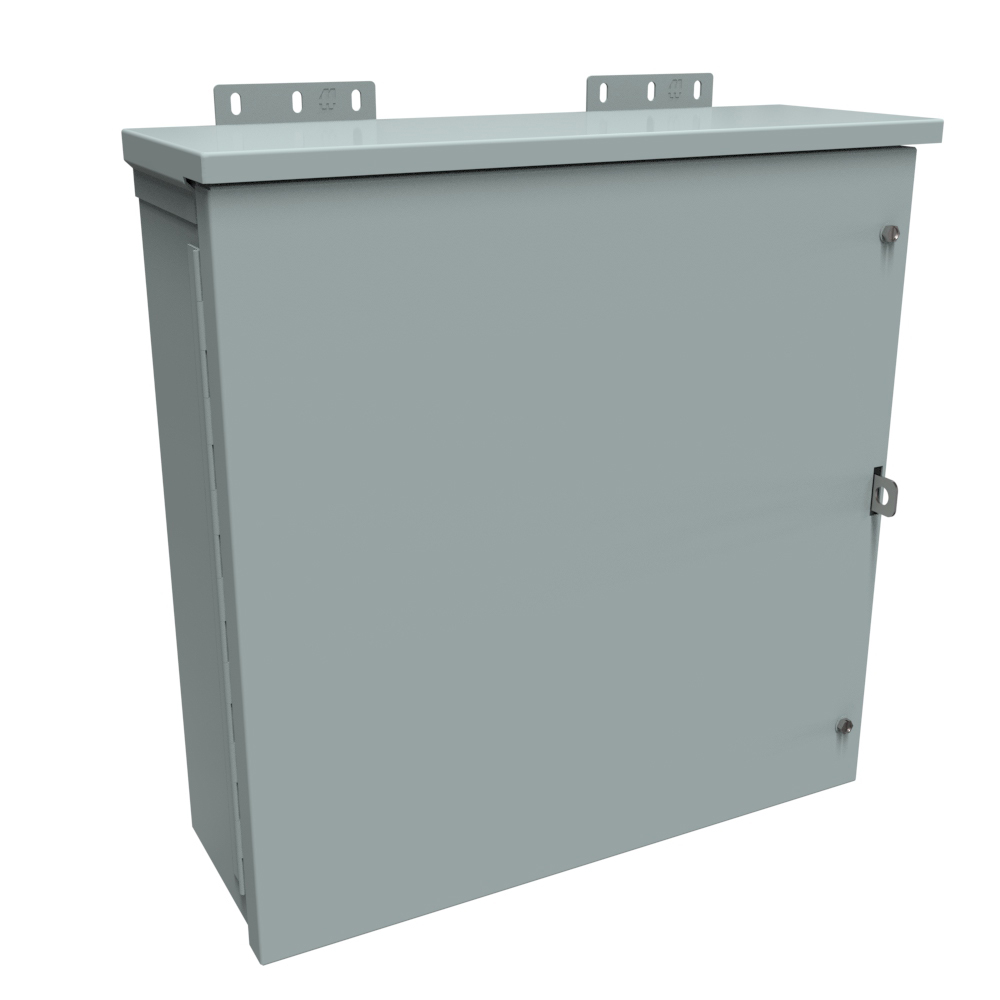

3R Hinge Cov 18X18X6
$193.69In stock
Buy now
3R Hinge Cov 20X16X6
$146.85In stock
Buy now
3R Hinge Cov 20X20X8
$210.29In stock
Buy now

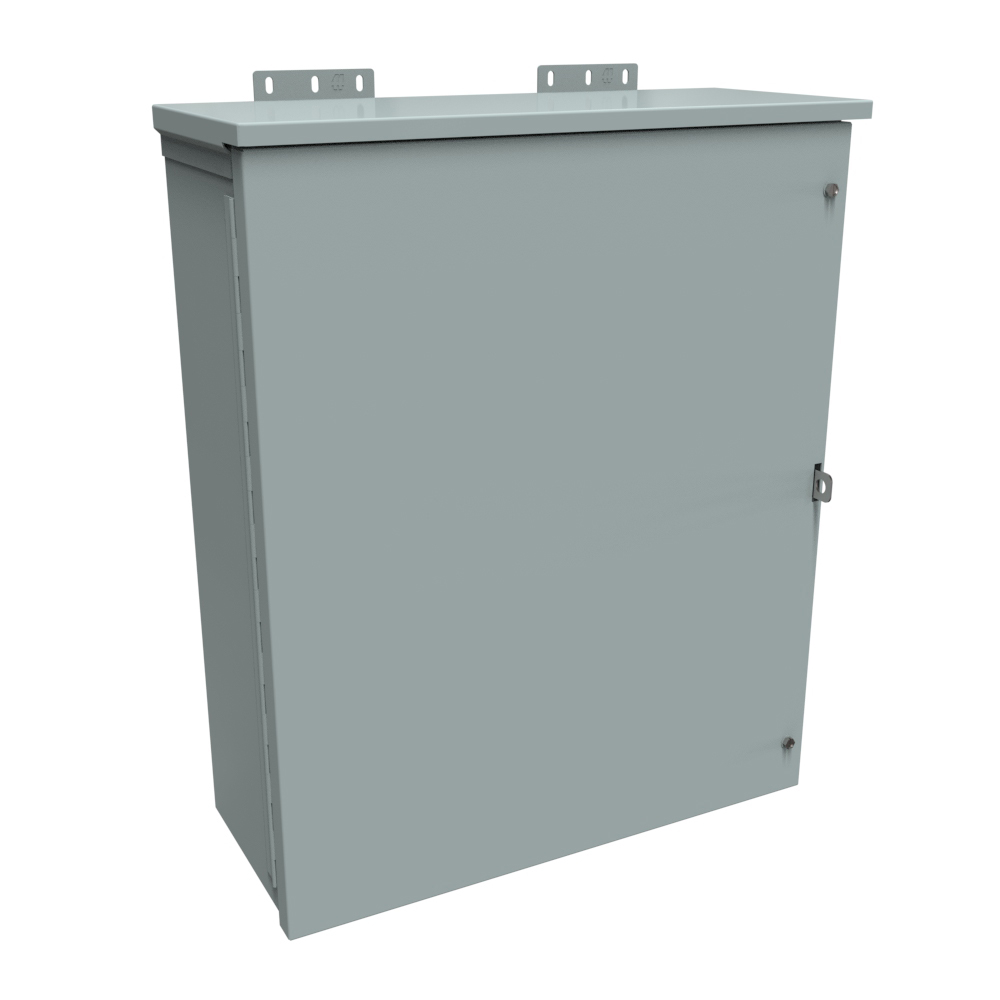

3R Hinge Cov 24X20X8
$233.48In stock
Buy now
3R Hinge Cov 24X24X10
$278.27In stock
Buy now
3R Hinge Cov 24X24X8
$263.43Backorder
Buy now
3R Hinge Cov 30X24X10
$380.64Backorder
Buy now
3R Hinge Cov 30X24X8
$308.18Backorder
Buy now

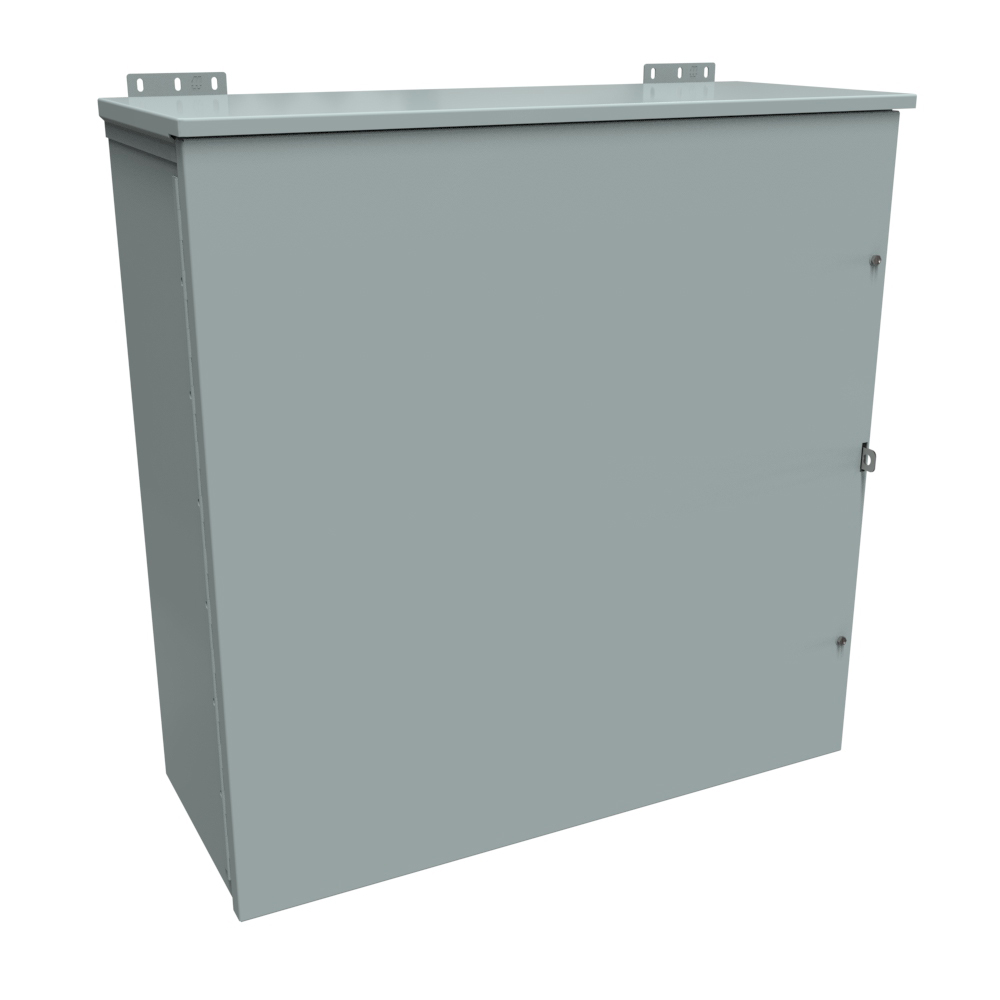

3R Hinge Cov 30X30X12
$447.04Backorder
Buy now

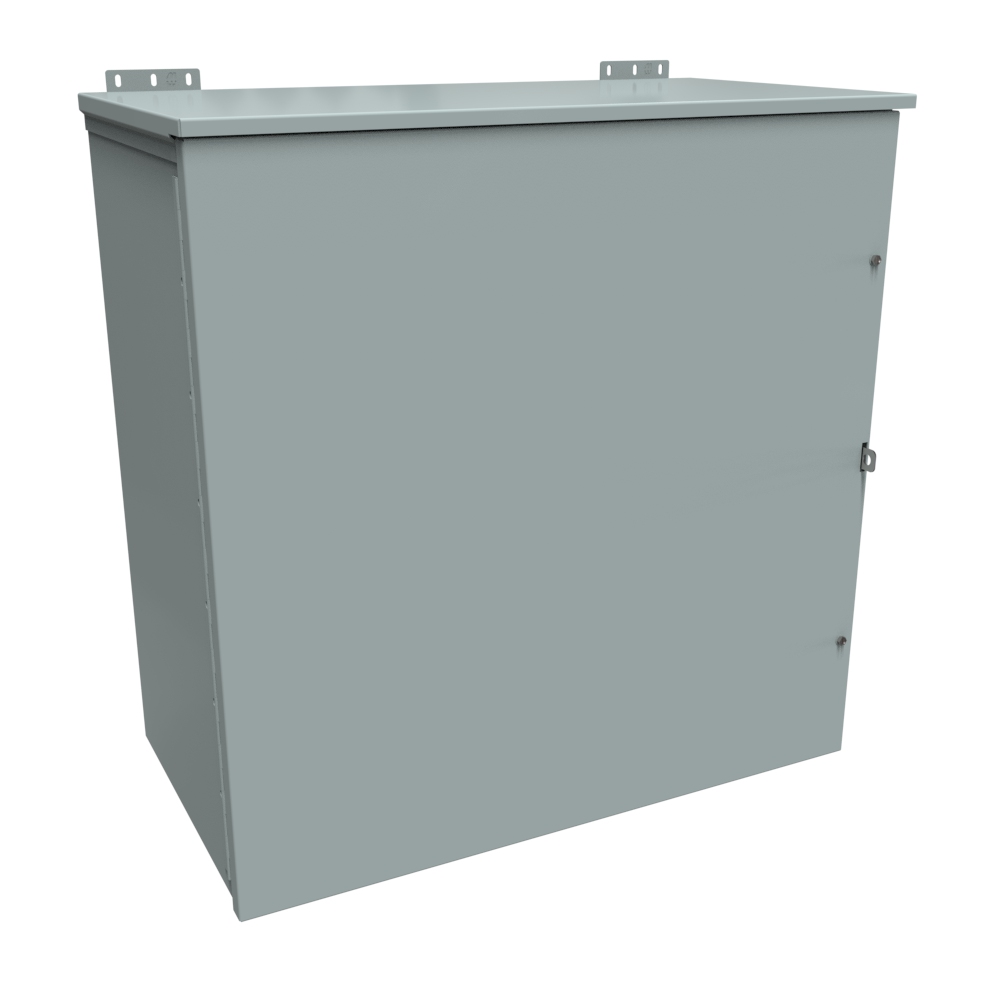

3R Hinge Cov 30X30X16
$515.59Backorder
Buy now
3R Hinge Cov 30X30X8
$442.24In stock
Buy now
3R Hinge Cov 36X24X12
$409.06Backorder
Buy now
3R Hinge Cov 36X30X12
$519.57Backorder
Buy now
3R Hinge Cov 36X36X10
$579.68In stock
Buy now

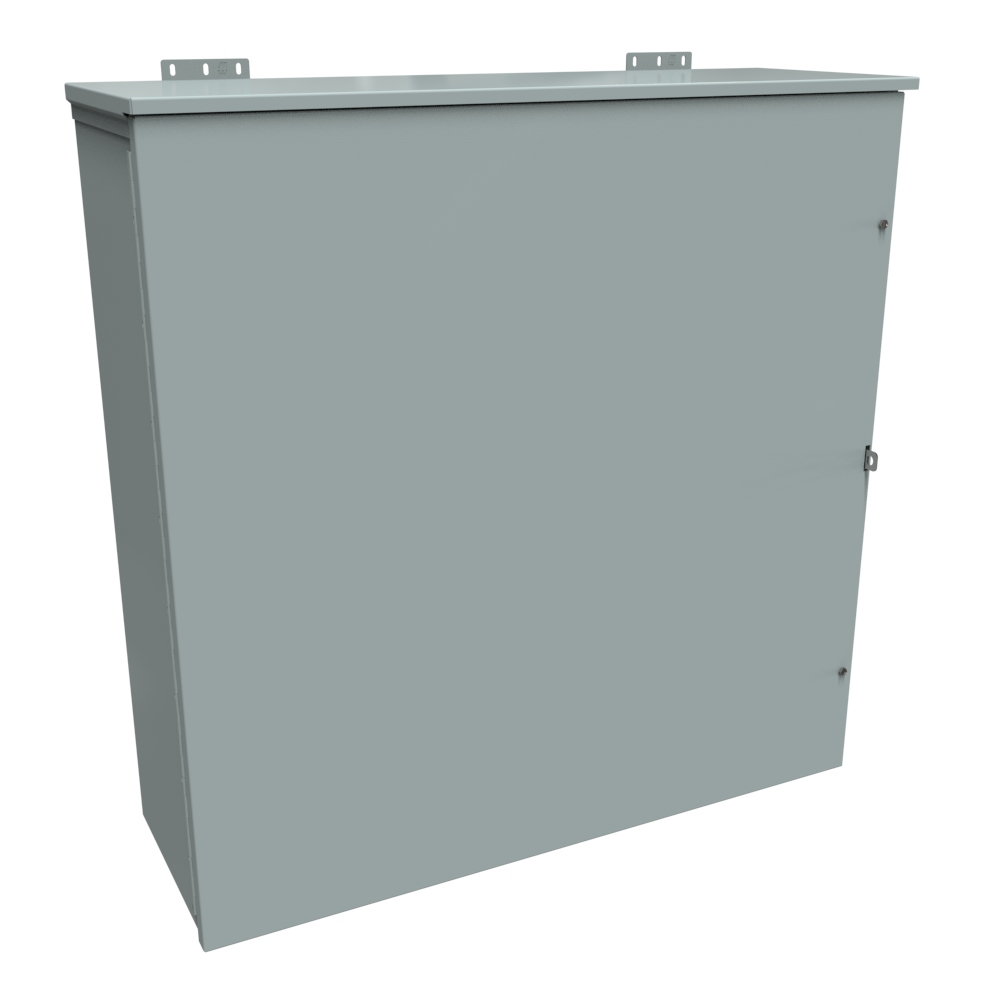

3R Hinge Cov 36X36X12
$582.05Backorder
Buy now
3R Hinge Cov 42X30X12
$572.96In stock
Buy now
3R Hinge Cov 42X36X12
$654.01In stock
Buy now
3R Hinge Cov 48X36X12
$725.96In stock
Buy now
3R Hinge Cov 48X36X16
$826.76In stock
Buy now

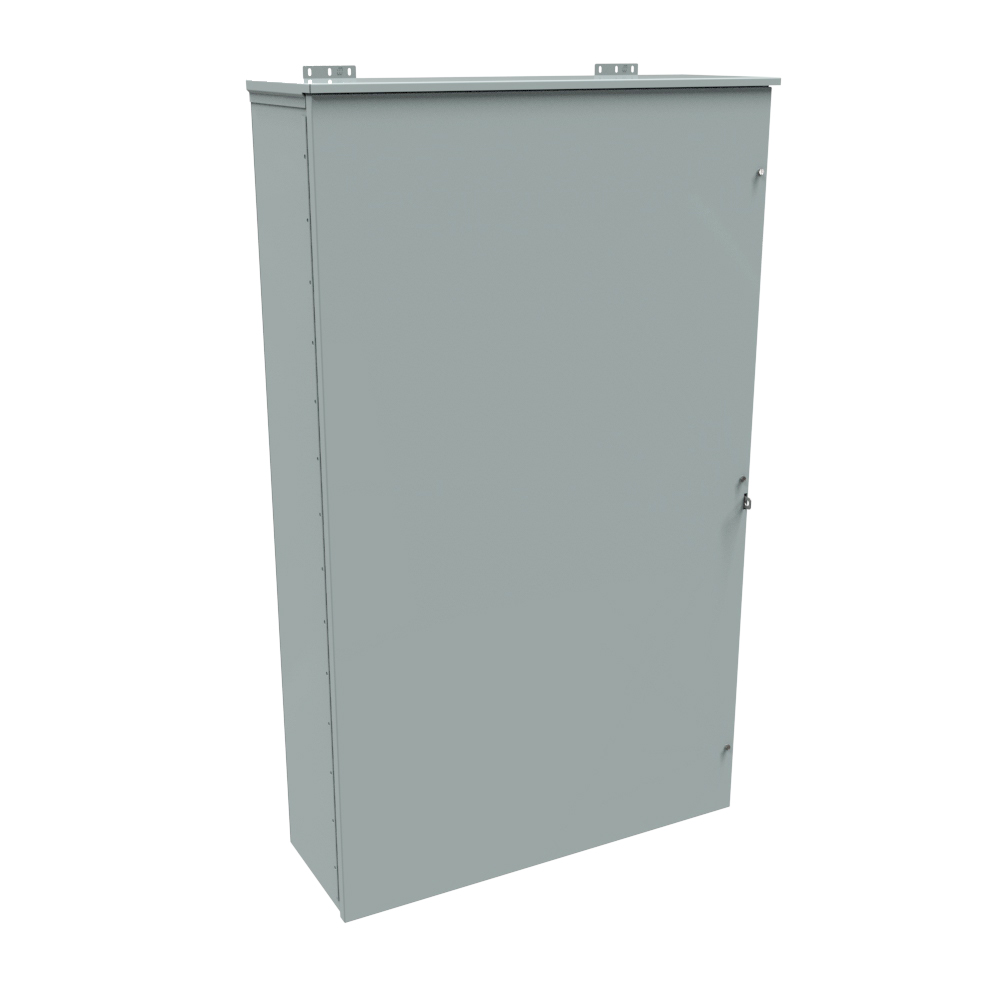

3R Hinge Cov 60X36X12
$869.81In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · Part Number | Optional Inner Panel · H | Optional Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|
| C3R16126HCR | 16.00 | 12.00 | 6.00 | 18P1309 | 13.00 | 9.00 | $110.88In stockC3R16126HCR | Buy now |

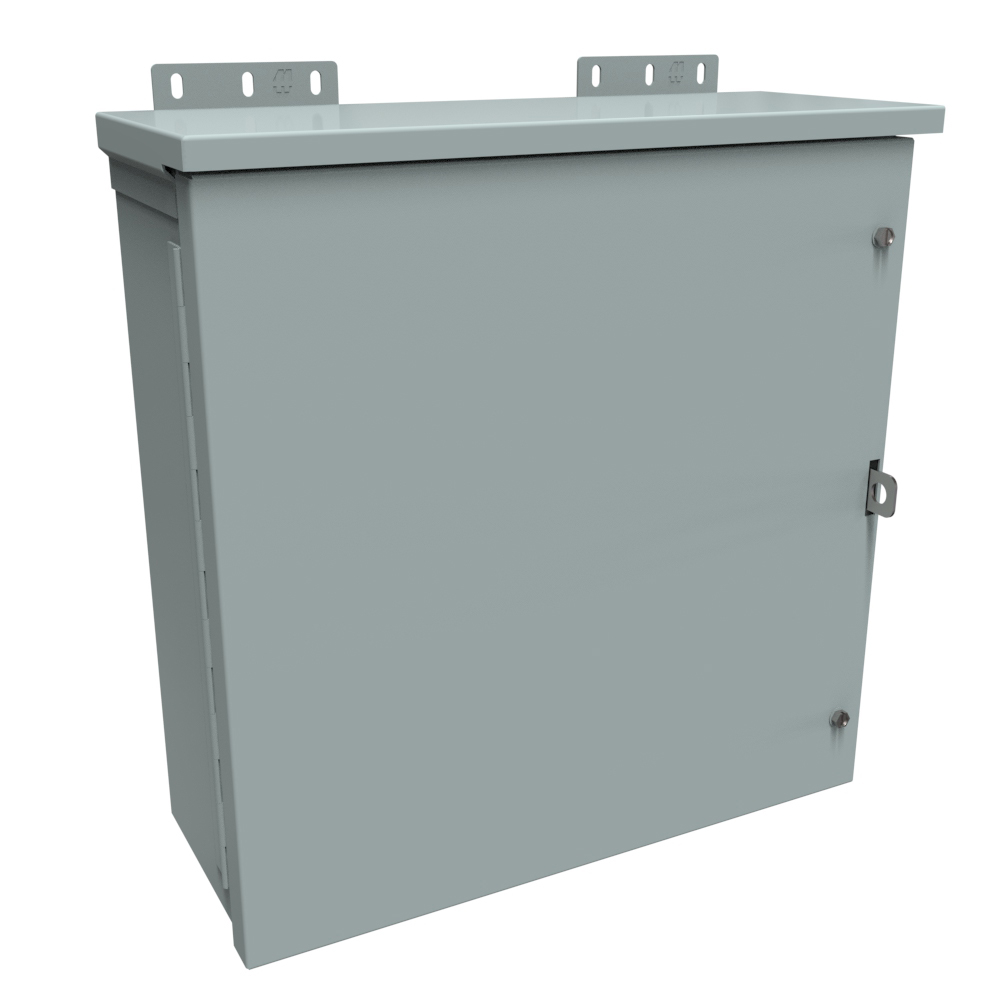

| C3R16166HCR | 16.00 | 16.00 | 6.00 | 18P1313 | 13.00 | 13.00 | $129.98In stockC3R16166HCR | Buy now |
| C3R18186HCR | 18.00 | 18.00 | 6.00 | 18P1515 | 15.00 | 15.00 | $193.69In stockC3R18186HCR | Buy now |

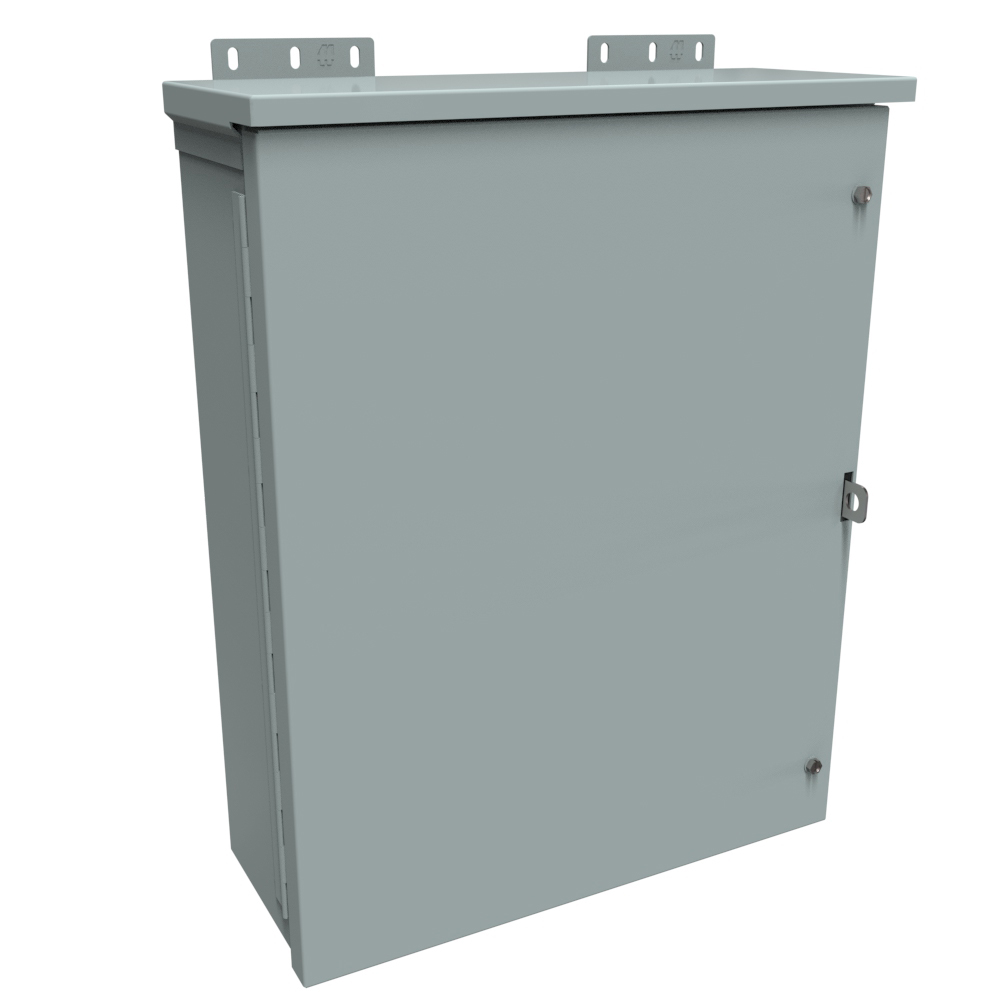

| C3R20166HCR | 20.00 | 16.00 | 6.00 | 18P1713 | 17.00 | 13.00 | $146.85In stockC3R20166HCR | Buy now |
| C3R20208HCR | 20.00 | 20.00 | 8.00 | 18P1717 | 17.00 | 17.00 | $210.29In stockC3R20208HCR | Buy now |
| C3R24208HCR | 24.00 | 20.00 | 8.00 | 18P2117 | 21.00 | 17.00 | $233.48In stockC3R24208HCR | Buy now |

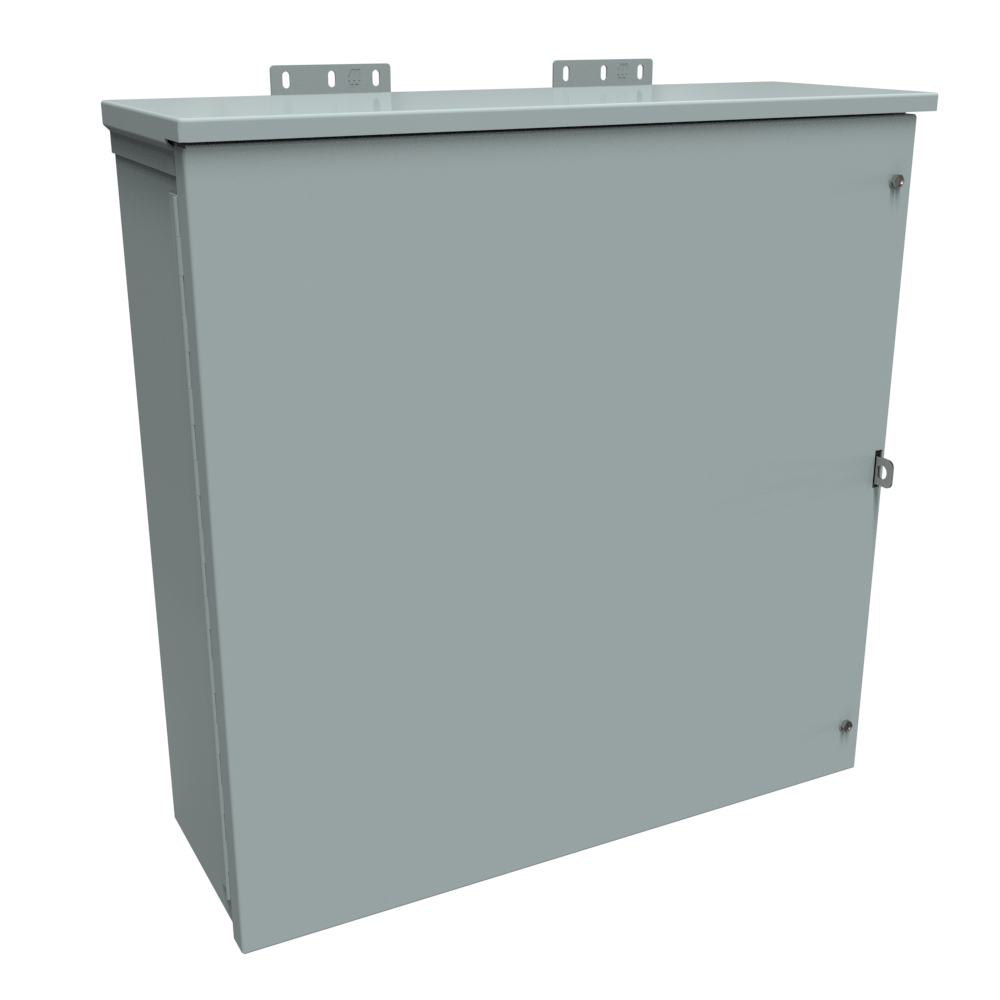

| C3R24248HCR | 24.00 | 24.00 | 8.00 | 18P2121 | 21.00 | 21.00 | $263.43BackorderC3R24248HCR | Buy now |

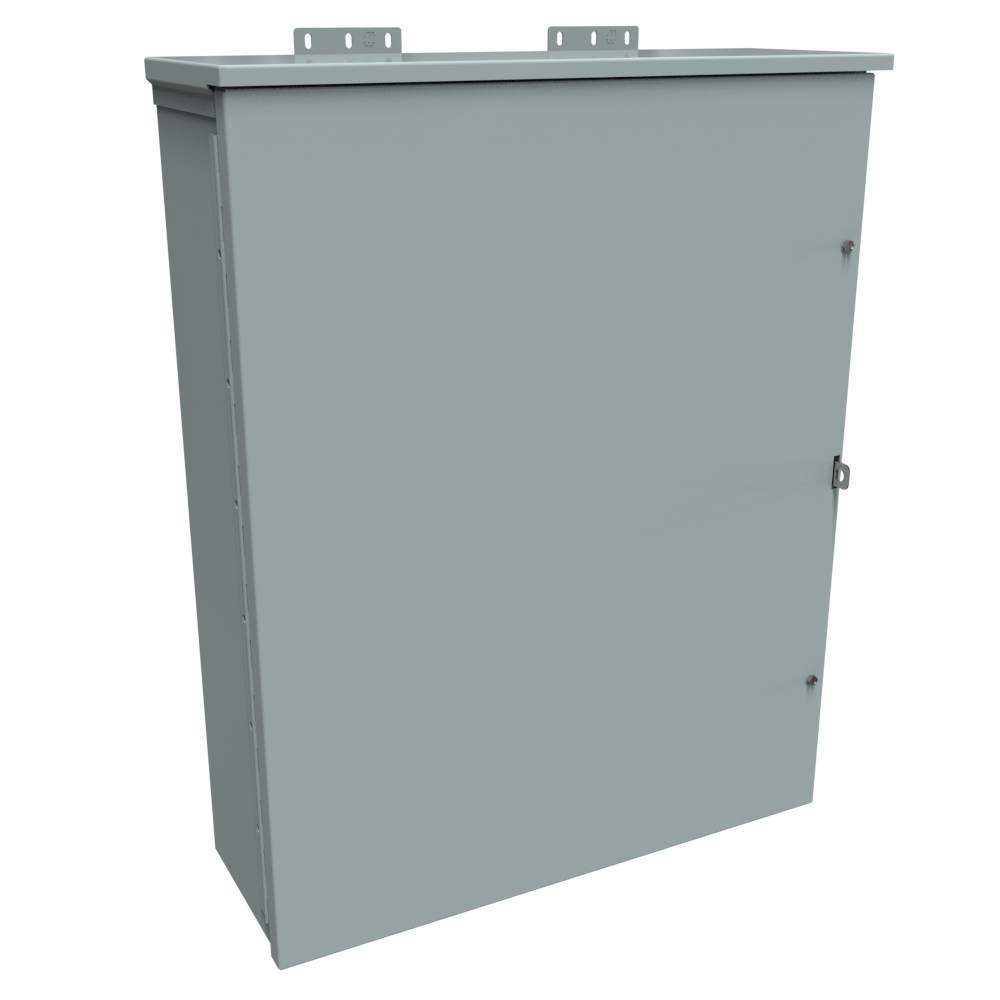

| C3R30248HCR | 30.00 | 24.00 | 8.00 | 18P2721 | 27.00 | 21.00 | $308.18BackorderC3R30248HCR | Buy now |

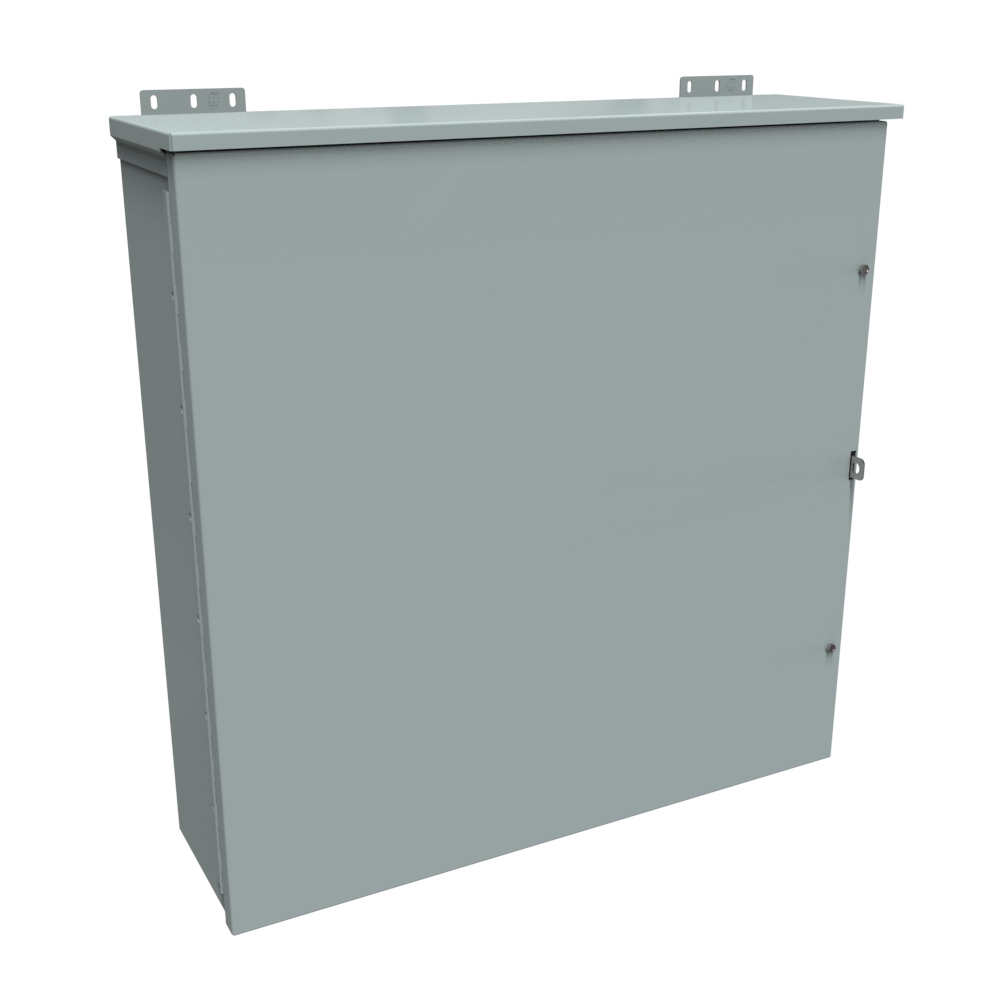

| C3R30308HCR | 30.00 | 30.00 | 8.00 | 18P2727 | 27.00 | 27.00 | $442.24In stockC3R30308HCR | Buy now |
| C3R181810HCR | 18.00 | 18.00 | 10.00 | 18P1515 | 15.00 | 15.00 | $237.46In stockC3R181810HCR | Buy now |

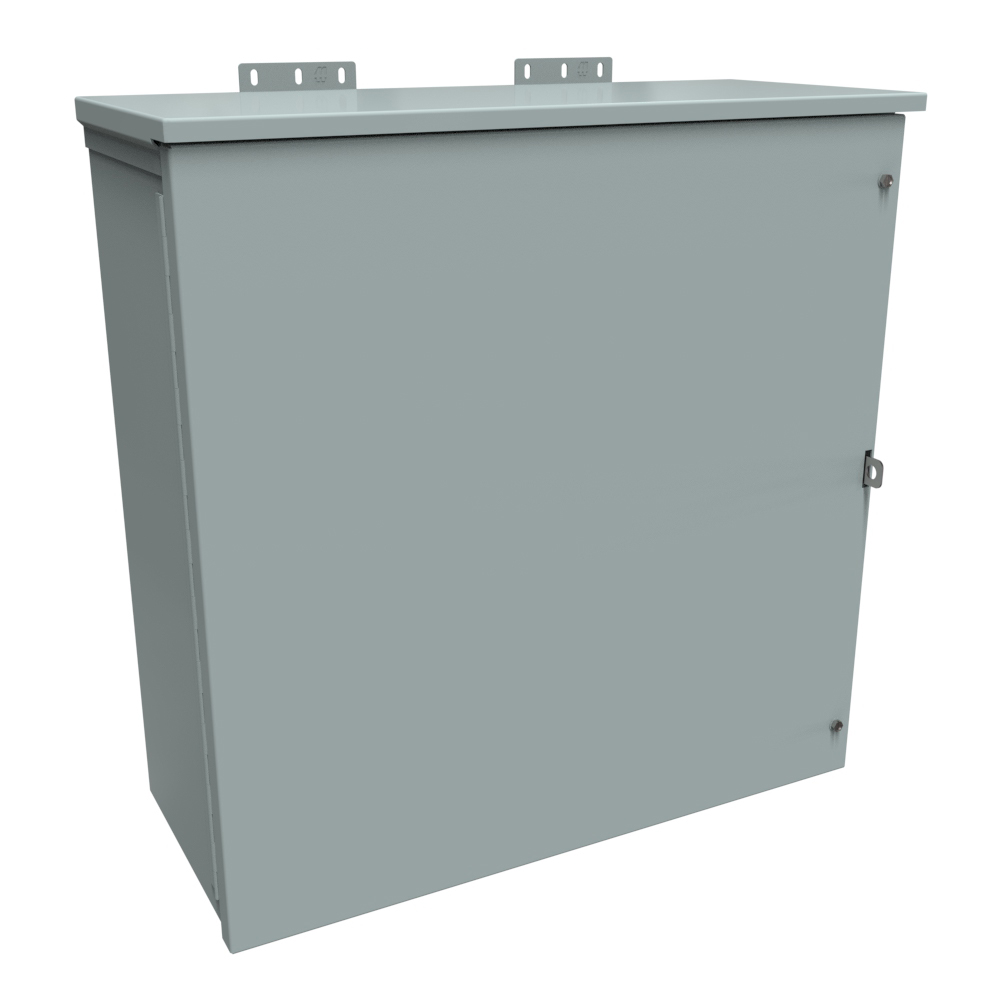

| C3R242410HCR | 24.00 | 24.00 | 10.00 | 18P2121 | 21.00 | 21.00 | $278.27In stockC3R242410HCR | Buy now |

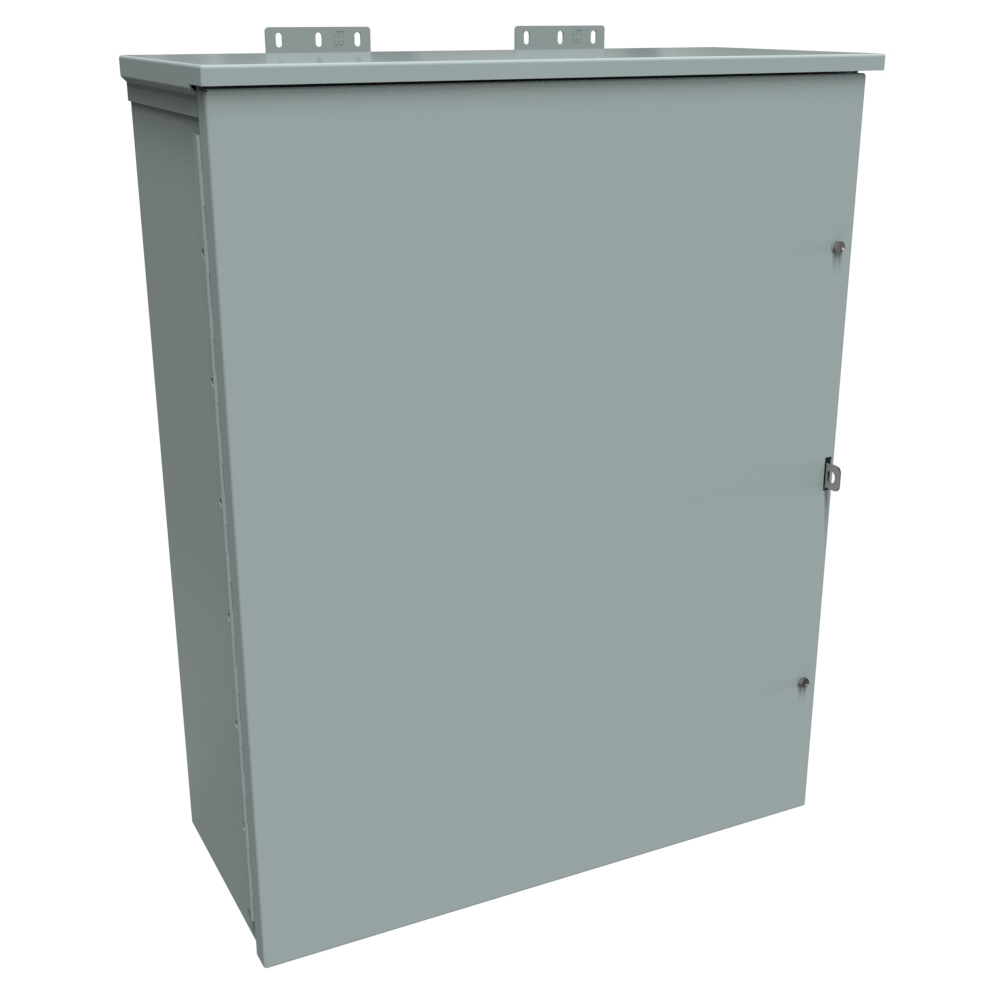

| C3R302410HCR | 30.00 | 24.00 | 10.00 | 18P2721 | 27.00 | 21.00 | $380.64BackorderC3R302410HCR | Buy now |
| C3R363610HCR | 36.00 | 36.00 | 10.00 | 18P3333 | 33.00 | 33.00 | $579.68In stockC3R363610HCR | Buy now |
| C3R303012HCR | 30.00 | 30.00 | 12.00 | 18P2727 | 27.00 | 27.00 | $447.04BackorderC3R303012HCR | Buy now |

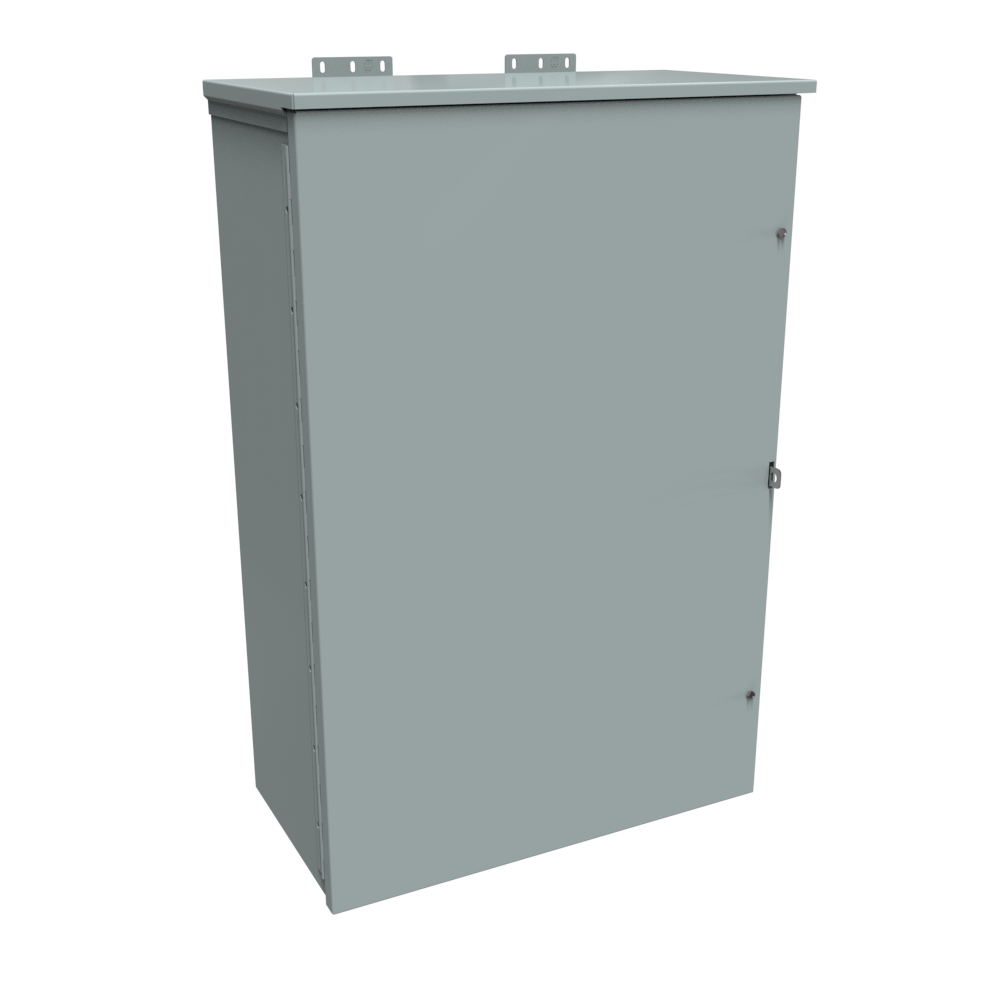

| C3R362412HCR | 36.00 | 24.00 | 12.00 | 18P3321 | 33.00 | 21.00 | $409.06BackorderC3R362412HCR | Buy now |

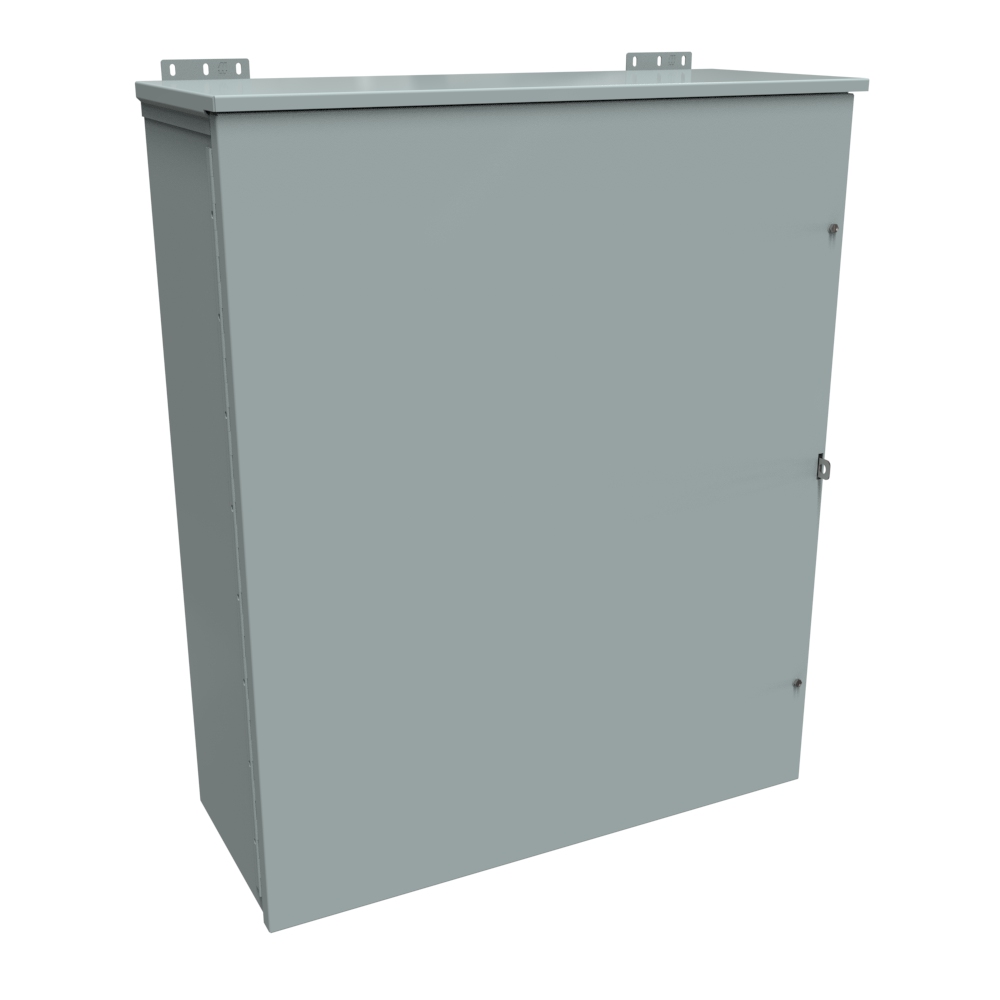

| C3R363012HCR | 36.00 | 30.00 | 12.00 | 18P3327 | 33.00 | 27.00 | $519.57BackorderC3R363012HCR | Buy now |

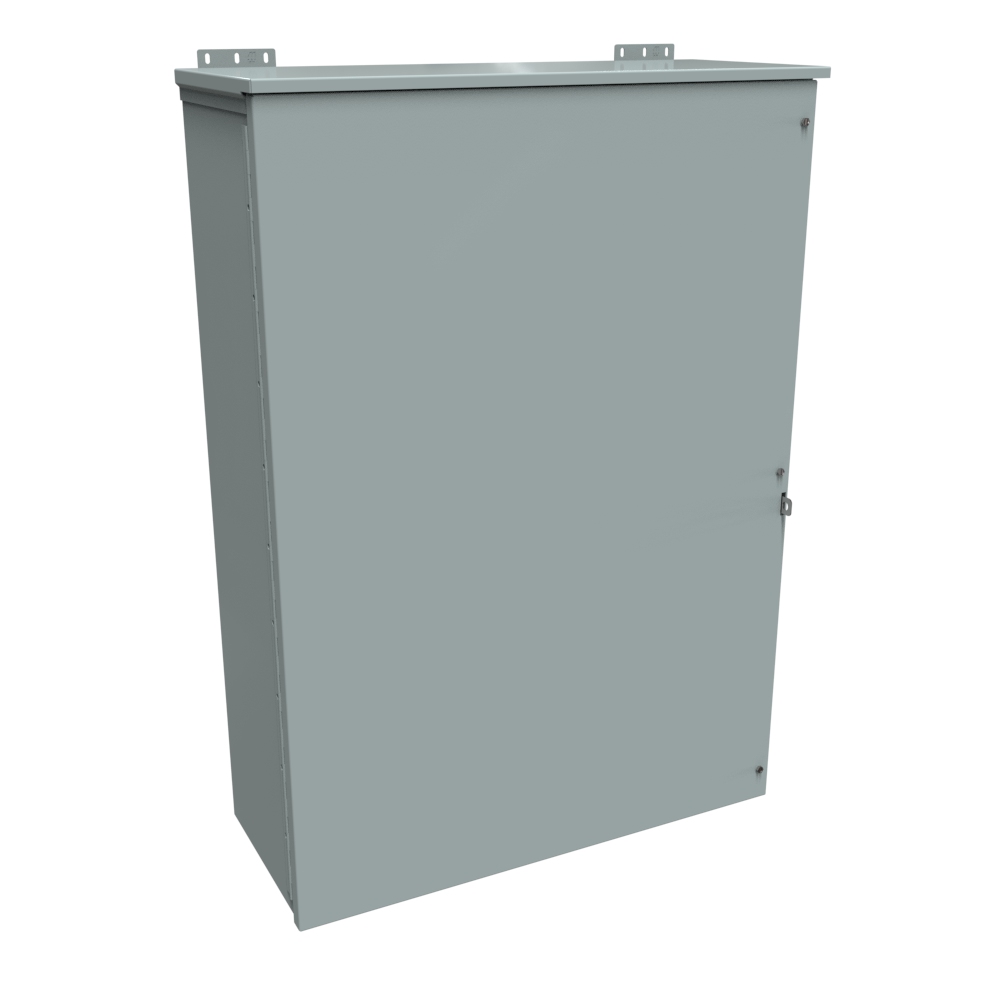

| C3R423012HCR | 42.00 | 30.00 | 12.00 | 18P3927 | 39.00 | 27.00 | $572.96In stockC3R423012HCR | Buy now |
| C3R363612HCR | 36.00 | 36.00 | 12.00 | 18P3333 | 33.00 | 33.00 | $582.05BackorderC3R363612HCR | Buy now |

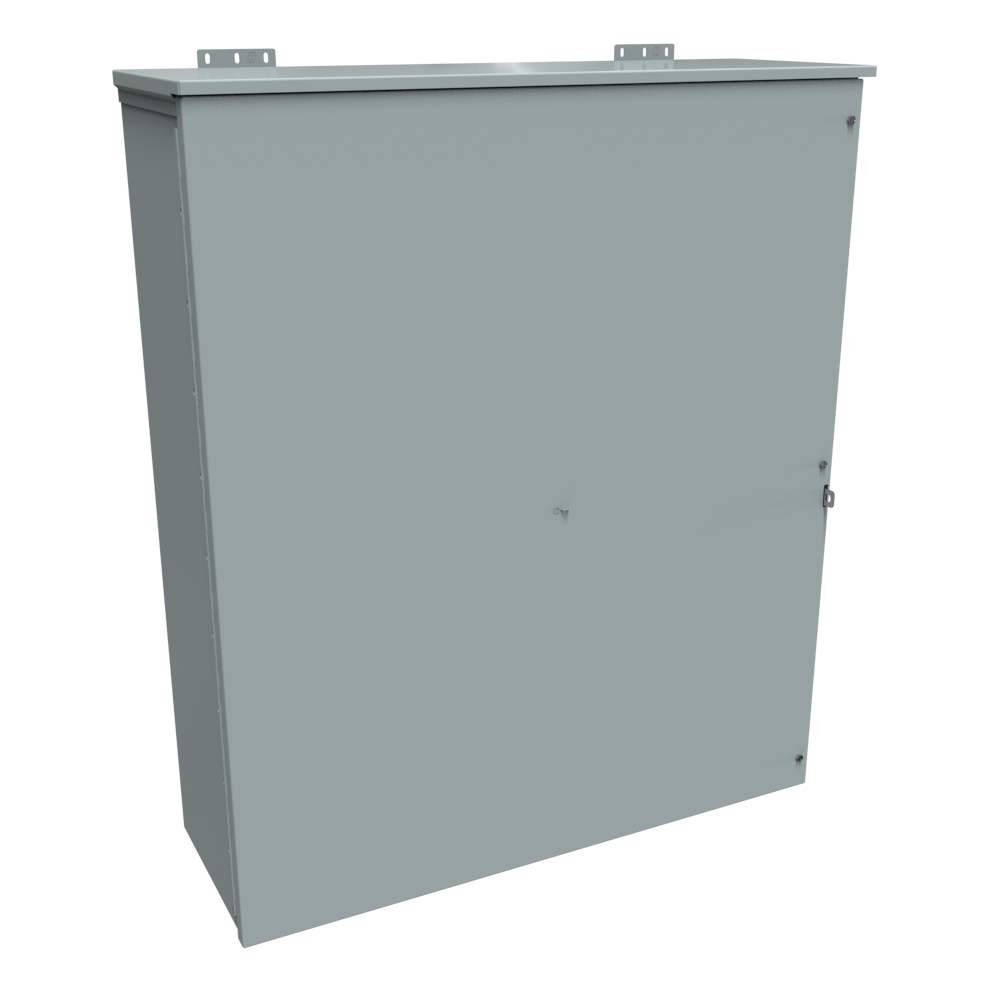

| C3R423612HCR | 42.00 | 36.00 | 12.00 | 18P3933 | 39.00 | 33.00 | $654.01In stockC3R423612HCR | Buy now |

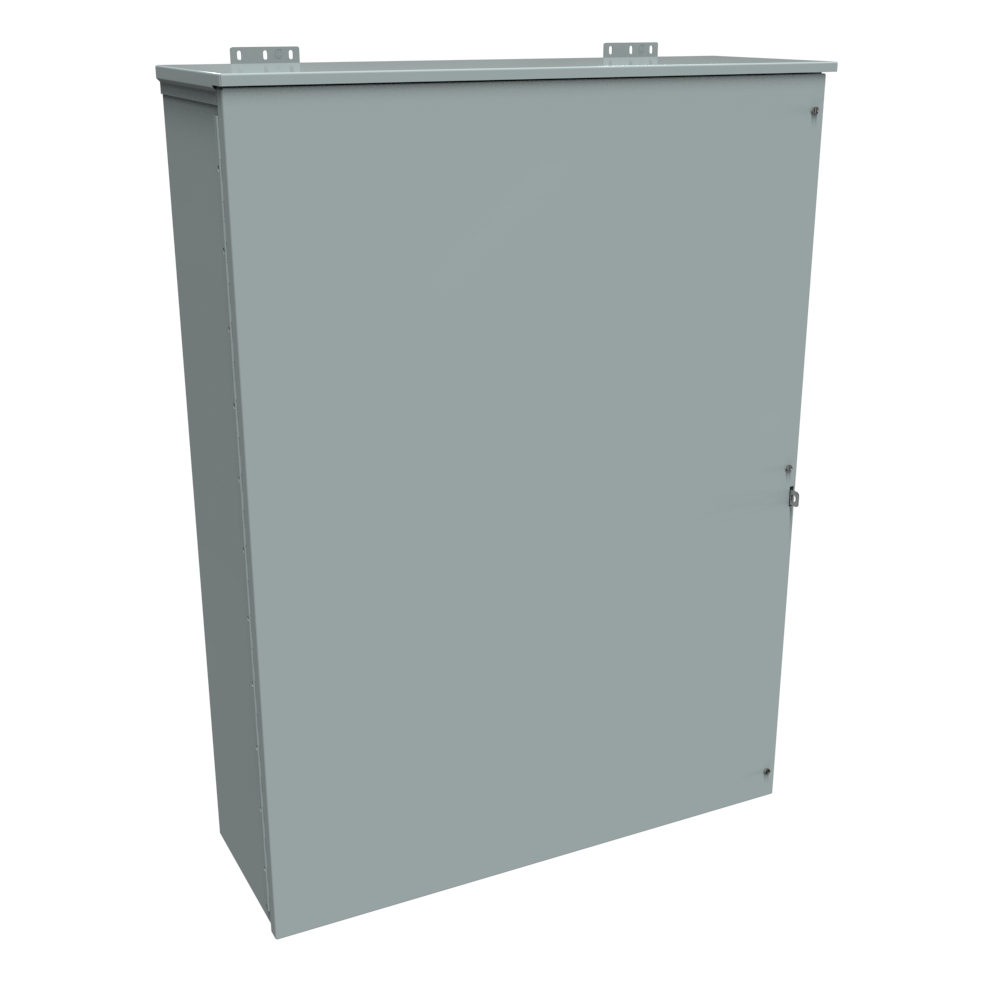

| C3R483612HCR | 48.00 | 36.00 | 12.00 | 18P4533 | 45.00 | 33.00 | $725.96In stockC3R483612HCR | Buy now |
| C3R603612HCR | 60.00 | 36.00 | 12.00 | 18P5733 | 57.00 | 33.00 | $869.81In stockC3R603612HCR | Buy now |
| C3R303016HCR | 30.00 | 30.00 | 16.00 | 18P2727 | 27.00 | 27.00 | $515.59BackorderC3R303016HCR | Buy now |

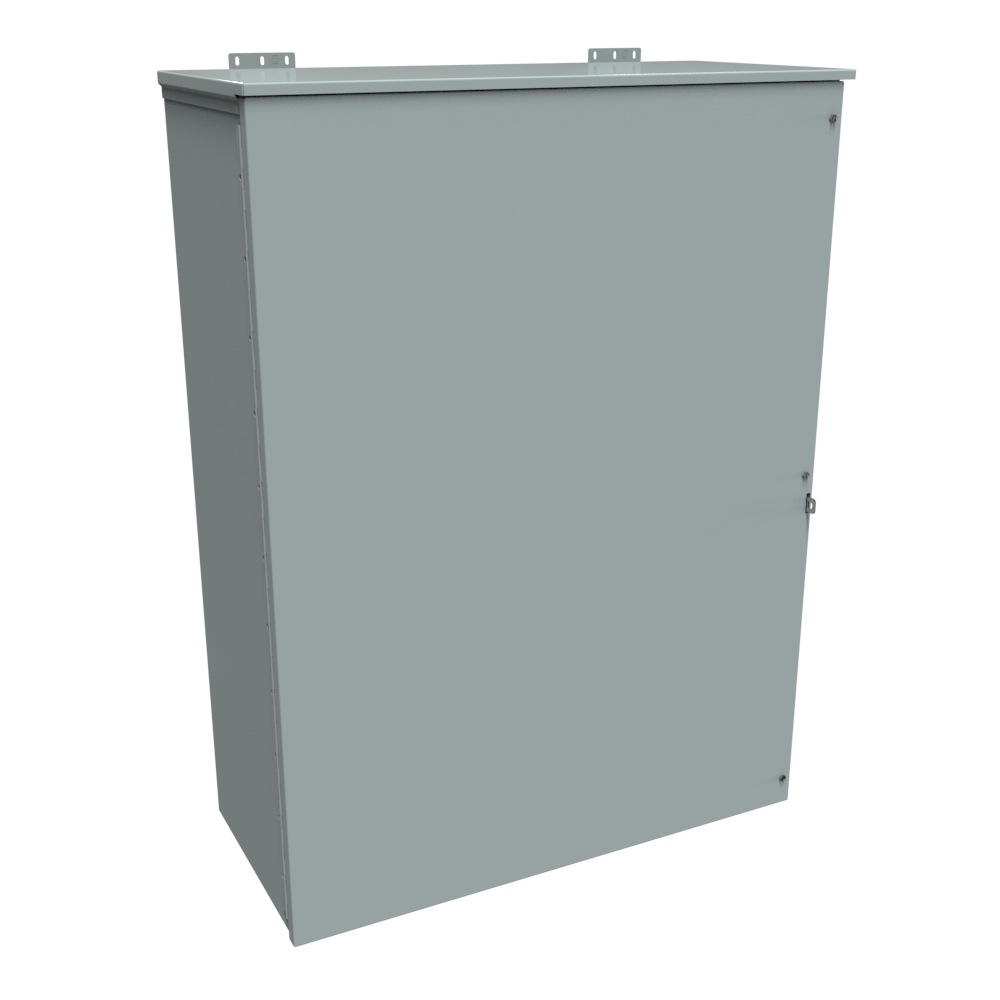

| C3R483616HCR | 48.00 | 36.00 | 16.00 | 18P4533 | 45.00 | 33.00 | $826.76In stockC3R483616HCR | Buy now |
Application
- ■Designed for use as a wiring/junction box.
- ■Provides protection against rain, sleet, snow and dripping water.
Standards
- ■UL-50 Type 3R
- ■CSA Type 3R Complies with NEMA Type 3R IEC 60529, IP24
- ■Complies with
- ■NEMA Type 3R
- ■IEC 60529, IP24
Construction
- ■Formed and spot welded from 16 or 14 gauge galvanized steel.
- ■Drip shield top and seam-free sides, front and back.
- ■Stainless steel continuous hinge.
- ■Cover fastened with captive plated screws.
- ■Padlocking hasp.
- ■Collar studs provided for mounting optional panels.
- ■External mounting feet.
- ■Oil resistant gaskets are permanently secured.
Finish
- ■Enclosure and cover are finished inside and out in ANSI 61 gray powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · Part Number | Optional Inner Panel · H | Optional Inner Panel · W |
|---|---|---|---|---|---|---|
| C3R16126HCR | 16.00 | 12.00 | 6.00 | 18P1309 | 13.00 | 9.00 |
| C3R16166HCR | 16.00 | 16.00 | 6.00 | 18P1313 | 13.00 | 13.00 |
| C3R18186HCR | 18.00 | 18.00 | 6.00 | 18P1515 | 15.00 | 15.00 |
| C3R20166HCR | 20.00 | 16.00 | 6.00 | 18P1713 | 17.00 | 13.00 |
| C3R20208HCR | 20.00 | 20.00 | 8.00 | 18P1717 | 17.00 | 17.00 |
| C3R24208HCR | 24.00 | 20.00 | 8.00 | 18P2117 | 21.00 | 17.00 |
| C3R24248HCR | 24.00 | 24.00 | 8.00 | 18P2121 | 21.00 | 21.00 |
| C3R30248HCR | 30.00 | 24.00 | 8.00 | 18P2721 | 27.00 | 21.00 |
| C3R30308HCR | 30.00 | 30.00 | 8.00 | 18P2727 | 27.00 | 27.00 |
| C3R181810HCR | 18.00 | 18.00 | 10.00 | 18P1515 | 15.00 | 15.00 |
| C3R242410HCR | 24.00 | 24.00 | 10.00 | 18P2121 | 21.00 | 21.00 |
| C3R302410HCR | 30.00 | 24.00 | 10.00 | 18P2721 | 27.00 | 21.00 |
| C3R363610HCR | 36.00 | 36.00 | 10.00 | 18P3333 | 33.00 | 33.00 |
| C3R303012HCR | 30.00 | 30.00 | 12.00 | 18P2727 | 27.00 | 27.00 |
| C3R362412HCR | 36.00 | 24.00 | 12.00 | 18P3321 | 33.00 | 21.00 |
| C3R363012HCR | 36.00 | 30.00 | 12.00 | 18P3327 | 33.00 | 27.00 |
| C3R423012HCR | 42.00 | 30.00 | 12.00 | 18P3927 | 39.00 | 27.00 |
| C3R363612HCR | 36.00 | 36.00 | 12.00 | 18P3333 | 33.00 | 33.00 |
| C3R423612HCR | 42.00 | 36.00 | 12.00 | 18P3933 | 39.00 | 33.00 |
| C3R483612HCR | 48.00 | 36.00 | 12.00 | 18P4533 | 45.00 | 33.00 |
| C3R603612HCR | 60.00 | 36.00 | 12.00 | 18P5733 | 57.00 | 33.00 |
| C3R303016HCR | 30.00 | 30.00 | 16.00 | 18P2727 | 27.00 | 27.00 |
| C3R483616HCR | 48.00 | 36.00 | 16.00 | 18P4533 | 45.00 | 33.00 |
