Heater Fan 550W
- Watts 550 W
- Amps 14 A
- Volts AC 120
- Temperature Maximu 250°F/120°C
QuoteRequest a quote

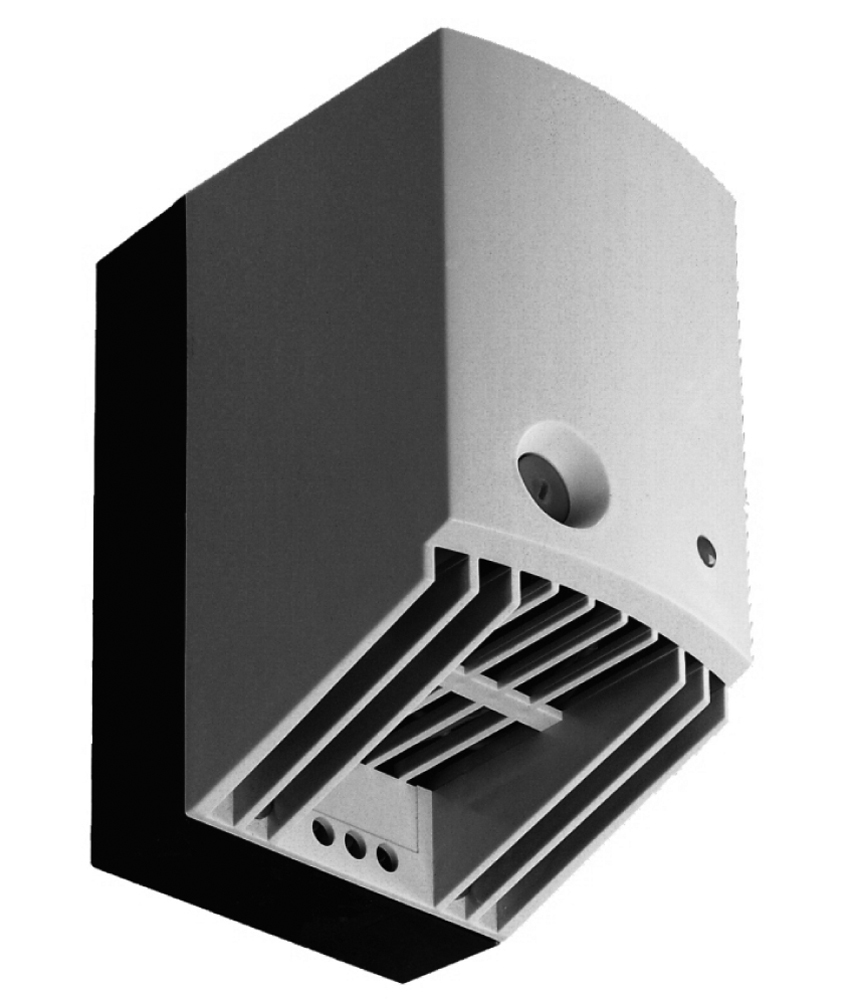

550-650 W High Wattage Fan Heater · SCR Series
Brand: Hammond Manufacturing · 3 part numbers
- ■For large heating capacity requirements.
- ■Maintains minimum operating temperatures in enclosures.
- ■Helps prevent failures to components caused by condensation and corrosion.
- ■Built-in thermostat and control light.
- ■Heating power adjusts to ambient temperature.
- ■Heat exits top of fan heater. (Add 2" clearance for heat-sensitive parts.)
from $314.70
2 of 3 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your SCR Series part number
Filter 3 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
3 of 3 part numbers · 2 priced online
Dimension tables (inches / mm)
| col1 | col2 | Price | Order |
|---|---|---|---|
| Air Flow: | 20 CFM (550W), 26 CFM (650W) | Quote | Quote |
| Thermostat Range: | 32 - 140 degrees Fahrenheit | Quote | Quote |
| Heating Element: | PTC - Semiconductor/resistor | Quote | Quote |
| Housing: | Plastic, rated UL94-VO | Quote | Quote |
| Connection: | 3 pole terminal, AWG 14 max (2.5 mm2) | Quote | Quote |
| Mounting: | Clip for 35mm DIN rail | Quote | Quote |
| Protection Class: | II (Double Insulated) | Quote | Quote |
| Protection Type: | IP20 | Quote | Quote |
| Approval: | UL Recognized Component, cUL Recognized Component, CE | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
Features
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
- ■For large heating capacity requirements.
- ■Maintains minimum operating temperatures in enclosures.
- ■Helps prevent failures to components caused by condensation and corrosion.
- ■Built-in thermostat and control light.
- ■Heating power adjusts to ambient temperature.
- ■Heat exits top of fan heater. (Add 2" clearance for heat-sensitive parts.)
- ■Body of heater is touch safe.
Documents
Additional information
Part Details
| Part No. | Watts | Inrush · Current (Amps) | Volts | Temperature · Maximum with Fan |
|---|---|---|---|---|
| SCR027009 | 550 W | 14 A | AC 120 | 250°F/120°C |
| SCR027009230 | 550 W | 13 A | AC 230 | 250°F/120°C |
| SCR027019 | 650 W | 15 A | AC 120 | 320°F/160°C |
Part Details
| col1 | col2 |
|---|---|
| Air Flow: | 20 CFM (550W), 26 CFM (650W) |
| Thermostat Range: | 32 - 140 degrees Fahrenheit |
| Heating Element: | PTC - Semiconductor/resistor |
| Housing: | Plastic, rated UL94-VO |
| Connection: | 3 pole terminal, AWG 14 max (2.5 mm2) |
| Mounting: | Clip for 35mm DIN rail |
| Protection Class: | II (Double Insulated) |
| Protection Type: | IP20 |
| Approval: | UL Recognized Component, cUL Recognized Component, CE |
