Aa Hx 22W/C 115V 4X SS
- Sample Performance 440W (1400 BTU)
$2,236.78In stock
Buy now

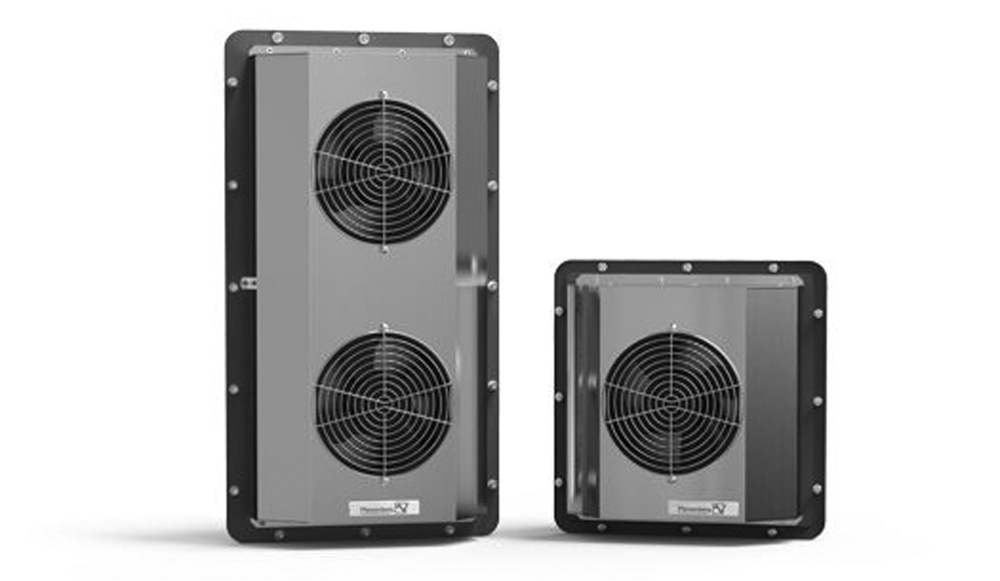

Air to Air Heat Exchangers - Mini Type 4X · PKSMINI Series
Brand: Hammond Manufacturing · 2 part numbers
- ■Designed for indoor, outdoor, corrosive outdoor or washdown applications.
- ■Air to air heat exchangers provide superior technology when there is a lower surrounding air temperature compared to the target internal temperature (difference of at least 10°C/18°F).
- ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
- ■Superior energy efficiency and lower maintenance costs versus air conditioners.
- ■Maintains enclosure's NEMA 4X rating
- ■IP 56
from $2,236.78
2 of 2 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your PKSMINI Series part number
Filter 2 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
2 of 2 part numbers · 2 priced online
Aa Hx 45W/C 115V 4X SS
- Sample Performance 900W (3000 BTU)
$3,794.74Backorder
Buy nowDimension tables (inches / mm)
| Part No. | Voltage - Frequency | Cooling Capacity · W/°C | Cooling Capacity · W/°F | Dimensions · H | Dimensions · W | Dimensions · D | Sample Performance · ΔT = 20°C/36°F | Price | Order |
|---|---|---|---|---|---|---|---|---|---|
| PKS3042A115N4SS | 115V 60 Hz | 22 | 12 | 12.00 | 12.00 | 7.89 | 440W (1400 BTU) | $2,236.78In stock | Buy now |
| PKS3092A115N4SS | 115V 60 Hz | 45 | 25 | 22.75 | 12.00 | 7.89 | 900W (3000 BTU) | $3,794.74Backorder | Buy now |
Description
- ■Designed for indoor, outdoor, corrosive outdoor or washdown applications.
- ■Air to air heat exchangers provide superior technology when there is a lower surrounding air temperature compared to the target internal temperature (difference of at least 10°C/18°F).
- ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
- ■Superior energy efficiency and lower maintenance costs versus air conditioners.
Standards
- ■Maintains enclosure's NEMA 4X rating
- ■IP 56
- ■UR, cUR and CE
Features
- ■R134a refrigerant.
- ■EMI/RFI suppression meets CE.
- ■Gasket, mounting kit and template for cutout and drilling are included.
- ■Can be mounted vertically or horizontally for application flexibility.
- ■Cover finished in unpainted 316 stainless steel
- ■See Manual/Technical Data Sheet for drilling template and full electrical specifications.
Documents
Additional information
Part Details
| Part No. | Voltage - Frequency | Cooling Capacity · W/°C | Cooling Capacity · W/°F | Dimensions · H | Dimensions · W | Dimensions · D | Sample Performance · ΔT = 20°C/36°F |
|---|---|---|---|---|---|---|---|
| PKS3042A115N4SS | 115V 60 Hz | 22 | 12 | 12.00 | 12.00 | 7.89 | 440W (1400 BTU) |
| PKS3092A115N4SS | 115V 60 Hz | 45 | 25 | 22.75 | 12.00 | 7.89 | 900W (3000 BTU) |
