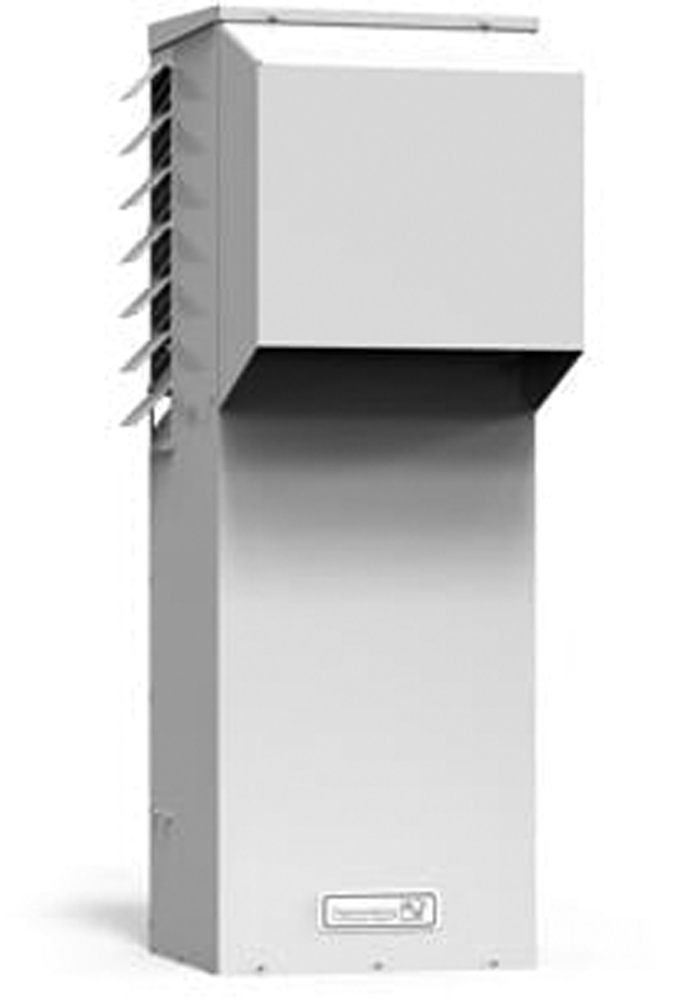

Air to Air Heat Exchangers - Type 3R/4 PKS4 Series

Air to Air Heat Exchangers - Type 3R/4 · PKS4 Series

Brand: Hammond Manufacturing · 12 part numbers

  • ■Designed for outdoor applications.
  • ■Air to air heat exchangers provide superior technology when there is a lower surrounding air temperature compared to the target internal temperature (difference of at least 10°C/18°F).
  • ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
  • ■Superior energy efficiency and lower maintenance costs versus air conditioners.
  • ■Maintains enclosure's NEMA 3R/4 rating
  • ■IP 56

from $3,491.60

12 of 12 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your PKS4 Series part number

Filter 12 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

12 of 12 part numbers · 12 priced online

PKS3133A115N4LG

Aa Hx 65W/C 115V N4 Lt Grey

  • Voltage - Frequenc 115V 60 Hz
  • Sample Performance 1300W (4400 BTU)
$3,491.60Backorder
Buy now
PKS3133A230N4LG

Aa Hx 65W/C 230V N4 Lt Grey

  • Voltage - Frequenc 230V 50/60 Hz
  • Sample Performance 1300W (4400 BTU)
$3,546.17Backorder
Buy now
PKS3133A460N4LG

Aa Hx 65W/C 460V N4 Lt Grey

  • Voltage - Frequenc 400/460V 50/60 Hz
  • Sample Performance 1300W (4400BTU)
$3,756.76Backorder
Buy now
PKS3203A115N4LG

Aa Hx 100W/C 115V N4 Lt Grey

  • Voltage - Frequenc 115V 60 Hz
  • Sample Performance 2000W (6800 BTU)
$4,822.75Backorder
Buy now
PKS3203A230N4LG

Aa Hx 100W/C 230V N4 Lt Grey

  • Voltage - Frequenc 230V 50/60 Hz
  • Sample Performance 2000W (6800 BTU)
$4,877.36Backorder
Buy now
PKS3203A460N4LG

Aa Hx 100W/C 460V N4 Lt Grey

  • Voltage - Frequenc 400/460V 50/60 Hz
  • Sample Performance 2000W (6800 BTU)
$4,997.39Backorder
Buy now
PKS3303A115N4LG

Aa Hx 150W/C 115V N4 Lt Grey

  • Voltage - Frequenc 115V 60 Hz
  • Sample Performance 3000W (10200 BTU)
$4,610.02Backorder
Buy now
PKS3303A230N4LG

Aa Hx 150W/C 230V N4 Lt Grey

  • Voltage - Frequenc 230V 50/60 Hz
  • Sample Performance 3000W (10200 BTU)
$4,664.63Backorder
Buy now
PKS3303A460N4LG

Aa Hx 150W/C 460V N4 Lt Grey

  • Voltage - Frequenc 400/460V 50/60 Hz
  • Sample Performance 3000W (10200 BTU)
$4,773.71Backorder
Buy now
PKS3363A115N4LG

Aa Hx 180W/C 115V N4 Lt Grey

  • Voltage - Frequenc 115V 60 Hz
  • Sample Performance 3600W (12200 BTU)
$4,888.25Backorder
Buy now
PKS3363A230N4LG

Aa Hx 180W/C 230V N4 Lt Grey

  • Voltage - Frequenc 230V 50/60 Hz
  • Sample Performance 3600W (12200 BTU)
$4,953.75Backorder
Buy now
PKS3363A460N4LG

Aa Hx 180W/C 460V N4 Lt Grey

  • Voltage - Frequenc 400/460V 50/60 Hz
  • Sample Performance 3600W (12200 BTU)
$5,062.84In stock
Buy now
Dimension tables (inches / mm)
Part No.Voltage - FrequencyCooling Capacity · W/°CCooling Capacity · W/°FDimensions · HDimensions · WDimensions · DSample Performance · ΔT = 20°C/36°FPriceOrder
PKS3133A115N4LG115V 60 Hz653635.3011.9716.041300W (4400 BTU)$3,491.60BackorderBuy now
PKS3133A230N4LG230V 50/60 Hz653635.3011.9716.041300W (4400 BTU)$3,546.17BackorderBuy now
PKS3133A460N4LG400/460V 50/60 Hz653635.3011.9716.041300W (4400BTU)$3,756.76BackorderBuy now
PKS3203A115N4LG115V 60 Hz1005635.3011.9716.042000W (6800 BTU)$4,822.75BackorderBuy now
PKS3203A230N4LG230V 50/60 Hz1005635.3011.9716.042000W (6800 BTU)$4,877.36BackorderBuy now
PKS3203A460N4LG400/460V 50/60 Hz1005635.3011.9716.042000W (6800 BTU)$4,997.39BackorderBuy now
PKS3303A115N4LG115V 60 Hz1508335.3011.9716.043000W (10200 BTU)$4,610.02BackorderBuy now
PKS3303A230N4LG230V 50/60 Hz1508335.3011.9716.043000W (10200 BTU)$4,664.63BackorderBuy now
PKS3303A460N4LG400/460V 50/60 Hz1508335.3011.9716.043000W (10200 BTU)$4,773.71BackorderBuy now
PKS3363A115N4LG115V 60 Hz18010035.3011.9716.043600W (12200 BTU)$4,888.25BackorderBuy now
PKS3363A230N4LG230V 50/60 Hz18010035.3011.9716.043600W (12200 BTU)$4,953.75BackorderBuy now
PKS3363A460N4LG400/460V 50/60 Hz18010035.3011.9716.043600W (12200 BTU)$5,062.84In stockBuy now

Description

  • ■Designed for outdoor applications.
  • ■Air to air heat exchangers provide superior technology when there is a lower surrounding air temperature compared to the target internal temperature (difference of at least 10°C/18°F).
  • ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
  • ■Superior energy efficiency and lower maintenance costs versus air conditioners.

Standards

  • ■Maintains enclosure's NEMA 3R/4 rating
  • ■IP 56
  • ■UR, cUR and CE

Features

  • ■Compact Standard Size: 35"H x 12"W x 16"D (louvers extend 1.5" on either side)
  • ■R134a refrigerant.
  • ■Thermostat control accessible from inside enclosure.
  • ■EMI/RFI suppression meets CE.
  • ■Door contact provision for power down when enclosure door is opened.
  • ■Gasket, mounting kit and template for cutout and drilling are included.
  • ■Can be mounted vertically or horizontally for application flexibility.
  • ■Cover finished in Light Gray (RAL7035) powder coated steel.
  • ■See Manual/Technical Data Sheet for drilling template and full electrical specifications.

Documents

Specification SheetDrilling TemplatePKS Manual

Additional information

Part Details

Part No.Voltage - FrequencyCooling Capacity · W/°CCooling Capacity · W/°FDimensions · HDimensions · WDimensions · DSample Performance · ΔT = 20°C/36°F
PKS3133A115N4LG115V 60 Hz653635.3011.9716.041300W (4400 BTU)
PKS3133A230N4LG230V 50/60 Hz653635.3011.9716.041300W (4400 BTU)
PKS3133A460N4LG400/460V 50/60 Hz653635.3011.9716.041300W (4400BTU)
PKS3203A115N4LG115V 60 Hz1005635.3011.9716.042000W (6800 BTU)
PKS3203A230N4LG230V 50/60 Hz1005635.3011.9716.042000W (6800 BTU)
PKS3203A460N4LG400/460V 50/60 Hz1005635.3011.9716.042000W (6800 BTU)
PKS3303A115N4LG115V 60 Hz1508335.3011.9716.043000W (10200 BTU)
PKS3303A230N4LG230V 50/60 Hz1508335.3011.9716.043000W (10200 BTU)
PKS3303A460N4LG400/460V 50/60 Hz1508335.3011.9716.043000W (10200 BTU)
PKS3363A115N4LG115V 60 Hz18010035.3011.9716.043600W (12200 BTU)
PKS3363A230N4LG230V 50/60 Hz18010035.3011.9716.043600W (12200 BTU)
PKS3363A460N4LG400/460V 50/60 Hz18010035.3011.9716.043600W (12200 BTU)
