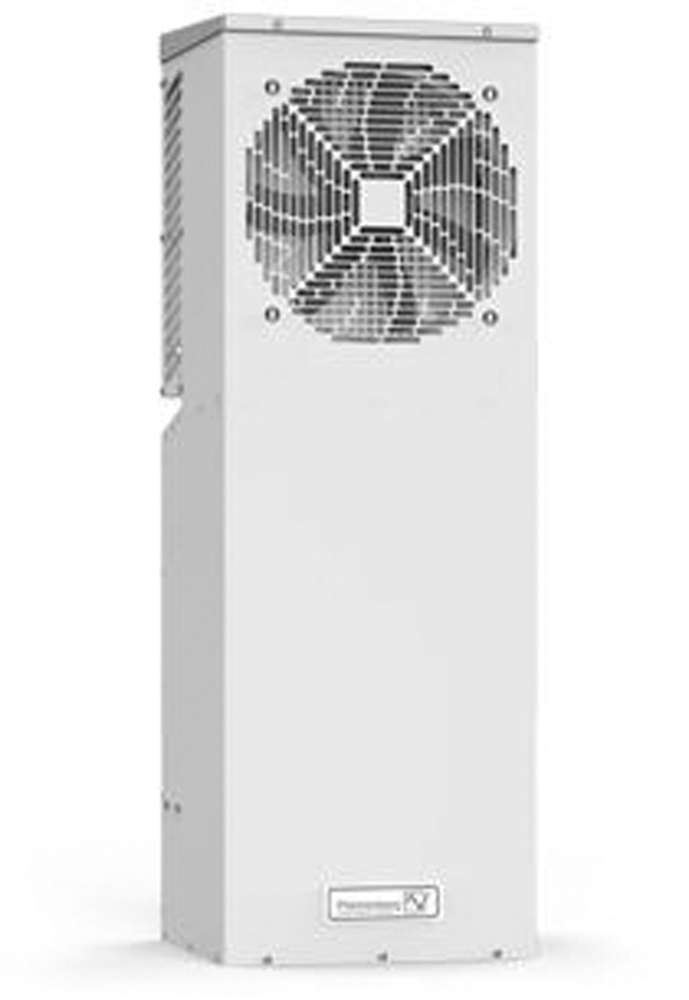

Air to Air Heat Exchangers - Type 12 PKS12 Series

Air to Air Heat Exchangers - Type 12 · PKS12 Series

Brand: Hammond Manufacturing · 12 part numbers

  • ■Designed for indoor applications.
  • ■Air to air heat exchangers provide superior technology when there is a lower surrounding air temperature compared to the target internal temperature (difference of at least 10°C/18°F).
  • ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
  • ■Superior energy efficiency and lower maintenance costs versus air conditioners.
  • ■Maintains enclosure's NEMA 12 rating
  • ■IP 54

from $3,022.45

12 of 12 part numbers priced · available on backorder · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your PKS12 Series part number

Filter 12 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

12 of 12 part numbers · 12 priced online

PKS3131A115LG

Aa Hx 65W/C 115V N12 Lt Grey

  • Voltage - Frequenc 115V 60 Hz
  • Sample Performance 1300W (4400 BTU)
$3,022.45Backorder
Buy now
PKS3131A230LG

Aa Hx 65W/C 230V N12 Lt Grey

  • Voltage - Frequenc 230V 50/60 Hz
  • Sample Performance 1300W (4400 BTU)
$3,076.93Backorder
Buy now
PKS3131A460LG

Aa Hx 65W/C 460V N12 Lt Grey

  • Voltage - Frequenc 400/460V 50/60 Hz
  • Sample Performance 1300W (4400BTU)
$3,285.83Backorder
Buy now
PKS3201A115LG

Aa Hx 100W/C 115V N12 Lt Grey

  • Voltage - Frequenc 115V 60 Hz
  • Sample Performance 2000W (6800 BTU)
$3,349.85Backorder
Buy now
PKS3201A230LG

Aa Hx 100W/C 230V N12 Lt Grey

  • Voltage - Frequenc 230V 50/60 Hz
  • Sample Performance 2000W (6800 BTU)
$3,404.38Backorder
Buy now
PKS3201A460LG

Aa Hx 100W/C 460V N12 Lt Grey

  • Voltage - Frequenc 400/460V 50/60 Hz
  • Sample Performance 2000W (6800 BTU)
$3,513.41Backorder
Buy now
PKS3301A115LG

Aa Hx 150W/C 115V N12 Lt Grey

  • Voltage - Frequenc 115V 60 Hz
  • Sample Performance 3000W (10200 BTU)
$3,600.73Backorder
Buy now
PKS3301A230LG

Aa Hx 150W/C 230V N12 Lt Grey

  • Voltage - Frequenc 230V 50/60 Hz
  • Sample Performance 3000W (10200 BTU)
$3,655.30Backorder
Buy now
PKS3301A460LG

Aa Hx 150W/C 460V N12 Lt Grey

  • Voltage - Frequenc 400/460V 50/60 Hz
  • Sample Performance 3000W (10200 BTU)
$3,775.37Backorder
Buy now
PKS3361A115LG

Aa Hx 180W/C 115V N12 Lt Grey

  • Voltage - Frequenc 115V 60 Hz
  • Sample Performance 3600W (12200 BTU)
$3,993.54Backorder
Buy now
PKS3361A230LG

Aa Hx 180W/C 230V N12 Lt Grey

  • Voltage - Frequenc 230V 50/60 Hz
  • Sample Performance 3600W (12200 BTU)
$4,048.11Backorder
Buy now
PKS3361A460LG

Aa Hx 180W/C 460V N12 Lt Grey

  • Voltage - Frequenc 400/460V 50/60 Hz
  • Sample Performance 3600W (12200 BTU)
$4,157.20Backorder
Buy now
Dimension tables (inches / mm)
Part No.Voltage - FrequencyCooling Capacity · W/°CCooling Capacity · W/°FDimensions · HDimensions · WDimensions · DSample Performance · ΔT = 20°C/36°FPriceOrder
PKS3131A115LG115V 60 Hz653635.3111.9710.651300W (4400 BTU)$3,022.45BackorderBuy now
PKS3131A230LG230V 50/60 Hz653635.3111.9710.651300W (4400 BTU)$3,076.93BackorderBuy now
PKS3131A460LG400/460V 50/60 Hz653635.3111.9710.651300W (4400BTU)$3,285.83BackorderBuy now
PKS3201A115LG115V 60 Hz1005635.3111.9710.652000W (6800 BTU)$3,349.85BackorderBuy now
PKS3201A230LG230V 50/60 Hz1005635.3111.9710.652000W (6800 BTU)$3,404.38BackorderBuy now
PKS3201A460LG400/460V 50/60 Hz1005635.3111.9710.652000W (6800 BTU)$3,513.41BackorderBuy now
PKS3301A115LG115V 60 Hz1508335.3111.9710.653000W (10200 BTU)$3,600.73BackorderBuy now
PKS3301A230LG230V 50/60 Hz1508335.3111.9710.653000W (10200 BTU)$3,655.30BackorderBuy now
PKS3301A460LG400/460V 50/60 Hz1508335.3111.9710.653000W (10200 BTU)$3,775.37BackorderBuy now
PKS3361A115LG115V 60 Hz18010035.3111.9710.653600W (12200 BTU)$3,993.54BackorderBuy now
PKS3361A230LG230V 50/60 Hz18010035.3111.9710.653600W (12200 BTU)$4,048.11BackorderBuy now
PKS3361A460LG400/460V 50/60 Hz18010035.3111.9710.653600W (12200 BTU)$4,157.20BackorderBuy now

Description

  • ■Designed for indoor applications.
  • ■Air to air heat exchangers provide superior technology when there is a lower surrounding air temperature compared to the target internal temperature (difference of at least 10°C/18°F).
  • ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
  • ■Superior energy efficiency and lower maintenance costs versus air conditioners.

Standards

  • ■Maintains enclosure's NEMA 12 rating
  • ■IP 54
  • ■UR, cUR and CE

Features

  • ■Compact Standard Size: 35"H x 12"W x 11"D
  • ■R134a refrigerant.
  • ■Thermostat control accessible from inside enclosure.
  • ■EMI/RFI suppression meets CE.
  • ■Door contact provision for power down when enclosure door is opened.
  • ■Gasket, mounting kit and template for cutout and drilling are included.
  • ■Can be mounted vertically or horizontally for application flexibility.
  • ■Cover finished in Light Gray (RAL7035) powder coated steel.
  • ■See Manual/Technical Data Sheet for drilling template and full electrical specifications.

Documents

Specification SheetDrilling TemplatePKS Manual

Additional information

Part Details

Part No.Voltage - FrequencyCooling Capacity · W/°CCooling Capacity · W/°FDimensions · HDimensions · WDimensions · DSample Performance · ΔT = 20°C/36°F
PKS3131A115LG115V 60 Hz653635.3111.9710.651300W (4400 BTU)
PKS3131A230LG230V 50/60 Hz653635.3111.9710.651300W (4400 BTU)
PKS3131A460LG400/460V 50/60 Hz653635.3111.9710.651300W (4400BTU)
PKS3201A115LG115V 60 Hz1005635.3111.9710.652000W (6800 BTU)
PKS3201A230LG230V 50/60 Hz1005635.3111.9710.652000W (6800 BTU)
PKS3201A460LG400/460V 50/60 Hz1005635.3111.9710.652000W (6800 BTU)
PKS3301A115LG115V 60 Hz1508335.3111.9710.653000W (10200 BTU)
PKS3301A230LG230V 50/60 Hz1508335.3111.9710.653000W (10200 BTU)
PKS3301A460LG400/460V 50/60 Hz1508335.3111.9710.653000W (10200 BTU)
PKS3361A115LG115V 60 Hz18010035.3111.9710.653600W (12200 BTU)
PKS3361A230LG230V 50/60 Hz18010035.3111.9710.653600W (12200 BTU)
PKS3361A460LG400/460V 50/60 Hz18010035.3111.9710.653600W (12200 BTU)
