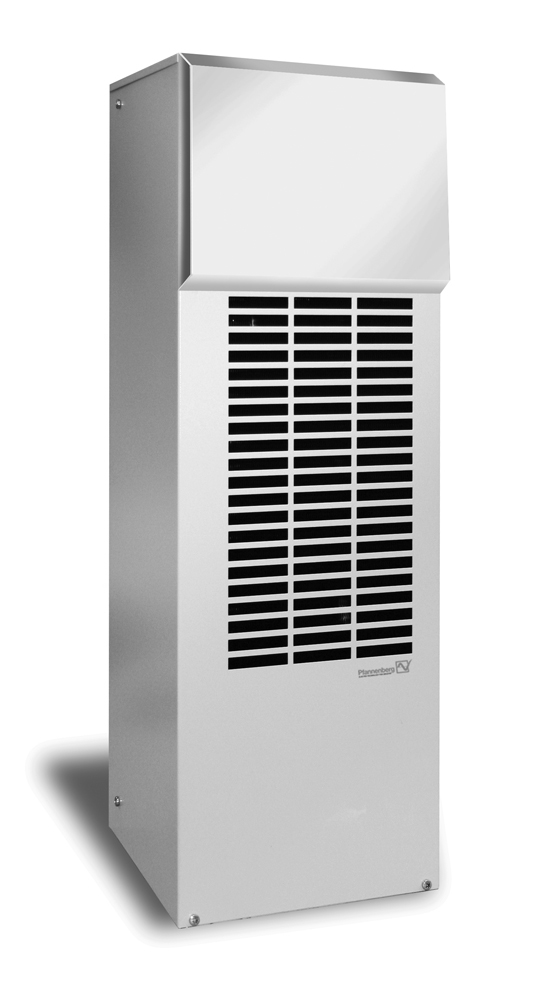

5000-12000 BTU/H Outdoor Air Conditioner DTS Series

5000-12000 BTU/H Outdoor Air Conditioner · DTS Series

Brand: Hammond Manufacturing · 12 part numbers

Type 3R, 4, 4X, Side Mounting

  • ■Designed for side mounting on any enclosure surface where high capacity system cooling is required.
  • ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
  • ■Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.
  • ■Condensor with 3 mm fin spacing, highly effective protection against strongly contaminated and aggressive ambient air.
  • ■UL, cUL, and CE
  • ■Complies with IP56 NEMA 3R, 4, 4X

from $4,053.53

11 of 12 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your DTS Series part number

Filter 12 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

12 of 12 part numbers · 11 priced online

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part NumberABCType RatingPriceOrder
DTS3165A115N3LG36.6511.8914.403R, 4$4,053.53BackorderBuy now
DTS3165A230N3LG36.6511.8914.403R, 4$4,107.77BackorderBuy now
DTS3165A460N3LG36.6511.8914.403R, 4$4,198.28BackorderBuy now
DTS3185A115N4SS36.6511.8914.404XQuoteQuote
DTS3185A230N4SS36.6511.8914.404X$5,157.41BackorderBuy now
DTS3185A460N4SS36.6511.8914.404X$5,247.86In stockBuy now
DTS3265A115N3LG53.0016.0014.403R, 4$5,799.73BackorderBuy now
DTS3265A230N3LG53.0016.0014.403R, 4$5,845.00BackorderBuy now
DTS3265A460N3LG53.0016.0014.403R, 4$5,944.55BackorderBuy now
DTS3285A115N4SS53.0016.0014.404X$6,994.14BackorderBuy now
DTS3285A230N4SS53.0016.0014.404X$7,039.37BackorderBuy now
DTS3285A460N4SS53.0016.0014.404X$7,129.86BackorderBuy now
Electrical · DataDTS3165A115N3LG · DTS3185A115N4SSDTS3165A230N3LG · DTS3185A230N4SSDTS3165A460N3LG · DTS3185A460N4SSDTS3265A115N3LG · DTS3285A115N4SSDTS3265A230N3LG · DTS3285A230N4SSDTS3265A460N3LG · DTS3285A460N4SSPriceOrder
Rated Voltage115 V 60 Hz230 V 50/60 Hz460 V 50/60 Hz115 V 60 Hz230 V 50/60 Hz460 V 50/60 HzQuoteQuote
Range of Operation103-127 V206-254 V360-506 V103-127 V198-253 V360-506 VQuoteQuote
Power Consumption1224 W1283 W1496 W1850 W1608 W1700 WQuoteQuote
Running Amps10.64 A5.58 A1.88 A16.9 A7.3 A3.14 AQuoteQuote
Starting Current48 A26 A16 A20 A10 A8 AQuoteQuote
Line CordTerminal BlockTerminal BlockTerminal BlockTerminal BlockTerminal BlockTerminal BlockQuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Refrigeration · DataDTS3165A115N3LG · DTS3185A115N4SSDTS3165A230N3LG · DTS3185A230N4SSDTS3165A460N3LG · DTS3185A460N4SSDTS3265A115N3LG · DTS3285A115N4SSDTS3265A230N3LG · DTS3285A230N4SSDTS3265A460N3LG · DTS3285A460N4SSPriceOrder
Cooling Capacity +95/+95F +35/+35C6142 BTU (1800 Watts)6995 BTU (2050 Watts)6995 BTU (2050 Watts)12472 BTU (3657 W)12007 BTU (3515 W)12000 BTU (3500 W)QuoteQuote
Type of Refrigerant134a134a134a134a134a134aQuoteQuote
Refrigerant Charge650 g900 g825 g1200 g1200 g1200 gQuoteQuote
Adjustable Control Range+ 77…+ 113°F / + 25…+ 45°C Factory setting +95°F/+35°C+ 77…+ 113°F / + 25…+ 45°C Factory setting +95°F/+35°C+ 77…+ 113°F / + 25…+ 45°C Factory setting +95°F/+35°C+ 77…+ 113°F / + 25…+ 45°C Factory setting +95°F/+35°C+ 77…+ 113°F / + 25…+ 45°C Factory setting +95°F/+35°C+ 77…+ 113°F / + 25…+ 45°C Factory setting +95°F/+35°CQuoteQuote
Max. Ambient Air Temp+131°F (+55°C)+131°F (+55°C)+131°F (+55°C)+131°F (+55°C)+131°F (+55°C)+131°F (+55°C)QuoteQuote
Min. Ambient Air Temp+32°F (0°C)+32°F (0°C)+32°F (0°C)+32°F (0°C)+32°F (0°C)+32°F (0°C)QuoteQuote
Air Capacity (unrestricted)Internal Circulation 341CFMInternal Circulation 341CFMInternal Circulation 341CFMInternal Circulation 765CFMInternal Circulation 706CFMInternal Circulation 706CFMQuoteQuote
Internal Circulation 706CFMInternal Circulation 706CFMInternal Circulation 706CFMExternal Circulation 765CFMInternal Circulation 706CFMInternal Circulation 706CFMQuoteQuote
Condensate DischargeCondensate EvaporatorCondensate EvaporatorCondensate EvaporatorCondensate EvaporatorCondensate EvaporatorCondensate EvaporatorQuoteQuote
Filter MatFilterlessFilterlessFilterlessFilterlessFilterlessFilterlessQuoteQuote
Db Noise Level<70 dB(A)<70 dB(A)<70 dB(A)<70 dB(A)<70 dB(A)<70 dB(A)QuoteQuote
Unit Weight108 lbs/49 kg108 lbs/49 kg108 lbs/49 kg150 lbs/ 68 kg150 lbs/ 68 kg150 lbs/ 68 kgQuoteQuote
Exterior CaseGalvanized Sheet SteelGalvanized Sheet SteelGalvanized Sheet SteelGalvanized Sheet SteelGalvanized Sheet SteelGalvanized Sheet SteelQuoteQuote
Finish LGRAL7035 Light GrayRAL7035 Light GrayRAL7035 Light GrayRAL7035 Light GrayRAL7035 Light GrayRAL7035 Light GrayQuoteQuote
Finish GYANSI 61 GrayANSI 61 GrayANSI 61 GrayANSI 61 GrayANSI 61 GrayANSI 61 GrayQuoteQuote
Finish SSPolish #4Polish #4Polish #4Polish #4Polish #4Polish #4QuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Description

  • ■Designed for side mounting on any enclosure surface where high capacity system cooling is required.
  • ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
  • ■Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.
  • ■Condensor with 3 mm fin spacing, highly effective protection against strongly contaminated and aggressive ambient air.

Standards

  • ■UL, cUL, and CE
  • ■Complies with IP56 NEMA 3R, 4, 4X
  • ■IP56
  • ■NEMA 3R, 4, 4X

Features

  • ■R134a refrigerant.
  • ■Thermostat control accessible from inside enclosure.
  • ■Hot gas bypass valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units.
  • ■Built in condensate evaporator.
  • ■Continuous air circulation from high capacity fans.
  • ■EMI/RFI suppression meets CE.
  • ■Self-diagnostics on startup.
  • ■Fault indication via LED light.
  • ■Provision for door contact allowing power down when enclosure door is opened.
  • ■Gasket, mounting kit and template for enclosure cutout and drilling are included.
  • ■Condensate drain hose and clamp provided.

Documents

Specification SheetManual
