SS 4X Air Cond 4000BTU 115V
QuoteRequest a quote

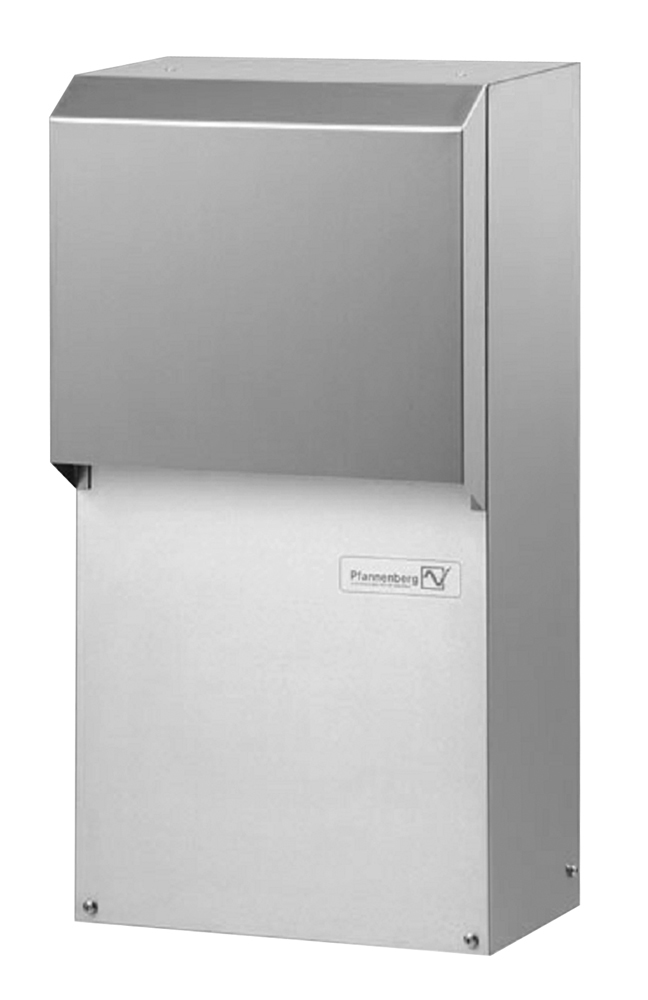

4000-7000 BTU/H Outdoor Air Conditioner · DTS Series
Brand: Hammond Manufacturing · 6 part numbers
Type 3R, 4, 4X, Side Mounting
- ■Designed for side mounting on any enclosure surface where high capacity system cooling is required.
- ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
- ■Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.
- ■UL, cUL, CE
- ■Complies with IP56 NEMA 3R, 4, 4X
- ■IP56
from $4,361.10
5 of 6 part numbers priced · available on backorder · ships by ground · volume pricing on request
Configure & price
Find your DTS Series part number
Filter 6 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
| Part No. | Price | Order |
|---|---|---|
| DTS3181A115N4SS | Quote | Quote |
| DTS3181A230N4SS | $4,361.10Backorder | Buy now |
| DTS3181A460N4SS | $4,460.65Backorder | Buy now |
| DTS3281A115N4SS | $6,279.35Backorder | Buy now |
| DTS3281A230N4SS | $6,333.60Backorder | Buy now |
| DTS3281A460N4SS | $6,424.10Backorder | Buy now |
| Electrical Data | DTS3181A115N4SS | DTS3181A230N4SS | DTS3181A460N4SS | DTS3281A115N4SS | DTS3281A230N4SS | DTS3281A460N4SS | Price | Order |
|---|---|---|---|---|---|---|---|---|
| Rated Voltage | 115 V 60 Hz | 230 V 50/60 Hz | 460 V 50/60 Hz | 115 V 60 Hz | 230 V 50/60 Hz | 460 V 50/60 Hz | Quote | Quote |
| Range of Operation | 103-127 V | 198-253 V | 360-506 V | 103-127 V | 198-253 V | 360-506 V | Quote | Quote |
| Power Consumption | 845 W | 795 W | 1200 W | 1680 W | 1425 W | 1400 W | Quote | Quote |
| Running Amps | 7.51 A | 4.49 A | 2.25 A | 11.6 A | 5.55 A | 2.6 A | Quote | Quote |
| Starting Current | 15 A | 10 A | 15 A | 53 A | 21.8 A | 16 A | Quote | Quote |
| Line Cord | Terminal Block | Terminal Block | Terminal Block | Terminal Block | Terminal Block | Terminal Block | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
| Refrigeration Data | DTS3181A115N4SS · DTS3181A230N4SS · DTS3181A460N4SS | DTS3281A115N4SS · DTS3281A230N4SS · DTS3281A460N4SS | Price | Order |
|---|---|---|---|---|
| Cooling Capacity BTU/h ( Watts) +95/+95F +35/+35 C | 4100 BTU/h (1200 Watts) | 6825 BTU/h (2000 Watts) | Quote | Quote |
| Type of Refrigerant | R134a | R134a | Quote | Quote |
| Regrigerant Charge | 400 g | 700 g | Quote | Quote |
| Adjustable Control Range | +77..+113°F +25..+45°C Factory setting +95°F/+35°C | +77..+113°F +25..+45°C Factory setting +95°F/+35°C | Quote | Quote |
| Max. Ambient Air Temp. | +131°F (+55°C) | +131°F (+55°C) | Quote | Quote |
| Min. Ambient Air Temp. | +32°F (+0°C) | +32°F (+0°C) | Quote | Quote |
| Air Capacity (unrestricted) | Internal Circulation 177 CFM | Internal Circulation 450 CFM | Quote | Quote |
| External Circulation 100 CFM | External Circulation 450 CFM | Quote | Quote | |
| Condensation Discharge | Condensate Evaporator | Condensate Evaporator | Quote | Quote |
| Filter Mat | 150 g/m² | 150 g/m² | Quote | Quote |
| Db Noise Level | <70 dB(A) | <73 dB(A) | Quote | Quote |
| Unit Weight | 92 lbs (42 kg) | 132 lbs (60 kg) | Quote | Quote |
| Exterior Case | Stainless Steel | Stainless Steel | Quote | Quote |
| Finish SS | 304 Stainless Steel # 4 brush | 304 Stainless Steel # 4 Brush | Quote | Quote |
| NEMA Rating | Enclosures IP 56/NEMA 3R/4 | Enclosures IP 56/NEMA 3R/4 | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
Description
- ■Designed for side mounting on any enclosure surface where high capacity system cooling is required.
- ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
- ■Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.
Standards
- ■UL, cUL, CE
- ■Complies with IP56 NEMA 3R, 4, 4X
- ■IP56
- ■NEMA 3R, 4, 4X
Features
- ■R134a refrigerant.
- ■Thermostat control accessible from inside enclosure.
- ■Expansion valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units.
- ■Built in condensate evaporator.
- ■Continuous air circulation from high capacity fans.
- ■EMI/RFI suppression meets CE.
- ■Self-diagnostics on startup.
- ■Fault indication via LED light.
- ■Provision for door contact allowing power down when enclosure door is opened.
- ■Gasket, mounting kit and template for enclosure cutout and drilling are included.
- ■Condensate drain hose and clamp provided.
- ■Nema 4/4x exterior 304 stainless steel.
