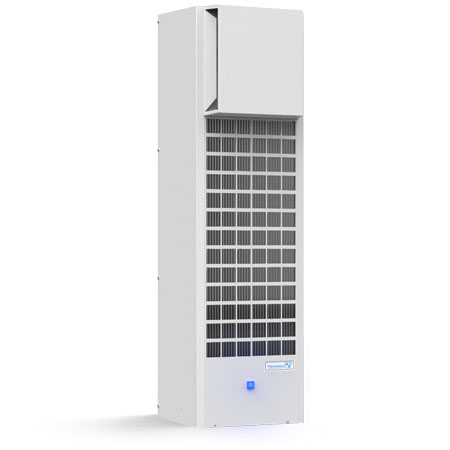

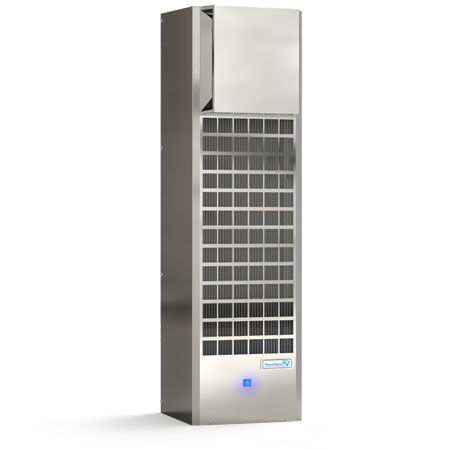

20,000-25,000 BTU/H Outdoor Air Conditioner DTS Series

20,000-25,000 BTU/H Outdoor Air Conditioner · DTS Series

Brand: Hammond Manufacturing · 8 part numbers

Type 3R, 4, 4X, Side Mounting

  • ■Designed for side mounting on any enclosure surface where high capacity system cooling is required.
  • ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
  • ■Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.
  • ■Condensor with 3 mm fin spacing, highly effective protection against strongly contaminated and aggressive ambient air.
  • ■UL, cUL, and CE
  • ■Complies with IP56 NEMA 3R, 4, 4X

from $6,238.74

8 of 8 part numbers priced · available on backorder · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your DTS Series part number

Filter 8 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

8 of 8 part numbers · 8 priced online

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part NumberABCPriceOrder
DTS3461C230N3LG57.2015.8019.70$6,238.74BackorderBuy now
DTS3461C460N3LG57.2015.8019.70$6,438.15BackorderBuy now
DTS3481C230N4SS57.2015.8019.70$7,469.99BackorderBuy now
DTS3481C460N4SS57.2015.8019.70$7,673.75BackorderBuy now
DTS3661C230N3LG57.2015.8019.70$7,708.46BackorderBuy now
DTS3661C460N3LG57.2015.8019.70$7,847.16BackorderBuy now
DTS3681C230N4SS57.2015.8019.70$9,061.09BackorderBuy now
DTS3681C460N4SS57.2015.8019.70$9,338.57BackorderBuy now
Electrical DataDTS3461C230N3LG · DTS3481C230N4SSDTS3461C460N3LG · DTS3481C460N4SSDTS3661C230N3LG · DTS3681C230N4SSDTS3661C460N3LG · DTS3681C460N4SSPriceOrder
Rated Voltage230 V 50/60 Hz460 V 50/60 Hz230 V 50/60 Hz460 V 50/60 HzQuoteQuote
Range of Operation207-253V414-506V207-253V414-506VQuoteQuote
Power Consumption2450W2431W3678W3060WQuoteQuote
Running Amps11.82A4.06A16.06A5.18AQuoteQuote
Starting Current23A7A32A10AQuoteQuote
Line CordTerminal BlockTerminal BlockTerminal BlockTerminal BlockQuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Refrigeration DataDTS3461C230N3LG · DTS3481C230N4SSDTS3461C460N3LG · DTS3481C460N4SSDTS3661C230N3LG · DTS3681C230N4SSDTS3661C460N3LG · DTS3681C460N4SSPriceOrder
Cooling Capacity BTU/h (Watts) +95/+95F +35/+35C20657 BTU/h (6049 Watts)20901 BTU/h (6120 Watts)25353 BTU/h (7424 Watts)25930 BTU/h (7593 Watts)QuoteQuote
Type of Refrigerant134a134a134a134aQuoteQuote
Refrigerant Charge650 g650 g450 g450 gQuoteQuote
Adjustable Control Range+ 77…+ 113°F / + 25…+ 45°C Factory setting +95°F/+35°C+ 77…+ 113°F / + 25…+ 45°C Factory setting +95°F/+35°C+ 77…+ 113°F / + 25…+ 45°C Factory setting +95°F/+35°C+ 77…+ 113°F / + 25…+ 45°C Factory setting +95°F/+35°CQuoteQuote
Max. Ambient Air Temp+131°F (+55°C)+131°F (+55°C)+131°F (+55°C)+131°F (+55°C)QuoteQuote
Min. Ambient Air Temp+25°F (-4°C)+25°F (-4°C)+25°F (-4°C)+25°F (-4°C)QuoteQuote
Air Capacity (unrestricted)Internal Circulation 1234 CFMInternal Circulation 1330 CFMInternal Circulation 1266 CFMInternal Circulation 1277 CFMQuoteQuote
External Circulation 558 CFMExternal Circulation 674 CFMExternal Circulation 728 CFMExternal Circulation 813 CFMQuoteQuote
Condonsate DischargeCondensate EvaporatorCondensate EvaporatorCondensate EvaporatorCondensate EvaporatorQuoteQuote
Filter MatFilterlessFilterlessFilterlessFilterlessQuoteQuote
Db Noise Level81 dB(A)81 dB(A)81 dB(A)81 dB(A)QuoteQuote
Unit Weight210.1 lbs/95.3 kg210.1 lbs/95.3 kg234.8 lbs/106.5 kg234.8 lbs/106.5 kgQuoteQuote
Exterior CaseGalvanized Sheet Steel / 304SSGalvanized Sheet Steel / 304SSGalvanized Sheet Steel / 304SSGalvanized Sheet Steel / 304SSQuoteQuote
Finish LGRAL7035 Light GrayRAL7035 Light GrayRAL7035 Light GrayRAL7035 Light GrayQuoteQuote
Finish GYANSI 61 GrayANSI 61 GrayANSI 61 GrayANSI 61 GrayQuoteQuote
Finish SS304 SS cover Brush Finish304 SS cover Brush Finish304 SS cover Brush Finish304 SS cover Brush FinishQuoteQuote
Nema RatingEnclosures IP 56 / Nema 3R, 4, 4X SSEnclosures IP 56 / Nema 3R, 4, 4X SSEnclosures IP 56 / Nema 3R, 4, 4X SSEnclosures IP 56 / Nema 3R, 4, 4X SSQuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Description

  • ■Designed for side mounting on any enclosure surface where high capacity system cooling is required.
  • ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
  • ■Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.
  • ■Condensor with 3 mm fin spacing, highly effective protection against strongly contaminated and aggressive ambient air.

Standards

  • ■UL, cUL, and CE
  • ■Complies with IP56 NEMA 3R, 4, 4X
  • ■IP56
  • ■NEMA 3R, 4, 4X

Features

  • ■R134a refrigerant.
  • ■Thermostat control accessible from inside enclosure.
  • ■Hot gas bypass valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units.
  • ■Built in condensate evaporator.
  • ■Continuous air circulation from high capacity fans.
  • ■EMI/RFI suppression meets CE.
  • ■Self-diagnostics on startup.
  • ■Fault indication via LED light.
  • ■Provision for door contact allowing power down when enclosure door is opened.
  • ■Gasket, mounting kit and template for enclosure cutout and drilling are included.
  • ■Condensate drain hose and clamp provided.

Documents

Specification SheetManualDrilling Template
