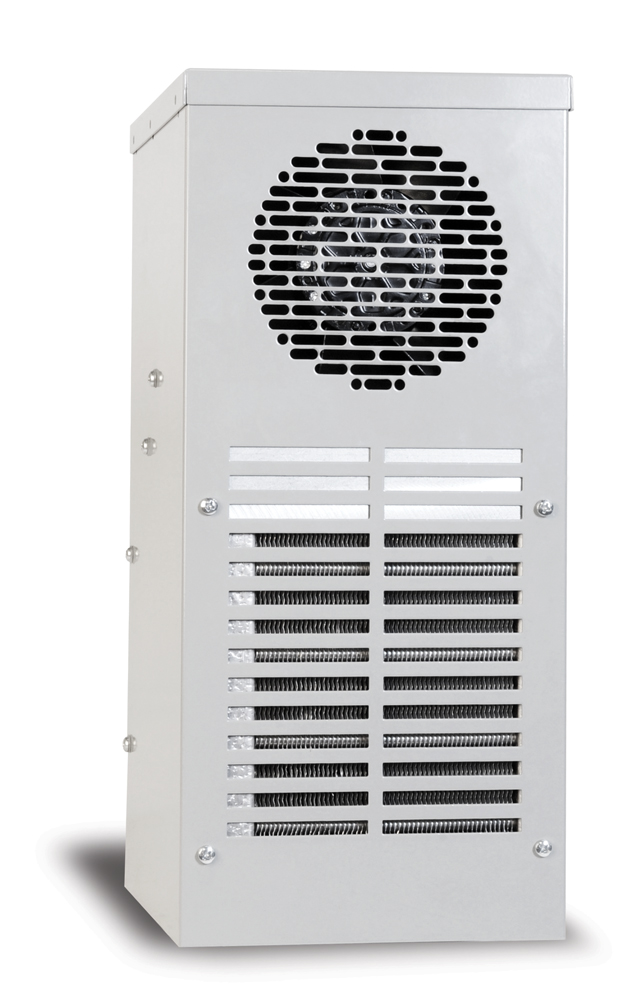

900-1200 BTU/H Outdoor Air Conditioner · DTS Series

Brand: Hammond Manufacturing · 2 part numbers

Type 3R, 4, Side Mounting

■Designed for side mounting on any enclosure surface where high capacity system cooling is required.
■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
■Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.
■Air conditioners are shipped separately and installed on site.
■UL, cUL, CE
■Complies with IP56 NEMA 3R, 4

from $2,651.07

2 of 2 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents

Configure & price

Find your DTS Series part number

Filter 2 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

2 of 2 part numbers · 2 priced online

DTS3031A115N3LG

Air Condit 900-1300BTU 115LG

$2,651.07In stock

Buy now

DTS3031A230N3LG

Air Condit 900-1300BTU 230LG

$2,696.31Backorder

Buy now

Dimension tables (inches / mm)

Part No.	Overall Dimensions · H	Overall Dimensions · W	Overall Dimensions · D	Price	Order
DTS3031A115N3LG	15.50	7.00	7.75	$2,651.07In stock	Buy now
DTS3031A230N3LG	15.50	7.00	7.75	$2,696.31Backorder	Buy now

Electrical Data	DTS3031A115N3LG	DTS3031A230N3LG	Price	Order
Rated Voltage	115 V 60 Hz	230 V 50/60 Hz	Quote	Quote
Range of Operation	103- 127 V	207-253 V	Quote	Quote
Power Consumption	243 W	253 W	Quote	Quote
Running Amps	2.1 A	1.1 A	Quote	Quote
Starting Current	10	5	Quote	Quote
Line Cord	With Plug	With Plug	Quote	Quote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Refrigeration Data	col2	Price	Order
Cooling Capacity BTU (Watts) +95/95 F +35/+35 C	1194 BTU/h (350 Watts)	Quote	Quote
Type of Refrigerant	R134a	Quote	Quote
Refrigeration Charge	145 g	Quote	Quote
Adjustable Control Range	+50F..104F / +10C..+40C Factory setting +95F/+35C	Quote	Quote
Max Ambient Air Temp	+114F (+45C)	Quote	Quote
Min Ambient Air Temp	+46F (+8C)	Quote	Quote
Air Capacity (unrestricted)	Internal 37 CFM	Quote	Quote
	External 99 CFM	Quote	Quote
Condensation Discharge	Condensate Drain	Quote	Quote
Filter Mat	Aluminum Mesh	Quote	Quote
Db noise level	<64 db	Quote	Quote
Unit Weight	30 lbs (13.6kg)	Quote	Quote
Exterior Case	Galvanized sheet metal	Quote	Quote
Finish LG	RAL7035 light Gray	Quote	Quote
Finish GY	ANSI 61 Gray	Quote	Quote
Nema Rating	enclosures IP56 / NEMA 3R/4	Quote	Quote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Description

■Designed for side mounting on any enclosure surface where high capacity system cooling is required.
■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
■Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.
■Air conditioners are shipped separately and installed on site.

Standards

■UL, cUL, CE
■Complies with IP56 NEMA 3R, 4
■IP56
■NEMA 3R, 4

Features

■R134a refrigerant.
■Thermostat control accessible from inside enclosure.
■Expansion valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units.
■Direct condensate discharge via 1/4" NPT threaded port.
■Continuous air circulation from high capacity fans.
■EMI/RFI suppression meets CE.
■Provision for door contact allowing power down when enclosure door is opened.
■Gasket, mounting kit and template for enclosure cutout and drilling are included.
■Washable aluminum mesh filter.
