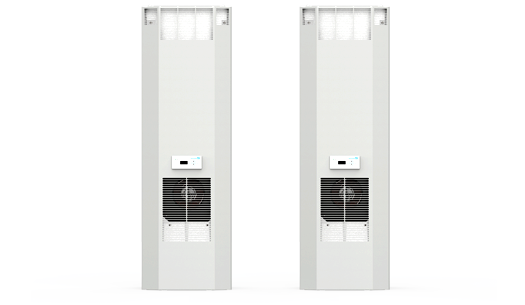

Semi-Recessed Indoor Air Conditioner · DTI Series

Brand: Hammond Manufacturing · 7 part numbers

Type 12

■Designed for recessed mounting on any enclosure surface where high capacity system cooling is required.
■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
■Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.
■Condenser with 3 mm fin spacing, highly effective protection against strongly contaminated and aggressive ambient air
■Maintains enclosure's NEMA 12 rating
■IP 54

from $4,891.85

7 of 7 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents

Configure & price

Find your DTI Series part number

Filter 7 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

7 of 7 part numbers · 7 priced online

DTI6201A230LG

Air Condit 3900BTU 230V Lg

$4,891.85Backorder

Buy now

DTI6201A460LG

Air Condit 3900BTU 460V Lg

$6,294.96Backorder

Buy now

DTI6301A230LG

Air Condit 5200BTU 230V Lg

$6,147.11Backorder

Buy now

DTI6301A460LG

Air Condit 5200BTU 460V Lg

$6,698.18Backorder

Buy now

DTI6401A460LG

Air Condit 6800BTU 460V Lg

$7,533.08Backorder

Buy now

DTI6501A460LG

Air Condit 8500BTU 460V Lg

$9,001.27In stock

Buy now

DTI6801A460LG

Air Condit 13000BTU 460V Lg

$10,690.04Backorder

Buy now

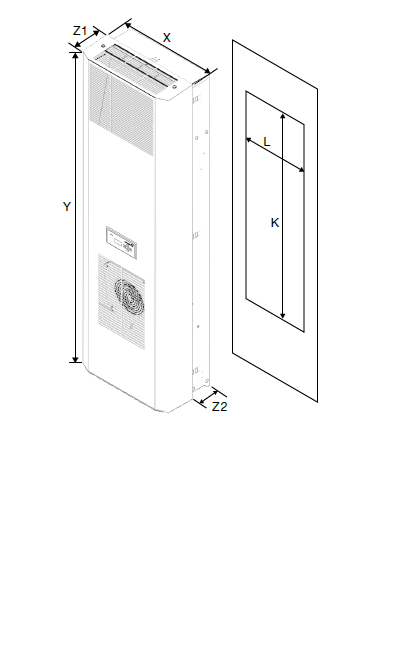

Dimension tables (inches / mm)

Units shown: mm . Switch units to: inch

Part No.	Overall Dimensions · H (Y)	Overall Dimensions · W (X)	Overall Dimensions · D	Overall Dimensions · External D(Z1)	Internal D(Z2)	Cut Out Dimensions · K	Cut Out Dimensions · L	Price	Order
DTI6201A230LG	60.51	19.09	8.58	6.22	2.36	59.45	17.72	$4,891.85Backorder	Buy now
DTI6201A460LG	60.51	19.09	8.58	6.22	2.36	59.45	17.72	$6,294.96Backorder	Buy now
DTI6301A230LG	60.51	19.09	8.58	6.22	2.36	59.45	17.72	$6,147.11Backorder	Buy now
DTI6301A460LG	60.51	19.09	8.58	6.22	2.36	59.45	17.72	$6,698.18Backorder	Buy now
DTI6401A460LG	60.51	19.09	10.94	6.22	4.72	59.45	17.72	$7,533.08Backorder	Buy now
DTI6501A460LG	60.51	19.09	10.94	6.22	4.72	59.45	17.72	$9,001.27In stock	Buy now
DTI6801A460LG	60.51	19.09	14.65	9.92	4.72	59.45	17.72	$10,690.04Backorder	Buy now

col1	DTI6201A230LG	DTI6201A460LG	DTI6301A230LG	DTI6301A460LG	DTI6401A460LG	DTI6501A460LG	DTI6801A460LG	Price	Order
Cooling Capacity BTU/h (Watts) +95/+95F +35/+35C	3920 BTU/h (1150 Watts)	3920 BTU/h (1150 Watts)	5280 BTU/h (1550 Watts)	5280 BTU/h (1550 Watts)	6820 BTU/h (2000 Watts)	8525 BTU/h (2500 Watts)	13640 BTU/h (4000 Watts)	Quote	Quote
Adjustable Control Range Factory setting +95F / +35C	+77… +113F +25…+45C	+77… +113F +25…+45C	+77… +113F +25…+45C	+77… +113F +25…+45C	+77… +113F +25…+45C	+77… +113F +25…+45C	+77… +113F +25…+45C	Quote	Quote
Rated Voltage +/- 10%	230	460	230	460	460	460	460	Quote	Quote
Frequency Hz	60 Hz	60 Hz	60 Hz	60 Hz	60 Hz	60 Hz	60 Hz	Quote	Quote
Power Consumption (W)	631	653	845	874	911	1140	2416	Quote	Quote
Starting Current (A)	9.1	5.5	19.7	12	7.7	12	16	Quote	Quote
Electrical Connection	Spring- type Terminal Block with Plug	Spring- type Terminal Block with Plug	Spring- type Terminal Block with Plug	Spring- type Terminal Block with Plug	Spring- type Terminal Block with Plug	Spring- type Terminal Block with Plug	Spring- type Terminal Block with Plug	Quote	Quote
Min/Max Ambient Temp	+50...+131 F / +10...+55 C	+50...+131 F / +10...+55 C	+50...+131 F / +10...+55 C	+50...+131 F / +10...+55 C	+50...+131 F / +10...+55 C	+50...+131 F / +10...+55 C	+50...+131 F / +10...+55 C	Quote	Quote
Finish (LG)	Galvanized Sheet Steel Color RAL 7035 Powder Finish	Galvanized Sheet Steel Color RAL 7035 Powder Finish	Galvanized Sheet Steel Color RAL 7035 Powder Finish	Galvanized Sheet Steel Color RAL 7035 Powder Finish	Galvanized Sheet Steel Color RAL 7035 Powder Finish	Galvanized Sheet Steel Color RAL 7035 Powder Finish	Galvanized Sheet Steel Color RAL 7035 Powder Finish	Quote	Quote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Description

■Designed for recessed mounting on any enclosure surface where high capacity system cooling is required.
■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
■Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.
■Condenser with 3 mm fin spacing, highly effective protection against strongly contaminated and aggressive ambient air

Standards

■Maintains enclosure's NEMA 12 rating
■IP 54
■cUL and CE

Features

■R134a refrigerant.
■Energy saving mode integrated by default into multi-controller.
■External thermostat control for visual monitoring.
■Hot gas bypass valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units.
■Built in condensate evaporator.
■EMI/RFI suppression meets CE.
■Self-diagnostics on startup.
■Provision for door contact allowing power down when enclosure door is opened.
■Gasket, mounting kit and template for enclosure cutout and drilling are included.
■Condensate drain hose and clamp provided.
■"Click & Fit" units reduce installation times by more than 90%
