250VA Plug IN Isolated
$260.08Backorder
Buy now

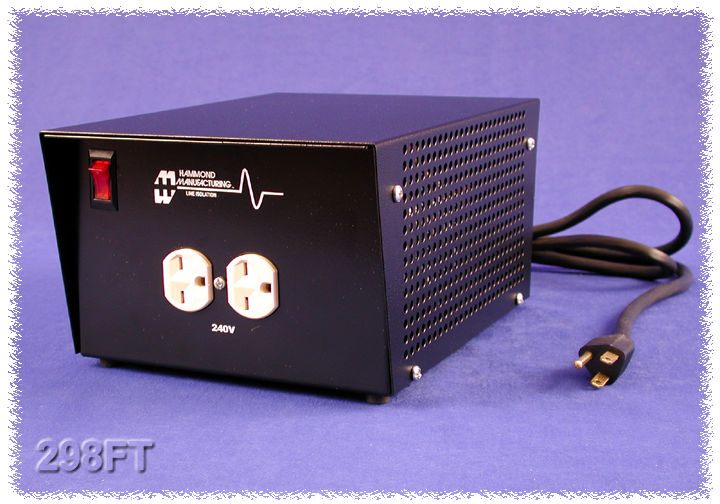

TOROIDAL Isolation - Step Up (120VAC to 240VAC) · 298 Series
Brand: Hammond Manufacturing · 5 part numbers
Plug-In
- ■Primary 120VAC, 50/60 Hz., Secondary 240VAC.
- ■Provides circuit isolation.

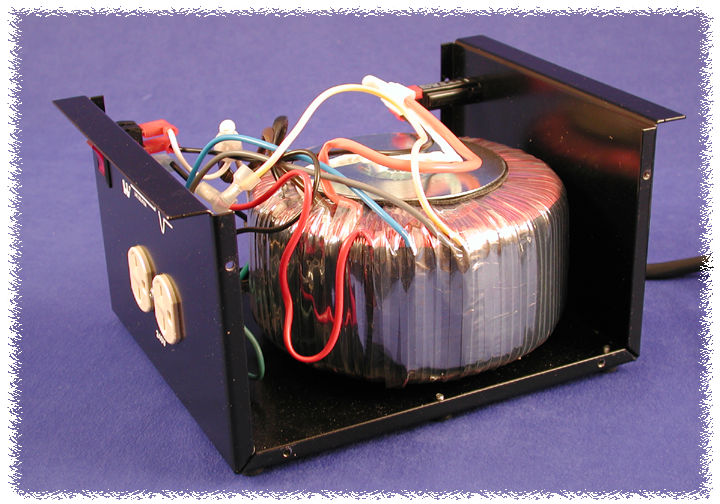

- ■Toroidal transformer for high isolation, low noise, light weight cool operation and low profile.
- ■50 or 60 Hz. operation, step up (120VAC to 240 VAC).
- ■Input (primary) connected to a 5 foot cord & standard North American plug (NEMA 5-15P).
- ■Output (secondary) connected to a standard North American duplex - 3 wire grounded receptacle (NEMA 6-15R). Receptacles have North American pins. See our 298G adaptor series for international pinout adaptor plugs.
from $260.08
5 of 5 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 298 Series part number
Filter 5 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Capacity · VA | Outlet · Qty | Overall Dimensions · Length | Overall Dimensions · Width | Overall Dimensions · Height | Price | Order |
|---|---|---|---|---|---|---|---|
| 298CT | 250 | 2 | 8.25 | 6.00 | 4.00 | $260.08Backorder | Buy now |
| 298DT | 500 | 2 | 9.00 | 6.00 | 4.00 | $275.28In stock | Buy now |
| 298ET | 750 | 2 | 10.25 | 7.50 | 5.00 | $324.21In stock | Buy now |
| 298FT | 1000 | 2 | 10.25 | 7.50 | 5.00 | $400.73In stock | Buy now |
| 298GT | 1500 | 2 | 12.50 | 9.00 | 5.00 | $476.38In stock | Buy now |
Features
- ■Primary 120VAC, 50/60 Hz., Secondary 240VAC.
- ■Provides circuit isolation.
- ■Toroidal transformer for high isolation, low noise, light weight cool operation and low profile.
- ■50 or 60 Hz. operation, step up (120VAC to 240 VAC).
- ■Input (primary) connected to a 5 foot cord & standard North American plug (NEMA 5-15P).
- ■Output (secondary) connected to a standard North American duplex - 3 wire grounded receptacle (NEMA 6-15R). Receptacles have North American pins. See our 298G adaptor series for international pinout adaptor plugs.
- ■Receptacles have North American pins. See our 298G adaptor series for international pinout adaptor plugs.
- ■Transformer Hi-Pot test of 4,000V RMS between primary & secondary

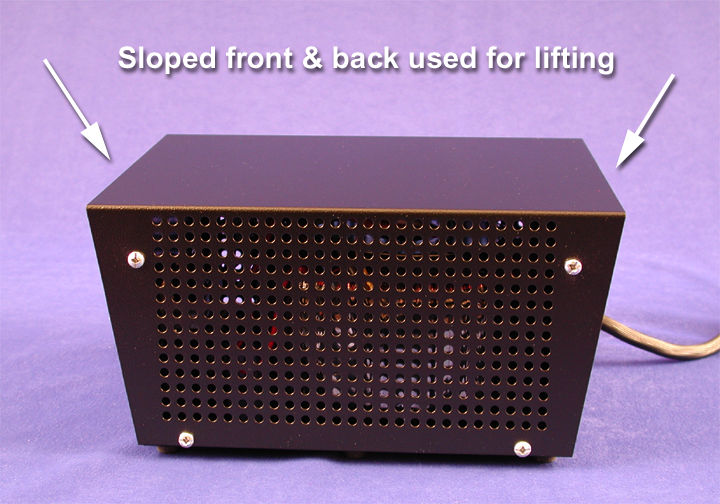

- ■Features include ventilated black steel case with rocker lighted on-off switch & circuit breaker protected output.
- ■North American Mark of Safety - C UL & UL listed (File #E211544).
- ■Indoor use only.
- ■Remember - These units do NOT convert line frequency.
Documents
Additional information
Part Details
| Part No. | Capacity · VA | Outlet · Qty | Overall Dimensions · Length | Overall Dimensions · Width | Overall Dimensions · Height |
|---|---|---|---|---|---|
| 298CT | 250 | 2 | 8.25 | 6.00 | 4.00 |
| 298DT | 500 | 2 | 9.00 | 6.00 | 4.00 |
| 298ET | 750 | 2 | 10.25 | 7.50 | 5.00 |
| 298FT | 1000 | 2 | 10.25 | 7.50 | 5.00 |
| 298GT | 1500 | 2 | 12.50 | 9.00 | 5.00 |
