Plug IN ISOLATION,120VA
- Capacitance Betwee 15 pF
- Full Load Efficien 0.89
- Full Load Total Ha 0.0021
- Full Load Efficien 89%
$89.19In stock
Buy now

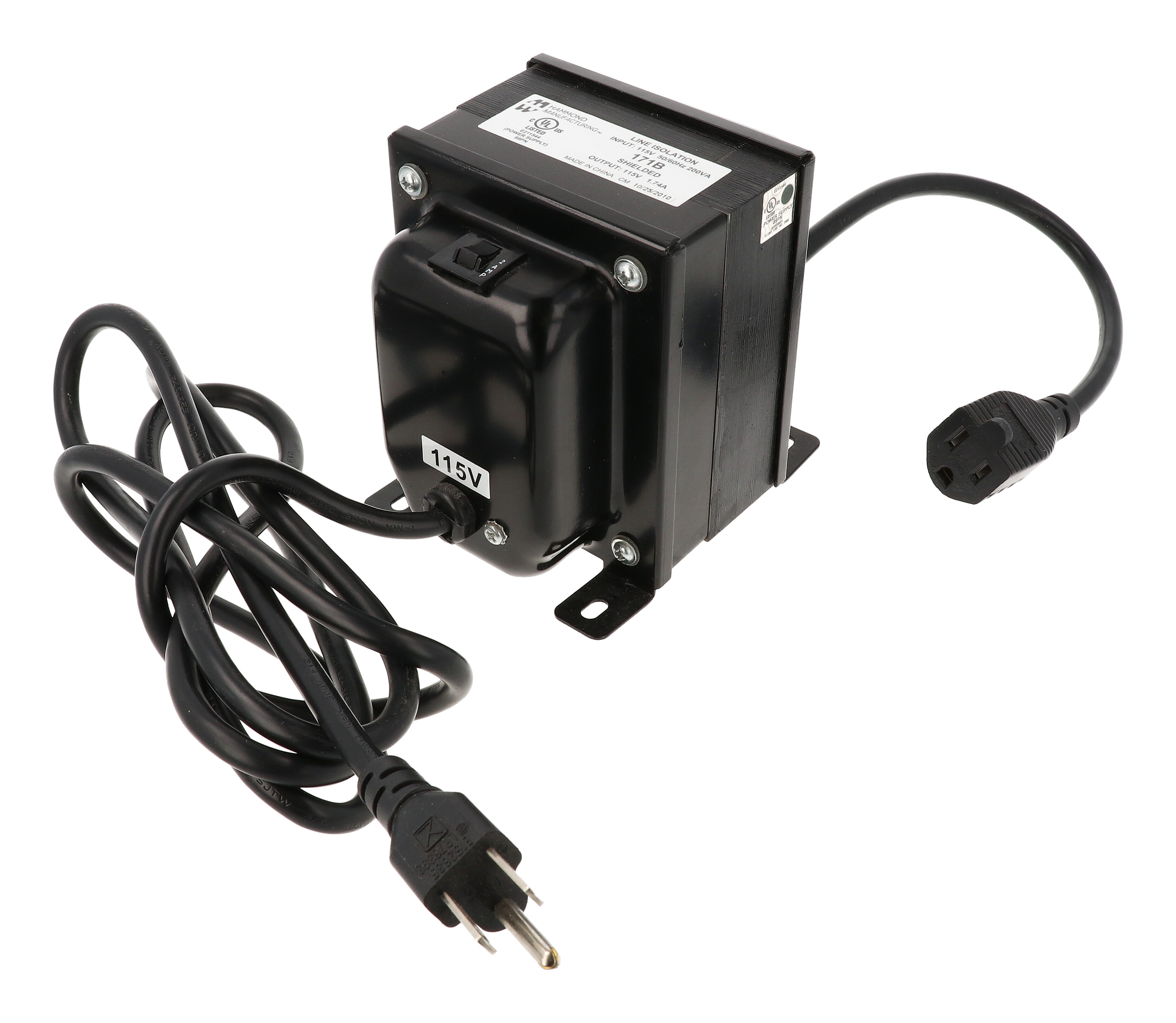

Isolation (115VAC to 115VAC) · 171 Series
Brand: Hammond Manufacturing · 6 part numbers
Plug-In
from $89.19
6 of 6 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 171 Series part number
Filter 6 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
6 of 6 part numbers · 6 priced online
Plug IN Isolation 200VA
- Capacitance Betwee 15 pF
- Full Load Efficien 0.93
- Full Load Total Ha 0.00195
- Full Load Efficien 93%
$107.88In stock
Buy nowPlug IN Isolation 300VA
- Capacitance Betwee 20 pF
- Full Load Efficien 0.94
- Full Load Total Ha 0.0024
- Full Load Efficien 94%
$131.27In stock
Buy nowPlug IN Isolation 500VA
- Capacitance Betwee 20 pF
- Full Load Efficien 0.93
- Full Load Total Ha 0.0018
- Full Load Efficien 93%
$159.51In stock
Buy nowPlug IN Isolation 750VA
- Capacitance Betwee 20 pF
- Full Load Efficien 0.95
- Full Load Total Ha 0.0024
- Full Load Efficien 95%
$238.48In stock
Buy nowPlug IN Isolation 1000VA
- Capacitance Betwee 40 pF
- Full Load Efficien 0.95
- Full Load Total Ha 0.00109
- Full Load Efficien 95%
$315.10In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Capacity · VA | Leakage · Current · (Typ.) | Full Load · Efficiency · (Typ.) | Full Load Total · Harmonic · Distortion (Typ.) | Surge/ Noise · Suppression · (Typ.) | Capacitance · Between Windings · @ 1Khz (Typ.) | Circuit · Breaker · (Amps) | Dimensions · A | Dimensions · B | Dimensions · C | Dimensions · D | Dimensions · E | Weight · Lbs | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 171A | 100 | <100 µA | 89% | 0.21% | -37 dB | 15 pF | 1 | 3.80 | 5.06 | 4.68 | 3.00 | 3.38 | 6.5 | $89.19In stock | Buy now |
| 171B | 200 | <100 µA | 93% | 0.195 % | -37 dB | 15 pF | 2 | 3.80 | 5.56 | 4.68 | 3.00 | 3.88 | 8 | $107.88In stock | Buy now |
| 171C | 300 | <100 µA | 94% | 0.24% | -37 dB | 20 pF | 3 | 3.80 | 6.06 | 4.68 | 3.00 | 4.38 | 11 | $131.27In stock | Buy now |
| 171E | 500 | <100 µA | 93% | 0.18% | -37 dB | 20 pF | 5.00 | 3.80 | 7.06 | 4.68 | 3.00 | 5.38 | 14 | $159.51In stock | Buy now |
| 171F | 750 | <100 µA | 95% | 0.24% | -32 dB | 20 pF | 7.00 | 4.40 | 8.70 | 5.39 | 3.50 | 6.78 | 30 | $238.48In stock | Buy now |
| 171G | 1000 | <100 µA | 95% | 0.109% | -35 dB | 40 pF | 10.00 | 5.28 | 7.75 | 6.38 | 4.25 | 6.00 | 34.5 | $315.10In stock | Buy now |
