250VA Plug IN Isolated
$282.62In stock
Buy now
TOROIDAL Isolation (240VAC to 240VAC) · 240 Series
Brand: Hammond Manufacturing · 5 part numbers
Plug-In
- ■Primary 240VAC, 50/60 Hz., Secondary 240VAC.
- ■Provides circuit isolation.

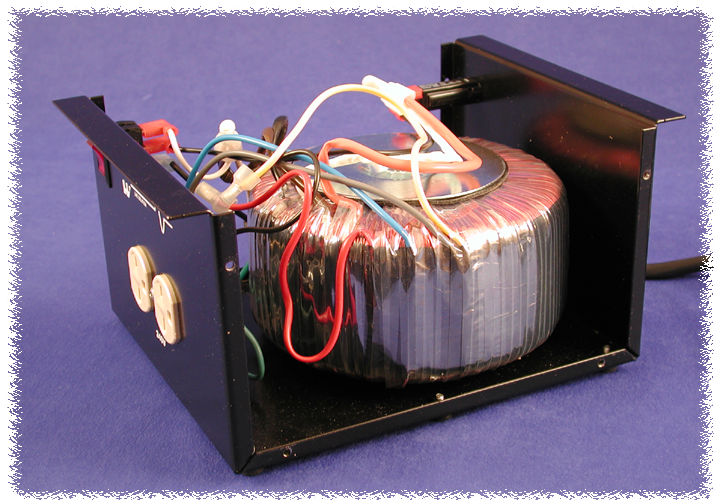

- ■Toroidal transformer for high isolation, low noise, light weight, cool operation and low profile.
- ■World wide applications, 50 or 60 Hz. operation (240VAC to 240VAC).
- ■Standard 3-wire, grounded plug (for use with adaptors for proper grounding).
- ■Input (primary) connected to a 5 foot long cord & standard North American plug (NEMA 6-15P).
from $282.62
5 of 5 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 240 Series part number
Filter 5 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Capacity · VA | Outlet · Qty | Overall Dimensions · Length | Overall Dimensions · Width | Overall Dimensions · Height | Price | Order |
|---|---|---|---|---|---|---|---|
| 240CT | 250 | 2 | 8.25 | 6.00 | 4.00 | $282.62In stock | Buy now |
| 240DT | 500 | 2 | 9.00 | 6.00 | 4.00 | $288.82In stock | Buy now |
| 240ET | 750 | 2 | 10.25 | 7.50 | 5.00 | $332.86In stock | Buy now |

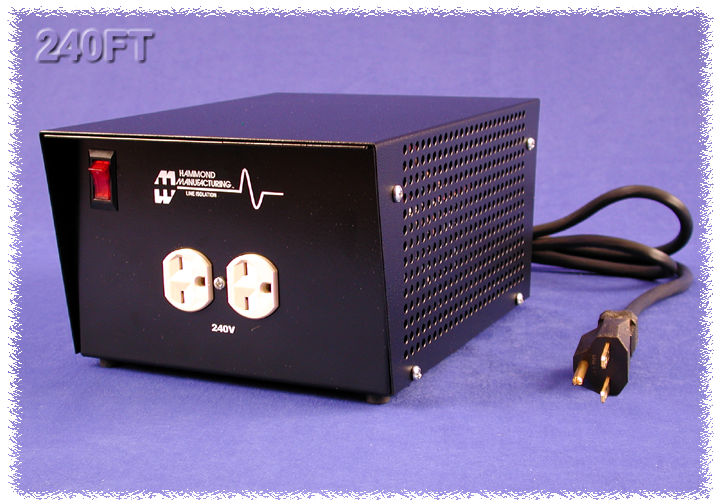

| 240FT | 1000 | 2.00 | 10.25 | 7.50 | 5.00 | $410.82In stock | Buy now |
| 240GT | 1500 | 2.00 | 12.50 | 9.00 | 5.00 | $497.21In stock | Buy now |
Features
- ■Primary 240VAC, 50/60 Hz., Secondary 240VAC.
- ■Provides circuit isolation.
- ■Toroidal transformer for high isolation, low noise, light weight, cool operation and low profile.
- ■World wide applications, 50 or 60 Hz. operation (240VAC to 240VAC).
- ■Standard 3-wire, grounded plug (for use with adaptors for proper grounding).
- ■Input (primary) connected to a 5 foot long cord & standard North American plug (NEMA 6-15P).
- ■Output (secondary) connected to a standard - 3 wire grounded duplex receptacle (NEMA 6-15R).

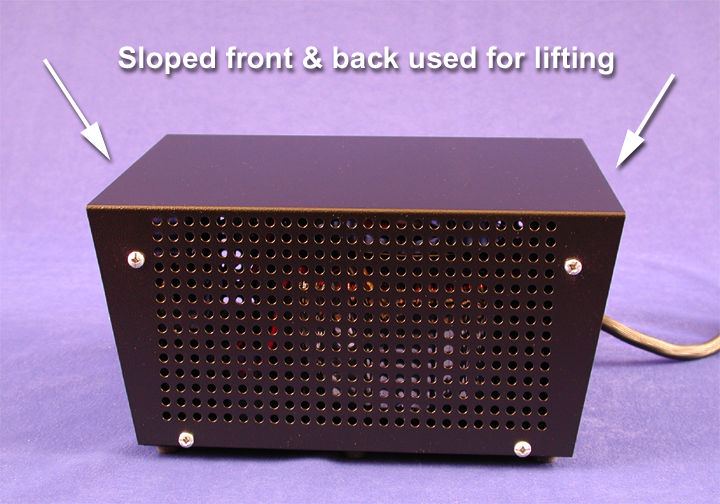

- ■Features include ventilated black steel case, rocker lighted on-off switch & circuit breaker protected output.
- ■North American Mark of Safety - C UL & UL listed (File #E211544).
- ■Indoor use only.
- ■Remember - These units do NOT convert line frequency.
Documents
Additional information
Part Details
| Part No. | Capacity · VA | Outlet · Qty | Overall Dimensions · Length | Overall Dimensions · Width | Overall Dimensions · Height |
|---|---|---|---|---|---|
| 240CT | 250 | 2 | 8.25 | 6.00 | 4.00 |
| 240DT | 500 | 2 | 9.00 | 6.00 | 4.00 |
| 240ET | 750 | 2 | 10.25 | 7.50 | 5.00 |
| 240FT | 1000 | 2.00 | 10.25 | 7.50 | 5.00 |
| 240GT | 1500 | 2.00 | 12.50 | 9.00 | 5.00 |
