Plug IN Step Down Isolation
- Capacitance Betwee 40 pF
- Full Load Efficien 0.88
- Full Load Total Ha 0.0019
- Full Load Efficien 88%
$122.64In stock
Buy now
Isolation - Step Down (230VAC to 115VAC) · 172 Series
Brand: Hammond Manufacturing · 5 part numbers
Plug-In
- ■Primary 230VAC, 50/60 Hz. Secondary 115VAC
- ■Circuit breaker in primary.
- ■Provides circuit isolation & steps down primary voltage.
- ■Hi-pot tested to 2 KV RMS.
- ■Electrostatic shield between primary & secondary.
- ■Input (primary) connected to a 5 foot long cord & European (Schuko) grounded plug - NOTE: old inventory only.
from $122.64
5 of 5 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 172 Series part number
Filter 5 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
5 of 5 part numbers · 5 priced online
Plug IN Step Down Isolation
- Capacitance Betwee 20 pF
- Full Load Efficien 0.91
- Full Load Total Ha 0.0018
- Full Load Efficien 91%
$136.26In stock
Buy nowPlug IN Step Down Isolation
- Capacitance Betwee 28 pF
- Full Load Efficien 0.96
- Full Load Total Ha 0.0023
- Full Load Efficien 96%
$187.53In stock
Buy nowPlug IN Step Down Isolation
- Capacitance Betwee 20 pF
- Full Load Efficien 0.94
- Full Load Total Ha 0.0019
- Full Load Efficien 94%
$234.39In stock
Buy nowPlug IN Stepdown Isolation
- Capacitance Betwee 40 pF
- Full Load Efficien 0.96
- Full Load Total Ha 0.0018
- Full Load Efficien 96%
$272.56In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Capacity · VA | Leakage · Current | Full Load · Efficiency | Full Load Total · Harmonic · Distortion | Surge / Noise · Suppression | Capacitance · Between · Windings at 1KHz | Overall Dimensions · A | Overall Dimensions · B | Overall Dimensions · C | Overall Dimensions · D | Overall Dimensions · E | Weight · Lbs | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 172A | 100 | 40.48 µA | 88% | 0.19% | -35 dB | 40 pF | 3.80 | 5.06 | 4.68 | 3.00 | 3.38 | 6.5 | $122.64In stock | Buy now |
| 172B | 200 | 41.97 µA | 91% | 0.18% | -34.32 dB | 20 pF | 3.80 | 5.56 | 4.68 | 3.00 | 3.88 | 8.5 | $136.26In stock | Buy now |
| 172D | 500 | 68.22 µA | 96% | 0.23% | -37.69 dB | 28 pF | 3.80 | 7.06 | 4.68 | 3.00 | 5.38 | 18.5 | $187.53In stock | Buy now |
| 172E | 750 | 79.58 µA | 94% | 0.19% | -38.24 dB | 20 pF | 4.40 | 8.70 | 5.39 | 3.50 | 6.78 | 30 | $234.39In stock | Buy now |
| 172F | 1000 | 94.08 µA | 96% | 0.18% | -32.74 dB | 40 pF | 5.28 | 7.75 | 6.38 | 4.25 | 6.00 | 34.5 | $272.56In stock | Buy now |
Features
- ■Primary 230VAC, 50/60 Hz. Secondary 115VAC
- ■Circuit breaker in primary.
- ■Provides circuit isolation & steps down primary voltage.
- ■Hi-pot tested to 2 KV RMS.
- ■Electrostatic shield between primary & secondary.

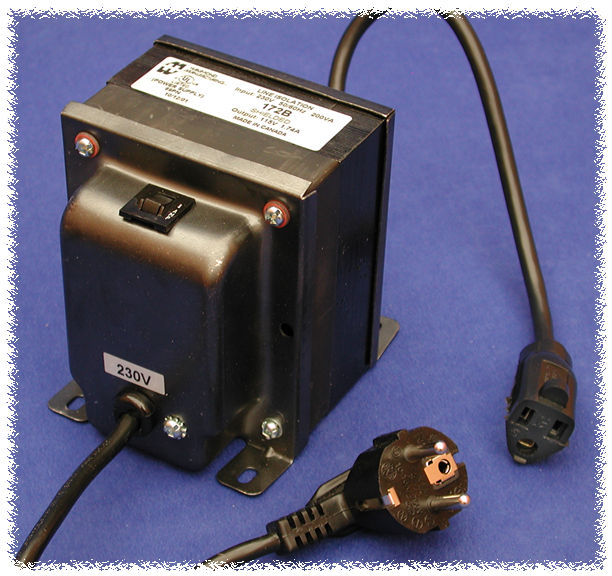

- ■Input (primary) connected to a 5 foot long cord & European (Schuko) grounded plug - NOTE: old inventory only.

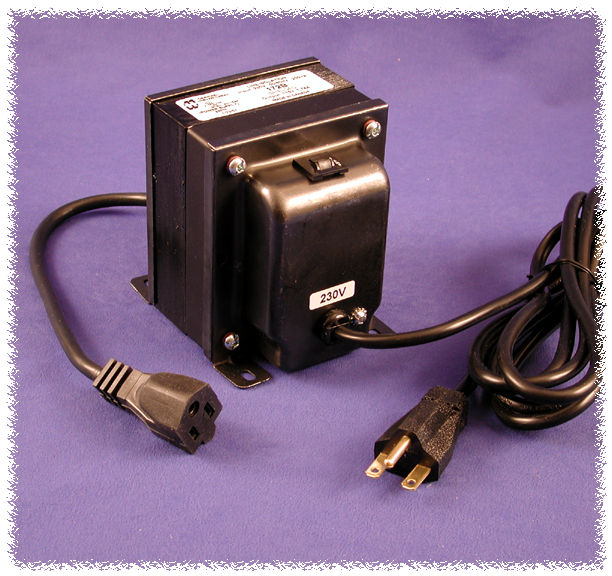

- ■Input - due to U.L changes in 2007 - NEW production with the European (Shuko) parts would no longer be U.L. listed. Therefore, we have replaced this input plug with a standard North American 3-wire, 250V plug (NEMA 6-15P).
- ■Output (secondary) connected to a 1 foot long cord & standard North American 3-wire grounded receptacle (NEMA 5-15R). Receptacles have North American pins. See our 298G adaptor series for international pinout adaptor plugs.
- ■Receptacles have North American pins. See our 298G adaptor series for international pinout adaptor plugs.
- ■North American Mark of Safety - C UL & UL listed (File #E211544).
- ■Indoor use only.
- ■Remember - These units do NOT convert line frequency
Documents
Additional information
Part Details
| Part No. | Capacity · VA | Leakage · Current | Full Load · Efficiency | Full Load Total · Harmonic · Distortion | Surge / Noise · Suppression | Capacitance · Between · Windings at 1KHz | Overall Dimensions · A | Overall Dimensions · B | Overall Dimensions · C | Overall Dimensions · D | Overall Dimensions · E | Weight · Lbs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 172A | 100 | 40.48 µA | 88% | 0.19% | -35 dB | 40 pF | 3.80 | 5.06 | 4.68 | 3.00 | 3.38 | 6.5 |
| 172B | 200 | 41.97 µA | 91% | 0.18% | -34.32 dB | 20 pF | 3.80 | 5.56 | 4.68 | 3.00 | 3.88 | 8.5 |
| 172D | 500 | 68.22 µA | 96% | 0.23% | -37.69 dB | 28 pF | 3.80 | 7.06 | 4.68 | 3.00 | 5.38 | 18.5 |
| 172E | 750 | 79.58 µA | 94% | 0.19% | -38.24 dB | 20 pF | 4.40 | 8.70 | 5.39 | 3.50 | 6.78 | 30 |
| 172F | 1000 | 94.08 µA | 96% | 0.18% | -32.74 dB | 40 pF | 5.28 | 7.75 | 6.38 | 4.25 | 6.00 | 34.5 |
