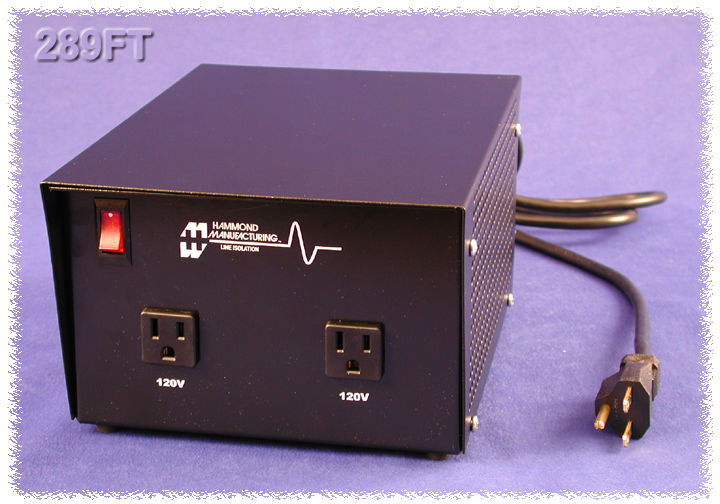

250 VA Plug IN Isolated
$246.48Backorder
Buy now
Isolation - Step Down (240VAC to 120VAC) · 289 Series
Brand: Hammond Manufacturing · 5 part numbers
Plug-In
- ■Primary 240VAC, 50/60 Hz., Secondary 120VAC.
- ■Provides circuit isolation.

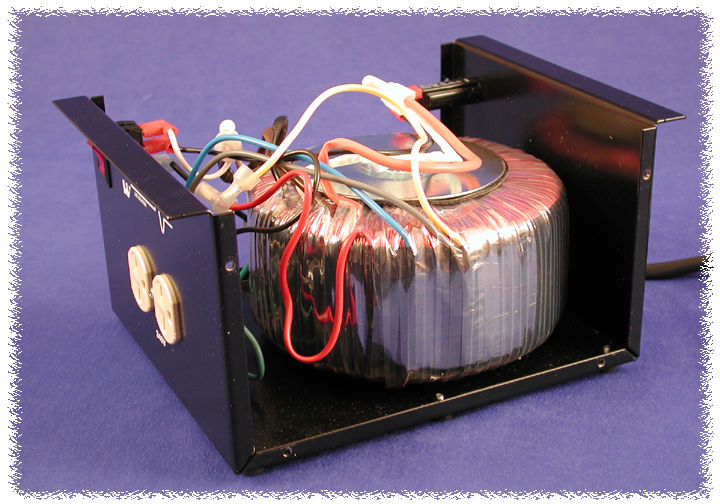

- ■Toroidal transformer for high isolation, low noise, light weight, cool operation and low profile.
- ■World wide applications, 50 or 60 Hz. operation, step down (240VAC to 120 VAC).
- ■Input (primary) connected to a 5 foot long cord & standard 250V 2 pole, 3 wire - North American plug (NEMA 6-15P).
- ■Output (secondary) connected to two standard - 3 wire grounded receptacles (NEMA 5-15R). Receptacles have North American pins. See our 298G adaptor series for international pinout adaptor plugs.
from $246.48
5 of 5 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 289 Series part number
Filter 5 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Capacity · (VA) | # of · Outlets | Dimensions · Width | Dimensions · Height | Dimensions · Length | Price | Order |
|---|---|---|---|---|---|---|---|
| 289CT | 250 | 2 | 6.00 | 4.00 | 8.25 | $246.48Backorder | Buy now |
| 289DT | 500 | 2 | 6.00 | 4.00 | 9.00 | $257.48In stock | Buy now |
| 289ET | 750 | 2 | 7.50 | 5.00 | 10.25 | $300.08In stock | Buy now |
| 289FT | 1000 | 2 | 7.50 | 5.00 | 10.25 | $376.57In stock | Buy now |
| 289GT | 1500 | 2 | 9.00 | 5.00 | 12.50 | $461.43In stock | Buy now |
Features
- ■Primary 240VAC, 50/60 Hz., Secondary 120VAC.
- ■Provides circuit isolation.
- ■Toroidal transformer for high isolation, low noise, light weight, cool operation and low profile.
- ■World wide applications, 50 or 60 Hz. operation, step down (240VAC to 120 VAC).
- ■Input (primary) connected to a 5 foot long cord & standard 250V 2 pole, 3 wire - North American plug (NEMA 6-15P).
- ■Output (secondary) connected to two standard - 3 wire grounded receptacles (NEMA 5-15R). Receptacles have North American pins. See our 298G adaptor series for international pinout adaptor plugs.
- ■Receptacles have North American pins. See our 298G adaptor series for international pinout adaptor plugs.

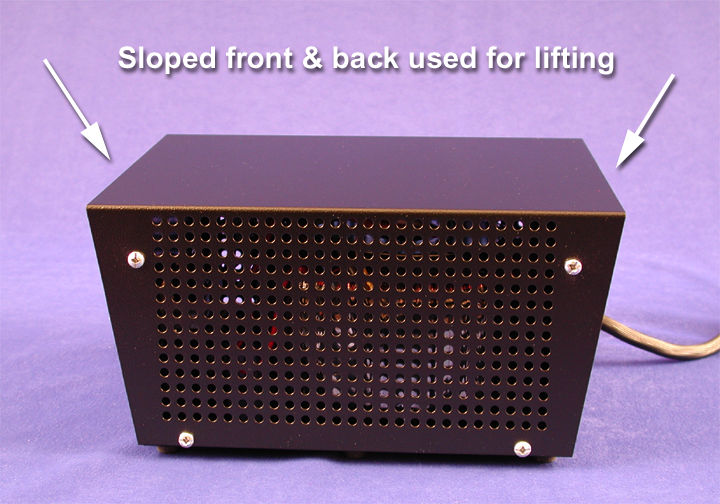

- ■Features include ventilated black steel case, rocker lighted on-off switch & circuit breaker protected output.
- ■North American Mark of Safety - C UL & UL listed (File #E211544).
- ■Indoor use only.
- ■Remember - These units do NOT convert line frequency.
Documents
Additional information
Part Details
| Part No. | Capacity · (VA) | # of · Outlets | Dimensions · Width | Dimensions · Height | Dimensions · Length |
|---|---|---|---|---|---|
| 289CT | 250 | 2 | 6.00 | 4.00 | 8.25 |
| 289DT | 500 | 2 | 6.00 | 4.00 | 9.00 |
| 289ET | 750 | 2 | 7.50 | 5.00 | 10.25 |
| 289FT | 1000 | 2 | 7.50 | 5.00 | 10.25 |
| 289GT | 1500 | 2 | 9.00 | 5.00 | 12.50 |
Any questions? Talk with an expert
