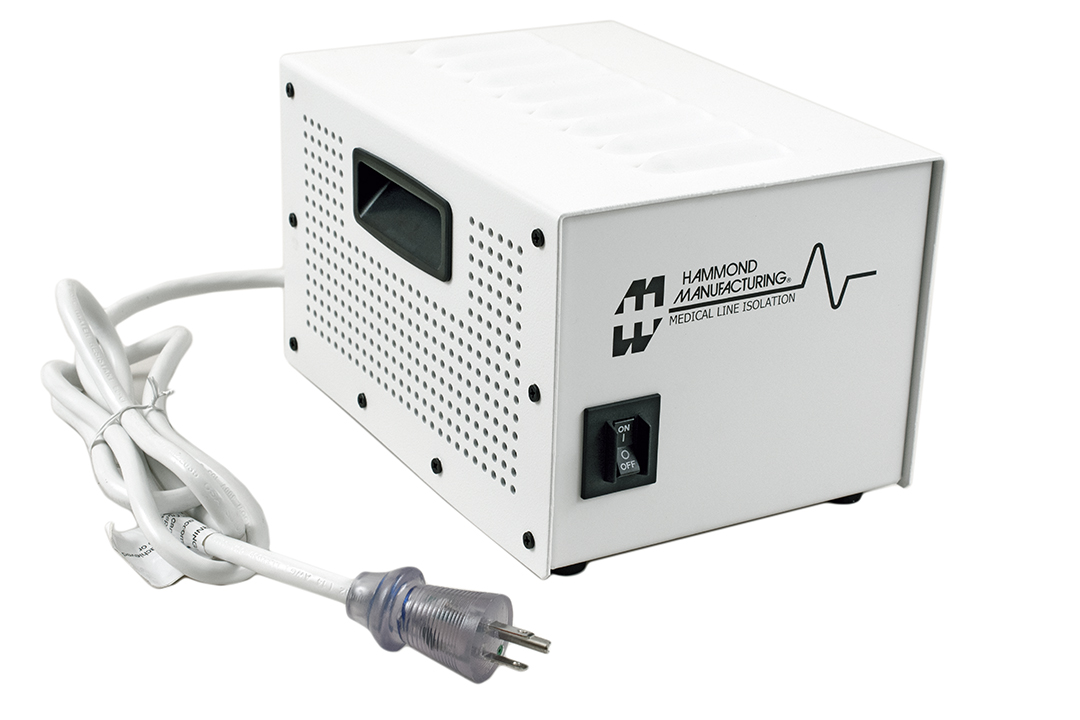

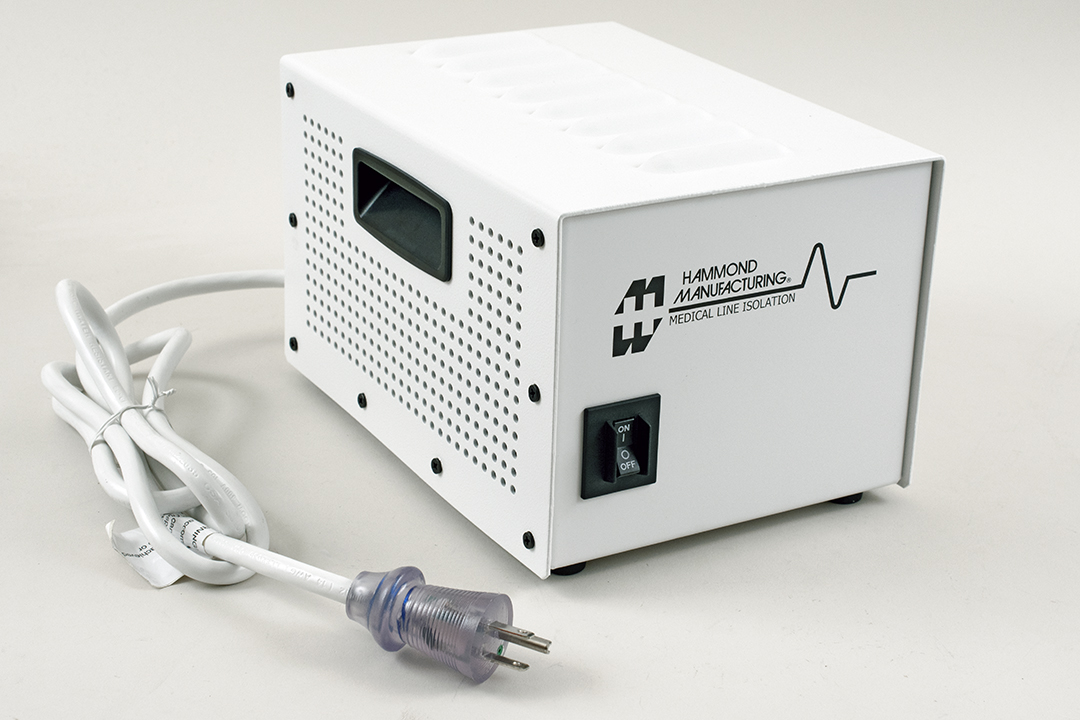

Medical Grade Plug-In Line Isolation Transformers · 178, 240, 289, 298 "MG" Series

Features:

• ■Intended for non-patient connected indoor applications where protection of sensitive electronics is required: High end audio / studio use Medical electronics High end test equipment / laboratory
• ■High end audio / studio use
• ■Medical electronics
• ■High end test equipment / laboratory
• ■cULus Listed to UL 60601-1 (1 st Edition) and CAN/CSA-C22.2 No. 601.1-M90 (R2005).
• ■Each unit provides complete line isolation and noise filtering plus utilizes a Faraday shield to reduce leakage currents below UL60601-1 requirements (under 100 microamps).
• ■Reduced noise coupling due to floating AC output.
• ■Not intended to be used to supply power to life support appliances.
• ■3 different VA Capacities available - - 500VA, 1000VA, and 1800VA. All rated 50/60Hz.
• ■4 different electrical configurations; 120V-120V straight isolation ("178" series) 240V-240V straight isolation ("240" series) 240V-120V step down isolation ("289" series) 120V-240V step up isolation ("298" series)
• ■120V-120V straight isolation ("178" series)
• ■240V-240V straight isolation ("240" series)
• ■240V-120V step down isolation ("289" series)
• ■120V-240V step up isolation ("298" series)
• ■Vented 14 gauge steel housing with white powder paint
• ■Hospital Grade 3-wire grounded Input Plug (see chart).

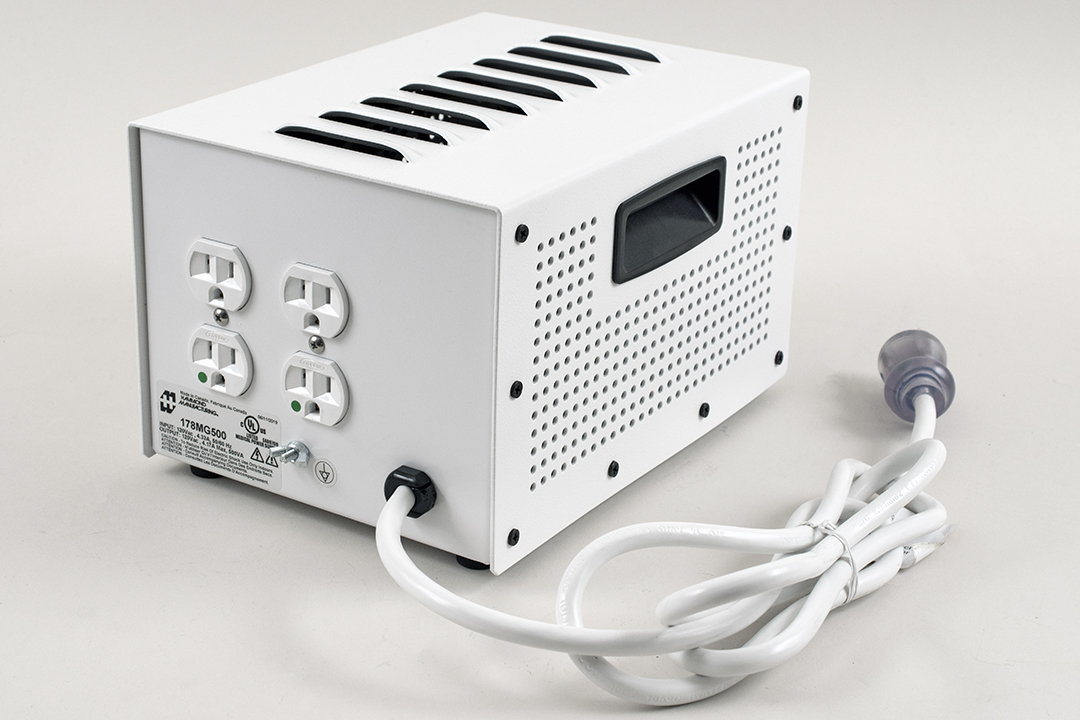

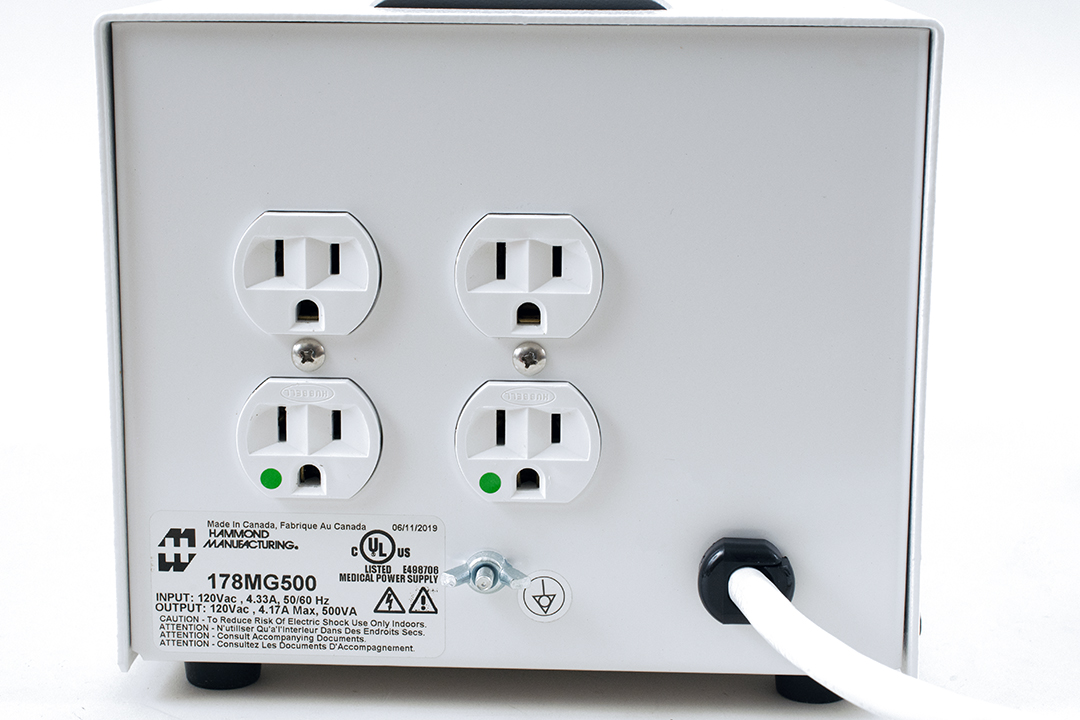

• ■2 or 3 Duplex Hospital Grade Output Receptacles (see chart). Receptacles have North American pins. See our 298G adaptor series for international pinout adaptor plugs.
• ■Receptacles have North American pins. See our 298G adaptor series for international pinout adaptor plugs.
• ■On-Off Switch / Circuit Breaker combo protected, and built in automatic Thermal Cut Out for added protection.
