100VA Auto Stepdown N.American
$76.34In stock
Buy now
Step-Down (230VAC to 115VAC) · 175 Series
Brand: Hammond Manufacturing · 7 part numbers
Plug-In
- ■Single winding, does not provide isolation, for use where equipment is already isolated and only voltage change is required.
- ■World wide applications, 50 or 60 Hz. operation, step down (230VAC to 115 VAC).
- ■Input is circuit breaker protected.
- ■Hi-pot tested to 2 KV RMS.
- ■Input is a standard 250V North American, 3-wire, grounded plug (can also be used with adaptors for proper grounding).
- ■Input on "-NA" version - connected to a 5 foot cord & grounded North American 250V plug (NEMA 6-15P).
from $76.34
7 of 7 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 175 Series part number
Filter 7 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
7 of 7 part numbers · 7 priced online
200VA Auto Stepdown N.American
$81.59In stock
Buy now300VA Auto Stepdown N.American
$101.98In stock
Buy now500VA Auto Stepdown N.American
$142.78Backorder
Buy now750VA Auto Stepdown N.American
$179.64In stock
Buy now1KVA Auto Stepdown N.American
$224.54In stock
Buy now1.5KVA Auto Stepdown N.Amer.
$289.63In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Capacity · VA | Overall Dimensions · A | Overall Dimensions · B | Overall Dimensions · C | Overall Dimensions · D | Overall Dimensions · E | Wt. Lbs. | Price | Order |
|---|---|---|---|---|---|---|---|---|---|

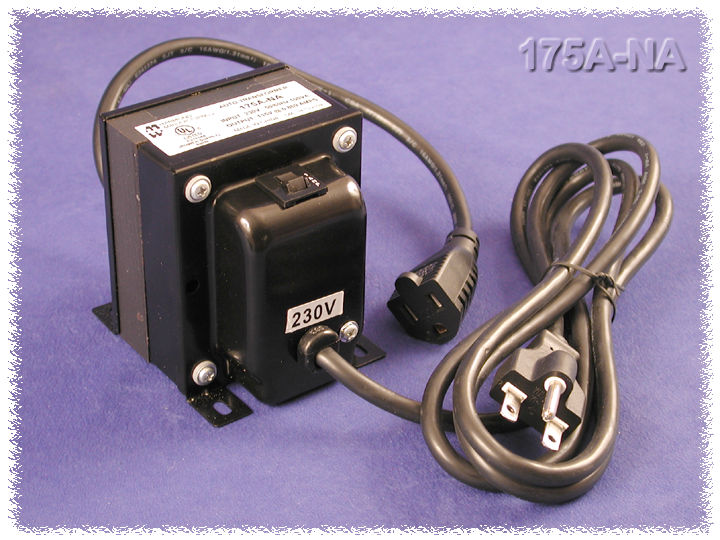

| 175A-NA | 100 | 3.16 | 4.25 | 3.81 | 2.50 | 2.94 | 3.5 | $76.34In stock | Buy now |

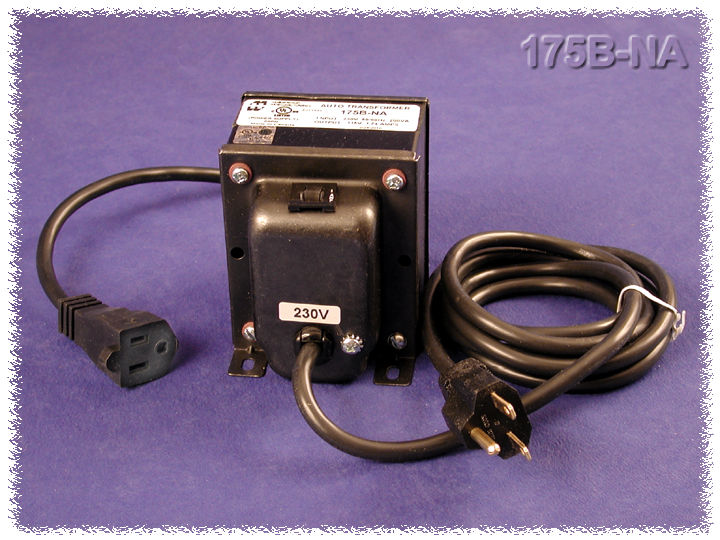

| 175B-NA | 200 | 3.16 | 4.50 | 3.81 | 2.50 | 3.19 | 4.5 | $81.59In stock | Buy now |

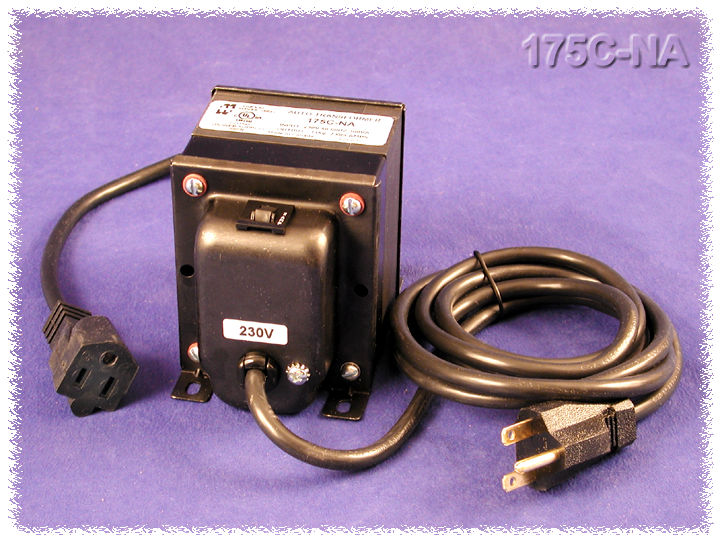

| 175C-NA | 300 | 3.16 | 5.00 | 3.81 | 2.50 | 3.69 | 6 | $101.98In stock | Buy now |

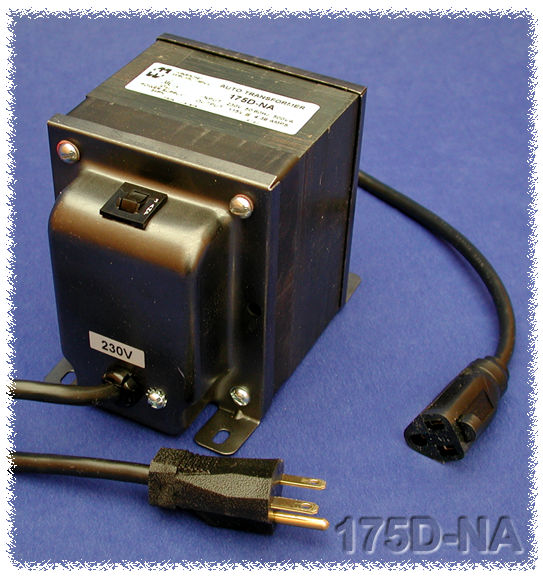

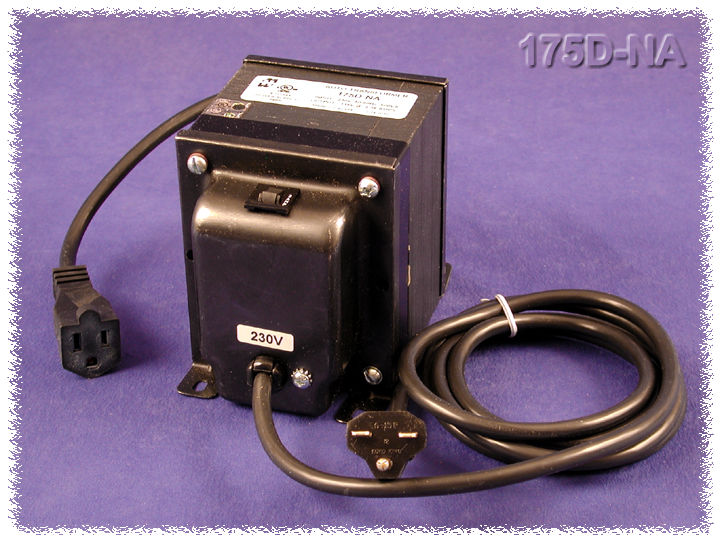

| 175D-NA | 500 | 3.80 | 6.00 | 4.68 | 3.00 | 4.38 | 10 | $142.78Backorder | Buy now |

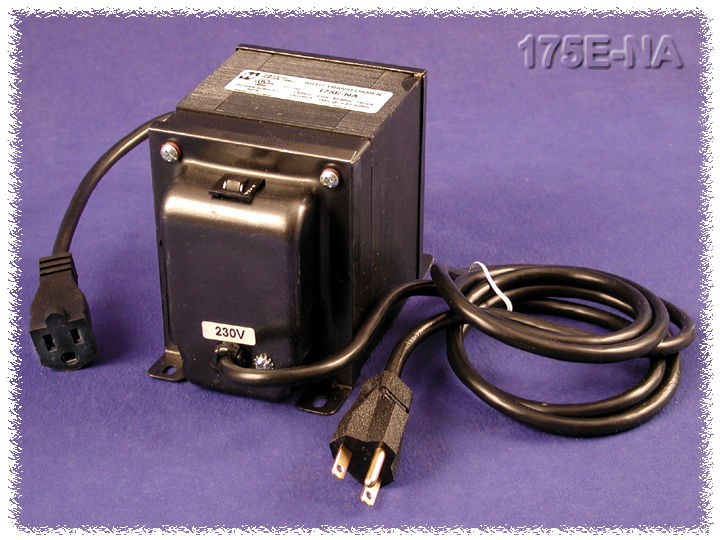

| 175E-NA | 750 | 3.80 | 7.06 | 4.68 | 3.00 | 5.38 | 14 | $179.64In stock | Buy now |

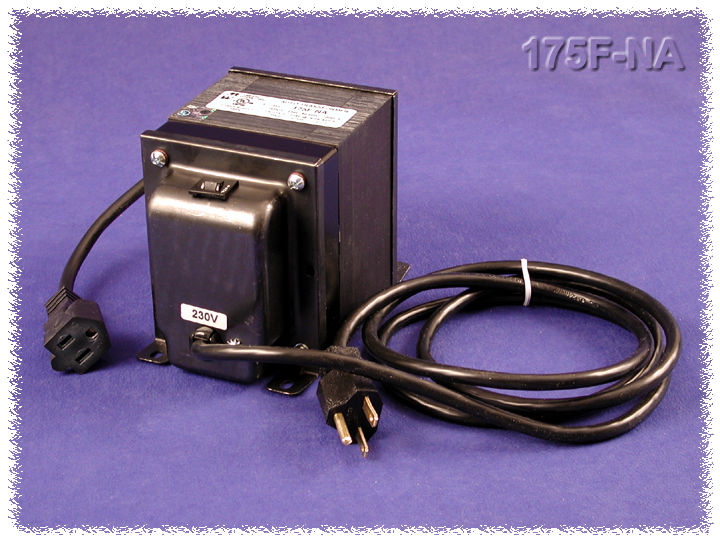

| 175F-NA | 1000 | 3.80 | 7.06 | 4.68 | 3.00 | 5.38 | 14.5 | $224.54In stock | Buy now |

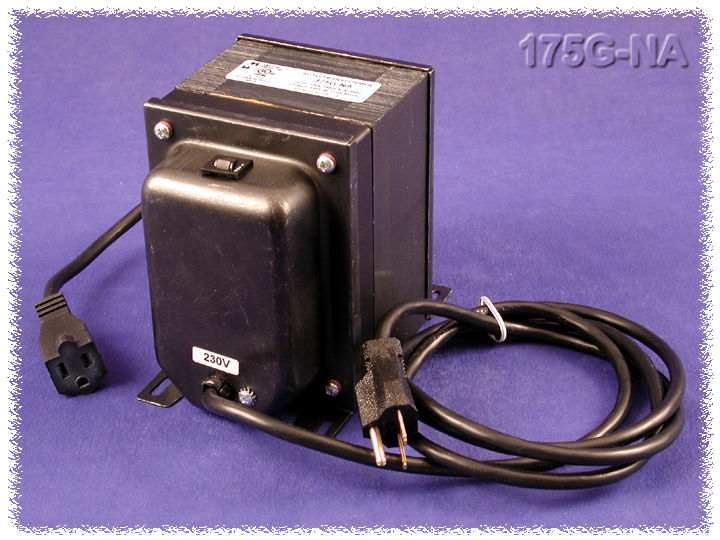

| 175G-NA | 1500 | 4.40 | 6.63 | 5.39 | 3.50 | 6.09 | 22 | $289.63In stock | Buy now |
Features
- ■Single winding, does not provide isolation, for use where equipment is already isolated and only voltage change is required.
- ■World wide applications, 50 or 60 Hz. operation, step down (230VAC to 115 VAC).
- ■Input is circuit breaker protected.
- ■Hi-pot tested to 2 KV RMS.
- ■Input is a standard 250V North American, 3-wire, grounded plug (can also be used with adaptors for proper grounding).
- ■Input on "-NA" version - connected to a 5 foot cord & grounded North American 250V plug (NEMA 6-15P).
- ■Output connected to a one foot long "pig tail" cord with standard North American 115V - 3 wire grounded receptacle (NEMA 5-15R). Receptacles have North American pins. See our 298G adaptor series for international pinout adaptor plugs.
- ■Receptacles have North American pins. See our 298G adaptor series for international pinout adaptor plugs.
- ■North American Mark of Safety - C UL & UL listed (File #E211544).
- ■Indoor use only.
- ■Remember - These units do NOT convert line frequency.
Documents
Additional information
Part Details
| Part No. | Capacity · VA | Overall Dimensions · A | Overall Dimensions · B | Overall Dimensions · C | Overall Dimensions · D | Overall Dimensions · E | Wt. Lbs. |
|---|---|---|---|---|---|---|---|
| 175A-NA | 100 | 3.16 | 4.25 | 3.81 | 2.50 | 2.94 | 3.5 |
| 175B-NA | 200 | 3.16 | 4.50 | 3.81 | 2.50 | 3.19 | 4.5 |
| 175C-NA | 300 | 3.16 | 5.00 | 3.81 | 2.50 | 3.69 | 6 |
| 175D-NA | 500 | 3.80 | 6.00 | 4.68 | 3.00 | 4.38 | 10 |
| 175E-NA | 750 | 3.80 | 7.06 | 4.68 | 3.00 | 5.38 | 14 |
| 175F-NA | 1000 | 3.80 | 7.06 | 4.68 | 3.00 | 5.38 | 14.5 |
| 175G-NA | 1500 | 4.40 | 6.63 | 5.39 | 3.50 | 6.09 | 22 |
