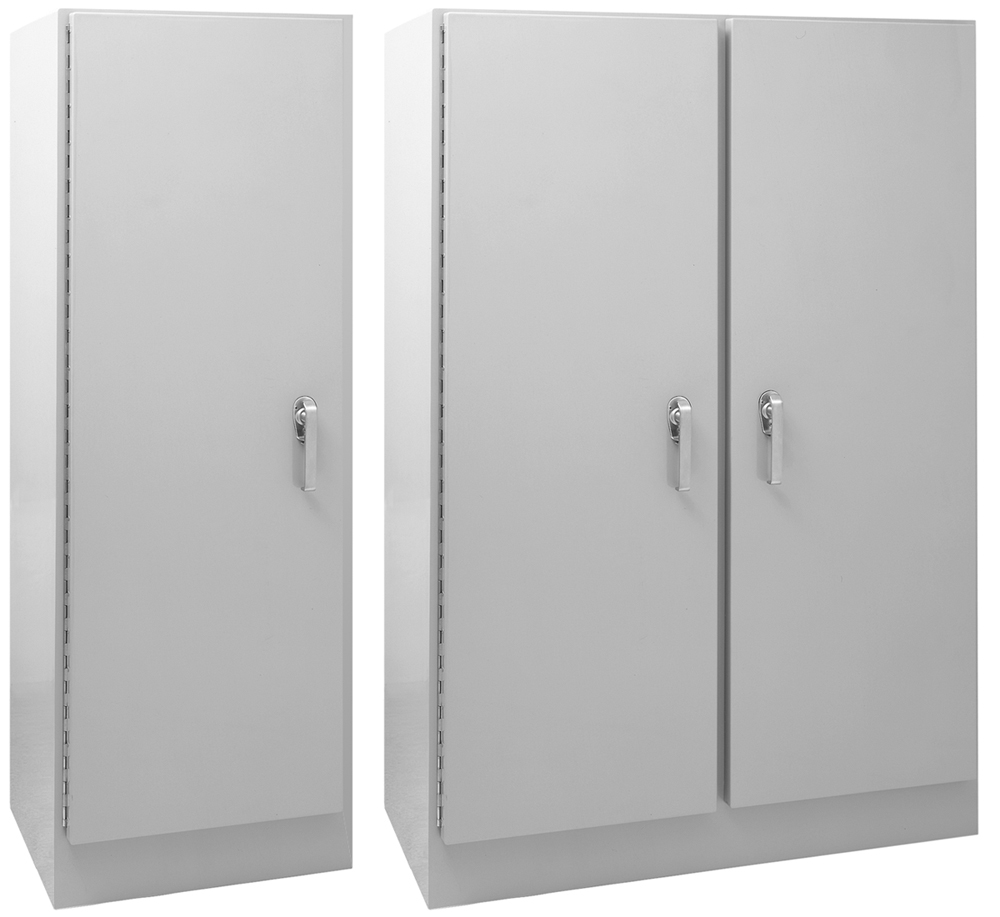

Type 4X Polyester Single/Two Door Freestanding Enclosure · PJFS Series

Brand: Hammond Manufacturing · 3 part numbers

Continuous Hinge Door with Handle

■Designed for use as instrument enclosures, electric, hydraulic, or pneumatic control housings, electrical junction boxes, or terminal wiring enclosures.
■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
■Ideal in applications with high temperatures or highly corrosive environments.
■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
■cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94
■Complies with IEC 60529, IP66 NEMA Type 1, 2, 3, 4, 4X,12 and 13

from $183.23

3 of 3 part numbers priced · available on backorder · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents Additional information

Configure & price

Find your PJFS Series part number

Filter 2 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

2 of 2 part numbers · 2 priced online

PJFS722525

Non Met Freestand

$8,313.77Backorder

Buy now

PJFS724925DD

Non Met Freestand 2DR

$15,975.12Backorder

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.	Enclosure · H	Enclosure · W	Enclosure · D	Optional Inner Panel · H	Optional Inner Panel · W	Optional Inner Panel · Part No.	Price	Order
PJFS722525	72.00	25.00	24.50	57.00	21.00	18P5721	$8,313.77BackorderPJFS722525	Buy now
PJFS724925DD	72.00	48.00	24.50	57.00	21.00	18P5721	$15,975.12BackorderPJFS724925DD	Buy now

Application

■Designed for use as instrument enclosures, electric, hydraulic, or pneumatic control housings, electrical junction boxes, or terminal wiring enclosures.
■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
■Ideal in applications with high temperatures or highly corrosive environments.

Standards

■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
■cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94
■Complies with IEC 60529, IP66 NEMA Type 1, 2, 3, 4, 4X,12 and 13
■IEC 60529, IP66
■NEMA Type 1, 2, 3, 4, 4X,12 and 13

Construction

■Fiberglass polyester enclosure with matching door is easily punched, cut, or drilled.
■Enhanced UV inhibitors protect against outdoor weathering.
■Collar Studs are provided for optional inner panel(s).
■Two door enclosure accommodates 2 separate inner panels
■Mounting hardware included.
■Heavy duty continuous 304 SS Hinge.
■Flexible self-gripping gasket compresses over flange for tight seal.
■3-point SS handle with pad lock provision.
■Molded-in drip shield.
■Fiberglass mounting strut side walls on double door unit.
■Operating temperatures between 130°C and -40°C (266°F to -40°F).
■Impact index of 6.78J (5 ft/lb).
■For corrosion resistance information, please refer to table in the Technical Information section.
