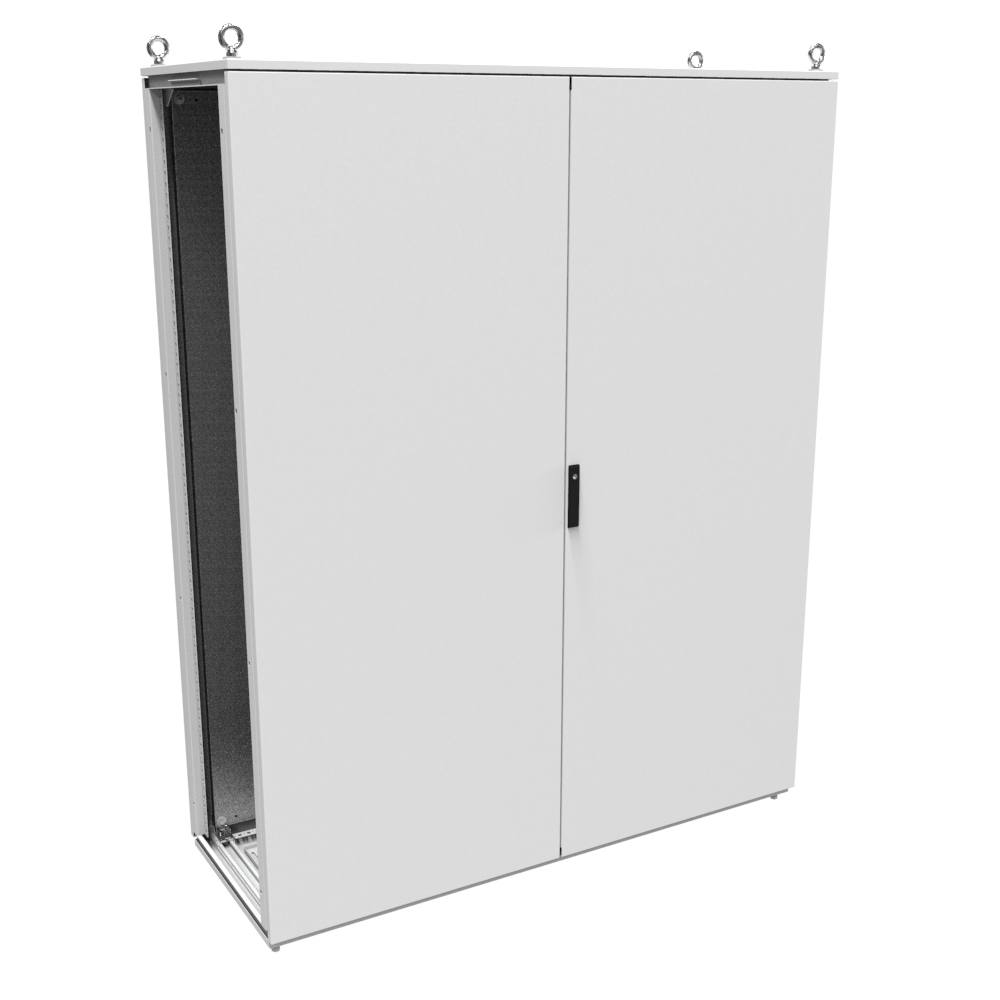

Type 12 Mild Steel Two Door Modular Freestanding Enclosure HMET Series

Type 12 Mild Steel Two Door Modular Freestanding Enclosure · HMET Series

Brand: Hammond Manufacturing · 36 part numbers

Hinge Door w/ Various Handle Options

  • ■The HMET 2 door product line provides users with a rugged housing for industrial control and operator interface in industrial environments.
  • ■Modular design permits joining of units together for large scale and mixed use applications.
  • ■Frame's 25mm hole pattern provides extensive component and accessory mounting flexibility.
  • ■A broad range of industry standard sizes are offered.
  • ■UL 508A Type 12
  • ■CSA Type 12

from $2,016.27

36 of 36 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your HMET Series part number

Filter 36 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

36 of 36 part numbers · 36 priced online

HMET1885

Mod 2 Dr - 1800X800X500

$2,016.27Backorder
Buy now
HMET1886

Mod 2 Dr - 1800X800X600

$2,026.52Backorder
Buy now
Dimension tables (inches / mm)

Units shown: mm . Switch units to: inch

Part No.Enclosure · HEnclosure · WEnclosure · DInner Panel · HInner Panel · WPriceOrder
HMET1412555.1247.2419.6951.0243.27$2,050.49BackorderBuy now
HMET1412655.1247.2423.6251.0243.27$2,101.76BackorderBuy now
HMET1412855.1247.2431.5051.0243.27$2,219.00BackorderBuy now
HMET1612562.9947.2419.6958.9043.27$2,053.84BackorderBuy now
HMET1612662.9947.2423.6258.9043.27$2,105.20BackorderBuy now
HMET1612862.9947.2431.5058.9043.27$2,222.43BackorderBuy now
HMET188670.8731.5023.6266.7727.52$2,026.52BackorderBuy now
HMET188570.8731.5019.6966.7727.52$2,016.27BackorderBuy now
HMET1810470.8739.3715.7566.7735.39$2,152.22BackorderBuy now
HMET1812470.8747.2415.7566.7743.27$2,528.74BackorderBuy now
HMET1812570.8747.2419.6966.7743.27$2,572.24BackorderBuy now
HMET1812670.8747.2423.6266.7743.27$2,588.51BackorderBuy now
HMET1812870.8747.2431.5066.7743.27$2,653.56BackorderBuy now
HMET1816470.8762.9915.7566.7759.02$2,848.57BackorderBuy now
HMET1816570.8762.9919.6966.7759.02$2,905.05BackorderBuy now
HMET1816670.8762.9923.6266.7759.02$2,996.50BackorderBuy now
HMET1816870.8762.9931.5066.7759.02$3,146.29In stockBuy now
HMET1818470.8770.8715.7566.7766.89$3,295.07BackorderBuy now
HMET1818570.8770.8719.6966.7766.89$3,388.34BackorderBuy now
HMET1818670.8770.8723.6266.7766.89$3,537.23BackorderBuy now
HMET1818870.8770.8731.5066.7766.89$4,837.43BackorderBuy now
HMET2010578.7439.3719.6974.6535.39$2,193.36BackorderBuy now
HMET2010678.7439.3723.6274.6535.39$2,213.88BackorderBuy now
HMET2012478.7447.2415.7574.6543.27$2,412.31BackorderBuy now
HMET2012578.7447.2419.6974.6543.27$2,476.47In stockBuy now
HMET2012678.7447.2423.6274.6543.27$2,597.09BackorderBuy now
HMET2012878.7447.2431.5074.6543.27$2,749.33In stockBuy now
HMET2016578.7462.9919.6974.6559.02$3,195.84In stockBuy now
HMET2016678.7462.9923.6274.6559.02$3,231.87In stockBuy now
HMET2016878.7462.9931.5074.6559.02$3,384.92BackorderBuy now
HMET2018578.7470.8719.6974.6566.89$3,572.23In stockBuy now
HMET2018678.7470.8723.6274.6566.89$3,825.46BackorderBuy now
HMET2018878.7470.8731.5074.6566.89$3,901.55BackorderBuy now
HMET2210686.6139.3723.6282.5235.39$2,253.17BackorderBuy now
HMET2212586.6147.2419.6982.5243.27$2,749.33BackorderBuy now
HMET2212686.6147.2423.6282.5243.27$2,885.37In stockBuy now

Application

  • ■The HMET 2 door product line provides users with a rugged housing for industrial control and operator interface in industrial environments.
  • ■Modular design permits joining of units together for large scale and mixed use applications.
  • ■Frame's 25mm hole pattern provides extensive component and accessory mounting flexibility.
  • ■A broad range of industry standard sizes are offered.

Standards

  • ■UL 508A Type 12
  • ■CSA Type 12
  • ■Complies with NEMA Type 12 IEC 60529 IP54
  • ■NEMA Type 12
  • ■IEC 60529 IP54

Configuration

  • ■Frame
  • ■Removable solid top panel
  • ■Lifting eyebolts (4)
  • ■Removable bottom panel w/gland plates

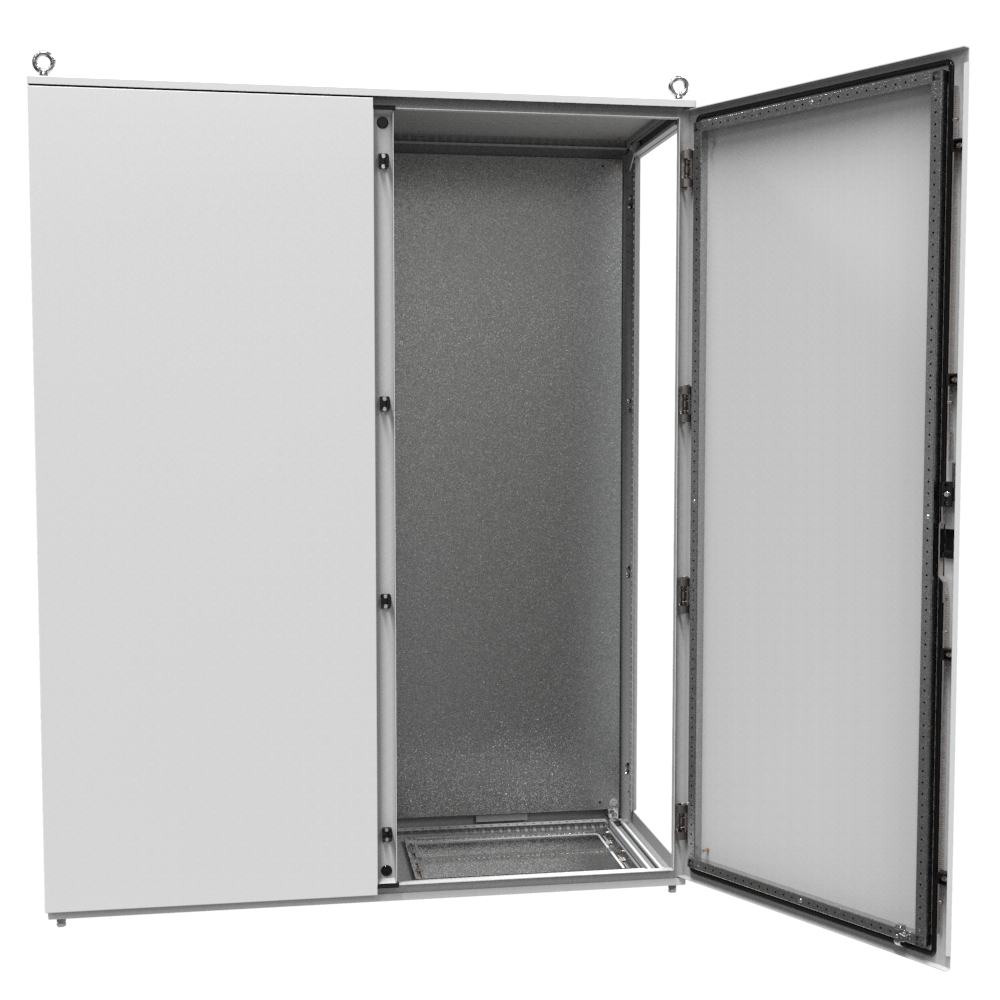

  • ■Two overlapping solid front doors with door frames
  • ■Removable rear cover panels (1 or 2 depending on width) with welded rear center post on units 1000 mm and wider.
  • ■Full width inner mounting panel

Construction

  • ■Formed 14 gauge steel.
  • ■Fully welded frame with 25mm hole pattern for superior mounting flexibility.
  • ■Foam gasket on all openings provides a dust-tight seal.
  • ■Reinforced eyebolts are provided for easy enclosure lifting.
  • ■Frames can be joined together with an optional joining kit.
  • ■Doors can be easily interchanged, removed and/or reversed.
  • ■Door opening 135°.

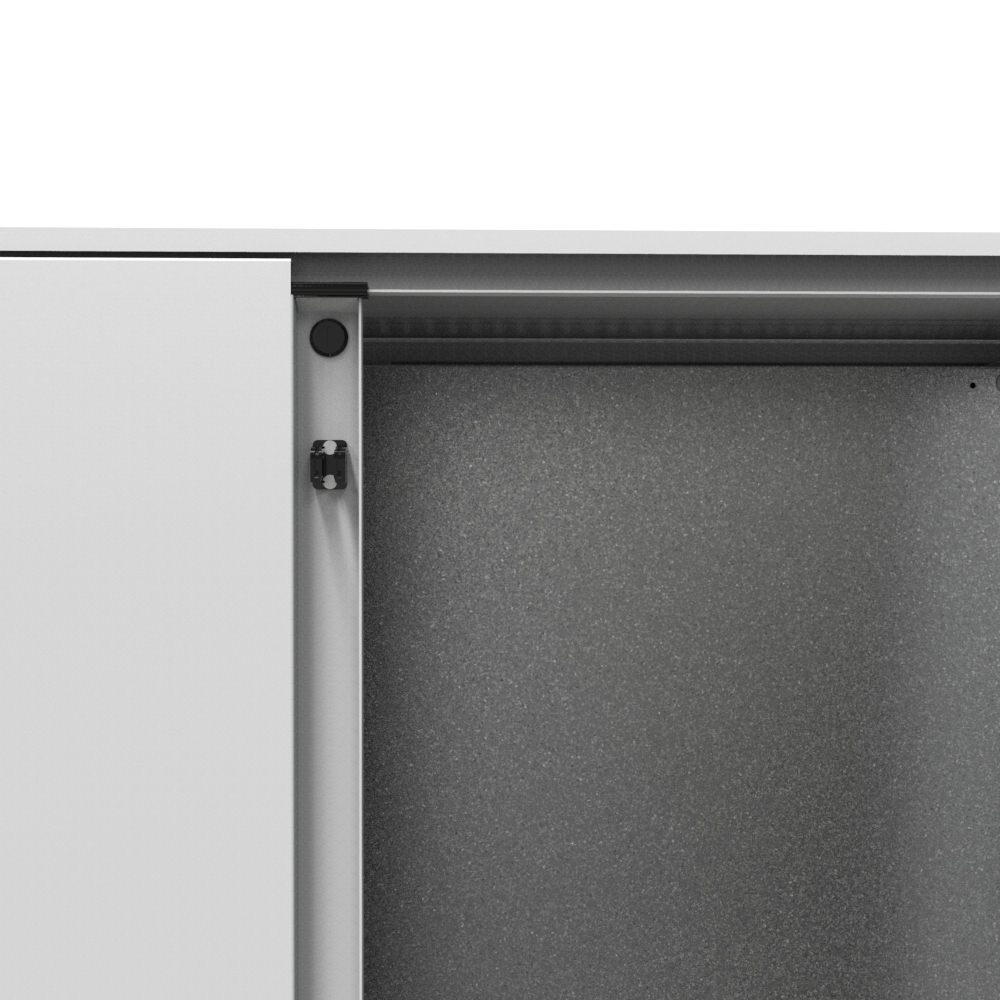

  • ■Primary door secured with double-bit key. Secondary door secured with hidden quarter turn latches.
  • ■Optional formed 14 gauge steel side panels are sold separately (in pairs).
  • ■Bonding and grounding studs are provided for all doors and panels.

Finish

  • ■Phosphatized and finished in RAL 7035 light gray textured powder coating.
  • ■Inner panel is unpainted galvanized 12 gauge steel. SPECIAL TEMPORARY NOTE: Due to industry shortages of large galvanized steel sheets, some larger inner panels will be substituted with painted steel versions.
  • ■SPECIAL TEMPORARY NOTE: Due to industry shortages of large galvanized steel sheets, some larger inner panels will be substituted with painted steel versions.

Documents

Specification SheetCE Declaration

Additional information

Part Details

Part No.Enclosure · HEnclosure · WEnclosure · DInner Panel · HInner Panel · W
HMET141251400120050012961099
HMET141261400120060012961099
HMET141281400120080012961099
HMET161251600120050014961099
HMET161261600120060014961099
HMET161281600120080014961099
HMET188618008006001696699
HMET188518008005001696699
HMET18104180010004001696899
HMET181241800120040016961099
HMET181251800120050016961099
HMET181261800120060016961099
HMET181281800120080016961099
HMET181641800160040016961499
HMET181651800160050016961499
HMET181661800160060016961499
HMET181681800160080016961499
HMET181841800180040016961699
HMET181851800180050016961699
HMET181861800180060016961699
HMET181881800180080016961699
HMET20105200010005001896899
HMET20106200010006001896899
HMET201242000120040018961099
HMET201252000120050018961099
HMET201262000120060018961099
HMET201282000120080018961099
HMET201652000160050018961499
HMET201662000160060018961499
HMET201682000160080018961499
HMET201852000180050018961699
HMET201862000180060018961699
HMET201882000180080018961699
HMET22106220010006002096899
HMET221252200120050020961099
HMET221262200120060020961099
