Type 12 Modular Freestanding Disconnect Enclosures · HFMDT Series

Brand: Hammond Manufacturing · 9 part numbers

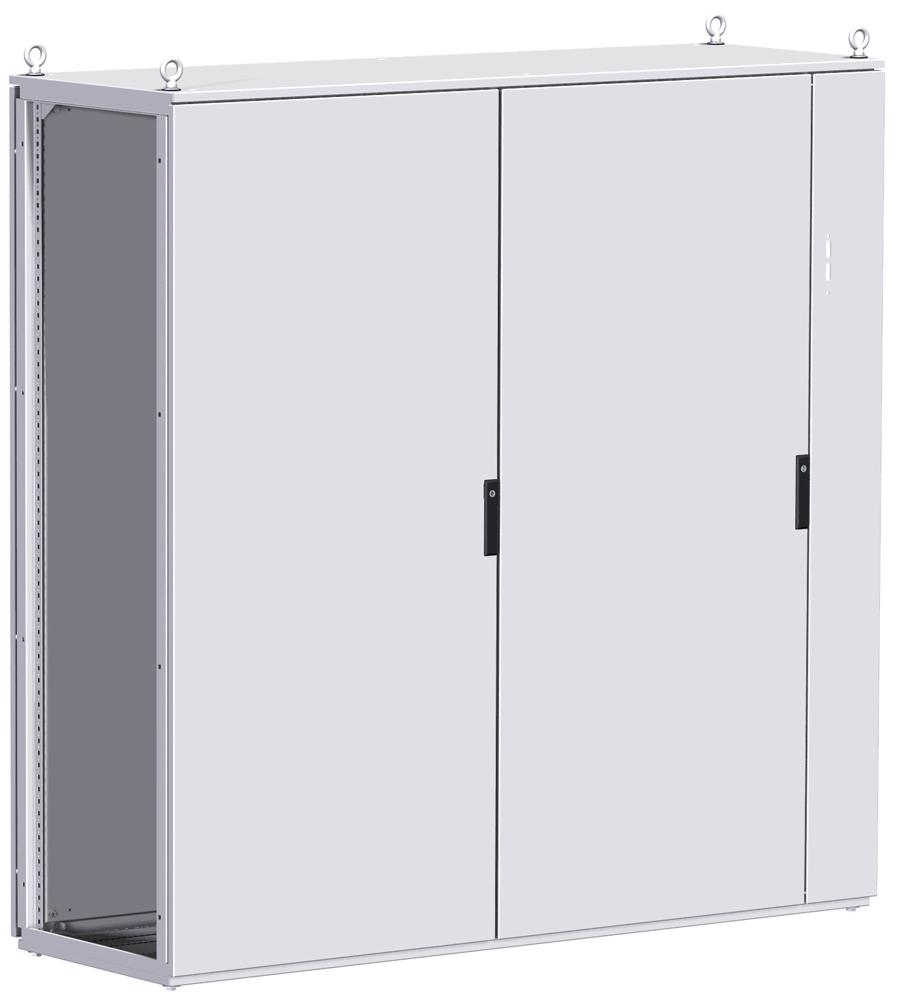

Two Door

■Provides users with a rugged housing for flange mount disconnect and circuit breaker requirements.
■Modular design permits joining of units together for large scale and mixed use applications.
■Frame's 25mm hole pattern provides extensive component and accessory mounting flexibility.
■A broad range of industry standard sizes are offered.
■HME/HMET Series enclosures can be used as secondary units to HFMD/HFMDT Disconnect Series.
■The flange mount disconnect units accommodate today's most popular disconnect hardware.

from $3,389.21

9 of 9 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents Additional information

Configure & price

Find your HFMDT Series part number

Filter 9 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

9 of 9 part numbers · 9 priced online

HFMDT18164

Mod Fmd 2 Dr - 1800X1600X400

$3,389.21Backorder

Buy now

HFMDT18165

Mod Fmd 2 Dr - 1800X1600X500

$3,491.03Backorder

Buy now

HFMDT18184

Mod Fmd 2 Dr - 1800X1800X400

$3,751.86Backorder

Buy now

HFMDT18185

Mod Fmd 2 Dr - 1800X1800X500

$3,803.35Backorder

Buy now

HFMDT18186

Mod Fmd 2 Dr - 1800X1800X600

$3,863.17In stock

Buy now

HFMDT20165

Mod Fmd 2 Dr - 2000X1600X500

$3,597.91Backorder

Buy now

HFMDT20166

Mod Fmd 2 Dr - 2000X1600X600

$3,636.81In stock

Buy now

HFMDT20168

Mod Fmd 2 Dr - 2000X1600X800

$3,733.83Backorder

Buy now

HFMDT20185

Mod Fmd 2 Dr - 2000X1800X500

$4,054.73Backorder

Buy now

Dimension tables (inches / mm)

Units shown: mm . Switch units to: inch

Part No.	Enclosure · H	Enclosure · W	Enclosure · D	Inner Panel · H	Inner Panel · W	Price	Order
HFMDT18164	70.87	62.99	15.75	66.77	59.02	$3,389.21Backorder	Buy now
HFMDT18165	70.87	62.99	19.69	66.77	59.02	$3,491.03Backorder	Buy now
HFMDT18184	70.87	70.87	15.75	66.77	66.89	$3,751.86Backorder	Buy now
HFMDT18185	70.87	70.87	19.69	66.77	66.89	$3,803.35Backorder	Buy now
HFMDT18186	70.87	70.87	23.62	66.77	66.89	$3,863.17In stock	Buy now
HFMDT20165	78.74	62.99	19.69	74.65	59.02	$3,597.91Backorder	Buy now
HFMDT20166	78.74	62.99	23.62	78.58	59.02	$3,636.81In stock	Buy now
HFMDT20168	78.74	62.99	31.50	74.65	59.02	$3,733.83Backorder	Buy now
HFMDT20185	78.74	70.87	19.69	74.65	66.89	$4,054.73Backorder	Buy now

Application

■Provides users with a rugged housing for flange mount disconnect and circuit breaker requirements.
■Modular design permits joining of units together for large scale and mixed use applications.
■Frame's 25mm hole pattern provides extensive component and accessory mounting flexibility.
■A broad range of industry standard sizes are offered.
■HME/HMET Series enclosures can be used as secondary units to HFMD/HFMDT Disconnect Series.
■The flange mount disconnect units accommodate today's most popular disconnect hardware.
■ABB Controls: Disconnect Switches up to (and including) 200 amp, also operators for ABB circuit breakers up to 800 amp.
■Allen Bradley: 1494V variable depth flange mounted disconnect up to and including 200 amp and operators for C-H Westinghouse circuit breakers up to 400 amp.
■C-H Westinghouse: C361 flange mounted disconnect switches up to and including 200 amp and C371 circuit breakers up to 600 amp, also Flex Shaft handle mechanisms for circuit breakers.
■General Electric: Type STDA flange mounted variable depth flange operators for disconnect switches up to and including 200 amp and circuit breakers up to 600 amp or Spectra Flex™ cable operators for circuit breakers.
■ITE Siemens Max-Flex: flange mounted variable depth cable operators for disconnect switches up to 200 amp and circuit breakers up to 600 amp.
■Square D: class 9422 variable depth flange mounted operating mechanisms for disconnect switches up to and including 200 amp or cable mechanism for 30, 60 or 100 amp, also circuit breakers with variable depth operators or cable mechanism up to 400 amp.

Standards

■UL 508A Type 12
■CSA Type 12
■Complies with NEMA Type 12 IEC 60529 IP54
■NEMA Type 12
■IEC 60529 IP54
■Appropriate components are required to maintain these standards.

Standard Configuration

■Frame
■Removable solid top panel
■Lifting eyebolts (4)
■Removable bottom panel w/gland plates
■Solid front door(s) with door frame(s).
■Removable rear cover panel(s) – two door version with removable center post
■Inner mounting panel
■Disconnect to door handle activation hardware
■Hinged flange door

Construction

■Formed 14 gauge steel.
■Fully welded frame with 25mm hole pattern for superior mounting flexibility.
■Foam gasket on all openings provides a dust-tight seal.
■Reinforced eyebolts are provided for easy enclosure lifting.
■Frames can be joined together with an optional joining kit.
■Doors can be easily interchanged, removed and/or reversed.
■Door opening 135°.
■Primary door secured with double-bit key. Secondary door secured with hidden quarter turn latches
■Optional formed 14 gauge steel side panels are sold separately (in pairs).
■Bonding and grounding studs are provided for all doors and panels.

Finish

■Phosphatized and finished in RAL 7035 light gray textured powder coating.
■Inner panel is unpainted galvanized 12 gauge steel. SPECIAL TEMPORARY NOTE: Due to industry shortages of large galvanized steel sheets, some larger inner panels will be substituted with painted steel versions.
■SPECIAL TEMPORARY NOTE: Due to industry shortages of large galvanized steel sheets, some larger inner panels will be substituted with painted steel versions.

Documents

Specification Sheet CE Declaration

Additional information

Part Details

Part No.	Enclosure · H	Enclosure · W	Enclosure · D	Inner Panel · H	Inner Panel · W
HFMDT18164	1800	1600	400	1696	1499
HFMDT18165	1800	1600	500	1696	1499
HFMDT18184	1800	1800	400	1696	1699
HFMDT18185	1800	1800	500	1696	1699
HFMDT18186	1800	1800	600	1696	1699
HFMDT20165	2000	1600	500	1896	1499
HFMDT20166	2000	1600	600	1996	1499
HFMDT20168	2000	1600	800	1896	1499
HFMDT20185	2000	1800	500	1896	1699
