IP Side Support Pkg 6
- col2 HIPSPK
$35.64In stock
Buy now
Inner Panels and Supports · HMEP Series
Brand: Hammond Manufacturing · 32 part numbers
- ■Formed 12 gauge galvanized steel unpainted
- ■Included with standard configuration
- ■Sold separately as secondary or replacement panel
- ■Can be used as swing panel (where indicated * - swing kit sold separately )
- ■Inner panel attachment hardware sold separately as required SPECIAL TEMPORARY NOTE: Due to industry shortages of large galvanized steel sheets, some larger inner panels will be substituted with painted steel versions.
- ■SPECIAL TEMPORARY NOTE: Due to industry shortages of large galvanized steel sheets, some larger inner panels will be substituted with painted steel versions.
from $35.64
32 of 32 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your HMEP Series part number
Filter 22 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
22 of 22 part numbers · 22 priced online
Inner Panel Mounting Hardware
- col2 HMEIPMTG
$79.71Backorder
Buy nowHme Panel - 1400 X 1000 - Galv
$276.94Backorder
Buy nowHme Panel - 1400 X 1200 - Galv
$281.15Backorder
Buy nowHme Panel - 1600 X 1200 - Galv
$360.80Backorder
Buy nowHme Panel - 1800 X 1000 - Galv
$322.97Backorder
Buy nowHme Panel - 1800 X 1200 - Galv
$326.40Backorder
Buy nowHme Panel - 1800 X 1600 - Galv
$400.21Backorder
Buy nowHme Panel - 1800 X 1800 - Galv
$415.33Backorder
Buy nowHme Panel - 2000 X 1000 - Galv
$351.57Backorder
Buy nowHme Panel - 2000 X 1200 - Galv
$375.83Backorder
Buy nowHme Panel - 2000 X 1600 - Galv
$518.47Backorder
Buy nowHme Panel - 2000 X 1800 - Galv
$526.08Backorder
Buy nowHme Panel - 2000 X 400 - Galv
$276.94Backorder
Buy nowHme Panel - 2200 X 1000 - Galv
$400.21Backorder
Buy nowHme Panel - 2200 X 1200 - Galv
$526.81In stock
Buy nowHme Panel - 2200 X 400 - Galv
$306.17Backorder
Buy nowInner Panel Rear SUPPORT/2
$163.44Backorder
Buy nowInner Panel Rear SUPPORT/2
$203.97Backorder
Buy nowInner Panel Rear SUPPORT/2
$274.10Backorder
Buy nowInner Panel Rear SUPPORT/2
$308.28Backorder
Buy nowInner Panel Rear SUPPORT/2
$130.67Backorder
Buy nowDimension tables (inches / mm)
Units shown: mm . Switch units to: inch
| Part No. | Overall · Height | Overall · Width | For use with Cabinet · Height | For use with Cabinet · Width | Inner Panel · Rear Support (Part No.) | Price | Order |
|---|---|---|---|---|---|---|---|
| HMEP146 | 51.02 | 19.65 | 55.12 | 23.62 | - | $223.98Backorder | Buy now |
| HMEP148 | 51.02 | 27.52 | 55.12 | 31.50 | HMEPRS800 | $264.32BackorderHMEP148 | Buy now |
| HMEP1410 | 51.02 | 35.39 | 55.12 | 39.37 | HMEPRS1000 | $276.94BackorderHMEP1410 | Buy now |
| HMEP1412 | 51.02 | 43.27 | 55.12 | 47.24 | HMEPRS1200 | $281.15BackorderHMEP1412 | Buy now |
| HMEP166 | 51.02 | 19.65 | 62.99 | 23.62 | - | $258.26In stock | Buy now |
| HMEP168 | 58.90 | 27.52 | 62.99 | 31.50 | HMEPRS800 | $301.97BackorderHMEP168 | Buy now |
| HMEP1612 | 58.90 | 43.27 | 62.99 | 47.24 | HMEPRS1200 | $360.80BackorderHMEP1612 | Buy now |
| HMEP186 | 58.90 | 19.65 | 70.87 | 23.62 | - | $265.08Backorder | Buy now |
| HMEP188 | 66.77 | 27.52 | 70.87 | 31.50 | HMEPRS800 | $312.96In stockHMEP188 | Buy now |
| HMEP1810 | 66.77 | 35.39 | 70.87 | 39.37 | HMEPRS1000 | $322.97BackorderHMEP1810 | Buy now |
| HMEP1812 | 66.77 | 43.27 | 70.87 | 47.24 | HMEPRS1200 | $326.40BackorderHMEP1812 | Buy now |
| HMEP1816 | 66.77 | 59.02 | 70.87 | 62.99 | HMEPRS1600 | $400.21BackorderHMEP1816 | Buy now |
| HMEP1818 | 65.35 | 66.89 | 70.87 | 70.87 | HMEPRS1800 | $415.33BackorderHMEP1818 | Buy now |
| HMEP204 | 65.35 | 11.77 | 78.74 | 15.75 | - | $276.94Backorder | Buy now |
| HMEP206 | 74.65 | 19.65 | 78.74 | 23.62 | - | $289.42Backorder | Buy now |
| HMEP208 | 74.65 | 27.52 | 78.74 | 31.50 | HMEPRS800 | $319.66BackorderHMEP208 | Buy now |
| HMEP2010 | 74.65 | 35.39 | 78.74 | 39.37 | HMEPRS1000 | $351.57BackorderHMEP2010 | Buy now |
| HMEP2012 | 74.65 | 43.27 | 78.74 | 47.24 | HMEPRS1200 | $375.83BackorderHMEP2012 | Buy now |
| HMEP2016 | 74.65 | 59.02 | 78.74 | 62.99 | HMEPRS1600 | $518.47BackorderHMEP2016 | Buy now |
| HMEP2018 | 74.65 | 66.89 | 78.74 | 70.87 | HMEPRS1800 | $526.08BackorderHMEP2018 | Buy now |
| HMEP224 | 74.65 | 11.77 | 86.61 | 15.75 | - | $306.17Backorder | Buy now |
| HMEP226 | 74.65 | 19.65 | 86.61 | 23.62 | - | $335.60Backorder | Buy now |
| HMEP228 | 82.52 | 27.52 | 86.61 | 31.50 | HMEPRS800 | $372.48BackorderHMEP228 | Buy now |
| HMEP2210 | 82.52 | 35.39 | 86.61 | 39.37 | HMEPRS1000 | $400.21BackorderHMEP2210 | Buy now |
| HMEP2212 | 82.52 | 43.27 | 86.61 | 47.24 | HMEPRS1200 | $526.81In stockHMEP2212 | Buy now |
Additional Hardware
| col1 | col2 | Price | Order |
|---|---|---|---|
| Part No. | HMEIPMTG | $79.71Backorder | Buy now |
Inner Panel Side Support
| col1 | col2 | Price | Order |
|---|---|---|---|
| Part No. | HIPSPK | $35.64In stock | Buy now |

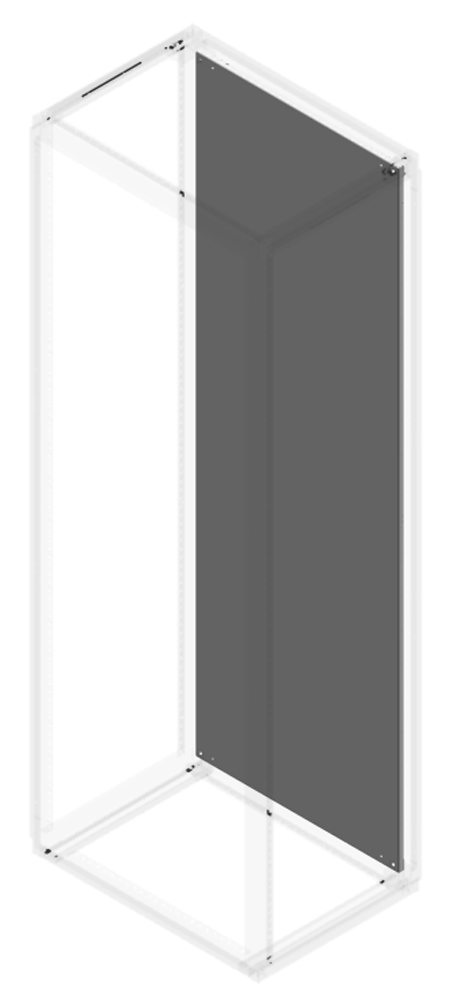

Base Inner Panel
- ■Formed 12 gauge galvanized steel unpainted
- ■Included with standard configuration
- ■Sold separately as secondary or replacement panel
- ■Can be used as swing panel (where indicated * - swing kit sold separately )
- ■Inner panel attachment hardware sold separately as required SPECIAL TEMPORARY NOTE: Due to industry shortages of large galvanized steel sheets, some larger inner panels will be substituted with painted steel versions.
- ■SPECIAL TEMPORARY NOTE: Due to industry shortages of large galvanized steel sheets, some larger inner panels will be substituted with painted steel versions.

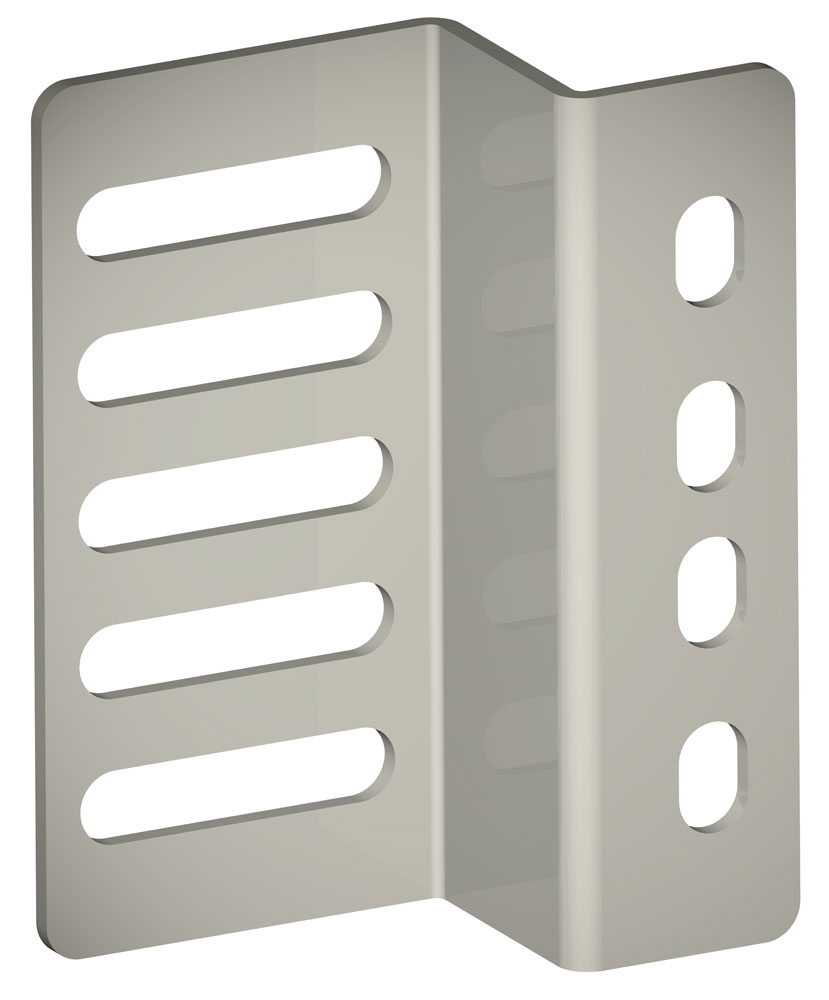

Inner Panel Side Support
- ■Use to provide extra support for larger loads
- ■Attached to either frame support in rear position or optional grid straps
- ■Sold in pack of 6, complete with 24 - #12 pan head screws

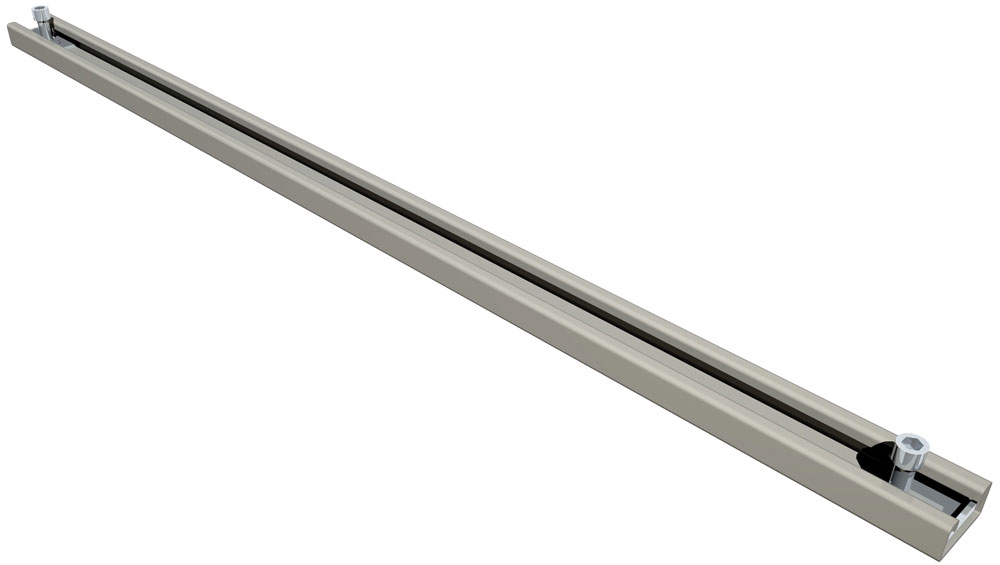

Inner Panel Rear Support
- ■Rear support to prevent flexing of inner panel when heavily loaded
- ■Material: Mild steel channel
- ■Finish: RAL7035 Light Grey
- ■Sold in pack of 2 complete with mounting hardware
