3R Screw Cover 10X10X4 No K/O
$32.56In stock
Buy now
Type 3R Painted Galvanized Steel Junction Box · C3R SC NKO Series
Brand: Hammond Manufacturing · 17 part numbers
Lift-Off Cover with Screws without Knockouts
- ■Designed for use as a wiring/junction box.
- ■Provides protection against rain, sleet, snow and dripping water.
- ■UL-50 Type 3R
- ■cUL Type 3R to CSA Standard C22.2, No. 94
- ■Complies with: NEMA Type 3R IEC 60529, IP24
- ■NEMA Type 3R
from $19.00
17 of 17 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your C3R SC NKO Series part number
Filter 17 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
17 of 17 part numbers · 17 priced online

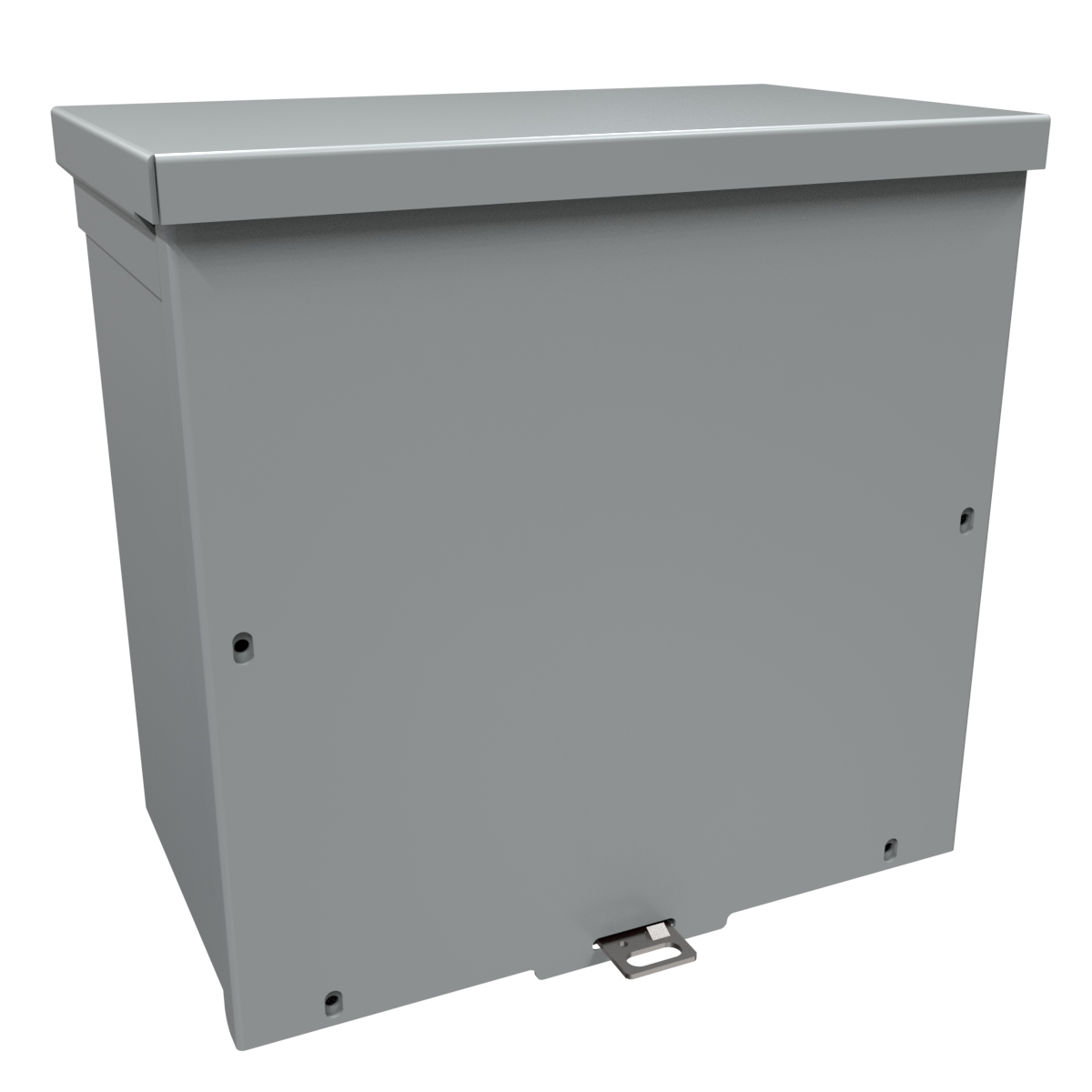

3R Screw Cover 10X10X6 No K/O
$37.84Backorder
Buy now
3R Screw Cover 12X12X4 No K/O
$40.72In stock
Buy now

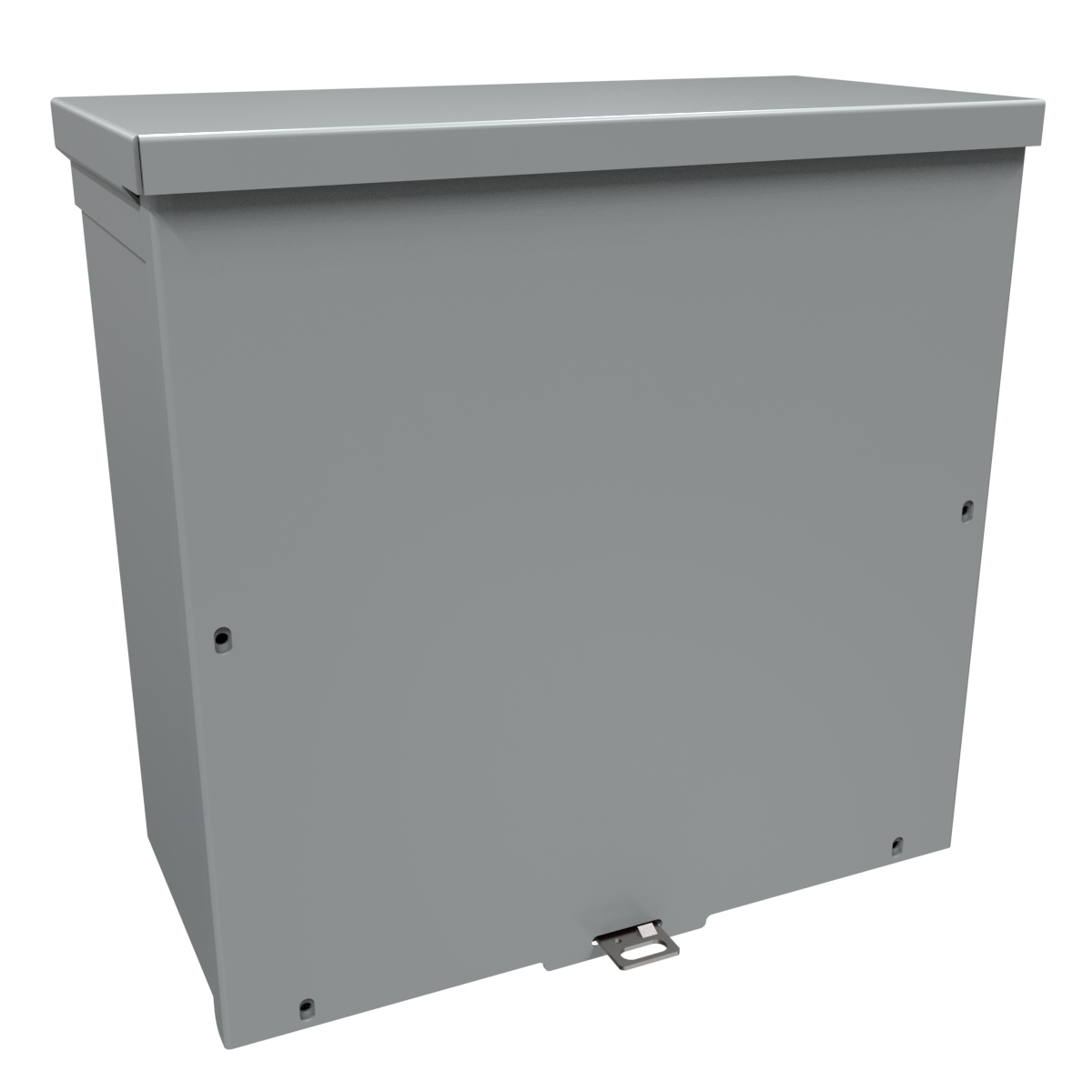

3R Screw Cover 12X12X6 No K/O
$48.86In stock
Buy now

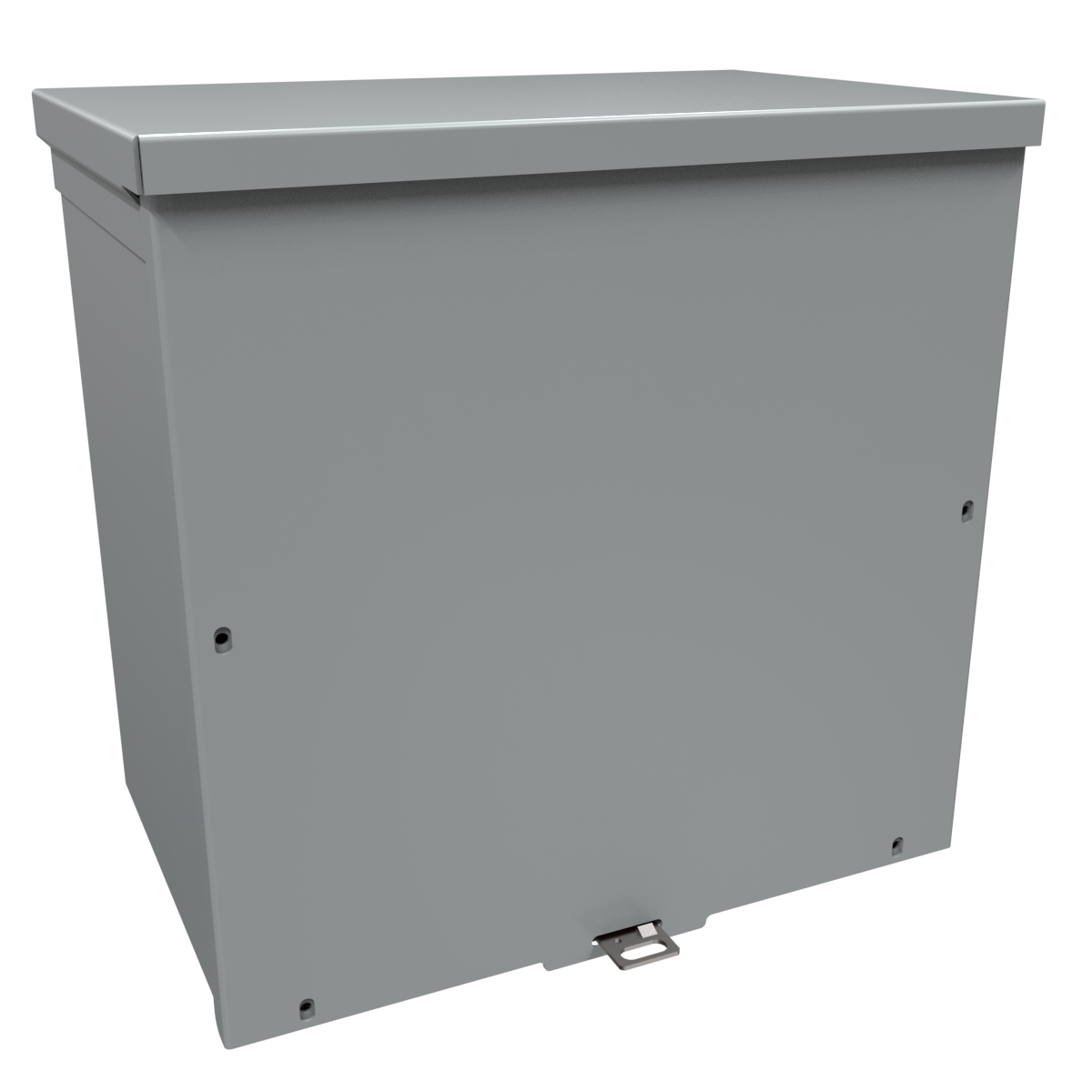

3R Screw Cover 12X12X8 No K/O
$61.77In stock
Buy now

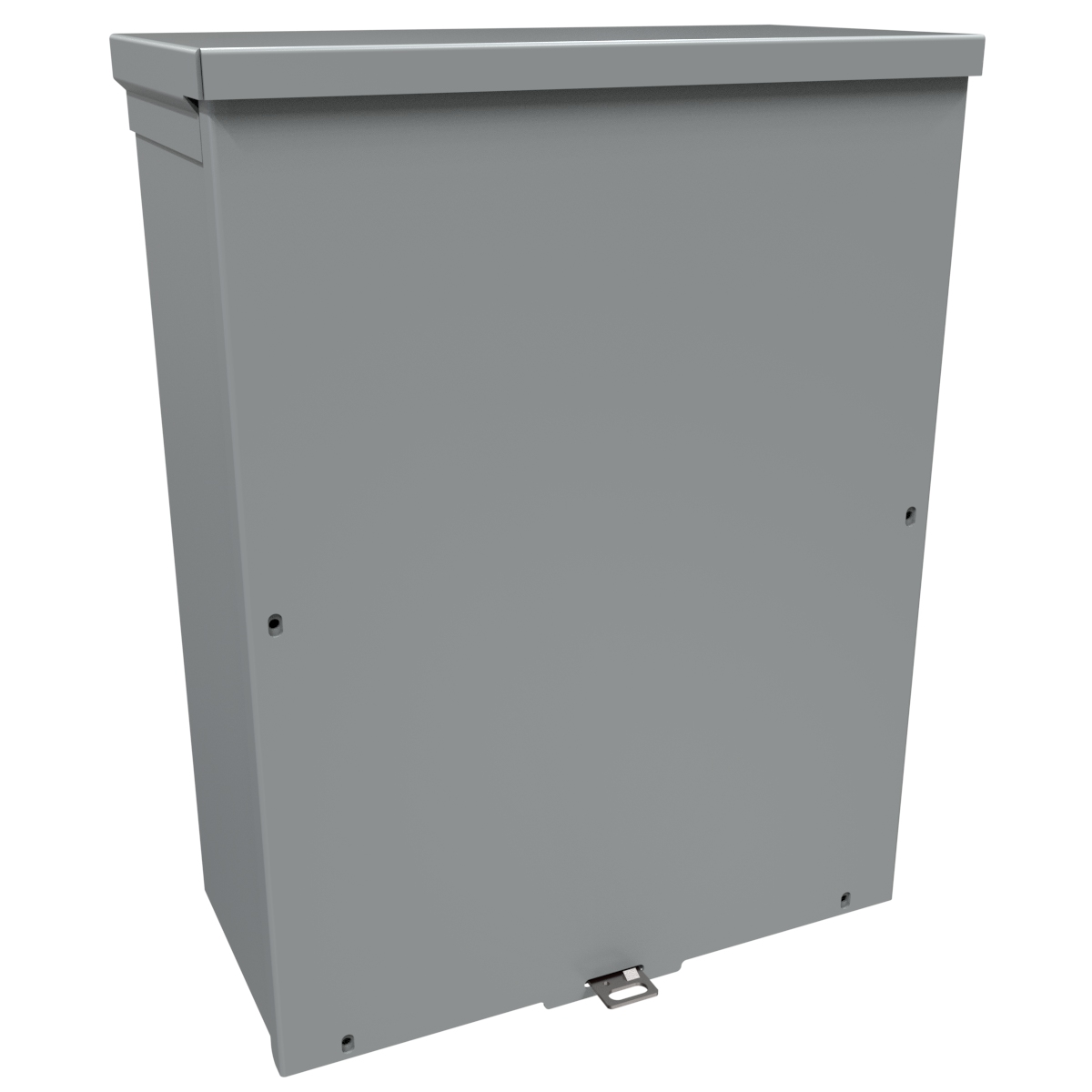

3R Screw Cover 16X12X6 No K/O
$70.40In stock
Buy now
3R Screw Cover 18X18X6 No K/O
$102.22In stock
Buy now

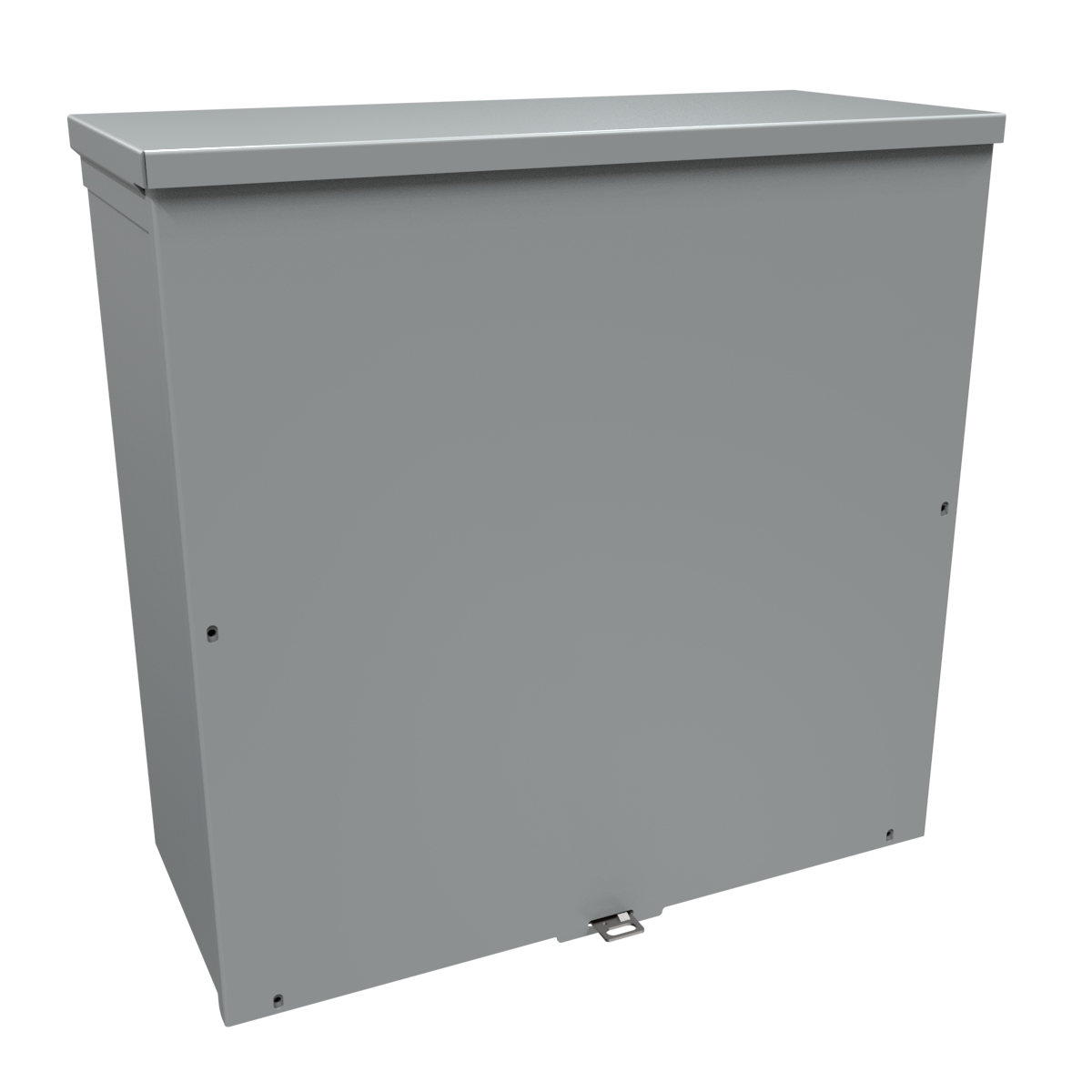

3R Screw Cover 18X18X8 No K/O
$129.80Backorder
Buy now

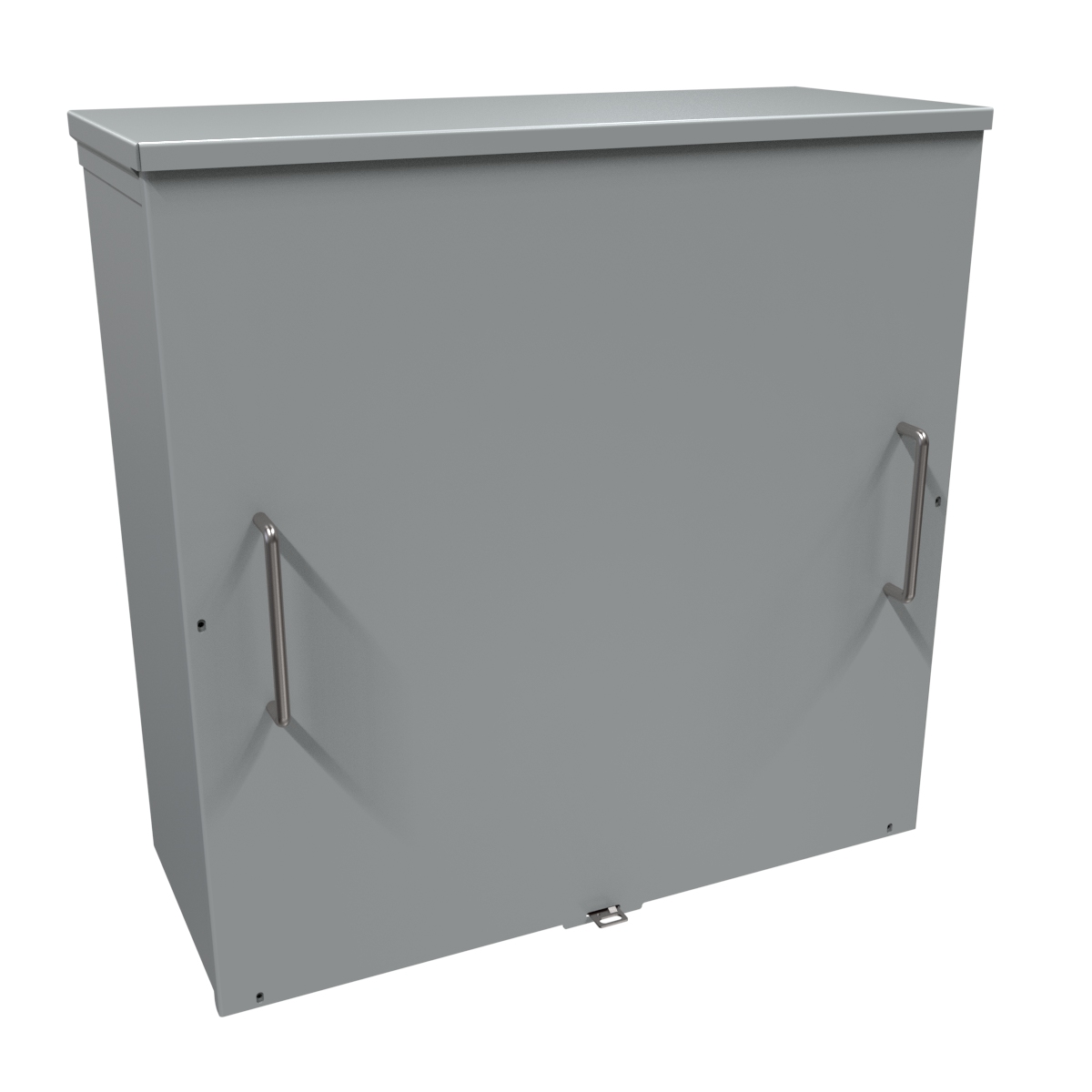

3R Screw Cover 24X24X10 No Ko
$234.21In stock
Buy now
3R Screw Cover 24X24X12 No Ko
$215.71In stock
Buy now
3R Screw Cover 24X24X6 No K/O
$163.55Backorder
Buy now

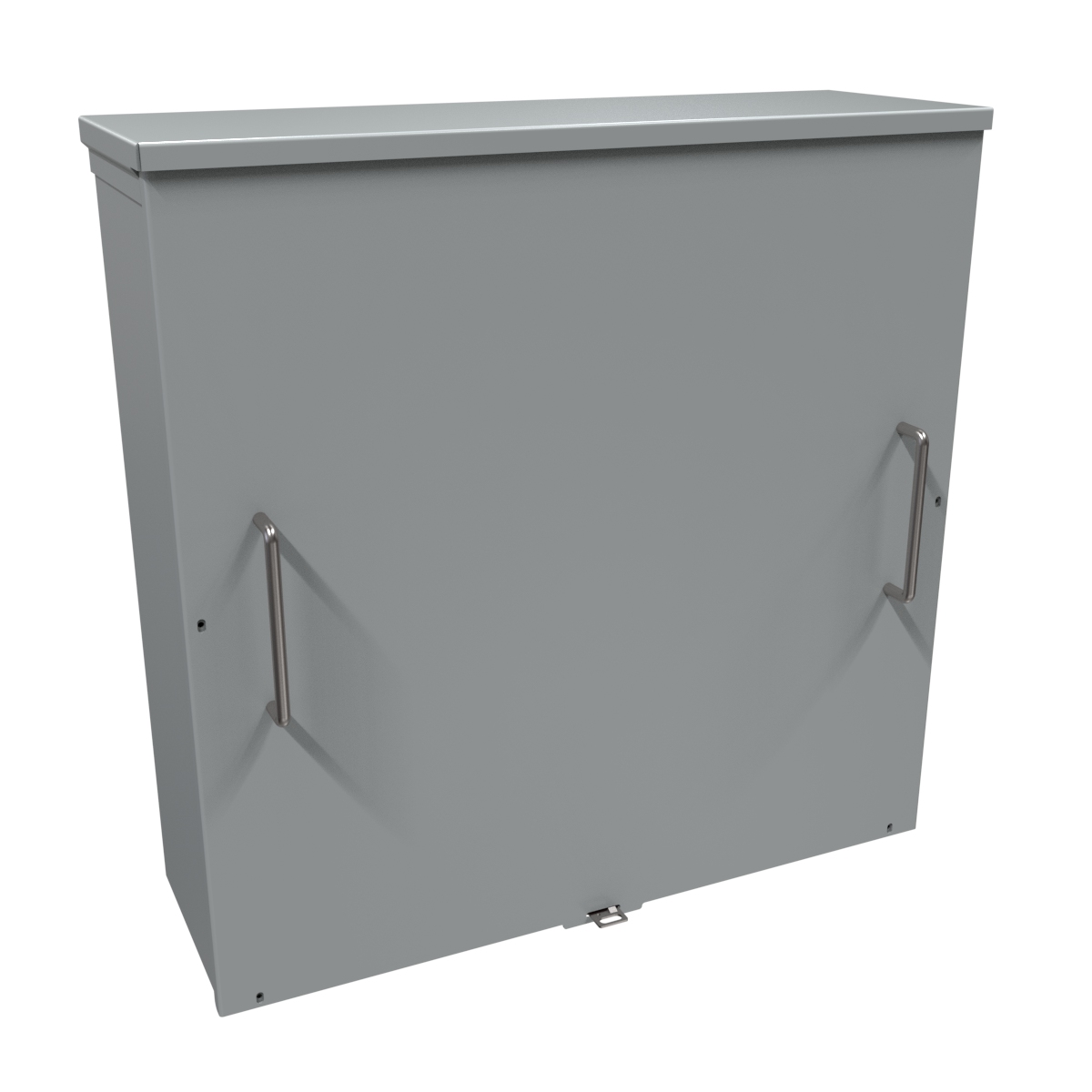

3R Screw Cover 24X24X8 No K/O
$178.75In stock
Buy now
3R Screw Cover 30X3-0X12 No Ko
$391.29In stock
Buy now
3R Screw Cover 36X36X12 No Ko
$514.84Backorder
Buy now

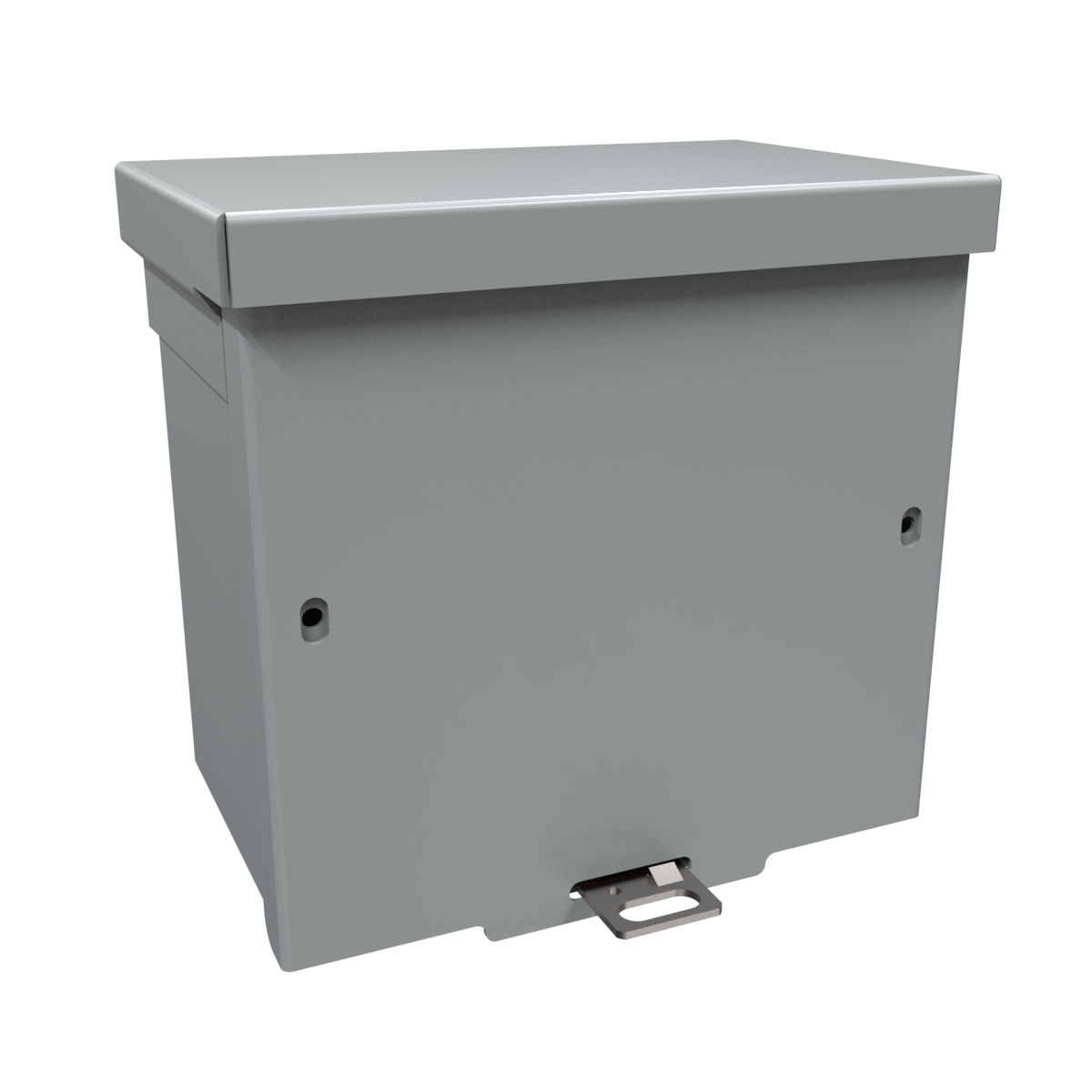

3R Screw Cover 6X6X4 No K/O
$19.00Backorder
Buy now
3R Screw Cover 8X8X4 No K/O
$26.40In stock
Buy now
3R Screw Cover 8X8X6 No K/O
$29.58In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|
| C3R664SCNKO | 6.00 | 6.00 | 4.00 | $19.00Backorder | Buy now |

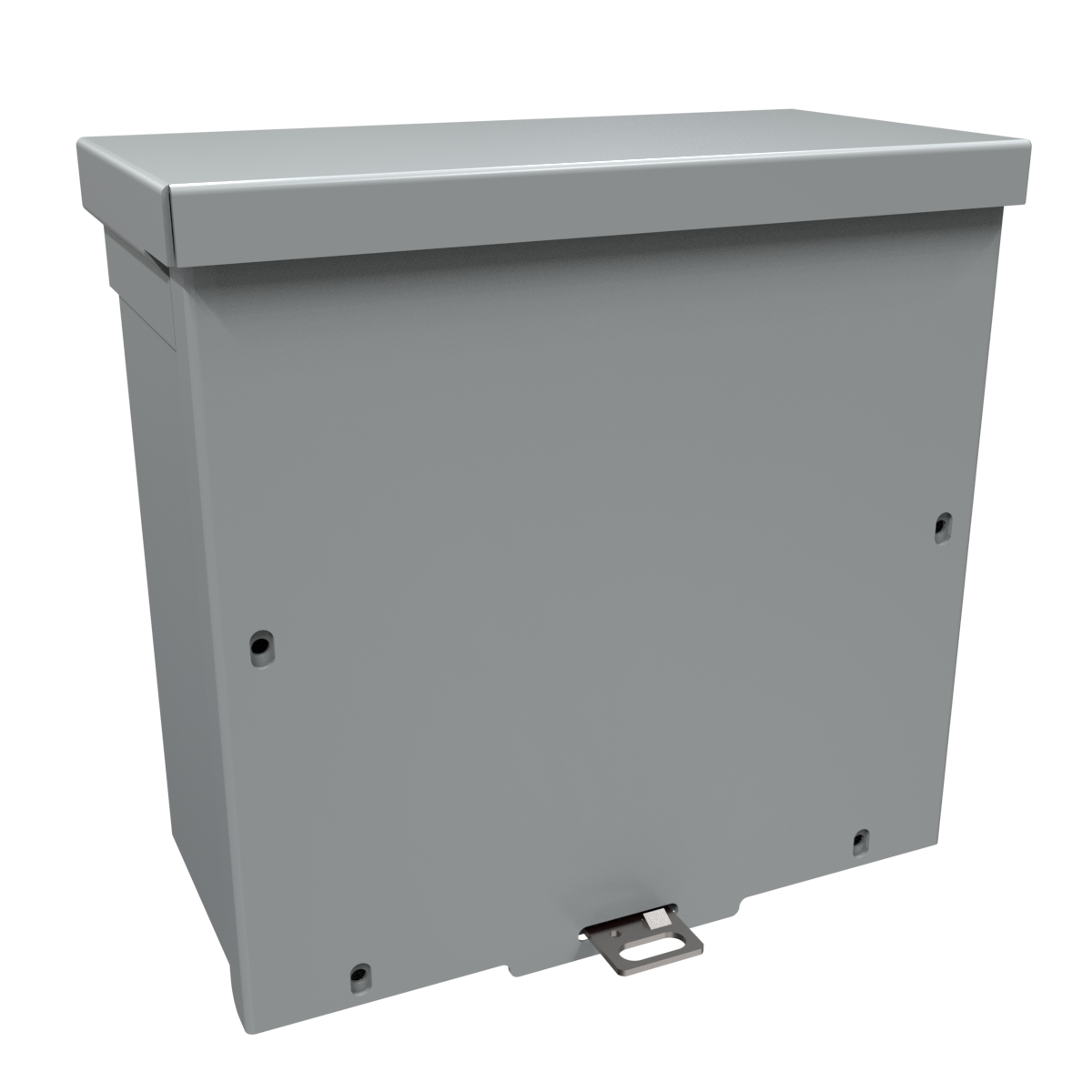

| C3R884SCNKO | 8.00 | 8.00 | 4.00 | $26.40In stock | Buy now |

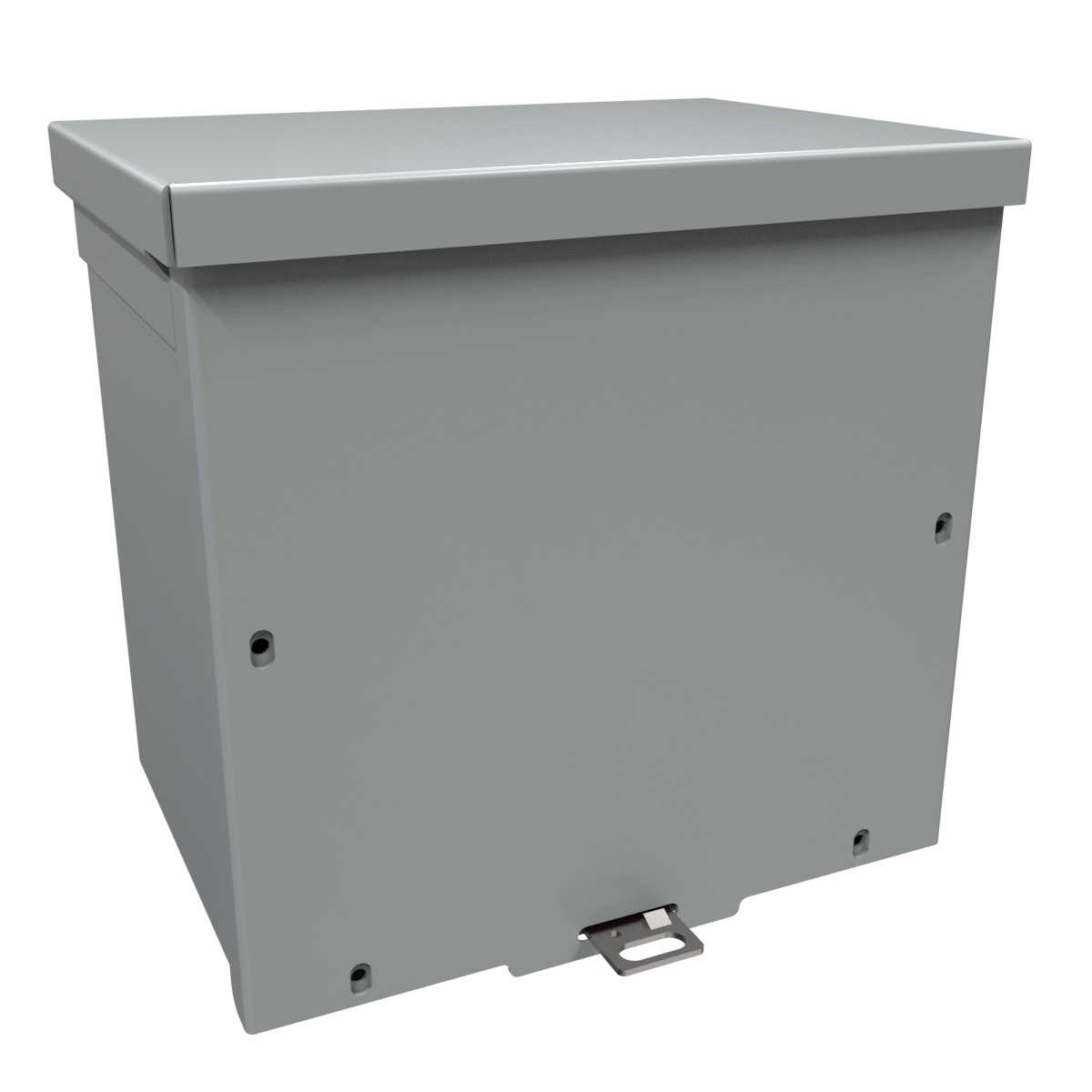

| C3R886SCNKO | 8.00 | 8.00 | 6.00 | $29.58In stock | Buy now |

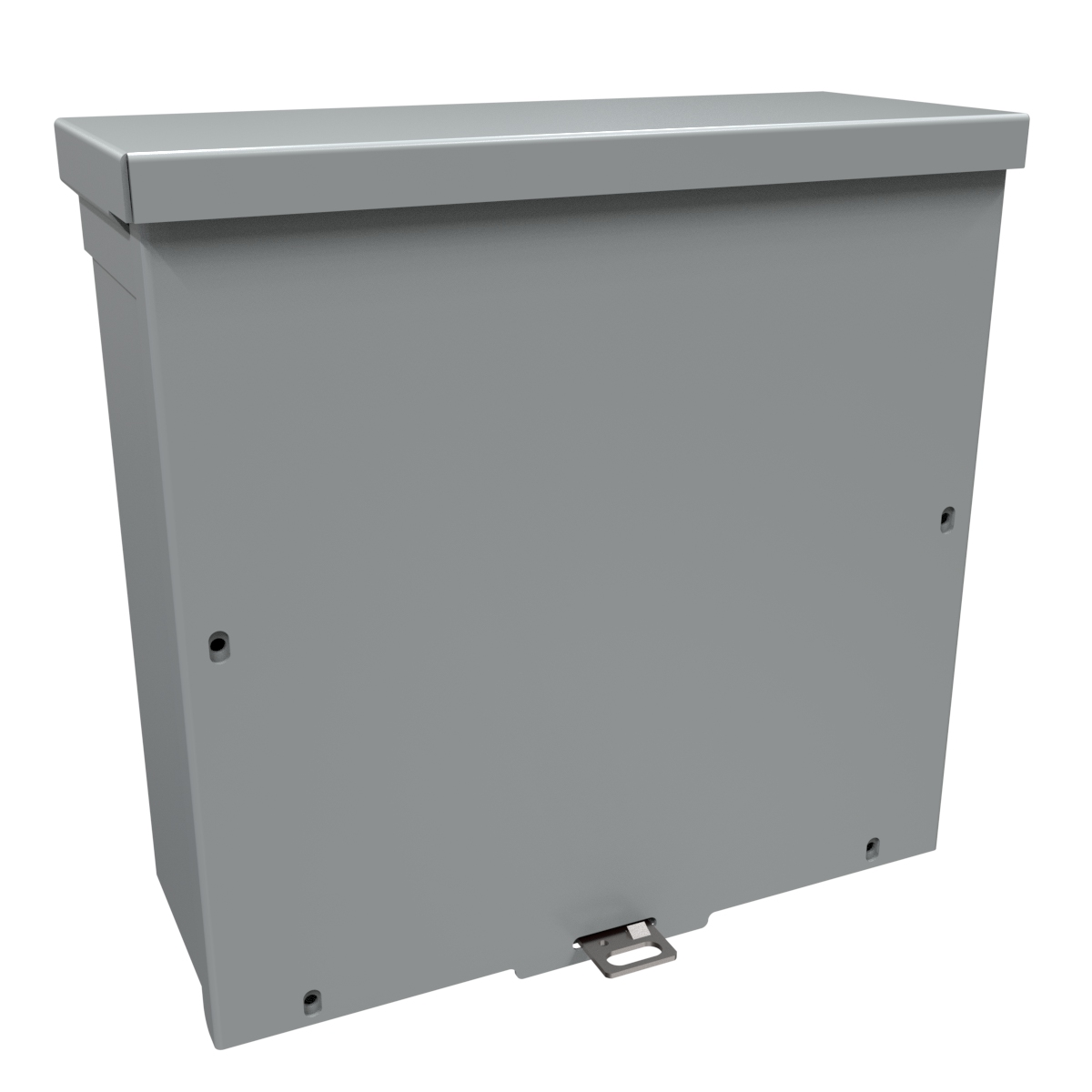

| C3R10104SCNKO | 10.00 | 10.00 | 4.00 | $32.56In stock | Buy now |

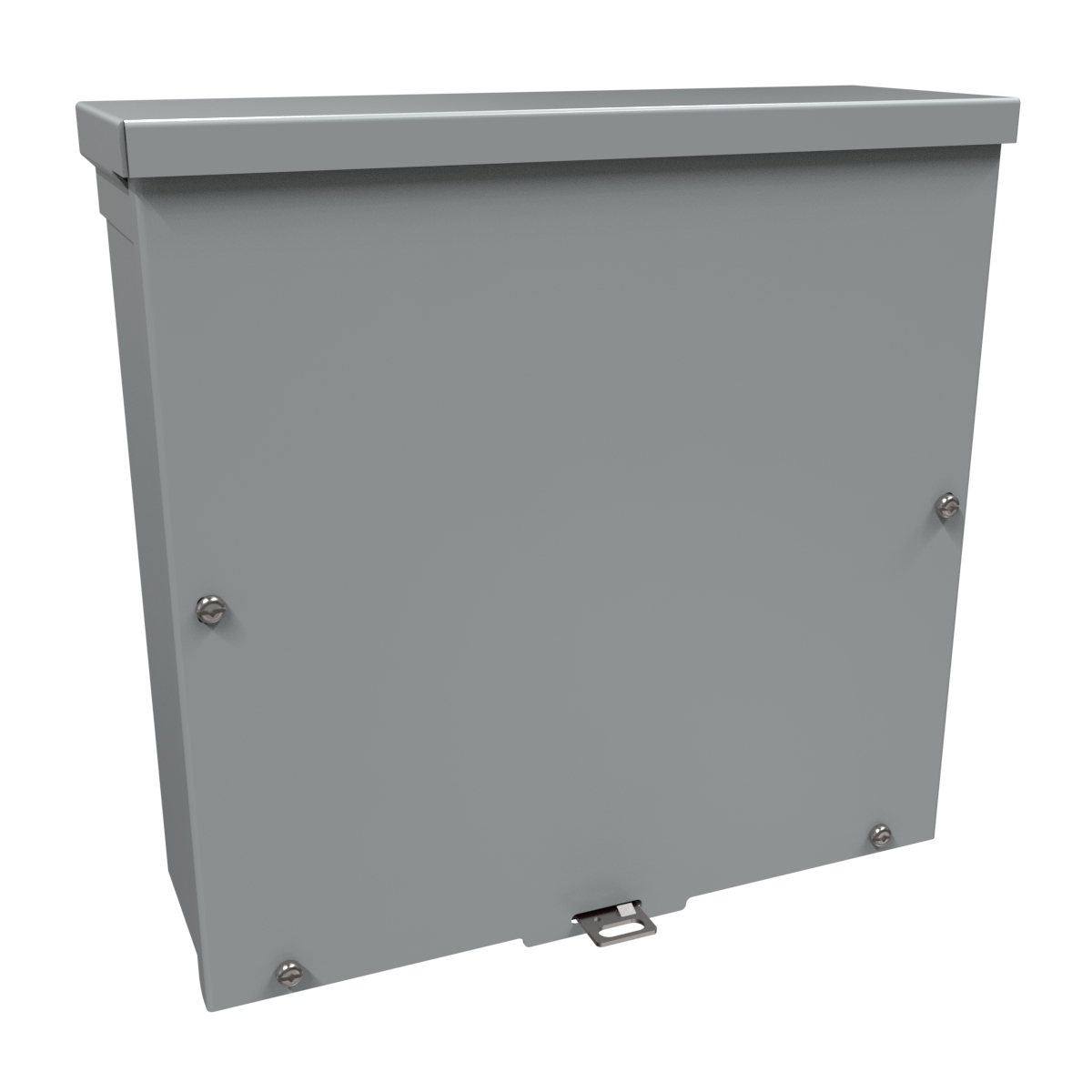

| C3R12124SCNKO | 12.00 | 12.00 | 4.00 | $40.72In stock | Buy now |
| C3R10106SCNKO | 10.00 | 10.00 | 6.00 | $37.84Backorder | Buy now |
| C3R12126SCNKO | 12.00 | 12.00 | 6.00 | $48.86In stock | Buy now |
| C3R12128SCNKO | 12.00 | 12.00 | 8.00 | $61.77In stock | Buy now |
| C3R16126SCNKO | 16.00 | 12.00 | 6.00 | $70.40In stock | Buy now |
| C3R18186SCNKO | 18.00 | 18.00 | 6.00 | $102.22In stock | Buy now |
| C3R18188SCNKO | 18.00 | 18.00 | 8.00 | $129.80Backorder | Buy now |

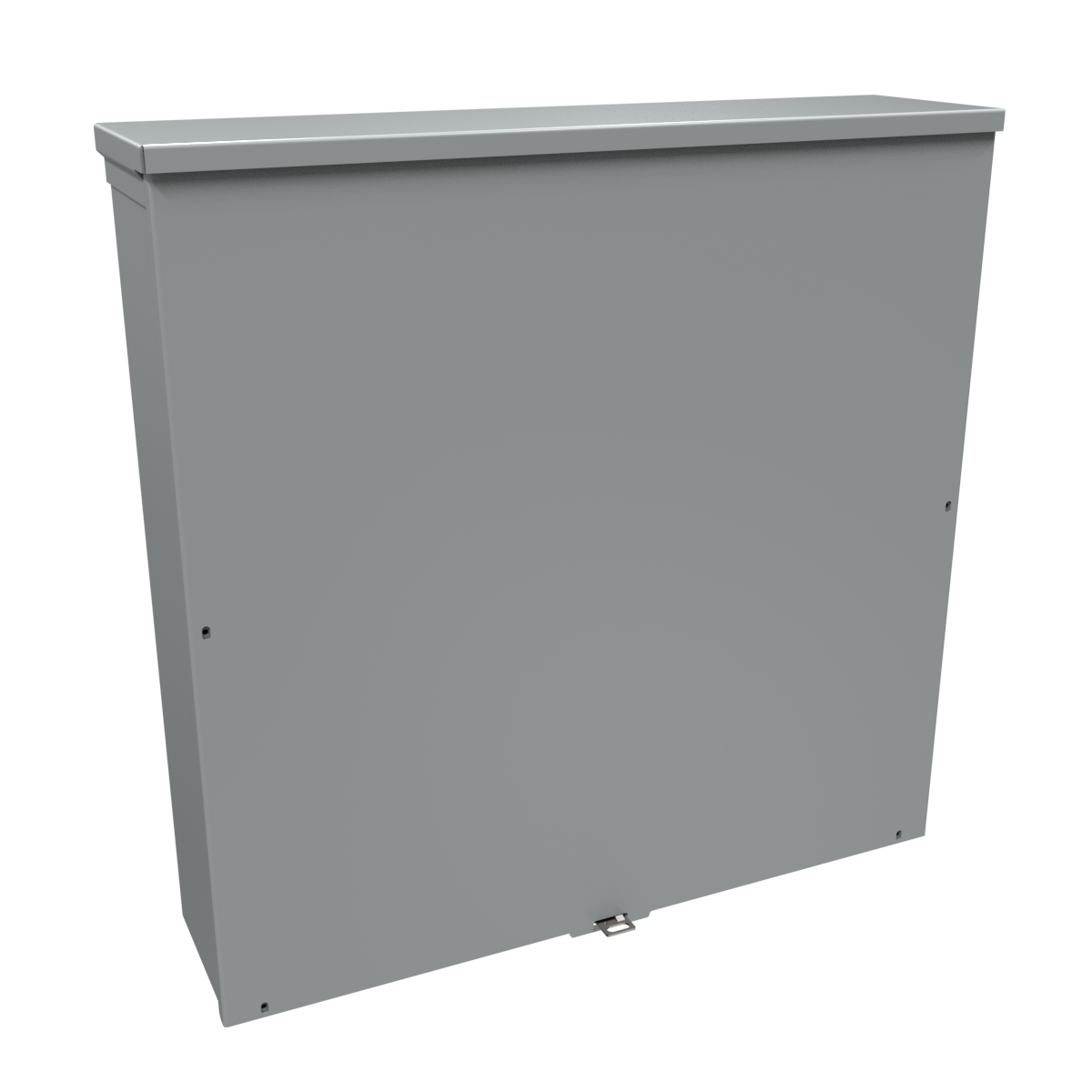

| C3R24246SCNKO | 24.00 | 24.00 | 6.00 | $163.55Backorder | Buy now |
| C3R24248SCNKO | 24.00 | 24.00 | 8.00 | $178.75In stock | Buy now |
| C3R242410SCNKO | 24.00 | 24.00 | 10.00 | $234.21In stock | Buy now |

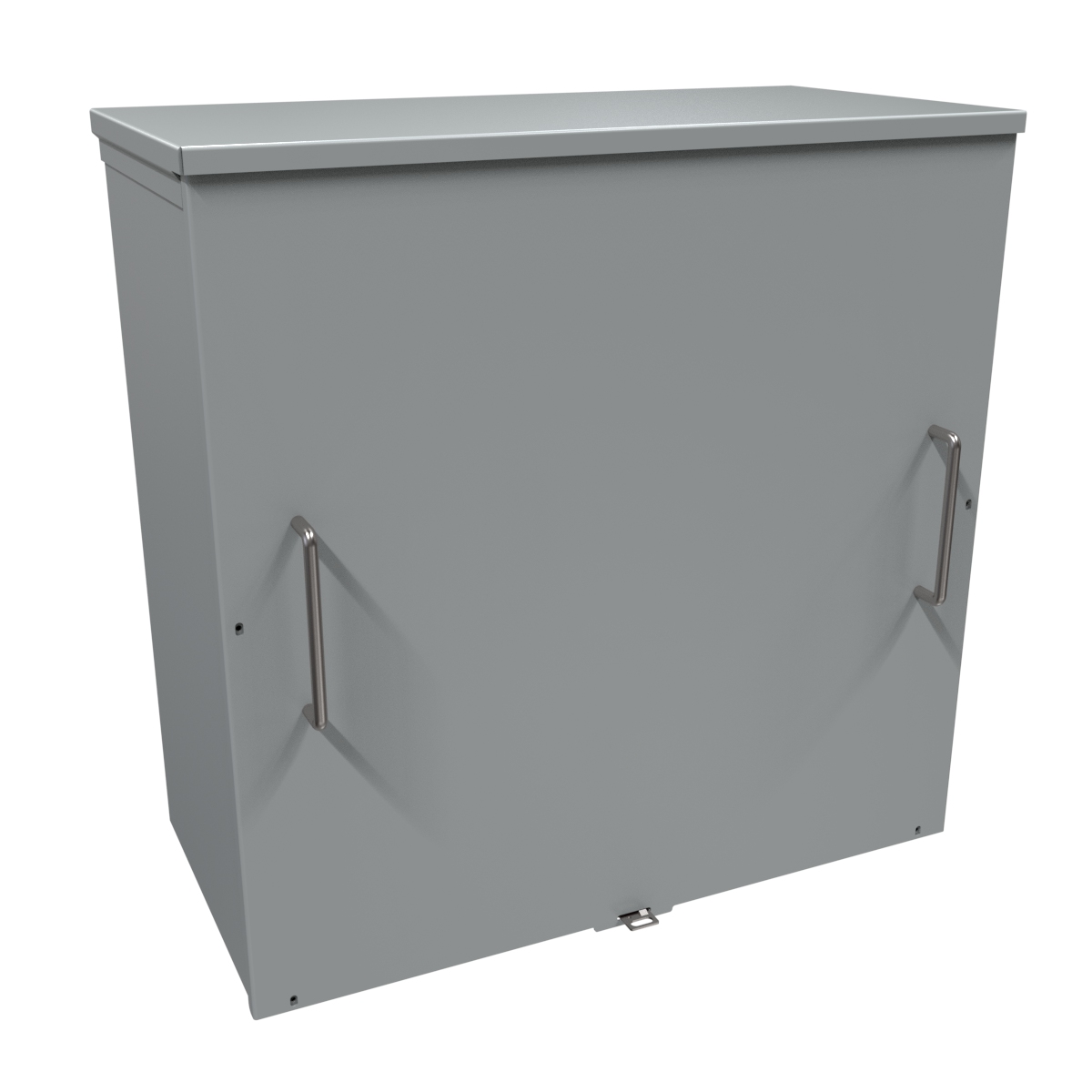

| C3R242412SCNKO | 24.00 | 24.00 | 12.00 | $215.71In stock | Buy now |

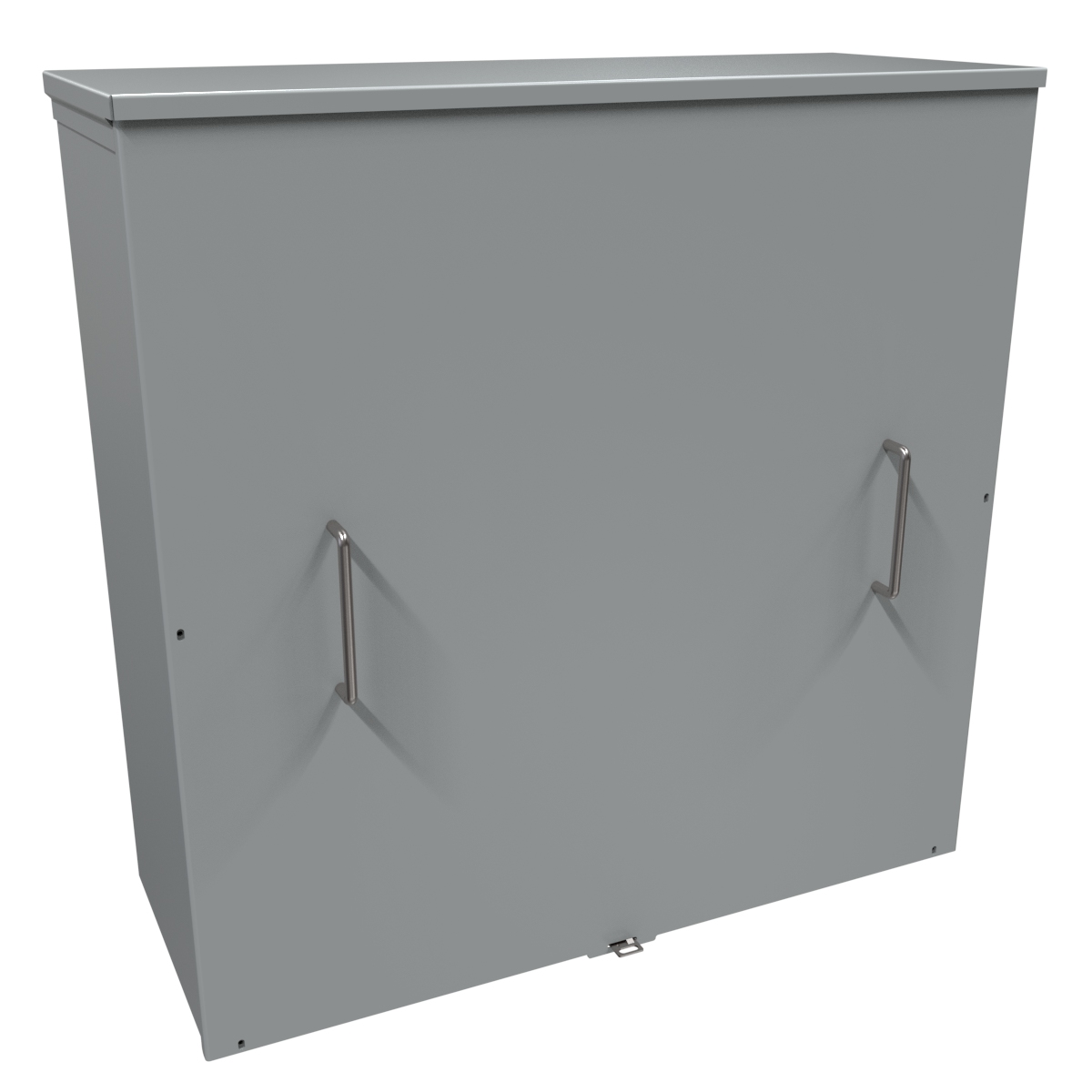

| C3R303012SCNKO | 30.00 | 30.00 | 12.00 | $391.29In stock | Buy now |

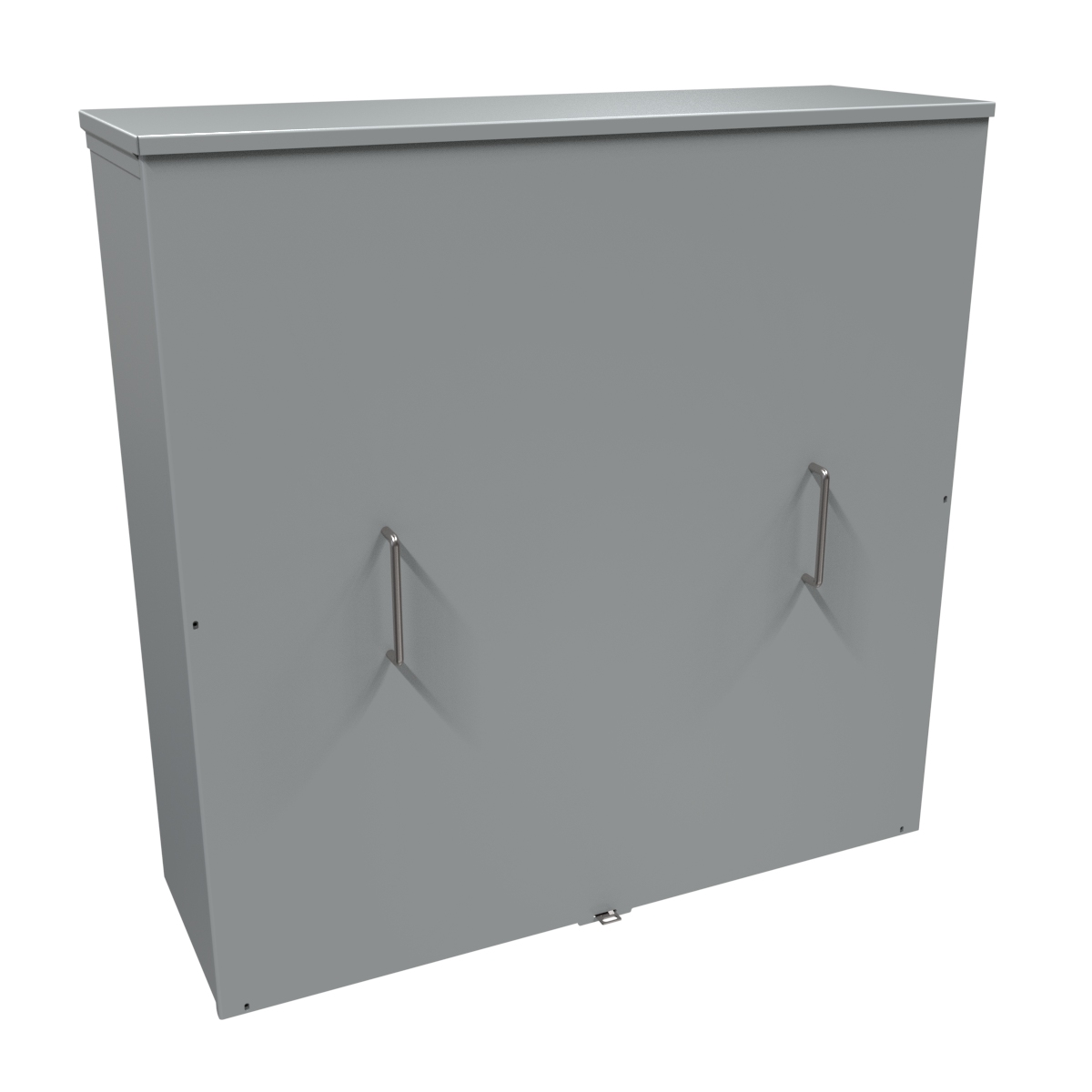

| C3R363612SCNKO | 36.00 | 36.00 | 12.00 | $514.84Backorder | Buy now |
Application
- ■Designed for use as a wiring/junction box.
- ■Provides protection against rain, sleet, snow and dripping water.
Standards
- ■UL-50 Type 3R
- ■cUL Type 3R to CSA Standard C22.2, No. 94
- ■Complies with: NEMA Type 3R IEC 60529, IP24
- ■NEMA Type 3R
- ■IEC 60529, IP24
Construction
- ■Formed and spot welded from 16 or 14 gauge galvanized steel.
- ■Drip-shield top and seam-free sides, front and back.
- ■Slip-on removable cover fastened with plated steel screws.
- ■Door handles on body type C enclosures.
- ■Embossed mounting holes on back of enclosure.
- ■A grounding kit is provided.
- ■Padlocking hasp.
- ■No Gasket.
Finish
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■Enclosure and cover are finished in ANSI 61 gray powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D |
|---|---|---|---|
| C3R664SCNKO | 6.00 | 6.00 | 4.00 |
| C3R884SCNKO | 8.00 | 8.00 | 4.00 |
| C3R886SCNKO | 8.00 | 8.00 | 6.00 |
| C3R10104SCNKO | 10.00 | 10.00 | 4.00 |
| C3R12124SCNKO | 12.00 | 12.00 | 4.00 |
| C3R10106SCNKO | 10.00 | 10.00 | 6.00 |
| C3R12126SCNKO | 12.00 | 12.00 | 6.00 |
| C3R12128SCNKO | 12.00 | 12.00 | 8.00 |
| C3R16126SCNKO | 16.00 | 12.00 | 6.00 |
| C3R18186SCNKO | 18.00 | 18.00 | 6.00 |
| C3R18188SCNKO | 18.00 | 18.00 | 8.00 |
| C3R24246SCNKO | 24.00 | 24.00 | 6.00 |
| C3R24248SCNKO | 24.00 | 24.00 | 8.00 |
| C3R242410SCNKO | 24.00 | 24.00 | 10.00 |
| C3R242412SCNKO | 24.00 | 24.00 | 12.00 |
| C3R303012SCNKO | 30.00 | 30.00 | 12.00 |
| C3R363612SCNKO | 36.00 | 36.00 | 12.00 |
