3R Screw Cov 10X10X4
$32.56In stock
Buy now
Type 3R Painted Galvanized Steel Junction Box · C3R SC Series
Brand: Hammond Manufacturing · 50 part numbers
Lift-Off Cover with Screws and w/ Knockouts
- ■Designed for use as a wiring/junction box.
- ■Provides protection against rain, sleet, snow and dripping water.
- ■UL-50 Type 3R
- ■cUL Type 3R to CSA Standard C22.2, No. 94
- ■Complies with: NEMA Type 3R IEC 60529, IP24
- ■NEMA Type 3R
from $16.25
50 of 50 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your C3R SC Series part number
Filter 50 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
50 of 50 part numbers · 50 priced online
3R Screw Cov 10X10X6
$37.84In stock
Buy now
3R Screw Cov 10X8X4
$31.68In stock
Buy now
3R Screw Cov 10X8X6
$37.81In stock
Buy now

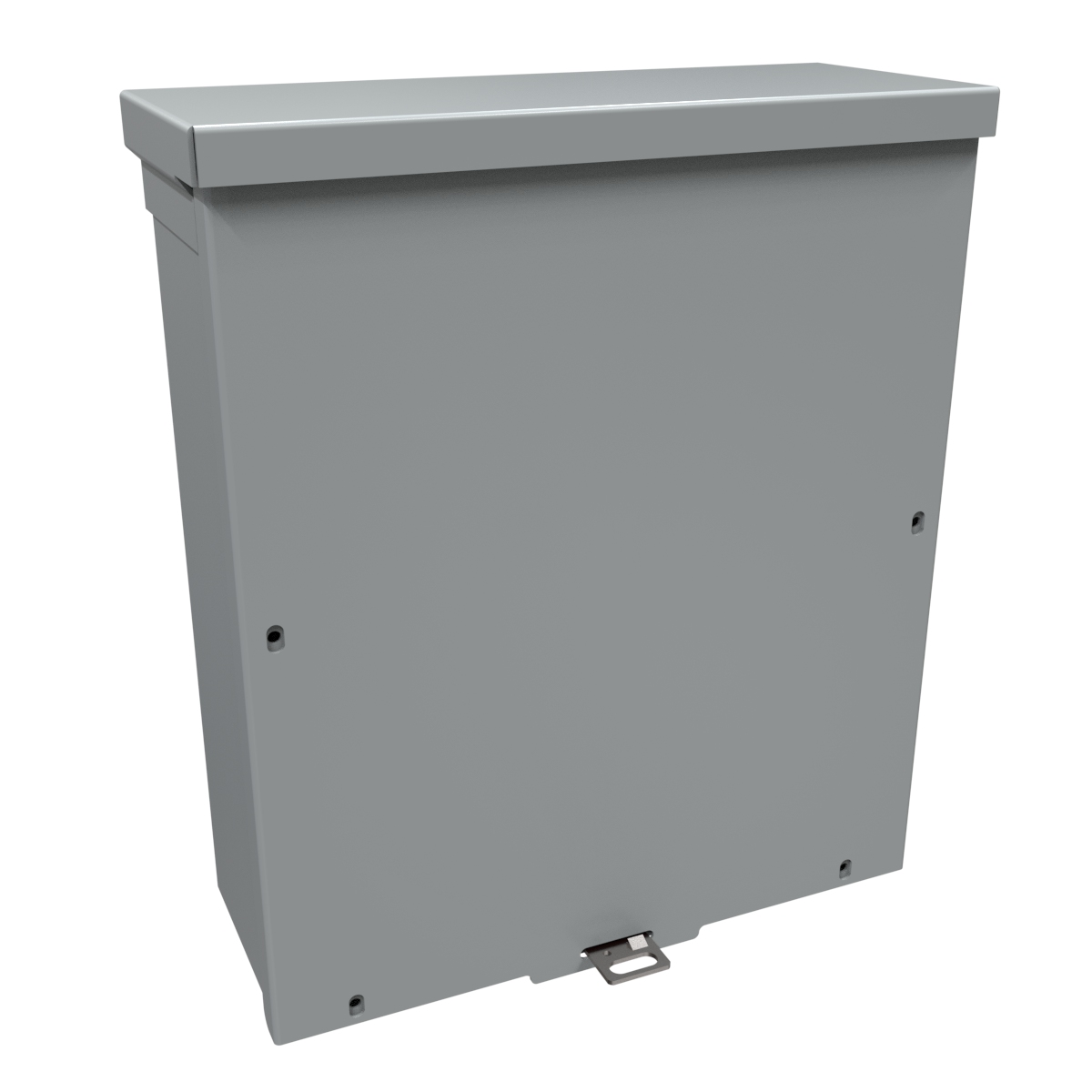

3R Screw Cov 12X10X4
$41.57In stock
Buy now

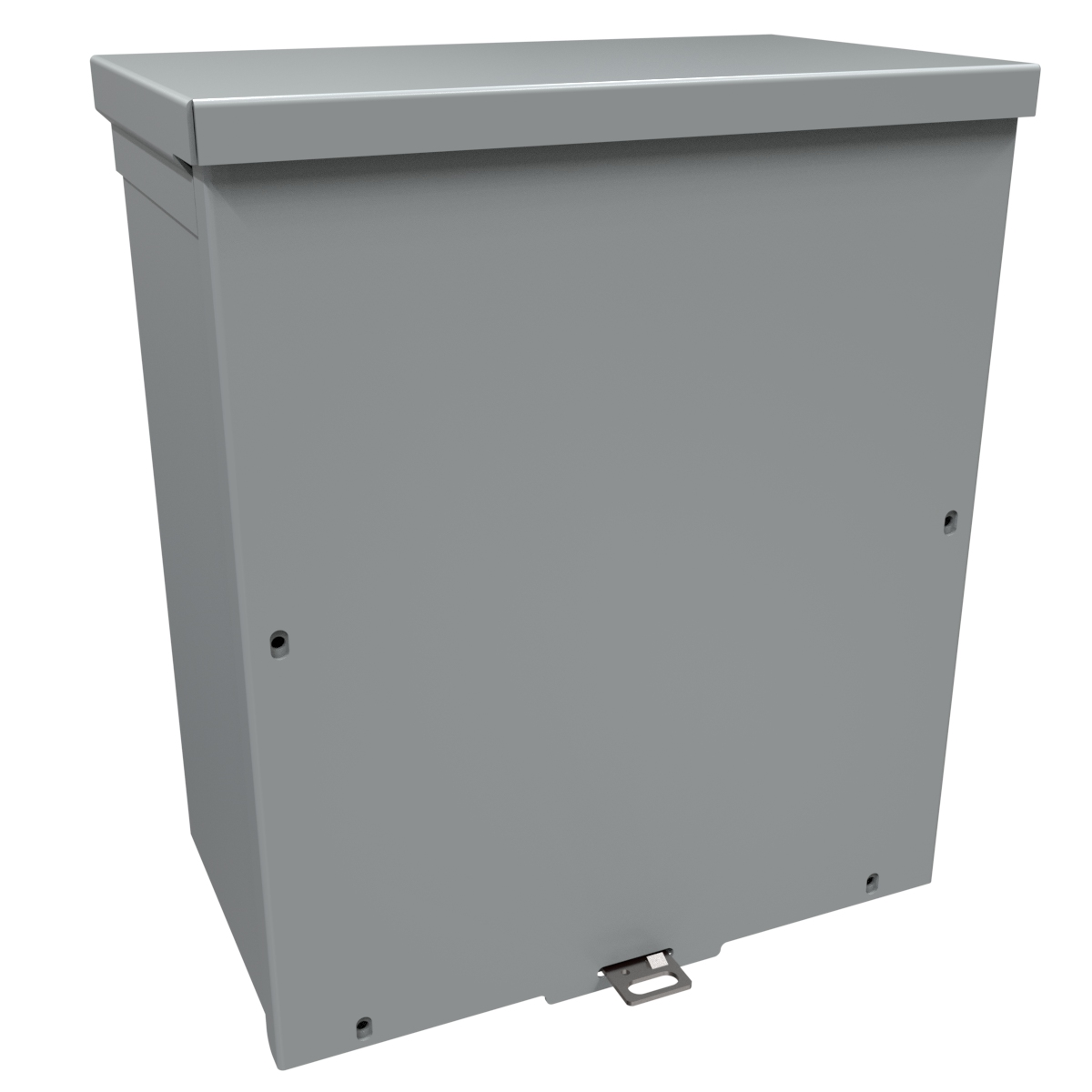

3R Screw Cov 12X10X6
$47.82In stock
Buy now
3R Screw Cov 12X12X4
$40.72In stock
Buy now
3R Screw Cov 12X12X6
$48.86Backorder
Buy now
3R Screw Cov 12X12X8
$61.77In stock
Buy now
3R Screw Cov 12X4X4
$28.48In stock
Buy now

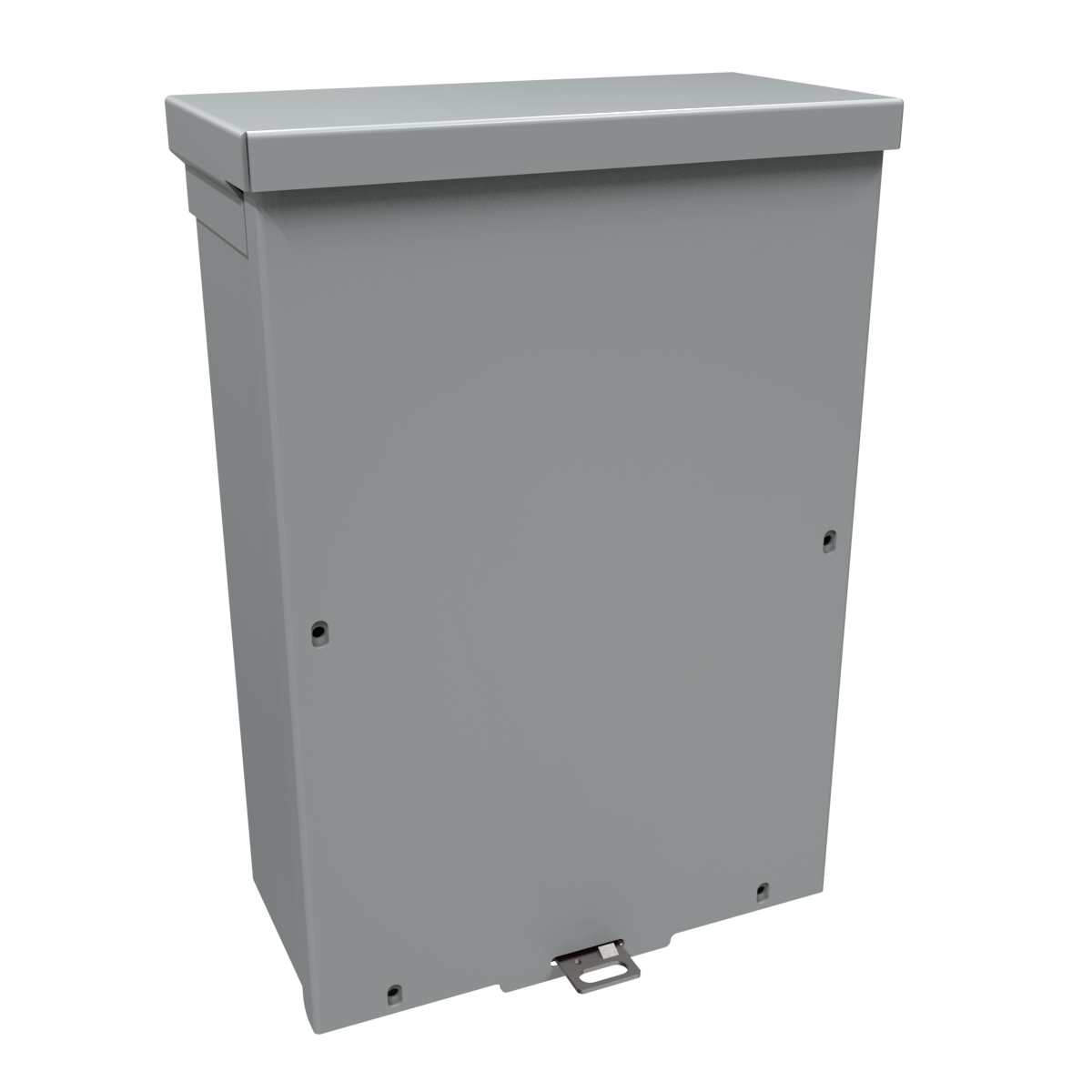

3R Screw Cov 12X8X4
$37.40In stock
Buy now
3R Screw Cov 12X8X6
$42.15In stock
Buy now
3R Screw Cov 15X12X6
$67.31In stock
Buy now
3R Screw Cov 15X12X8
$70.86In stock
Buy now
3R Screw Cov 16X12X6
$70.40In stock
Buy now
3R Screw Cov 18X12X4
$66.02In stock
Buy now
3R Screw Cov 18X12X6
$66.63In stock
Buy now
3R Screw Cov 18X12X8
$79.94In stock
Buy now
3R Screw Cov 18X18X10
$130.79In stock
Buy now
3R Screw Cov 18X18X4
$94.03In stock
Buy now

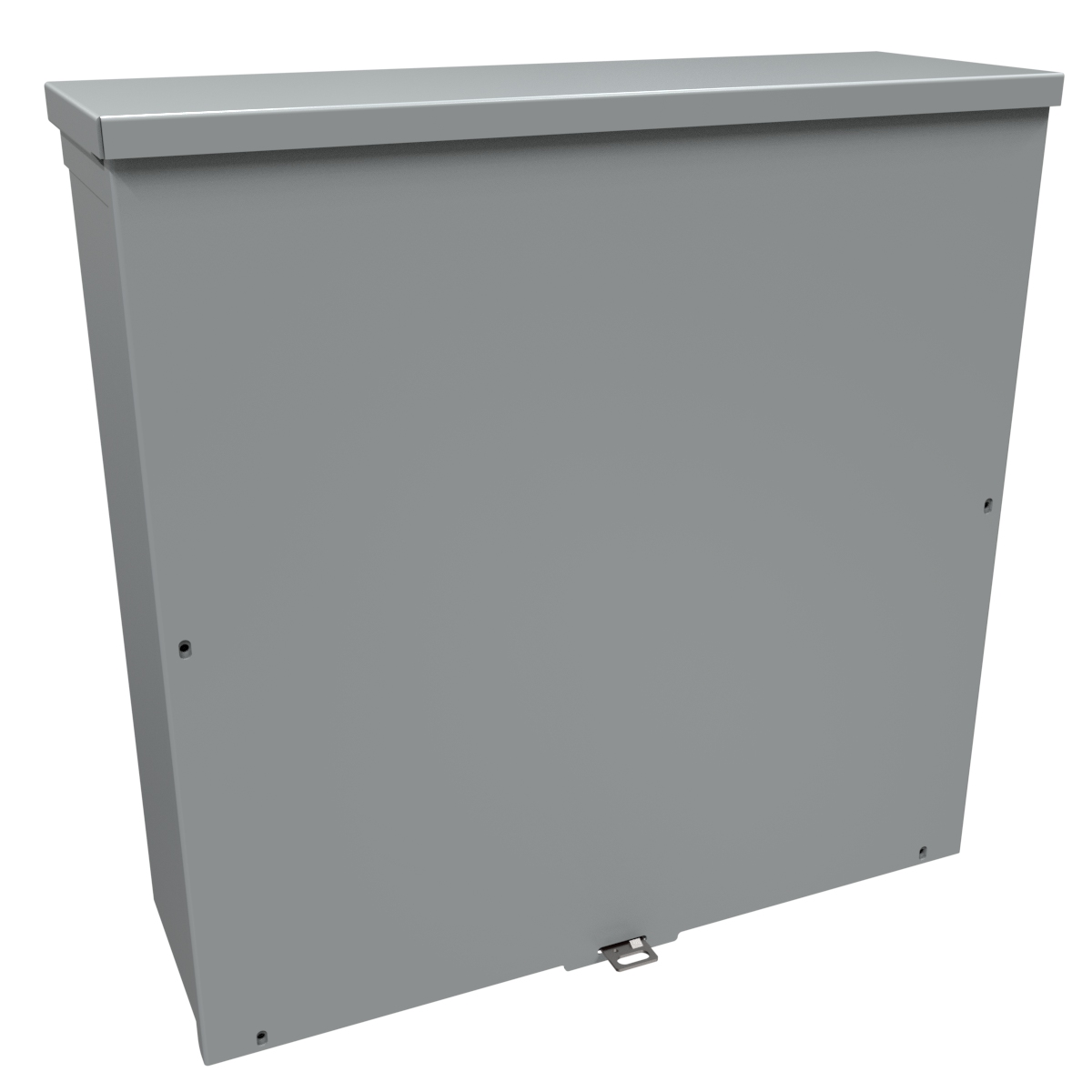

3R Screw Cov 18X18X6
$102.22In stock
Buy now
3R Screw Cov 18X18X8
$129.80In stock
Buy now
3R Screw Cov 18X6X6
$63.64In stock
Buy now
3R Screw Cov 24X12X6
$107.10In stock
Buy now

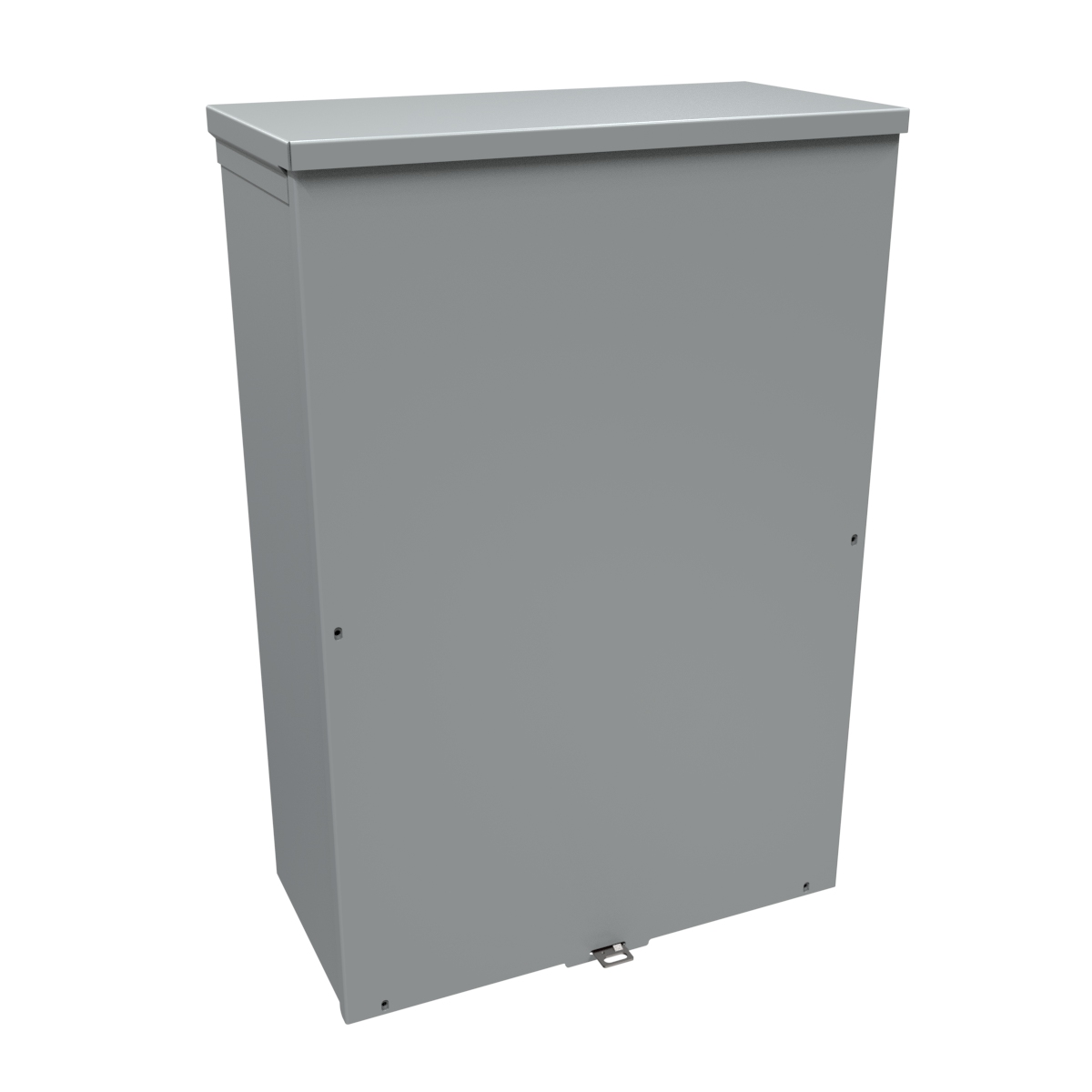

3R Screw Cov 24X16X8
$139.98In stock
Buy now
3R Screw Cov 24X18X10
$161.51In stock
Buy now
3R Screw Cov 24X18X6
$136.19In stock
Buy now
3R Screw Cov 24X18X8
$153.60In stock
Buy now

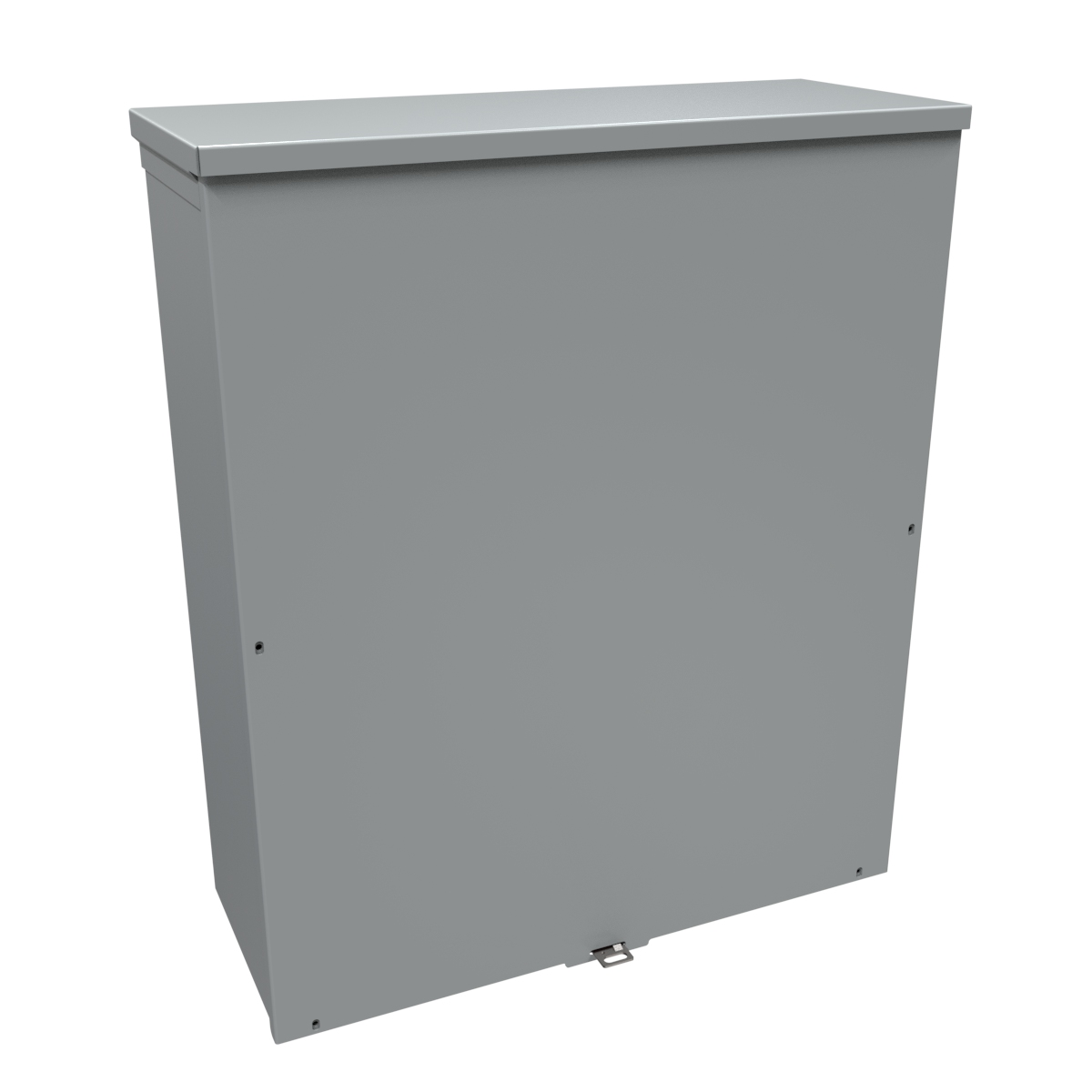

3R Screw Cov 24X20X8
$160.49In stock
Buy now
3R Screw Cov 24X24X10
$234.21In stock
Buy now
3R Screw Cov 24X24X12
$215.71In stock
Buy now
3R Screw Cov 24X24X6
$163.55In stock
Buy now
3R Screw Cov 24X24X8
$178.75In stock
Buy now

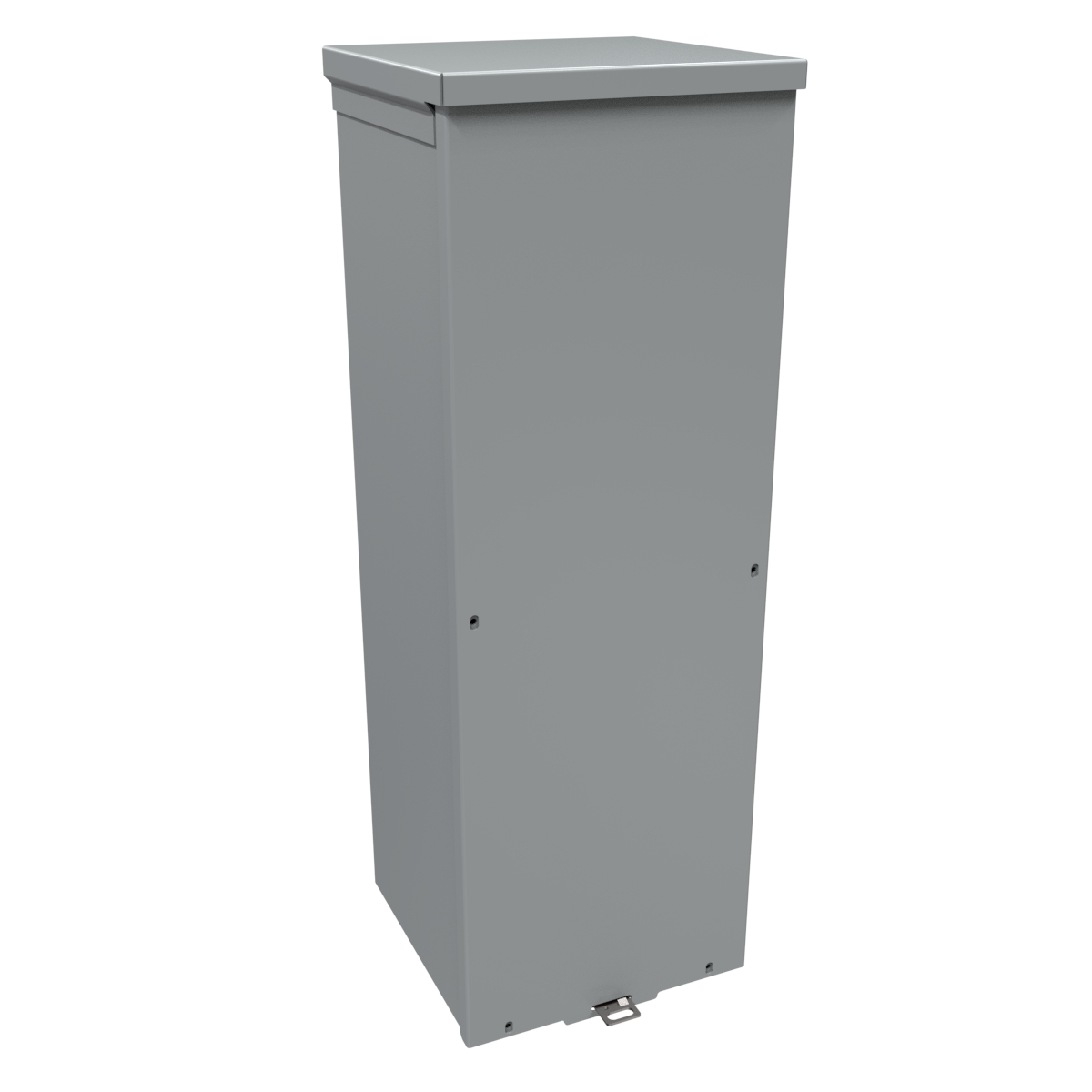

3R Screw Cov 24X8X8
$90.42In stock
Buy now3R Screw Cov 30X24X10
$229.69In stock
Buy now
3R Screw Cov 30X24X8
$215.71In stock
Buy now

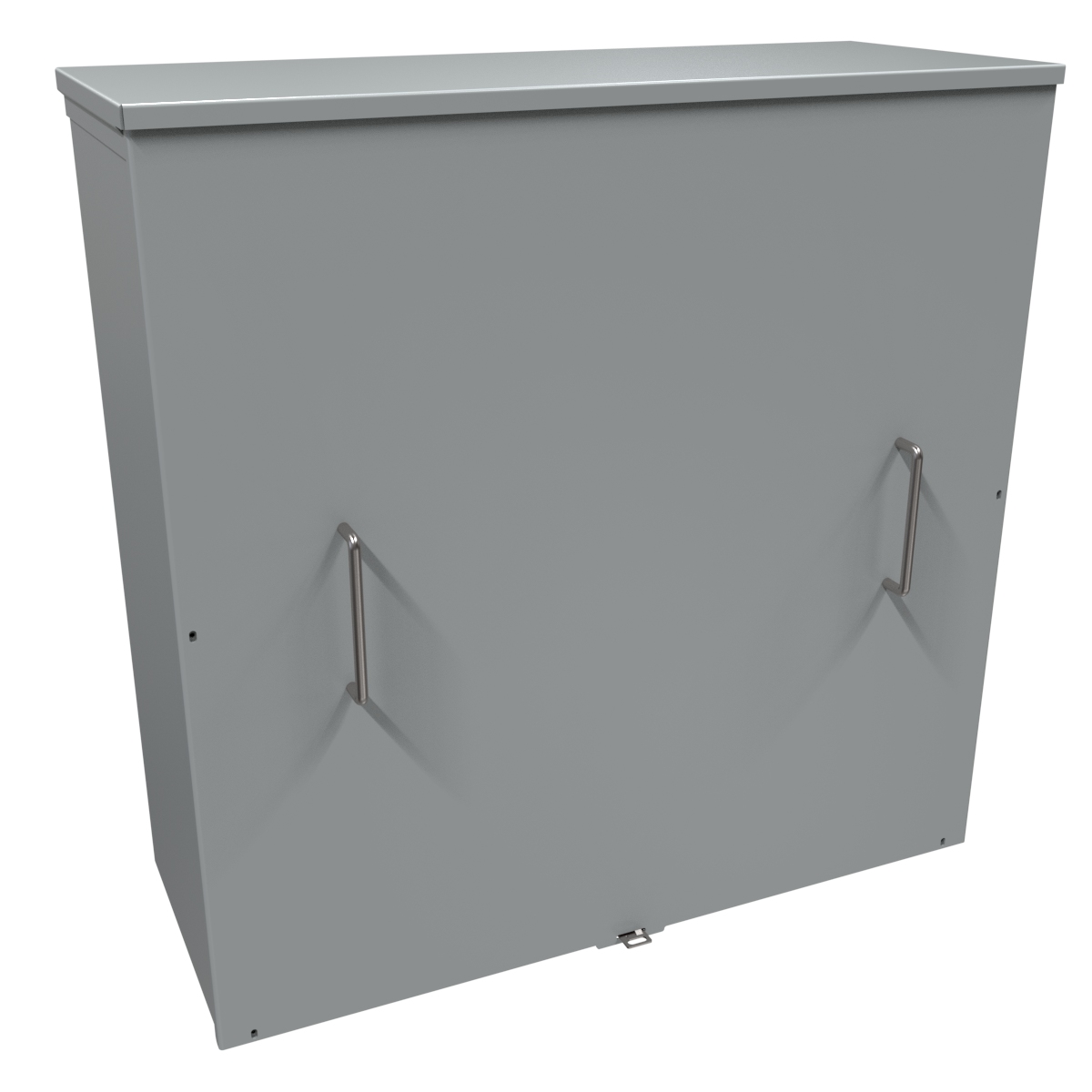

3R Screw Cov 30X30X12
$391.29In stock
Buy now
3R Screw Cov 30X30X16
$403.71Backorder
Buy now
3R Screw Cov 36X30X12
$406.46Backorder
Buy now

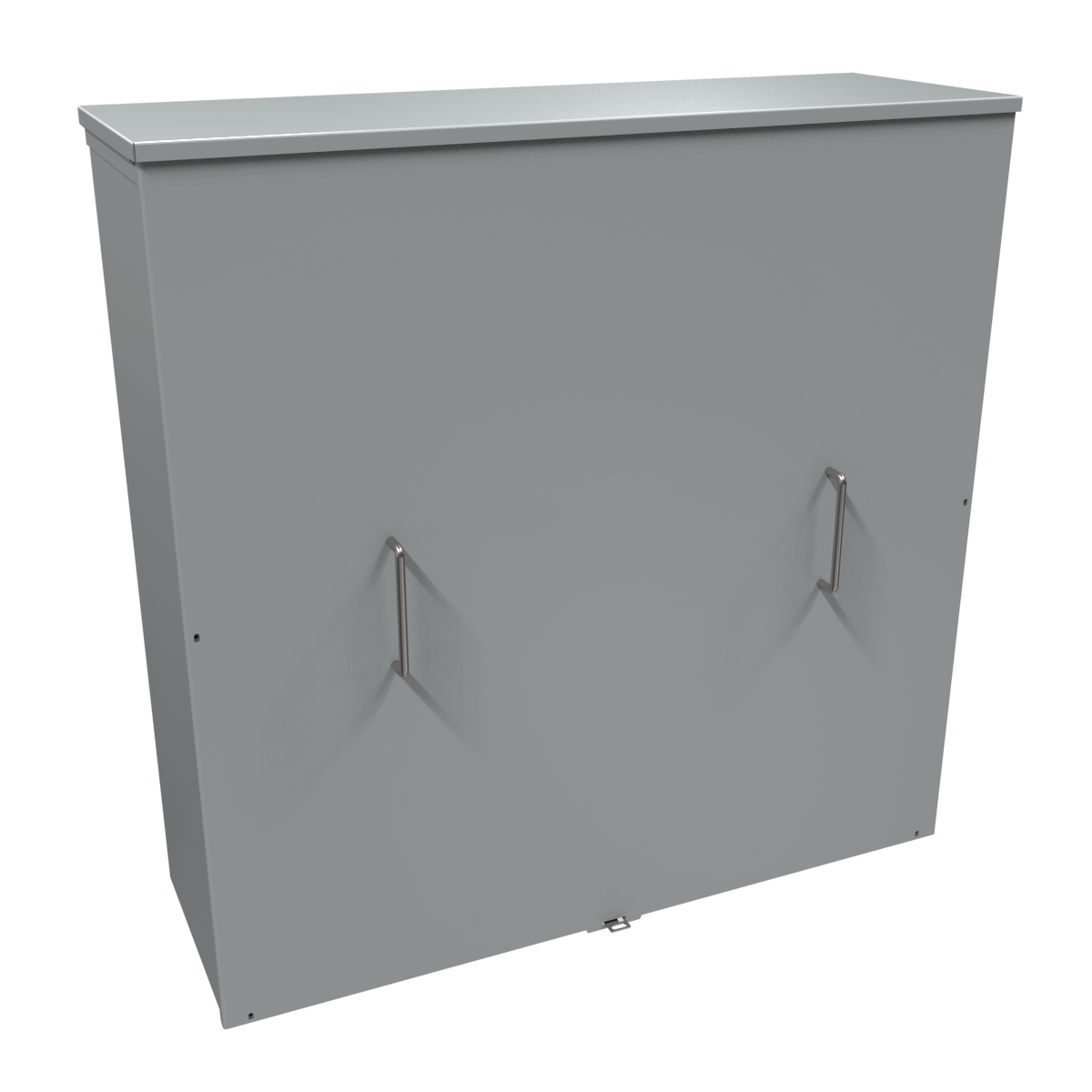

3R Screw Cov 36X36X12
$514.84Backorder
Buy now

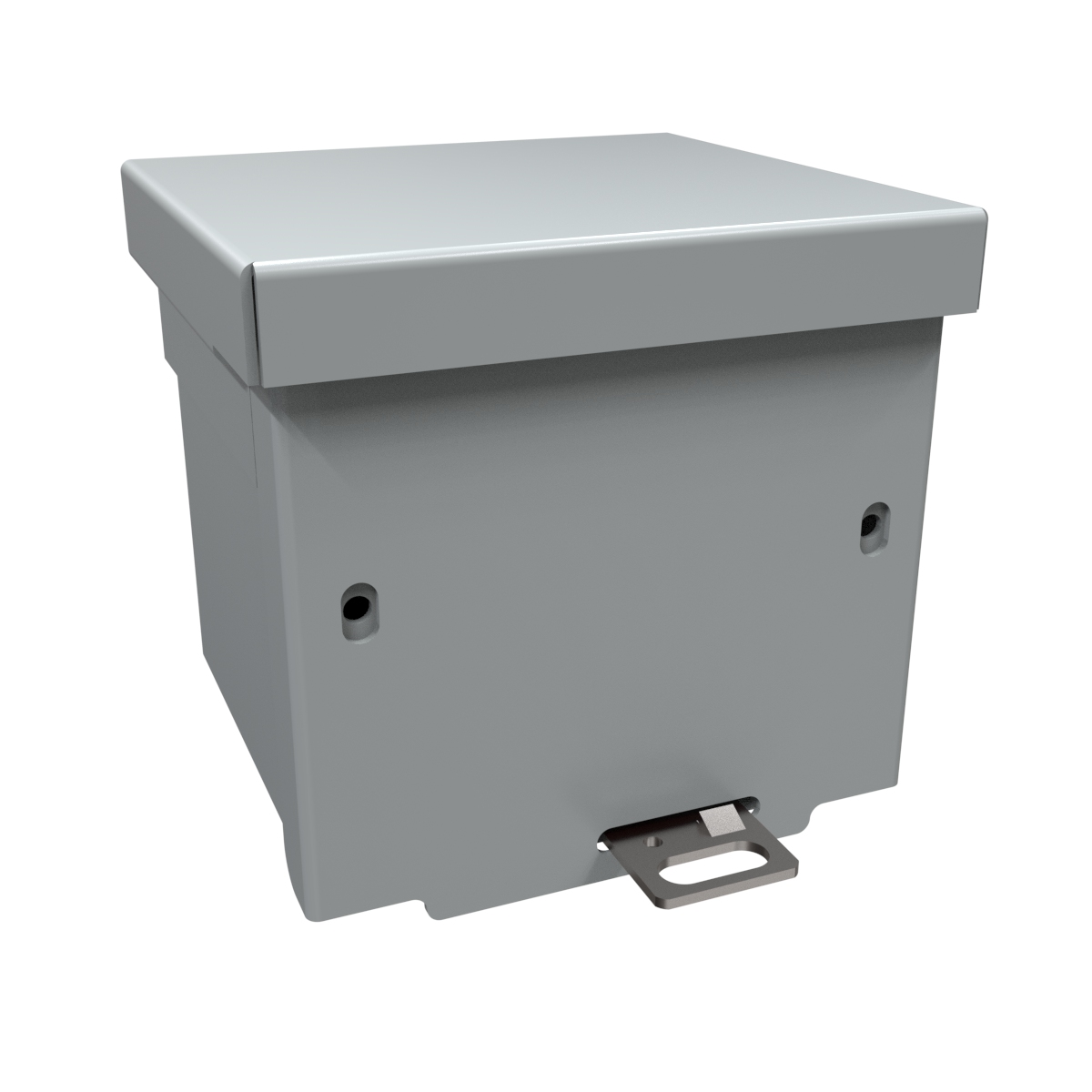

3R Screw Cov 4X4X4
$16.25In stock
Buy now
3R Screw Cov 48X36X16
$677.00Backorder
Buy now

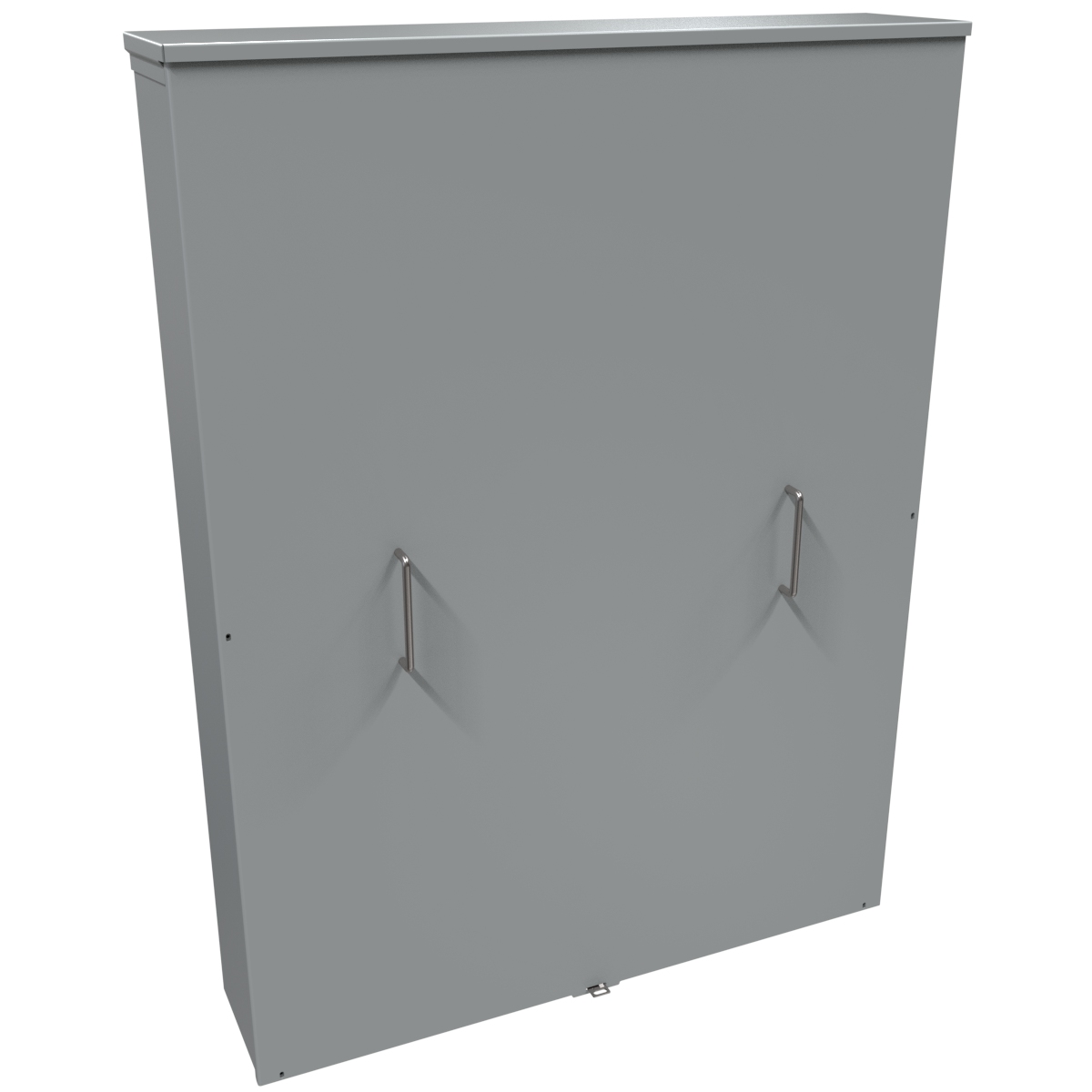

3R Screw Cov 48X36X8
$338.02Backorder
Buy now
3R Screw Cov 6X4X4
$19.43In stock
Buy now
3R Screw Cov 6X6X4
$19.00In stock
Buy now
3R Screw Cov 6X6X6
$24.12In stock
Buy now
3R Screw Cov 8X6X4
$22.92In stock
Buy now3R Screw Cov 8X8X4
$26.40In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|
| C3R444SC | 4.00 | 4.00 | 4.00 | $16.25In stock | Buy now |

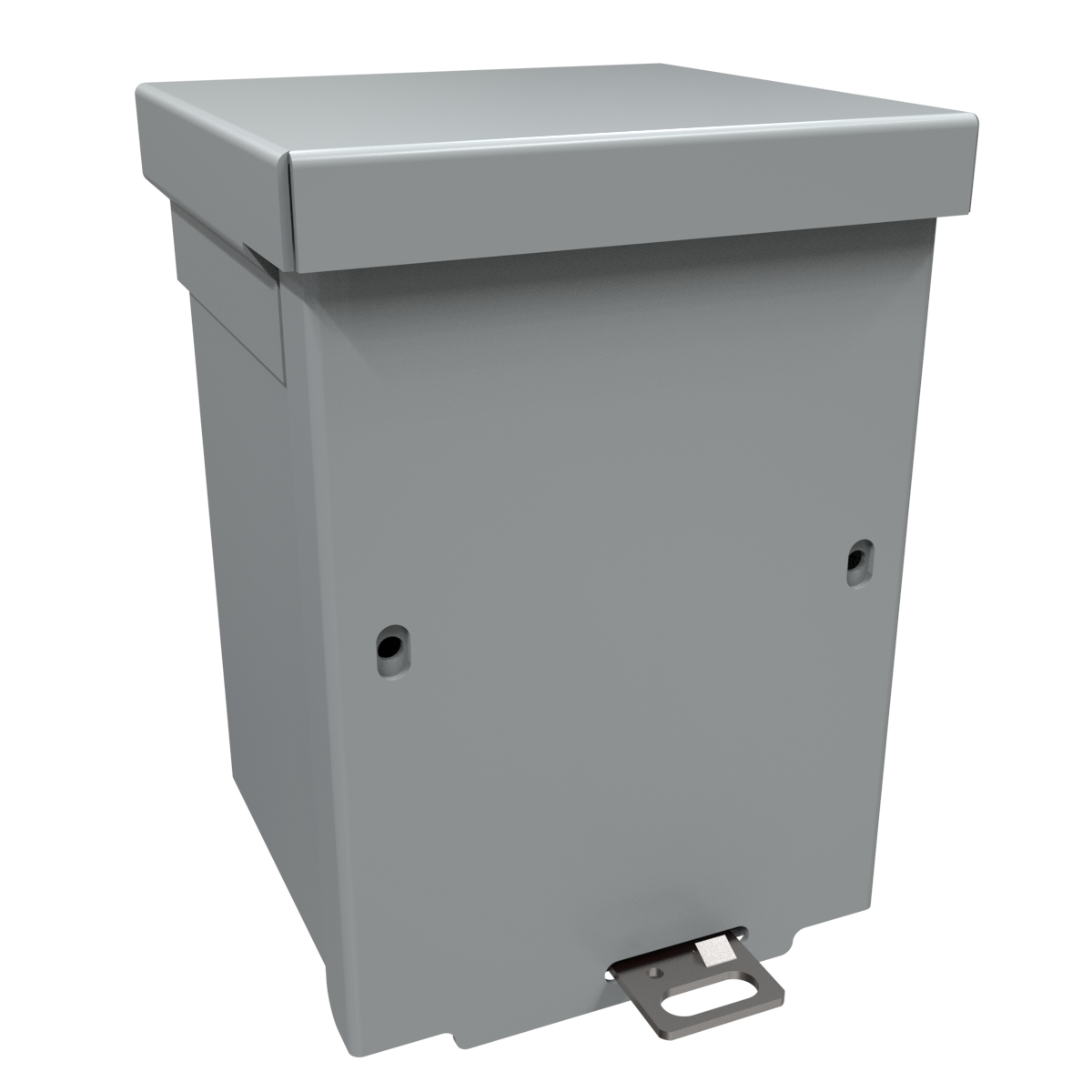

| C3R644SC | 6.00 | 4.00 | 4.00 | $19.43In stock | Buy now |
| C3R1244SC | 12.00 | 4.00 | 4.00 | $28.48In stock | Buy now |

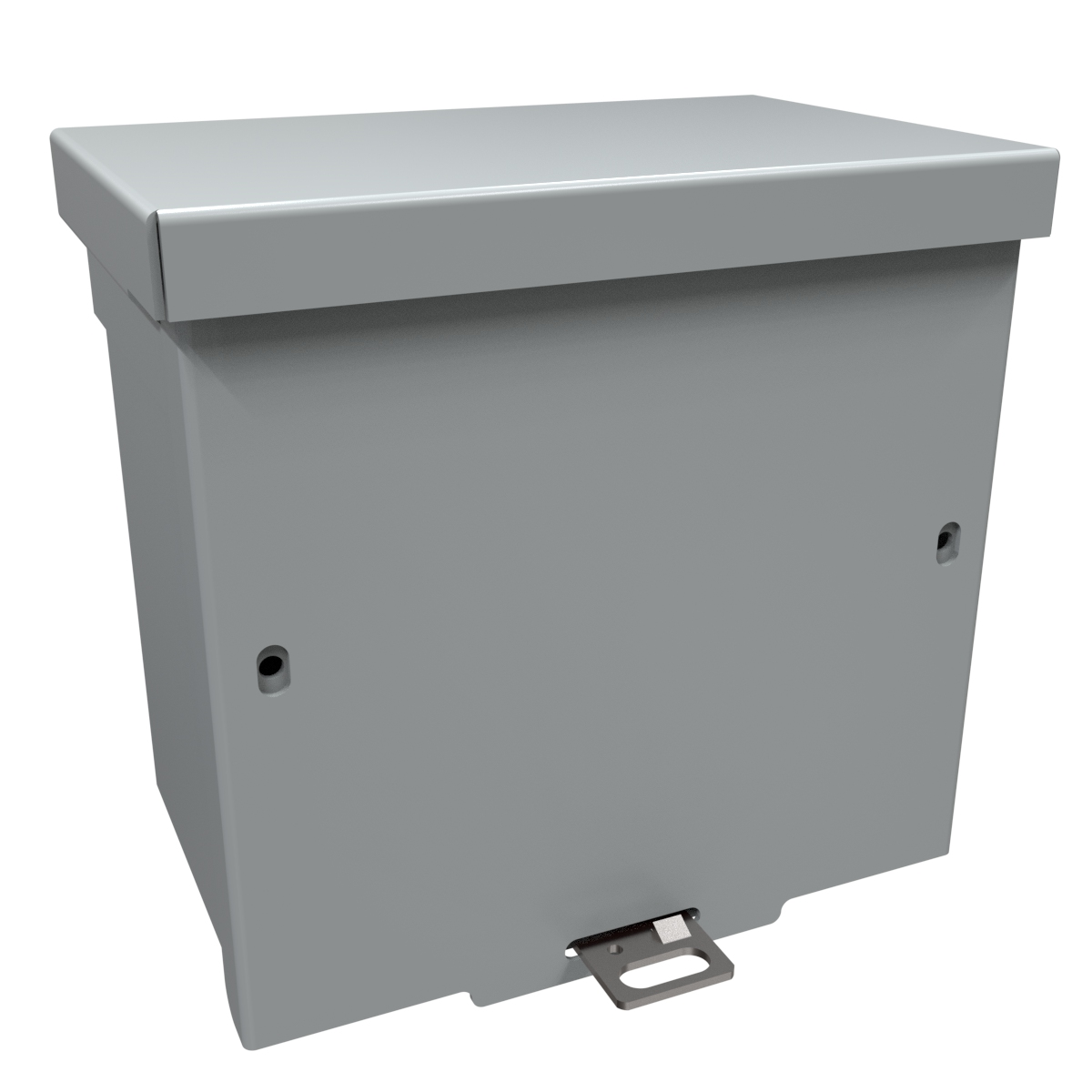

| C3R664SC | 6.00 | 6.00 | 4.00 | $19.00In stock | Buy now |

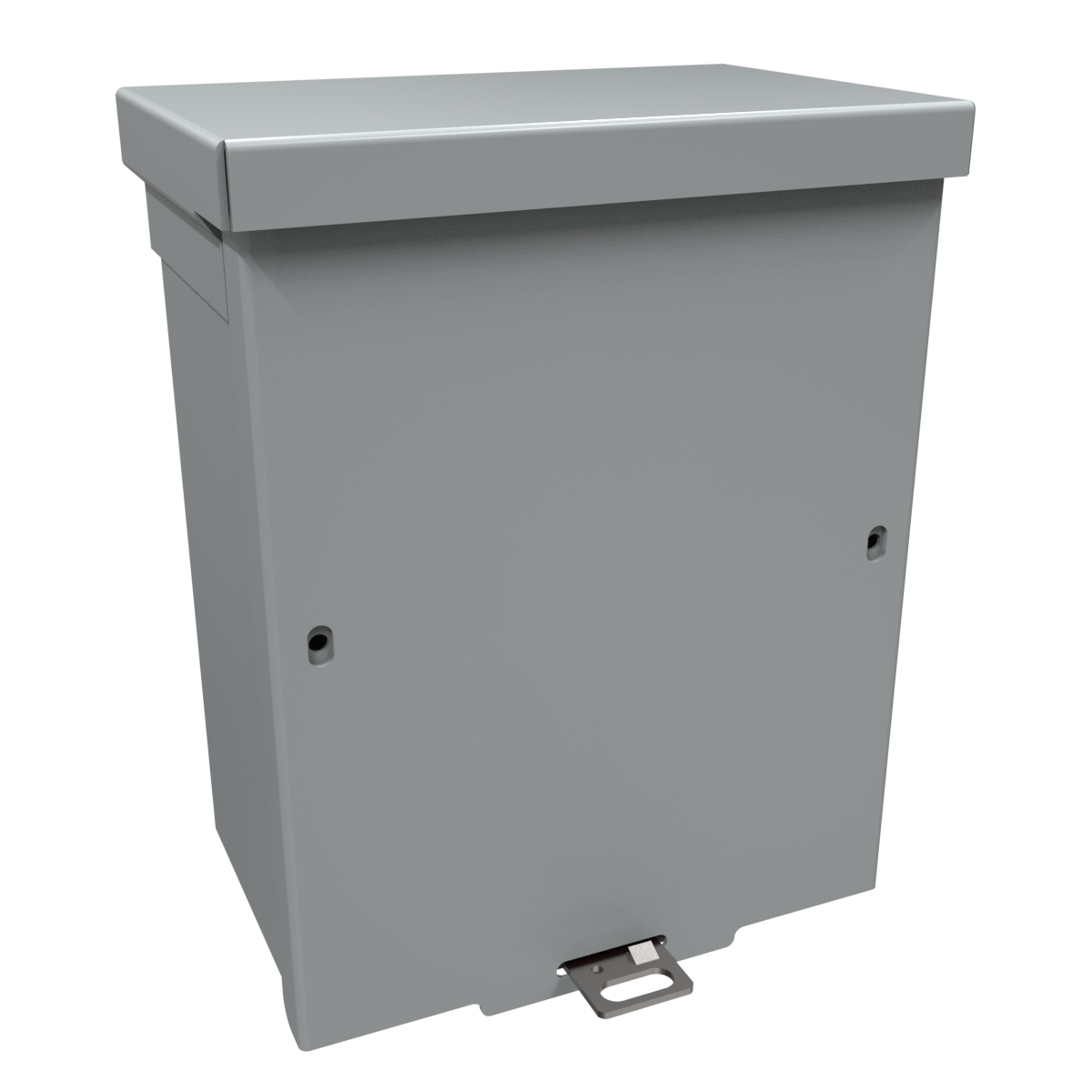

| C3R864SC | 8.00 | 6.00 | 4.00 | $22.92In stock | Buy now |
| C3R884SC | 8.00 | 8.00 | 4.00 | $26.40In stock | Buy now |
| C3R1084SC | 10.00 | 8.00 | 4.00 | $31.68In stock | Buy now |
| C3R1284SC | 12.00 | 8.00 | 4.00 | $37.40In stock | Buy now |
| C3R10104SC | 10.00 | 10.00 | 4.00 | $32.56In stock | Buy now |
| C3R12104SC | 12.00 | 10.00 | 4.00 | $41.57In stock | Buy now |

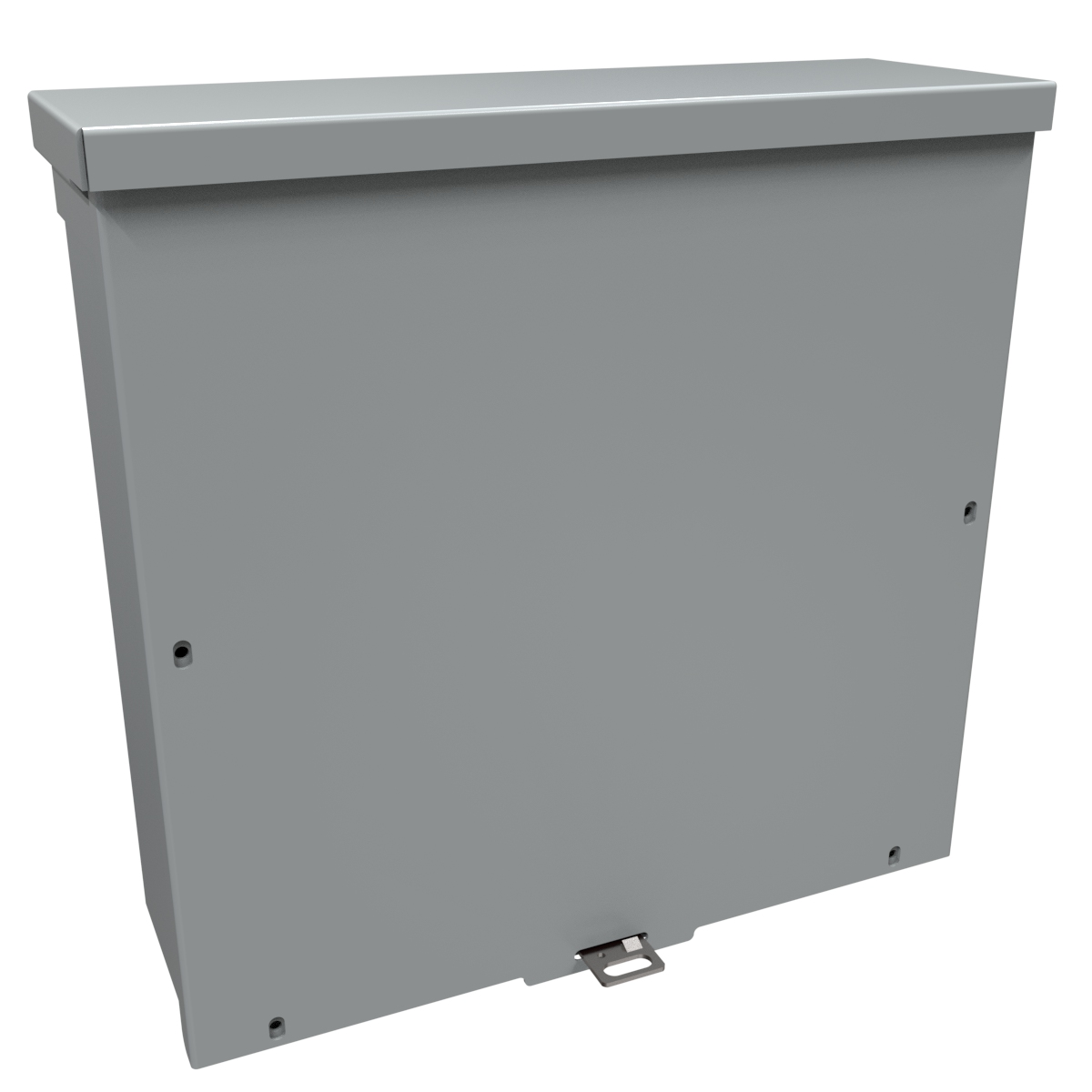

| C3R12124SC | 12.00 | 12.00 | 4.00 | $40.72In stock | Buy now |

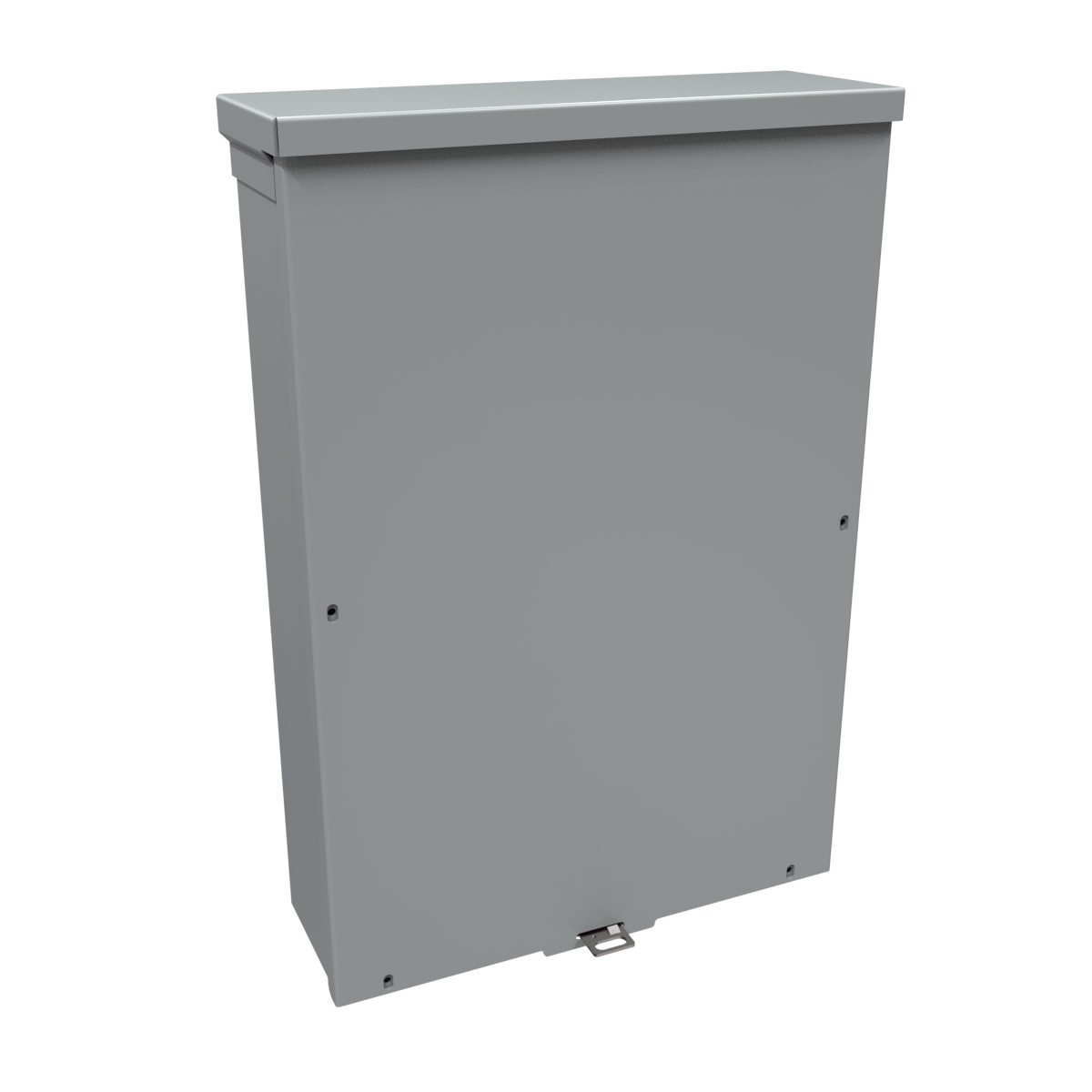

| C3R18124SC | 18.00 | 12.00 | 4.00 | $66.02In stock | Buy now |

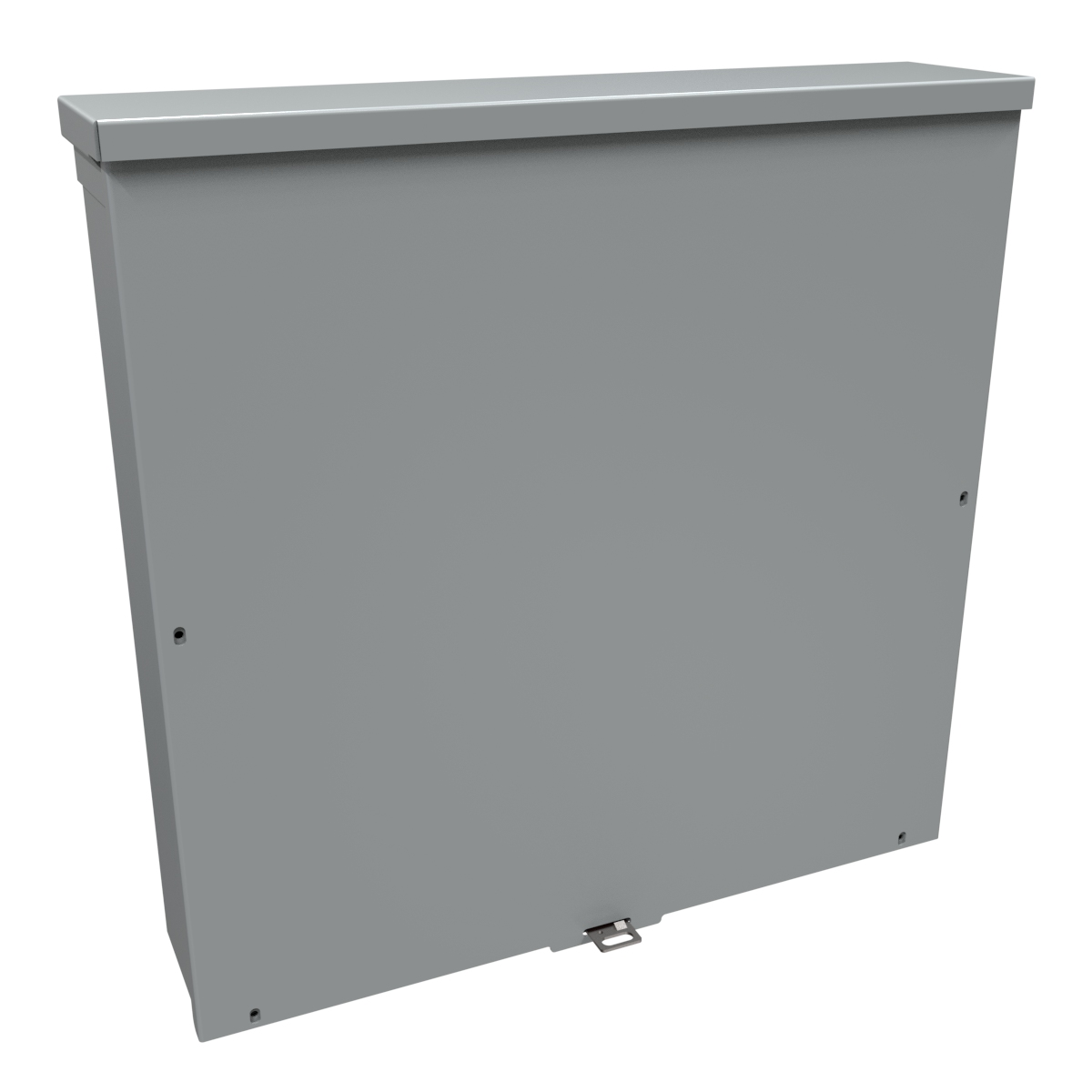

| C3R18184SC | 18.00 | 18.00 | 4.00 | $94.03In stock | Buy now |
| C3R666SC | 6.00 | 6.00 | 6.00 | $24.12In stock | Buy now |

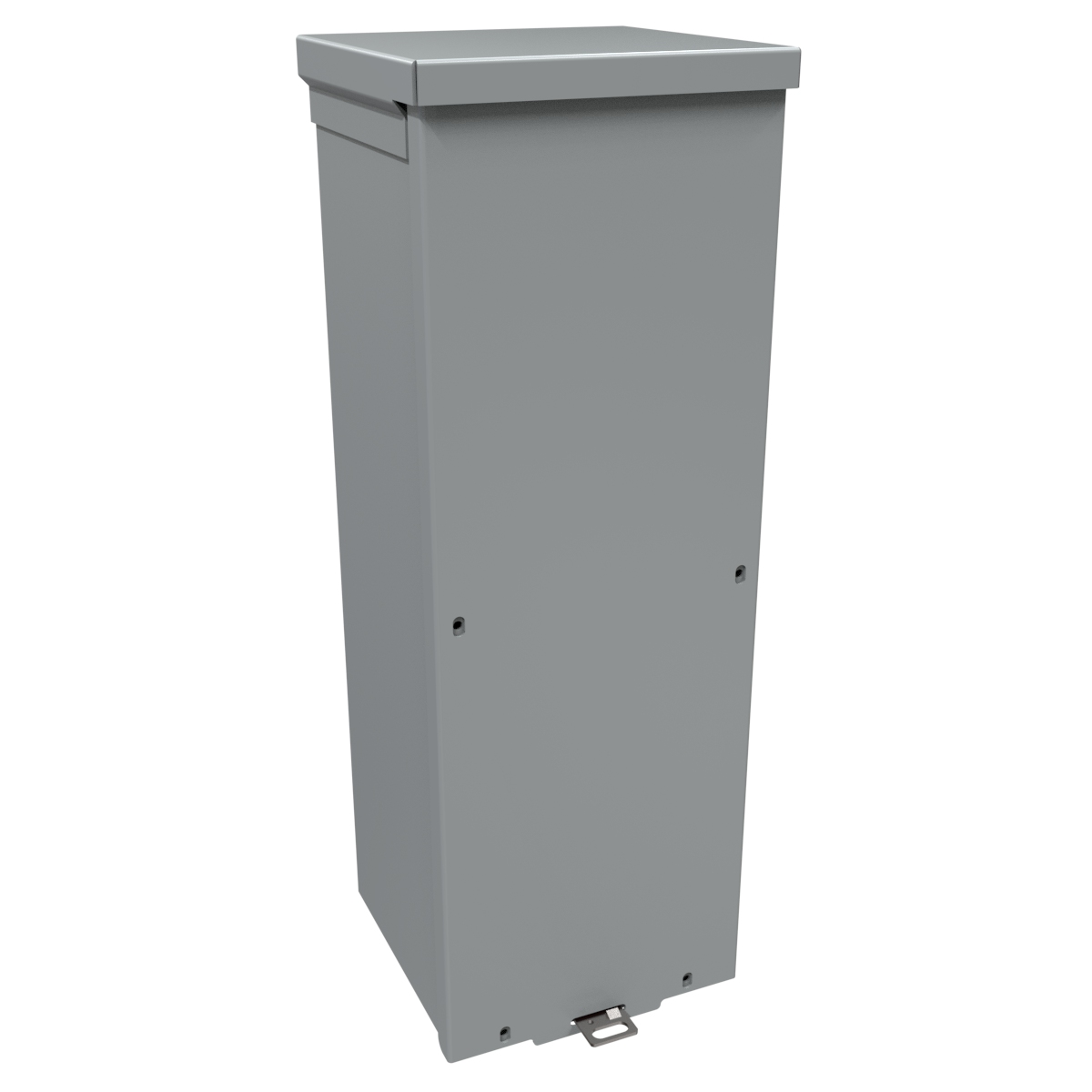

| C3R1866SC | 18.00 | 6.00 | 6.00 | $63.64In stock | Buy now |
| C3R886SC | 8.00 | 8.00 | 6.00 | $29.58In stock | Buy now |

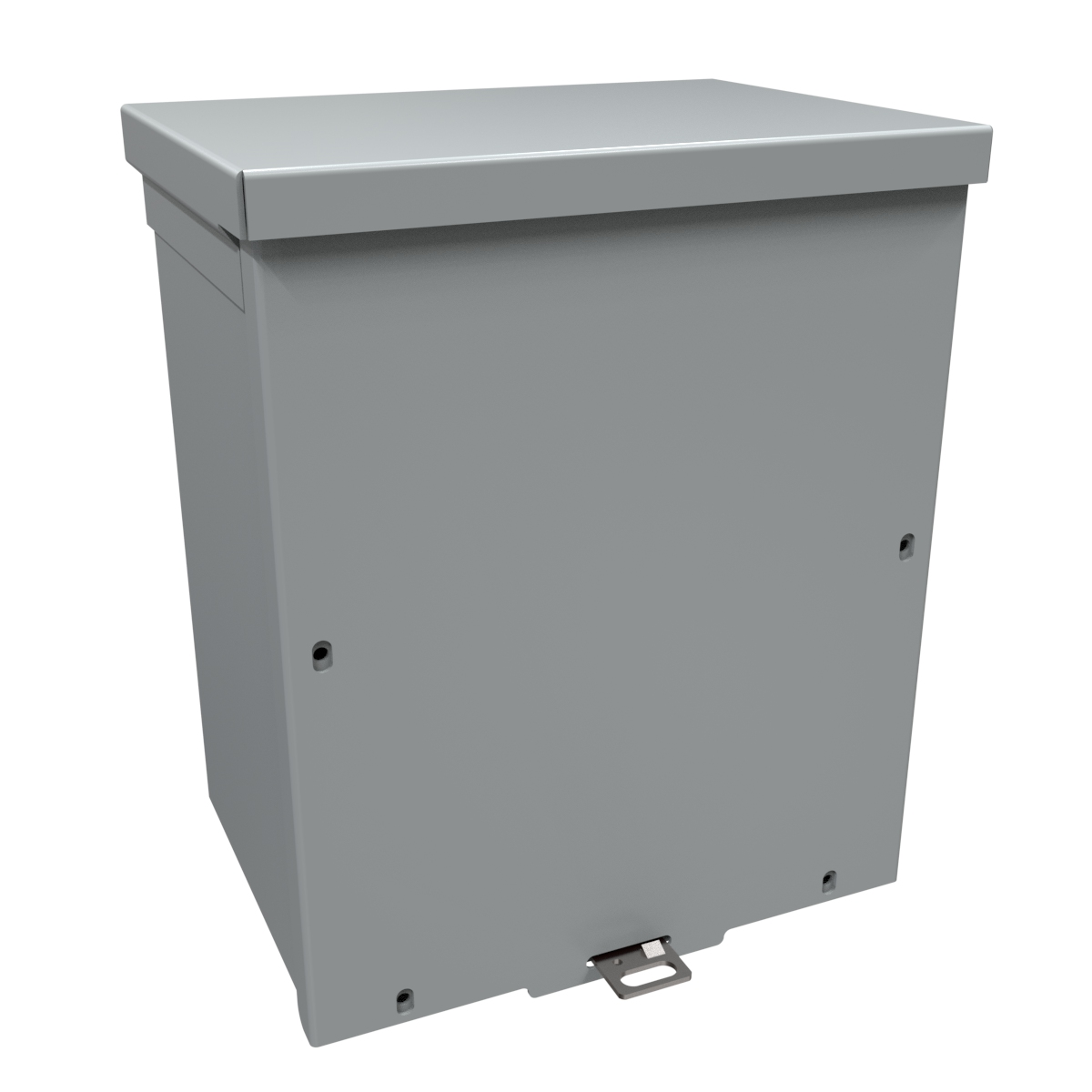

| C3R1086SC | 10.00 | 8.00 | 6.00 | $37.81In stock | Buy now |

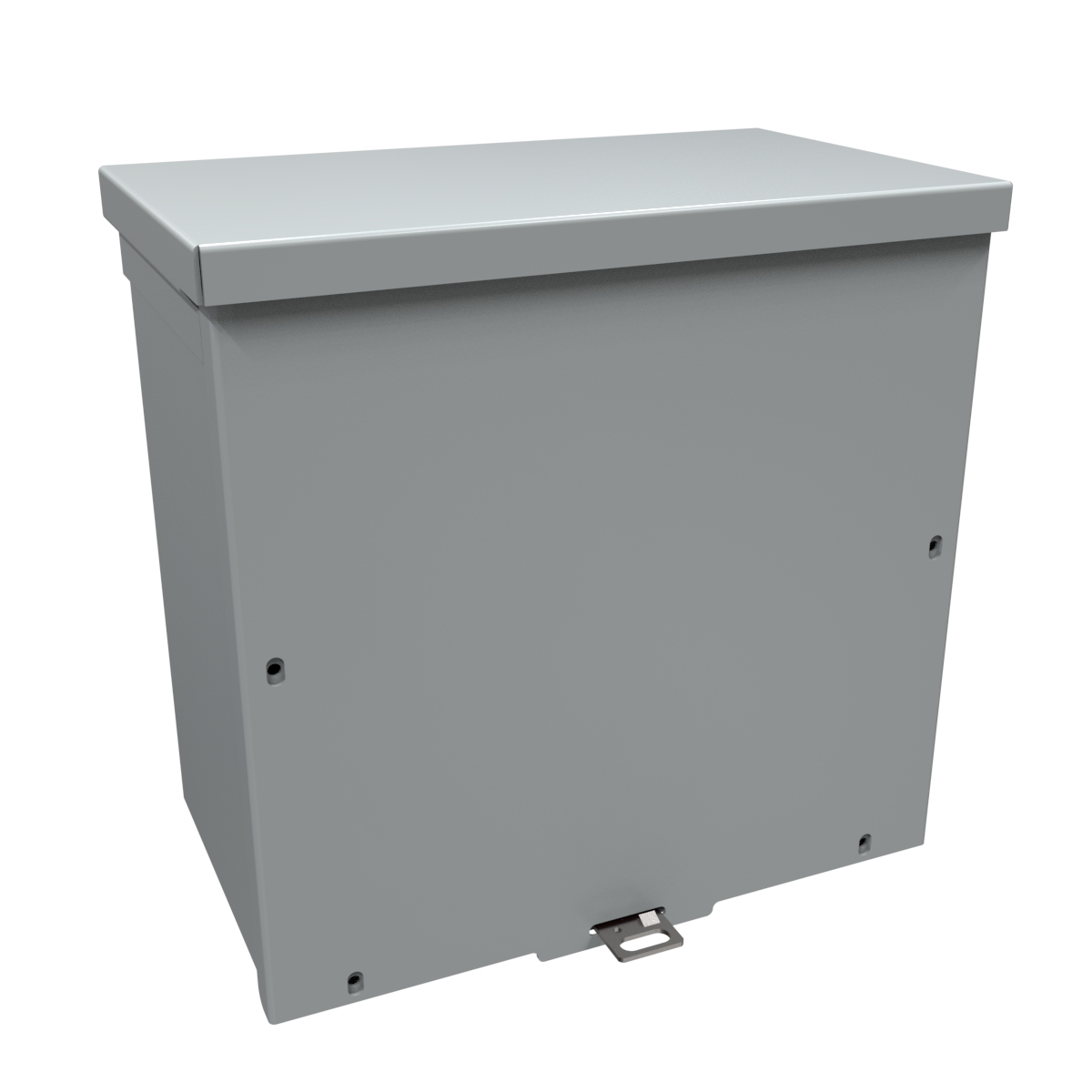

| C3R10106SC | 10.00 | 10.00 | 6.00 | $37.84In stock | Buy now |

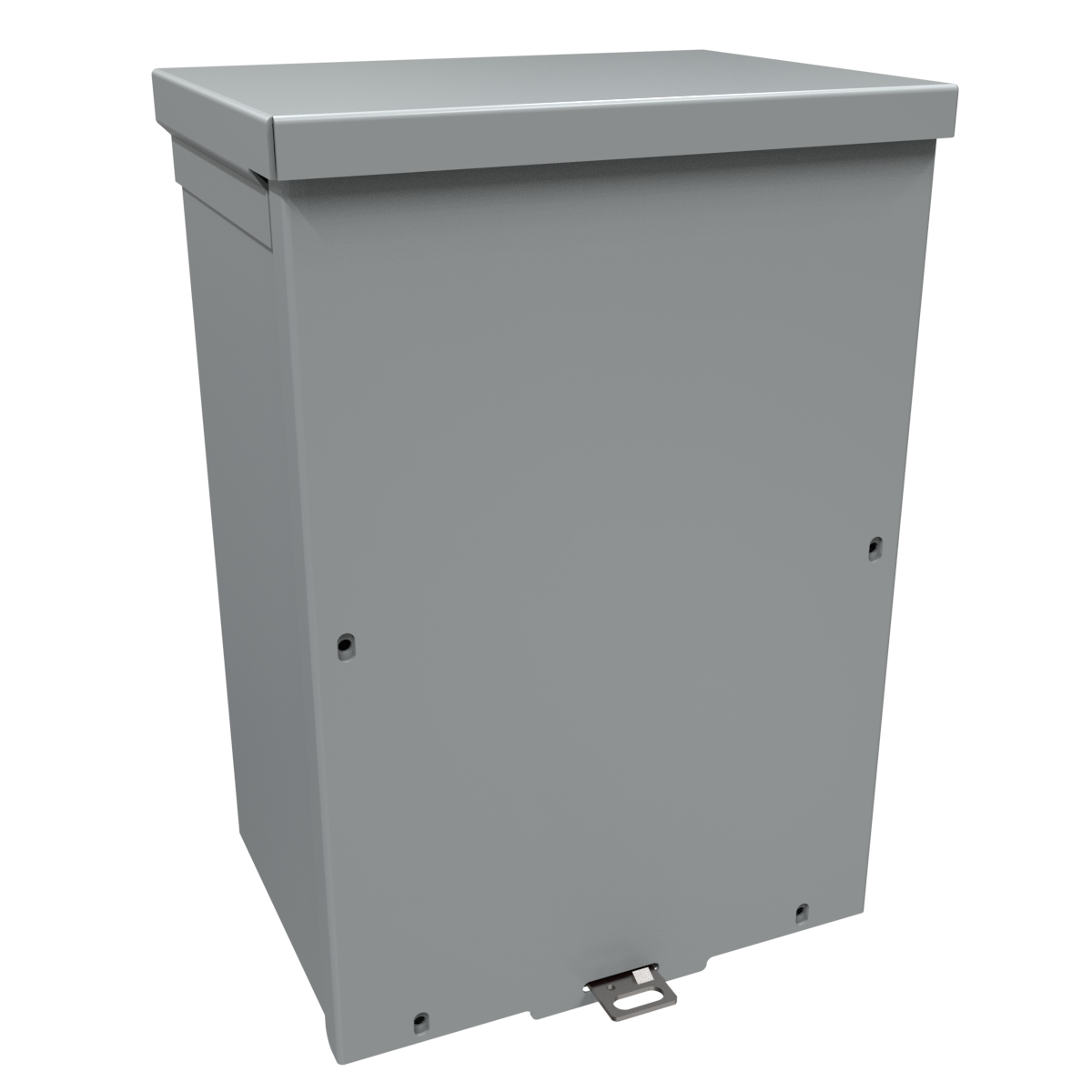

| C3R1286SC | 12.00 | 8.00 | 6.00 | $42.15In stock | Buy now |
| C3R12106SC | 12.00 | 10.00 | 6.00 | $47.82In stock | Buy now |

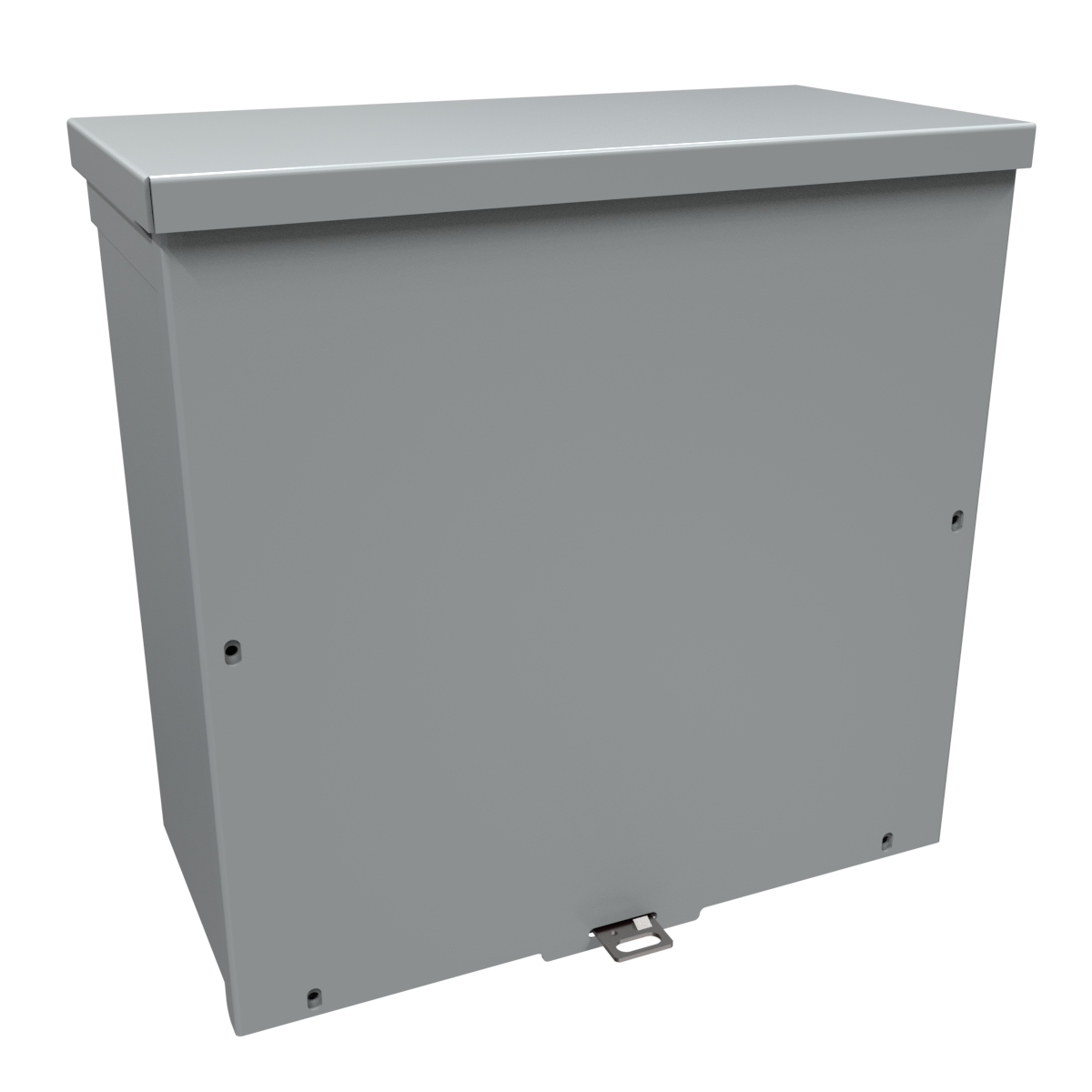

| C3R12126SC | 12.00 | 12.00 | 6.00 | $48.86Backorder | Buy now |

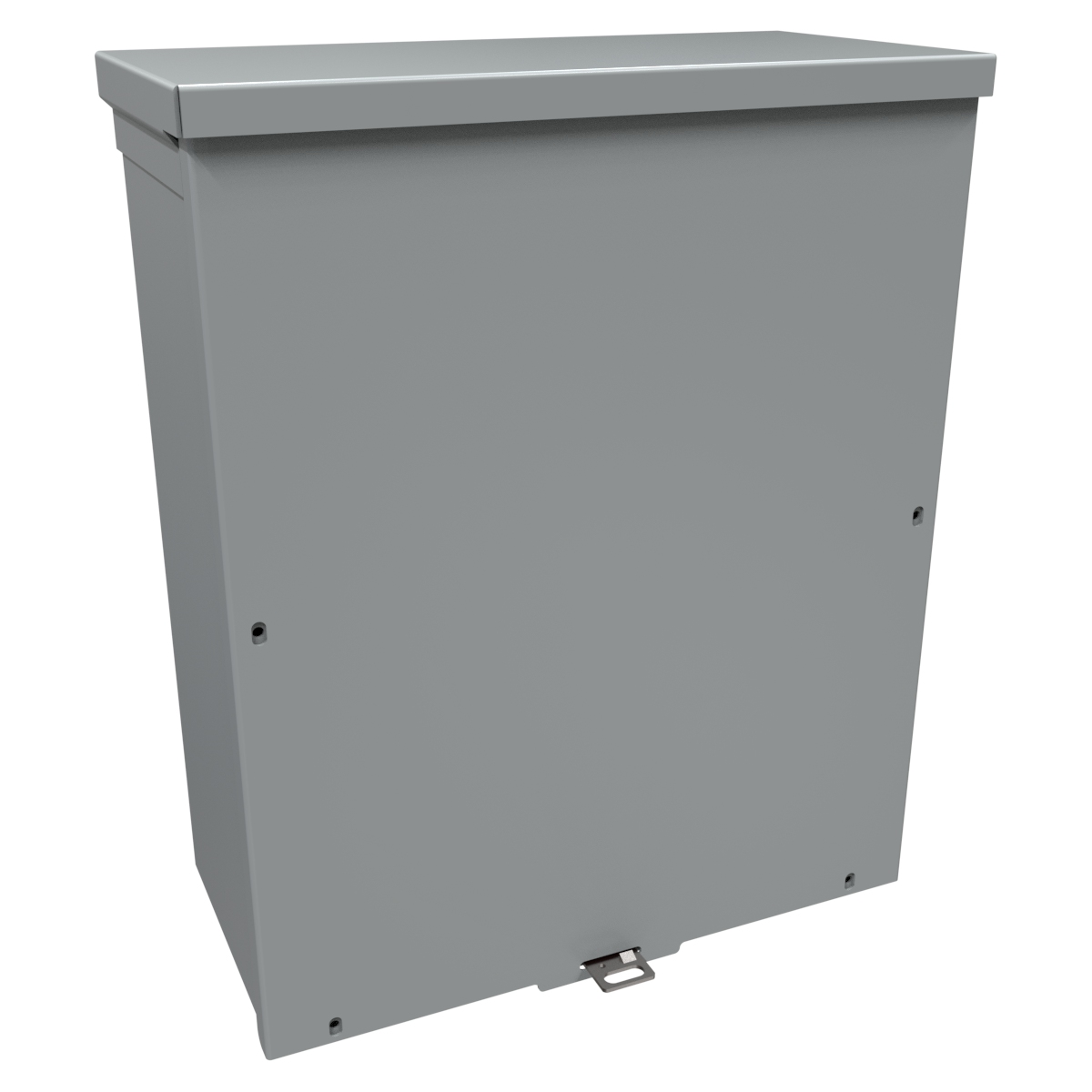

| C3R15126SC | 15.00 | 12.00 | 6.00 | $67.31In stock | Buy now |

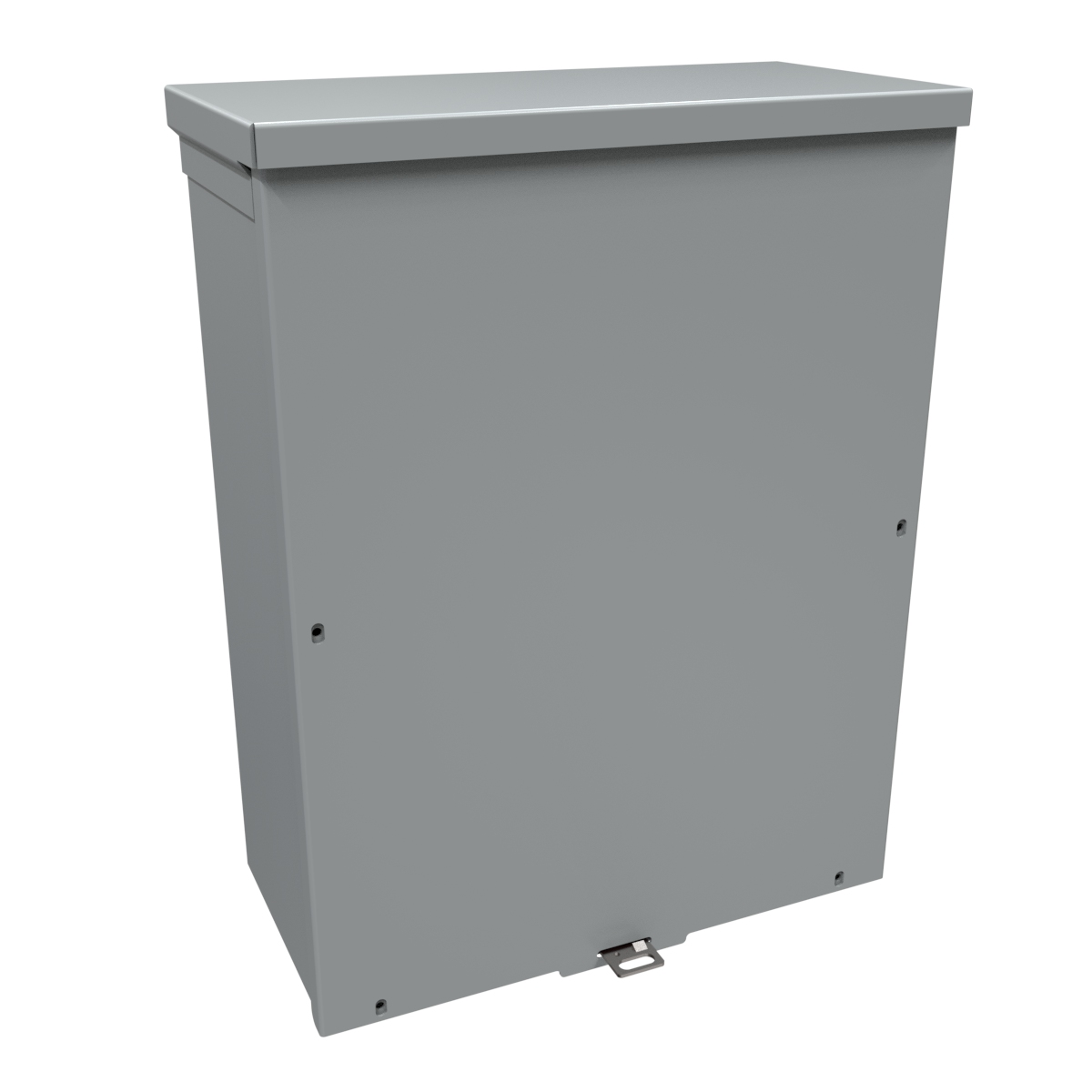

| C3R16126SC | 16.00 | 12.00 | 6.00 | $70.40In stock | Buy now |
| C3R18126SC | 18.00 | 12.00 | 6.00 | $66.63In stock | Buy now |
| C3R18186SC | 18.00 | 18.00 | 6.00 | $102.22In stock | Buy now |
Application
- ■Designed for use as a wiring/junction box.
- ■Provides protection against rain, sleet, snow and dripping water.
Standards
- ■UL-50 Type 3R
- ■cUL Type 3R to CSA Standard C22.2, No. 94
- ■Complies with: NEMA Type 3R IEC 60529, IP24
- ■NEMA Type 3R
- ■IEC 60529, IP24
Construction
- ■Formed and spot welded from 16 or 14 gauge galvanized steel.
- ■Drip-shield top and seam-free sides, front and back.
- ■Slip-on removable cover fastened with plated steel screws.
- ■Door handles on body type C enclosures.
- ■Embossed mounting holes on back of enclosure.
- ■A grounding kit is provided.
- ■Easily removed knockouts on bottom of enclosure.
- ■Padlocking hasp.
- ■No Gasket.
Finish
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■Enclosure and cover are finished in ANSI 61 gray powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D |
|---|---|---|---|
| C3R444SC | 4.00 | 4.00 | 4.00 |
| C3R644SC | 6.00 | 4.00 | 4.00 |

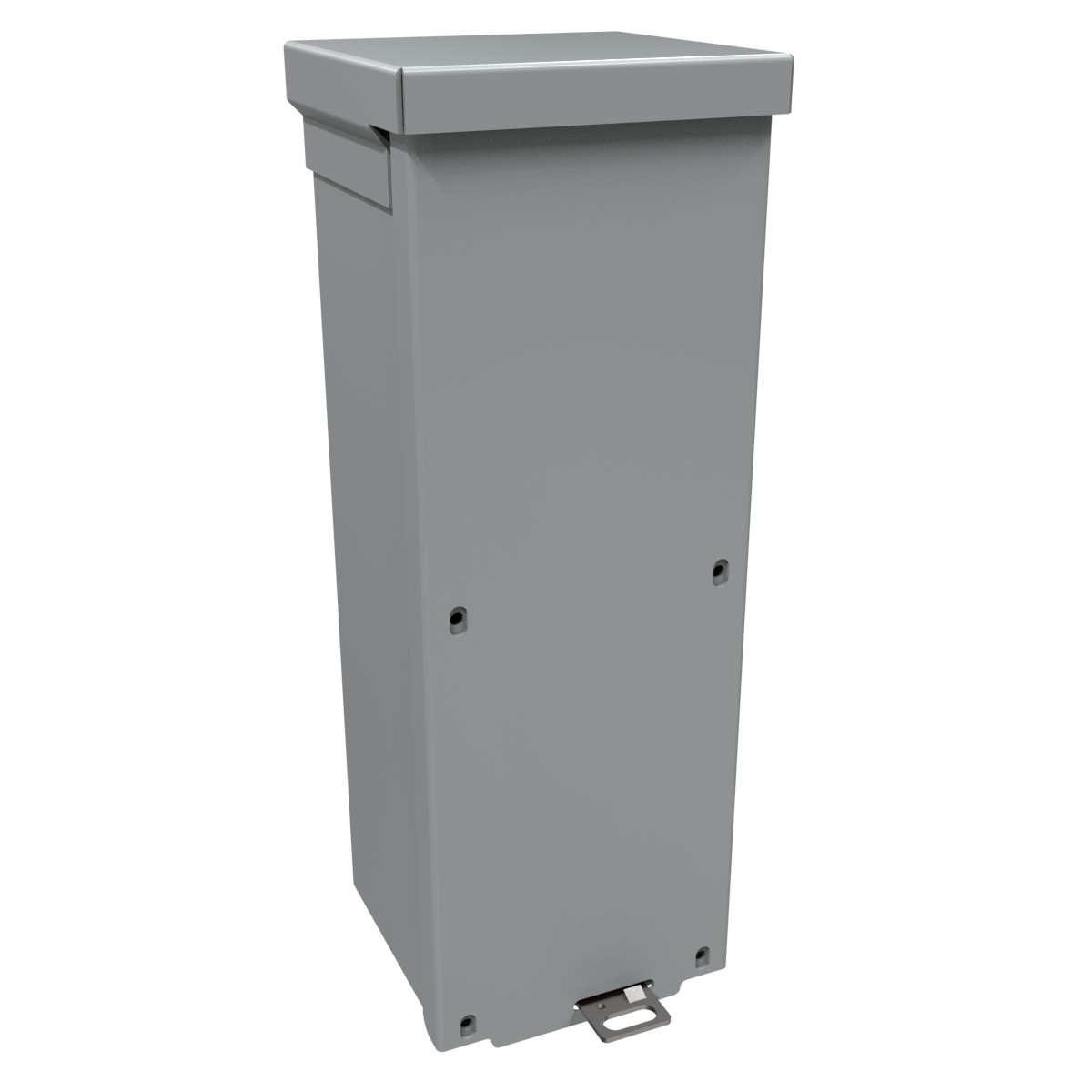

| C3R1244SC | 12.00 | 4.00 | 4.00 |
| C3R664SC | 6.00 | 6.00 | 4.00 |
| C3R864SC | 8.00 | 6.00 | 4.00 |
| C3R884SC | 8.00 | 8.00 | 4.00 |

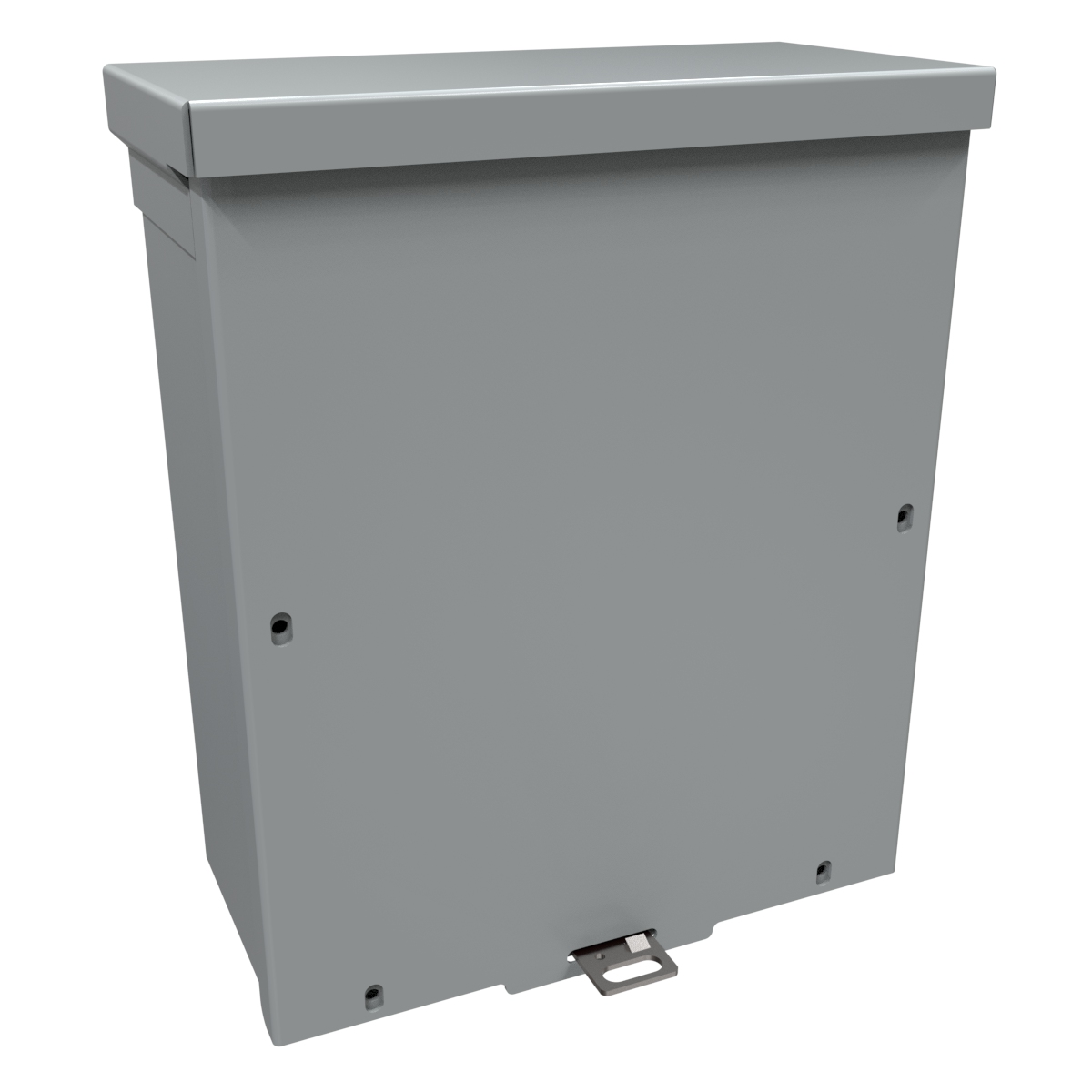

| C3R1084SC | 10.00 | 8.00 | 4.00 |
| C3R1284SC | 12.00 | 8.00 | 4.00 |

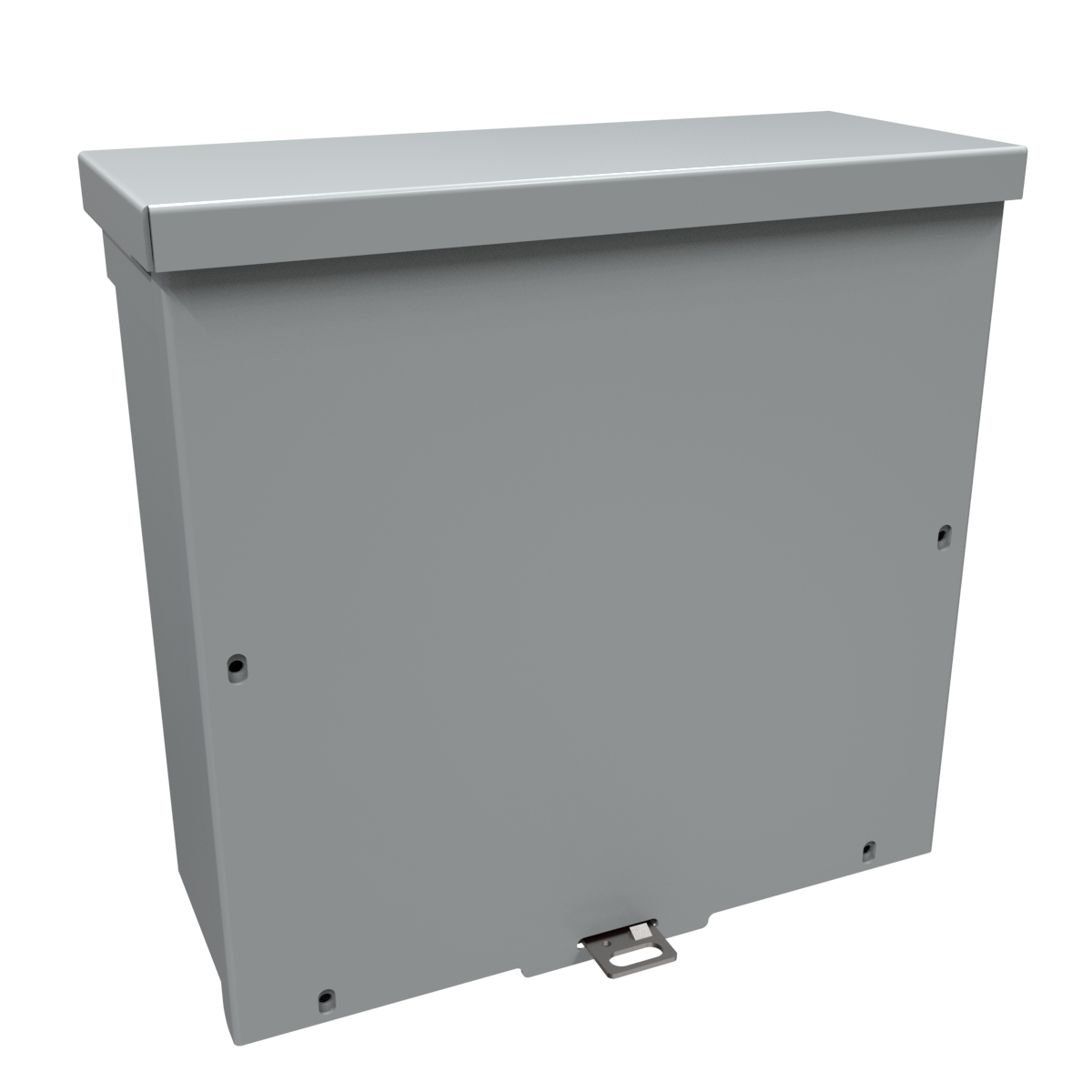

| C3R10104SC | 10.00 | 10.00 | 4.00 |

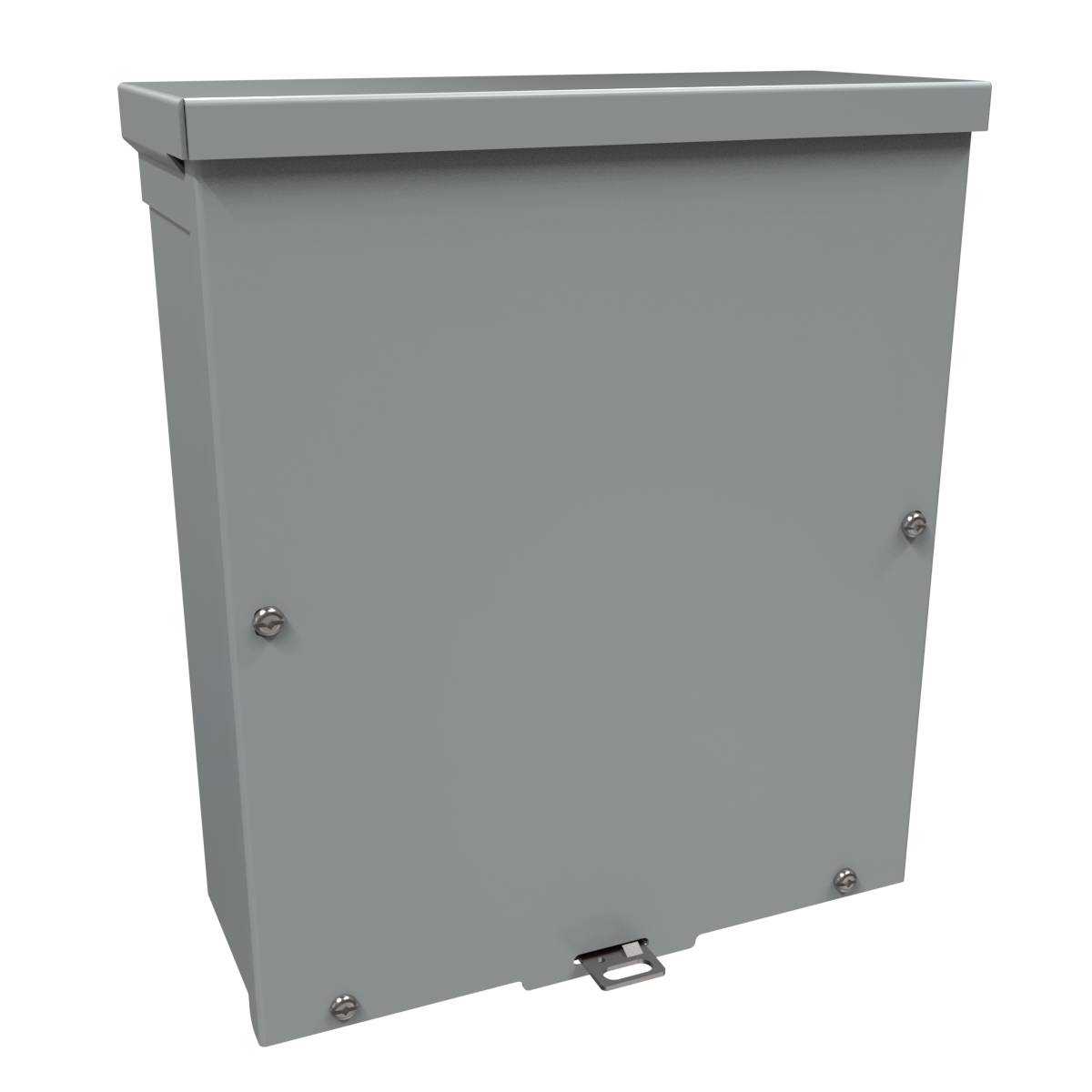

| C3R12104SC | 12.00 | 10.00 | 4.00 |
| C3R12124SC | 12.00 | 12.00 | 4.00 |
| C3R18124SC | 18.00 | 12.00 | 4.00 |
| C3R18184SC | 18.00 | 18.00 | 4.00 |
| C3R666SC | 6.00 | 6.00 | 6.00 |
| C3R1866SC | 18.00 | 6.00 | 6.00 |
| C3R886SC | 8.00 | 8.00 | 6.00 |
| C3R1086SC | 10.00 | 8.00 | 6.00 |
| C3R10106SC | 10.00 | 10.00 | 6.00 |
| C3R1286SC | 12.00 | 8.00 | 6.00 |
| C3R12106SC | 12.00 | 10.00 | 6.00 |
| C3R12126SC | 12.00 | 12.00 | 6.00 |
| C3R15126SC | 15.00 | 12.00 | 6.00 |
| C3R16126SC | 16.00 | 12.00 | 6.00 |
| C3R18126SC | 18.00 | 12.00 | 6.00 |
| C3R18186SC | 18.00 | 18.00 | 6.00 |

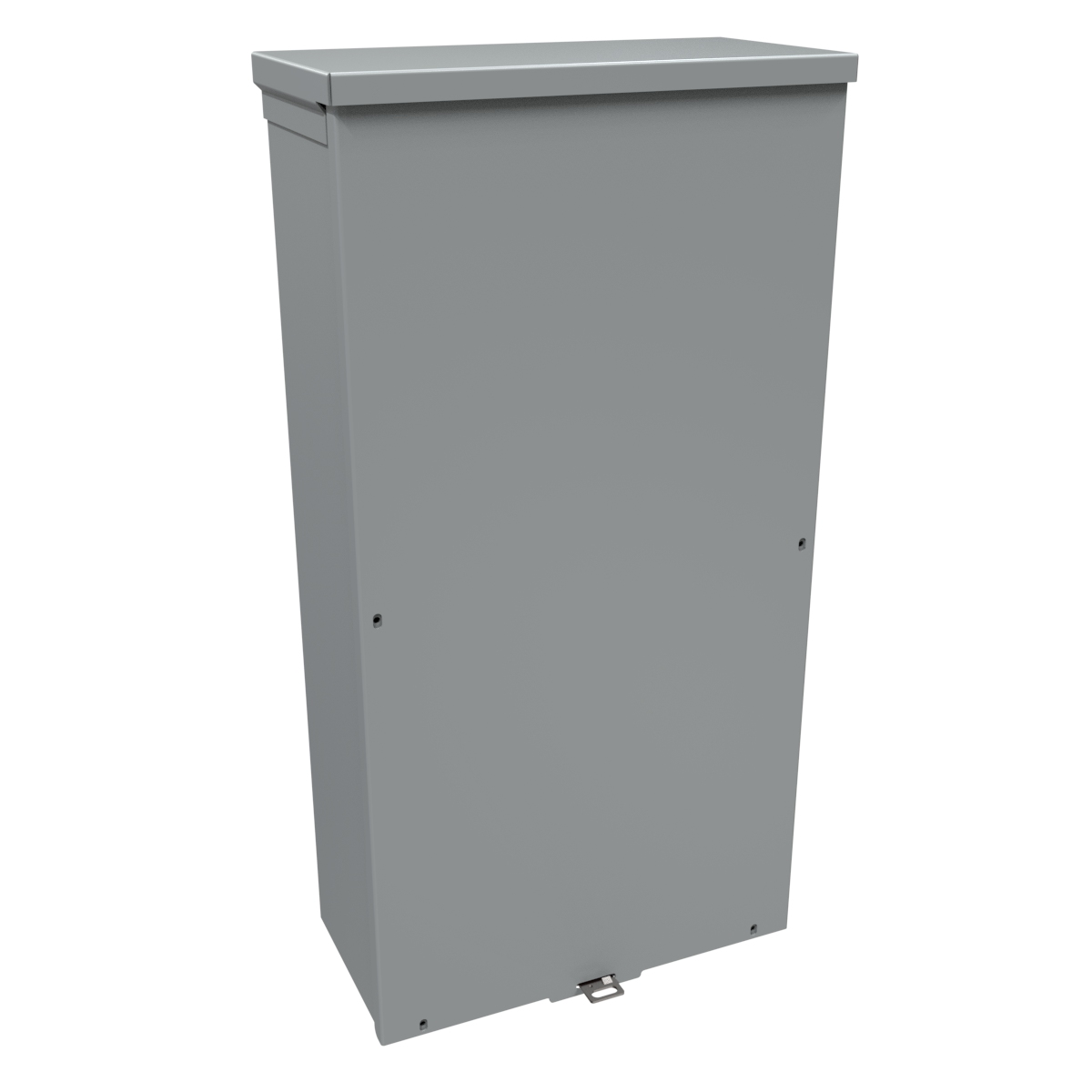

| C3R24126SC | 24.00 | 12.00 | 6.00 |

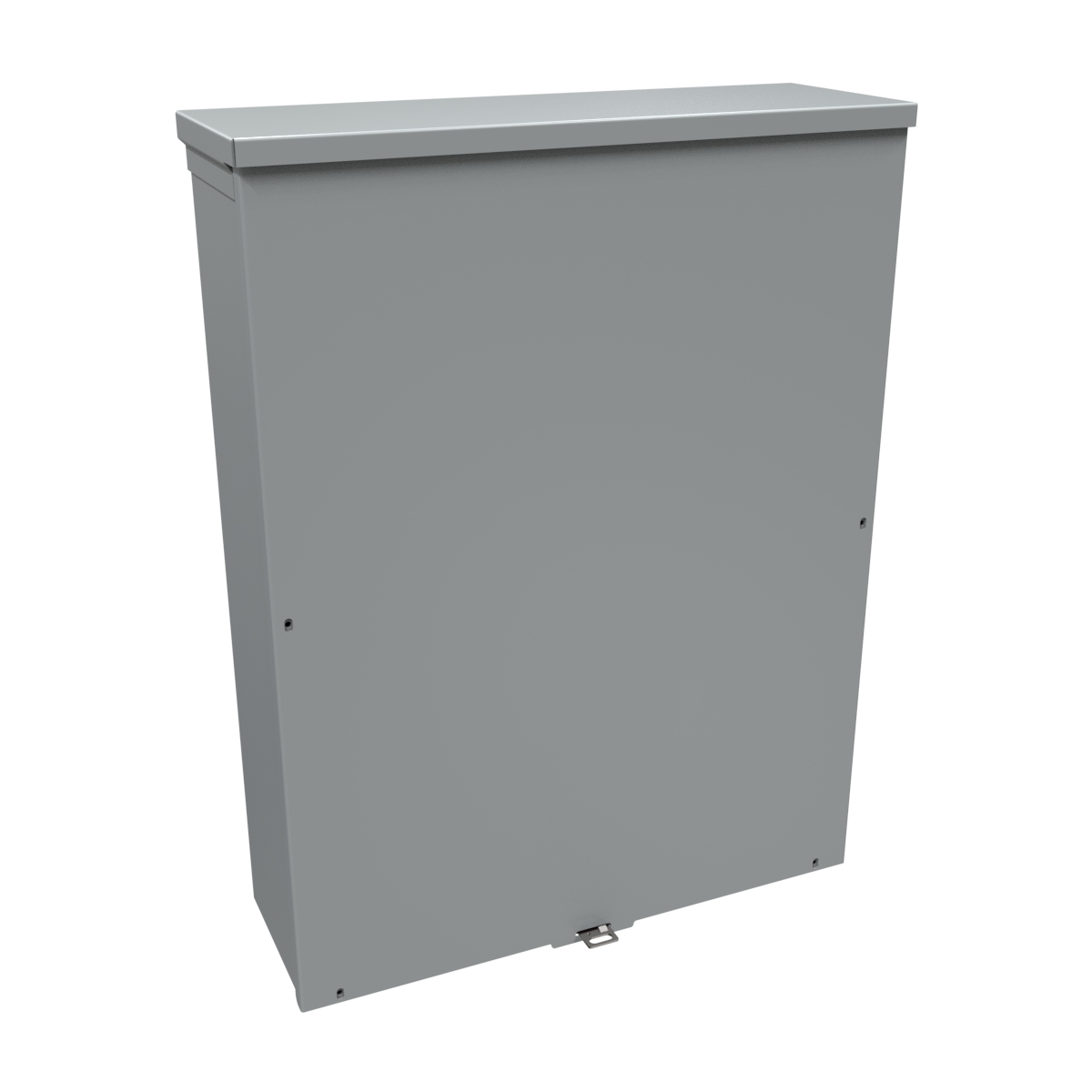

| C3R24186SC | 24.00 | 18.00 | 6.00 |

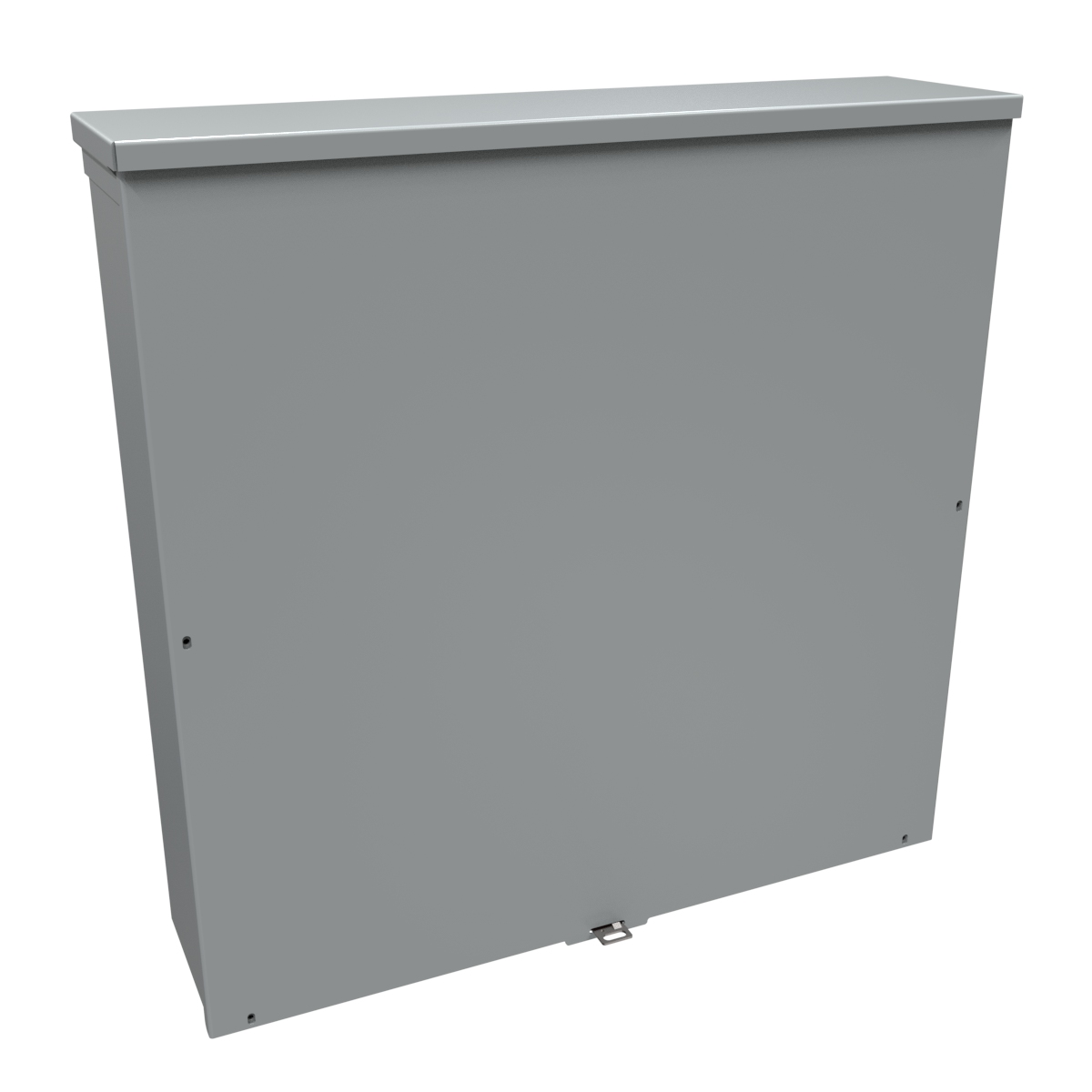

| C3R24246SC | 24.00 | 24.00 | 6.00 |
| C3R888SC | 8.00 | 8.00 | 8.00 |
| C3R2488SC | 24.00 | 8.00 | 8.00 |

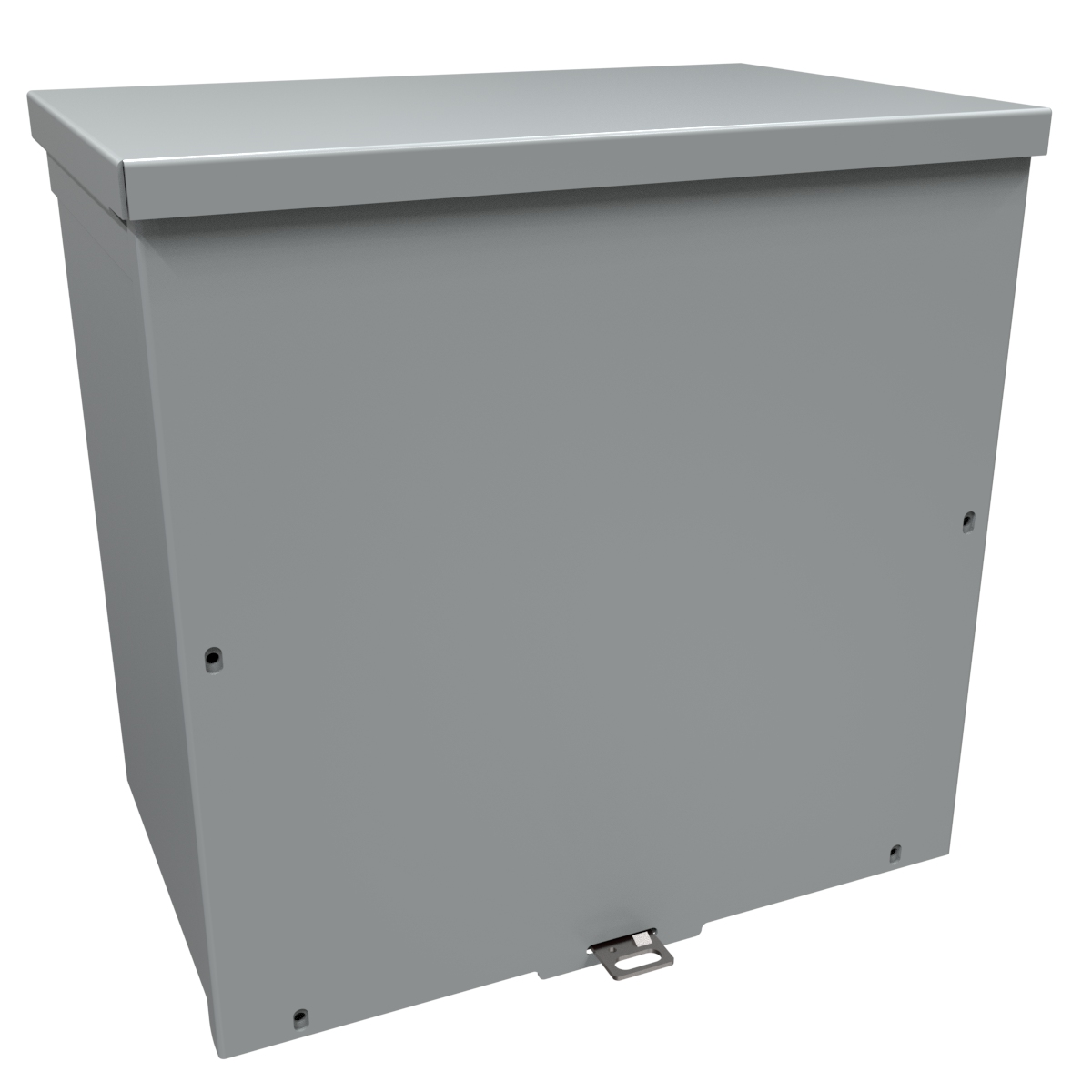

| C3R12128SC | 12.00 | 12.00 | 8.00 |

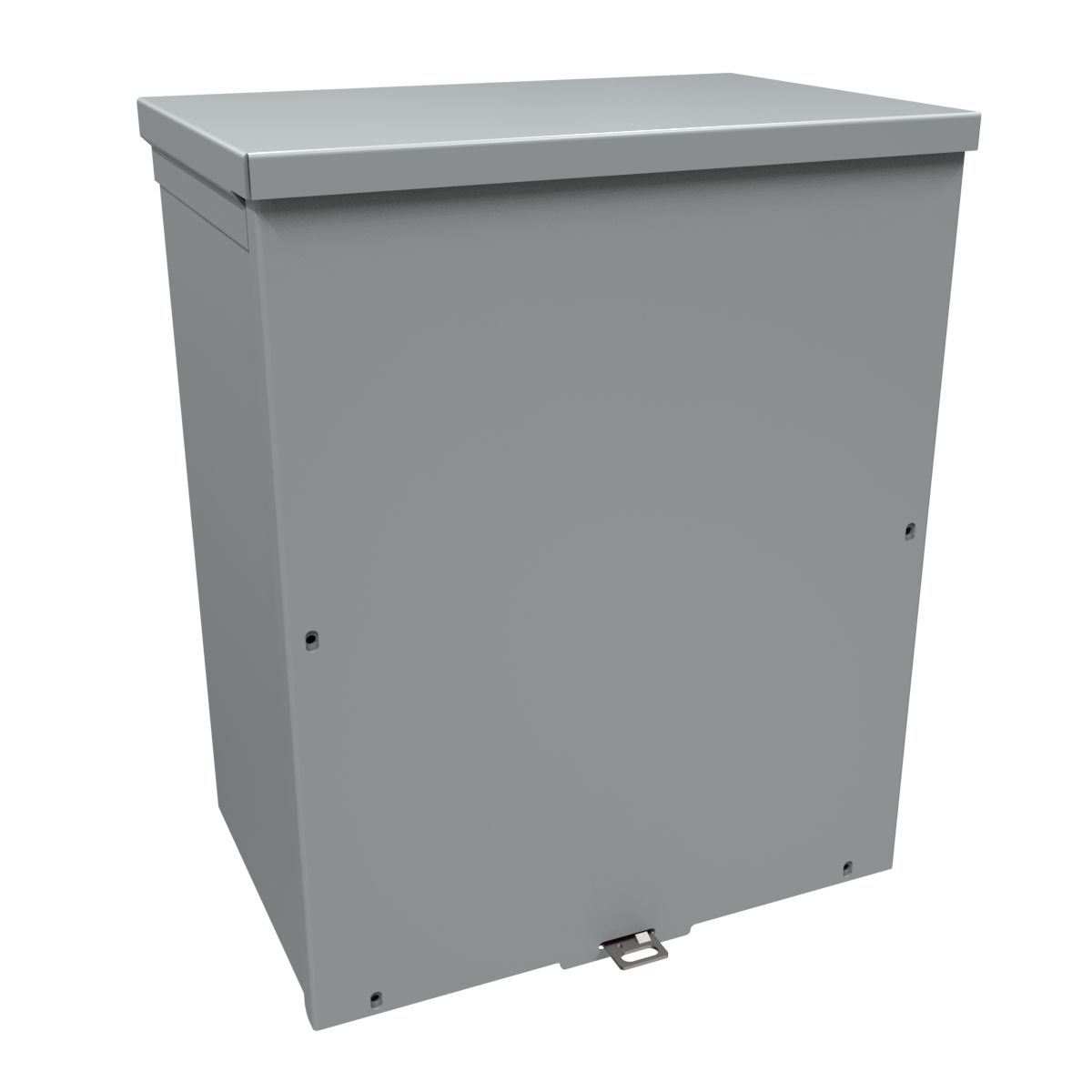

| C3R15128SC | 15.00 | 12.00 | 8.00 |

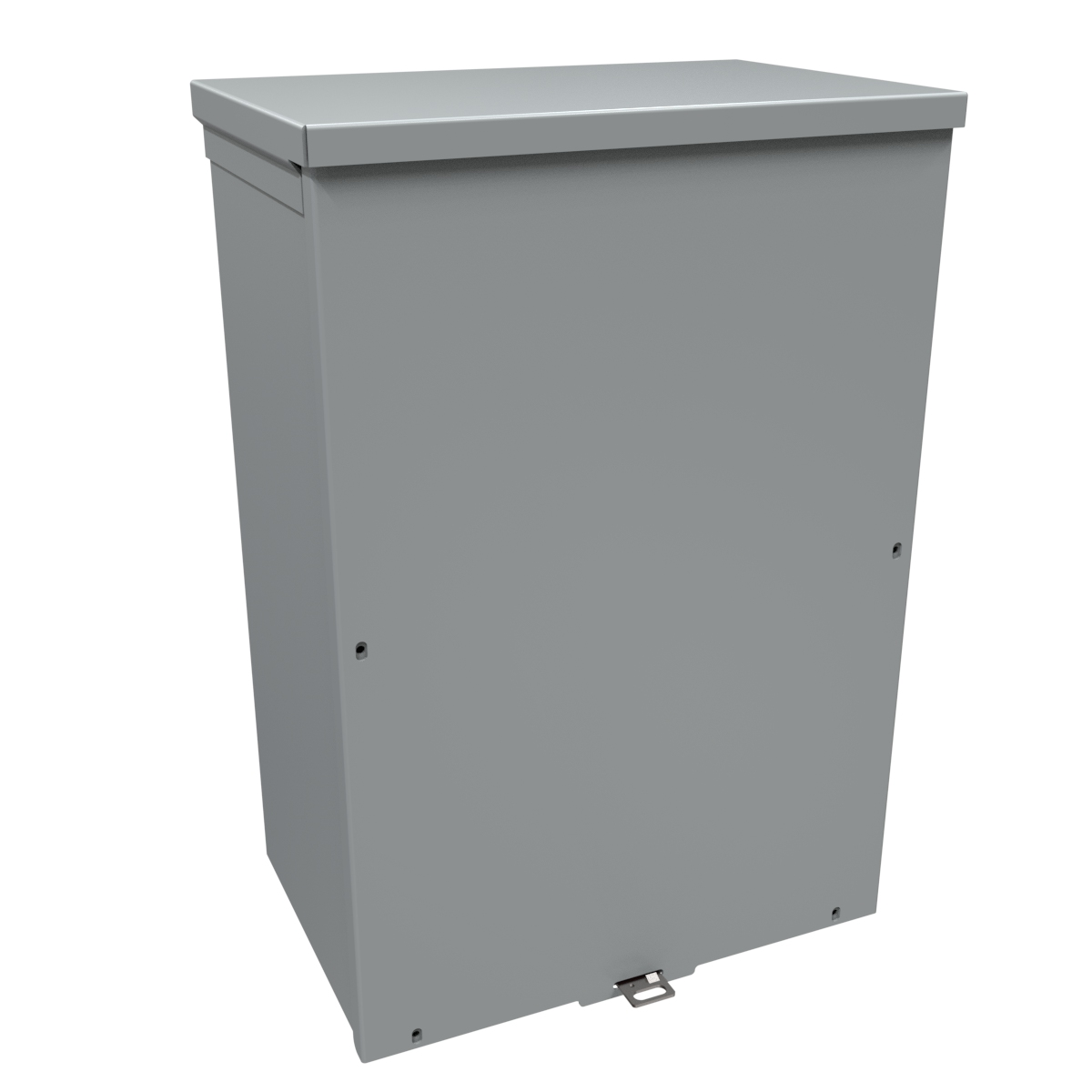

| C3R18128SC | 18.00 | 12.00 | 8.00 |
| C3R24168SC | 24.00 | 16.00 | 8.00 |

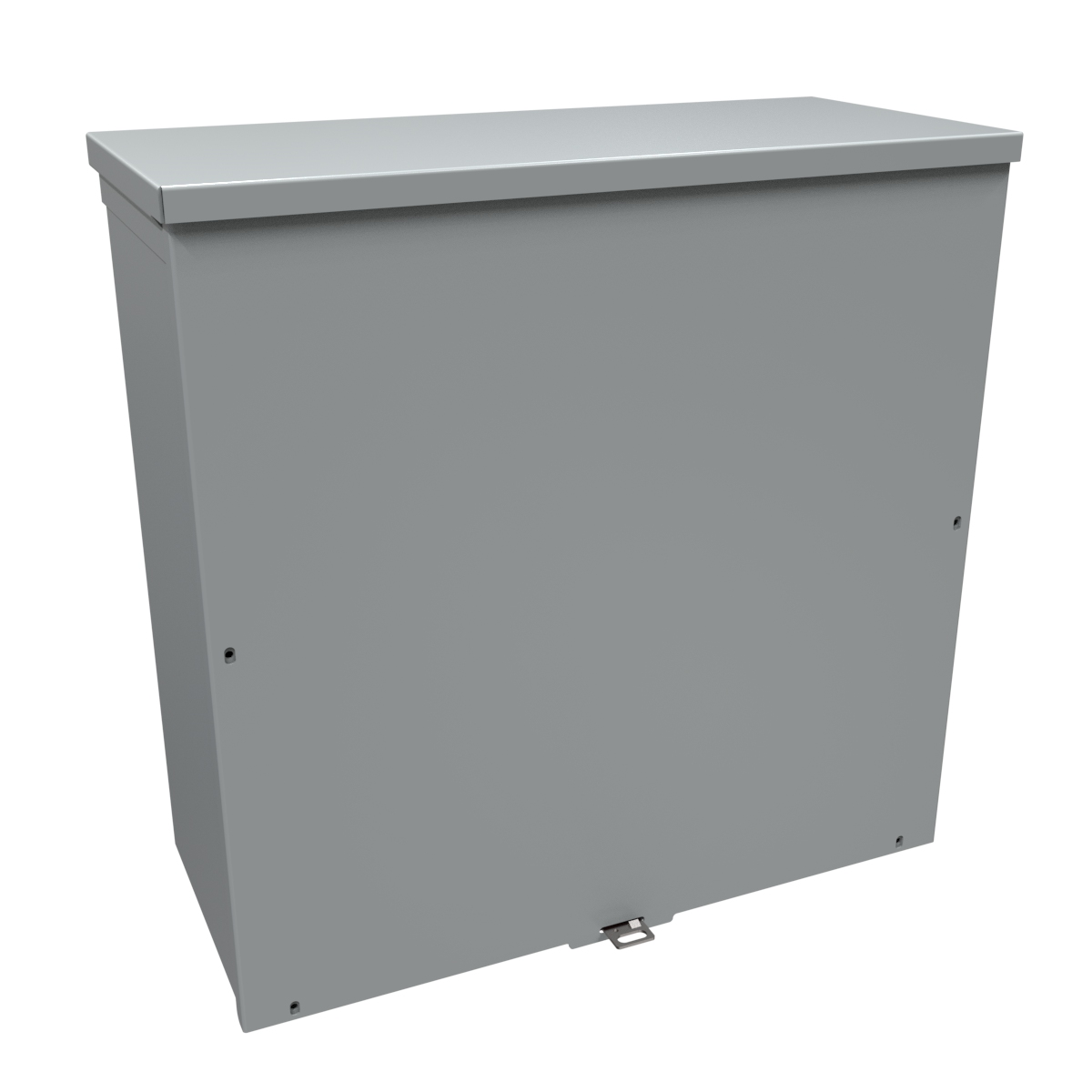

| C3R18188SC | 18.00 | 18.00 | 8.00 |

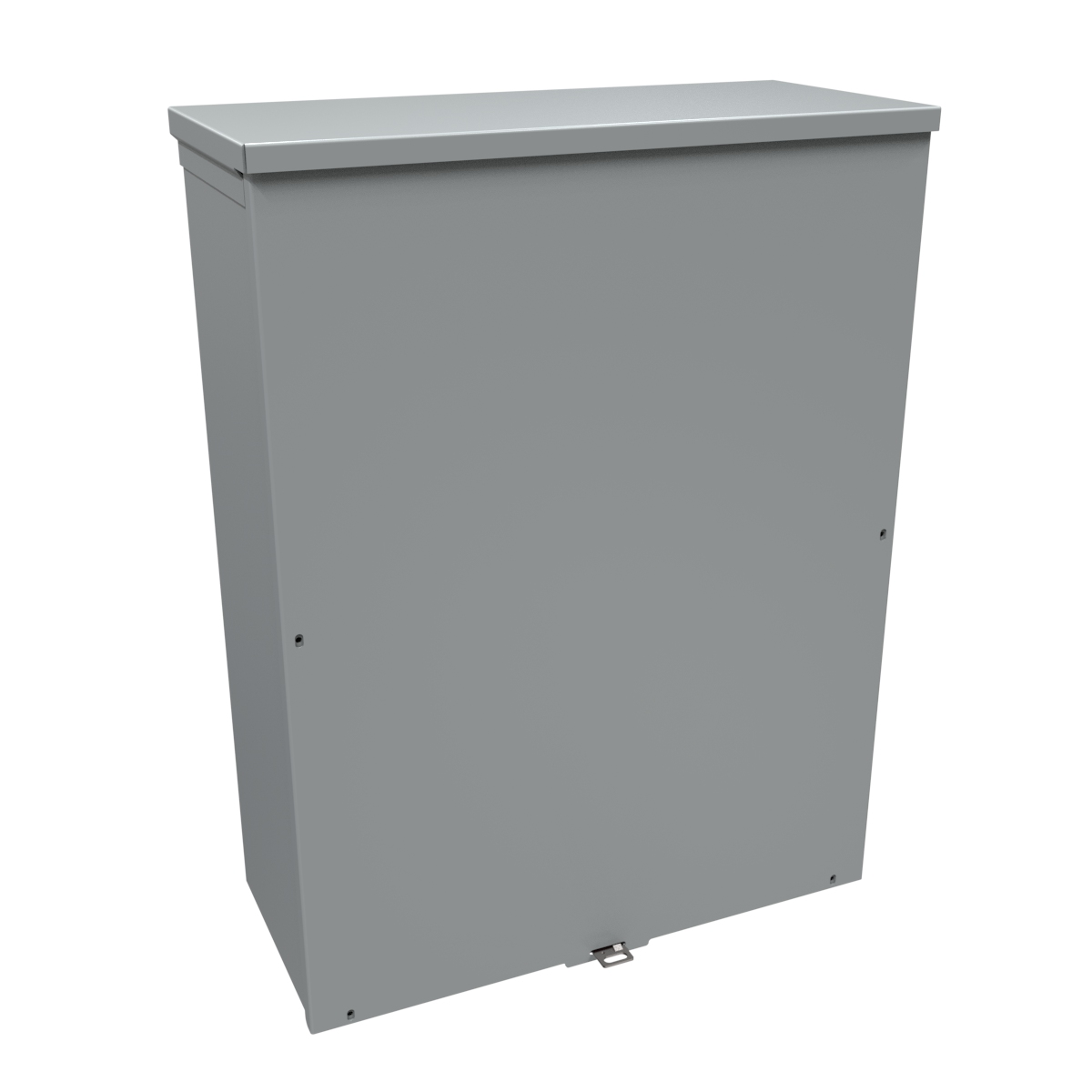

| C3R24188SC | 24.00 | 18.00 | 8.00 |
| C3R24208SC | 24.00 | 20.00 | 8.00 |
| C3R24248SC | 24.00 | 24.00 | 8.00 |

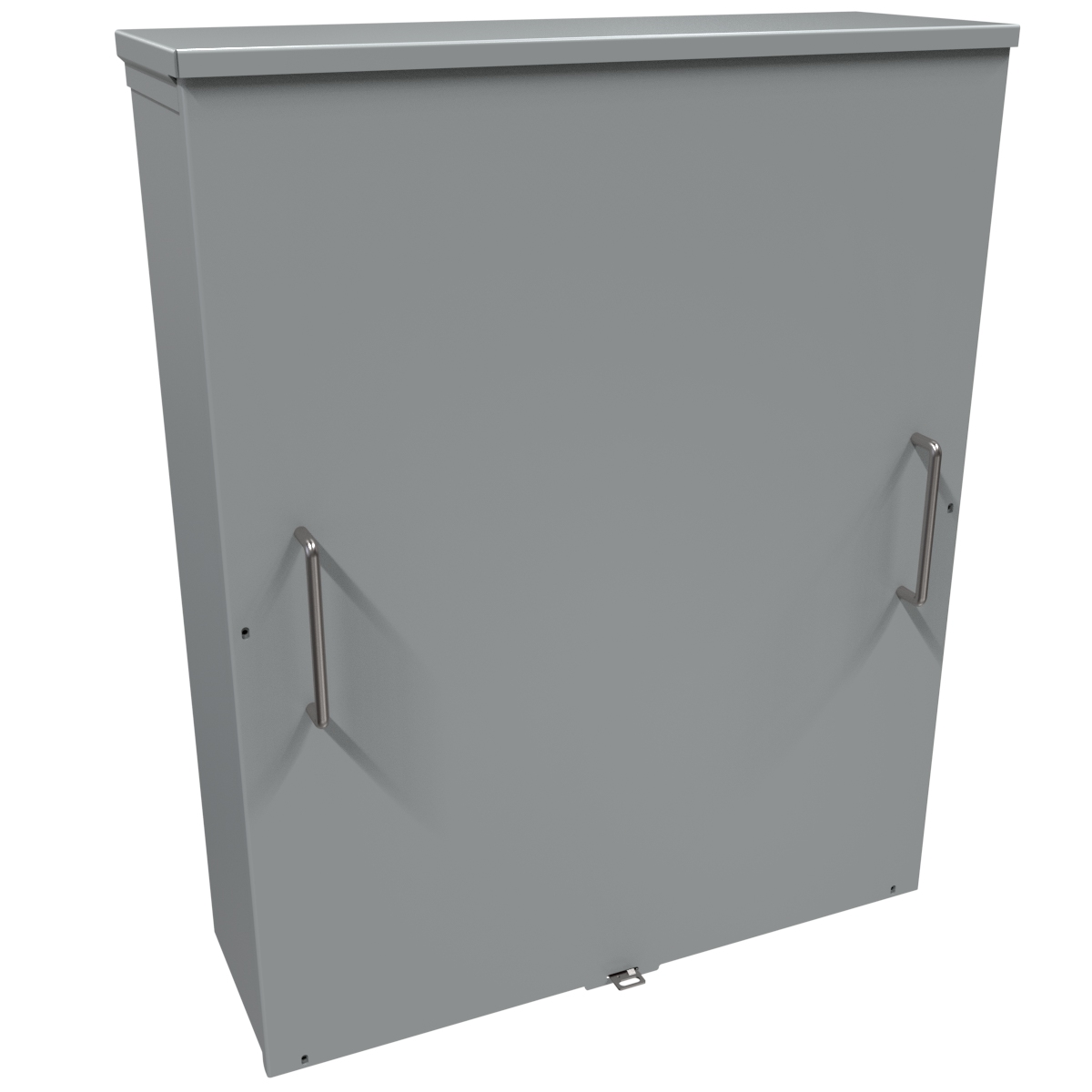

| C3R30248SC | 30.00 | 24.00 | 8.00 |
| C3R48368SC | 48.00 | 36.00 | 8.00 |

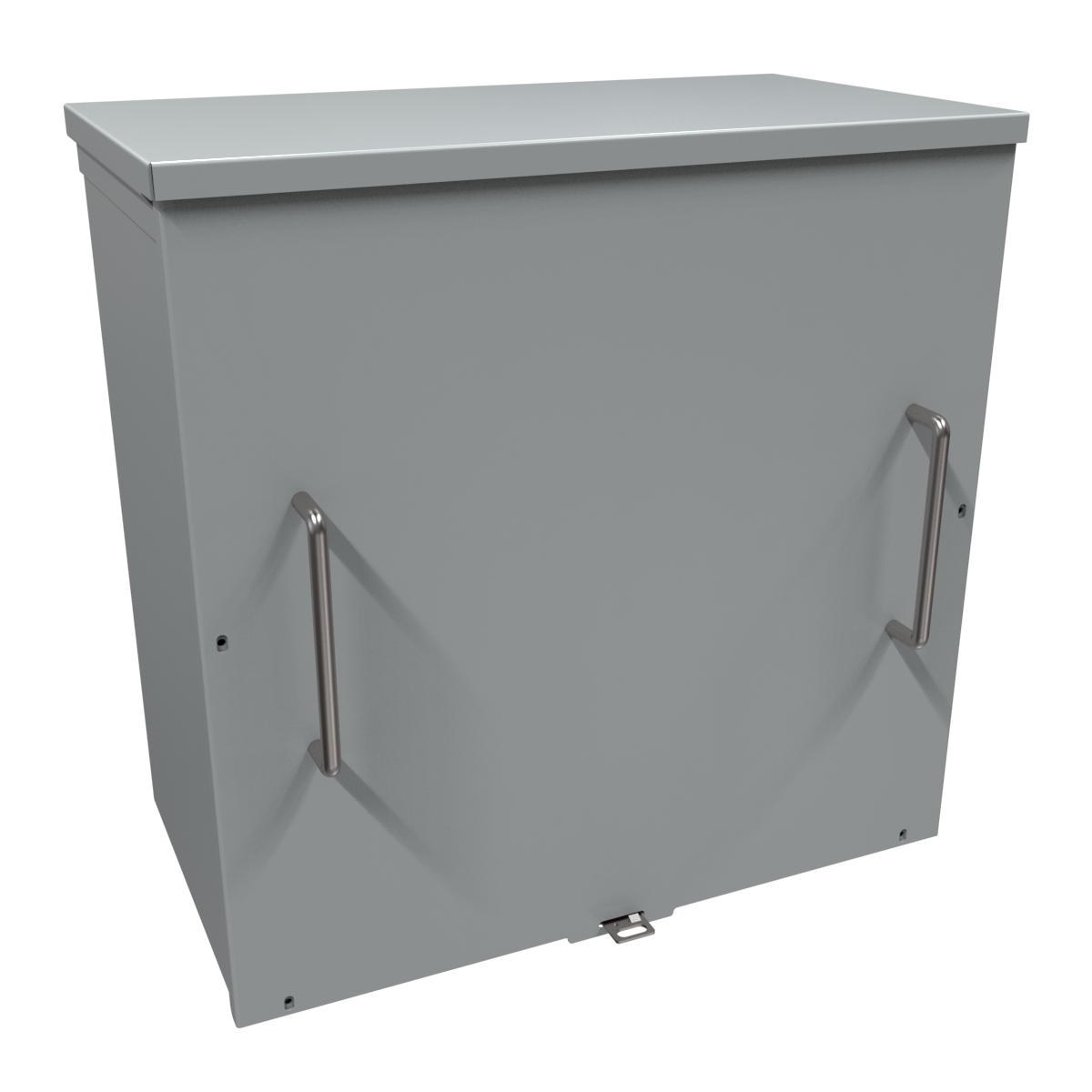

| C3R181810SC | 18.00 | 18.00 | 10.00 |

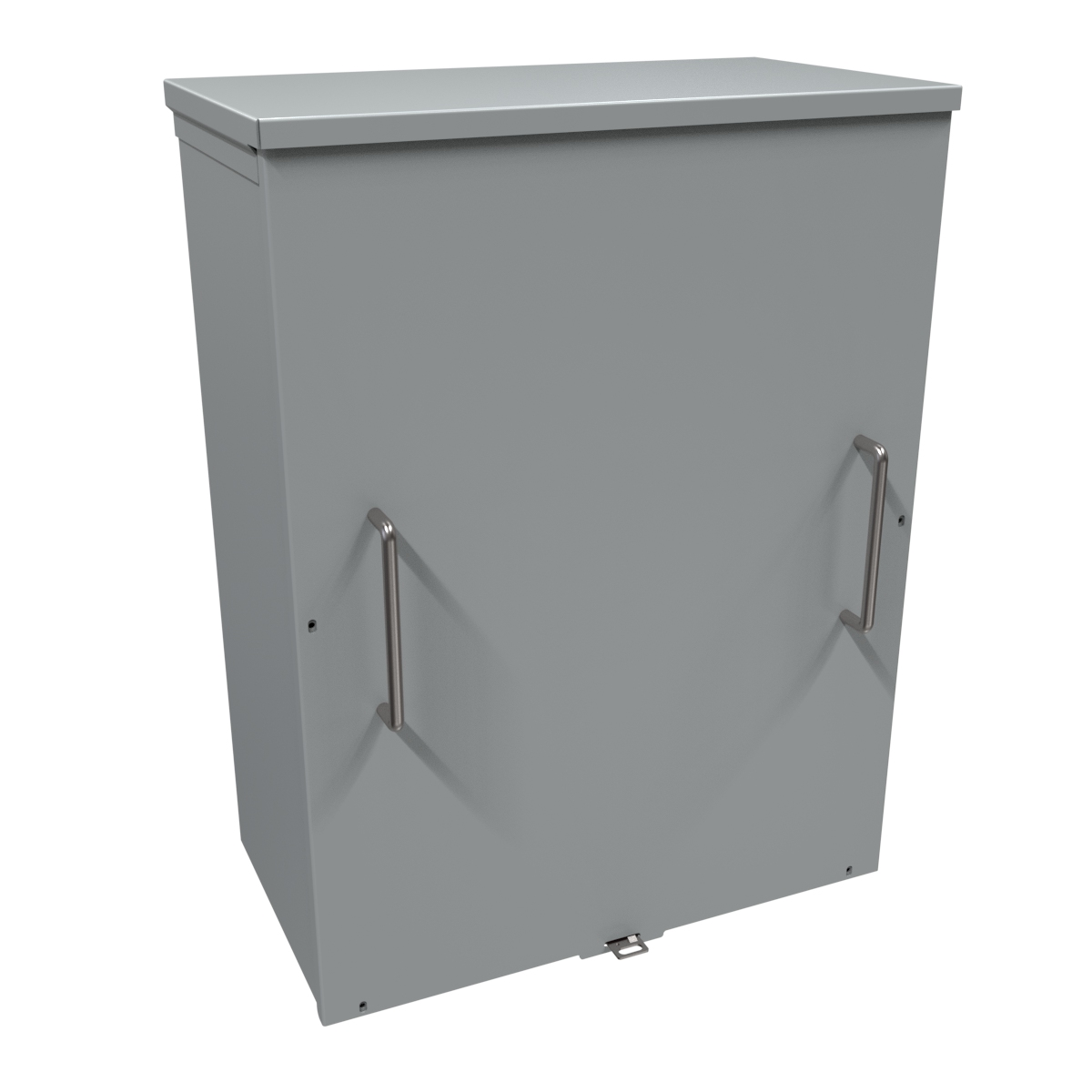

| C3R241810SC | 24.00 | 18.00 | 10.00 |

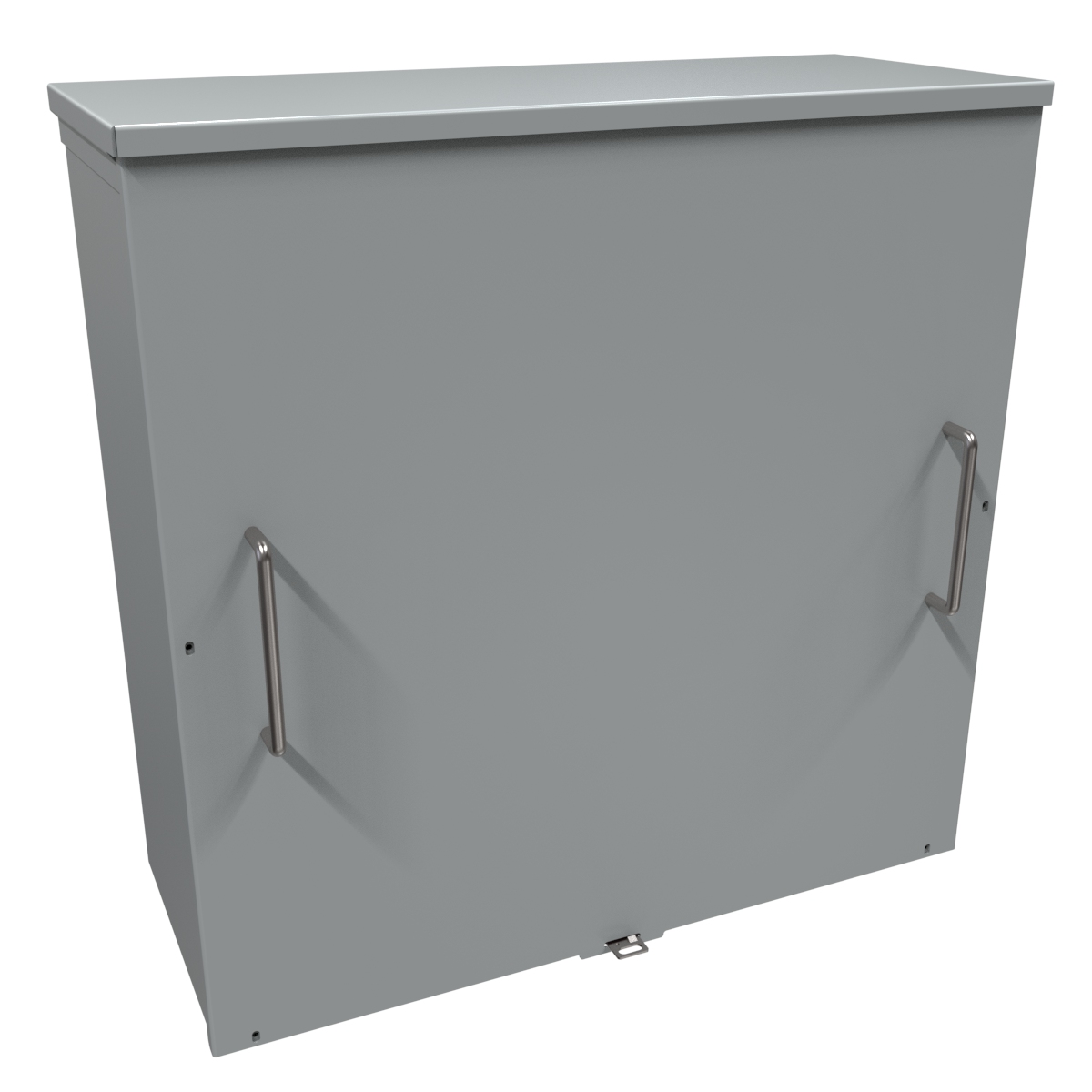

| C3R242410SC | 24.00 | 24.00 | 10.00 |
| C3R302410SC | 30.00 | 24.00 | 10.00 |
| C3R242412SC | 24.00 | 24.00 | 12.00 |
| C3R303012SC | 30.00 | 30.00 | 12.00 |

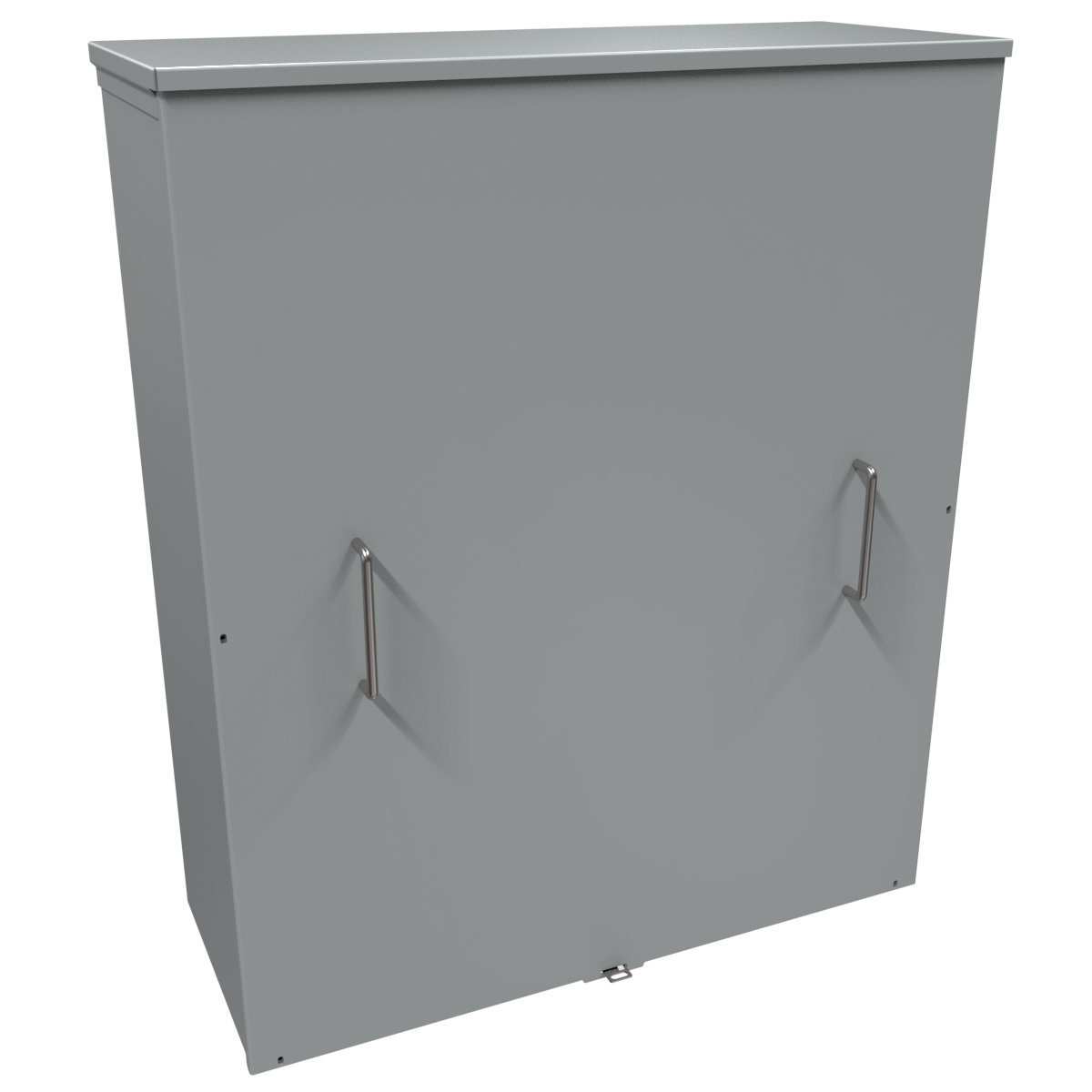

| C3R363012SC | 36.00 | 30.00 | 12.00 |
| C3R363612SC | 36.00 | 36.00 | 12.00 |

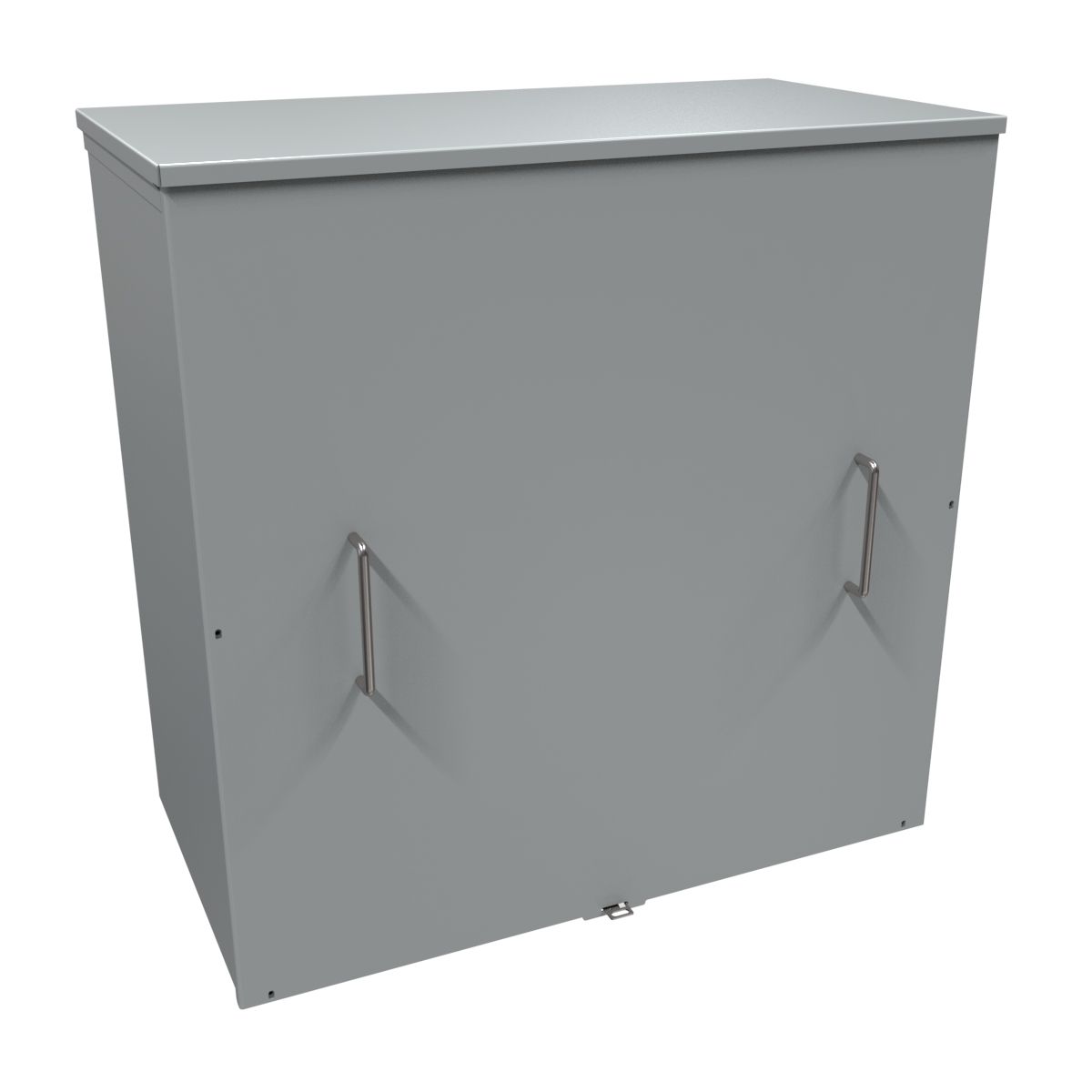

| C3R303016SC | 30.00 | 30.00 | 16.00 |

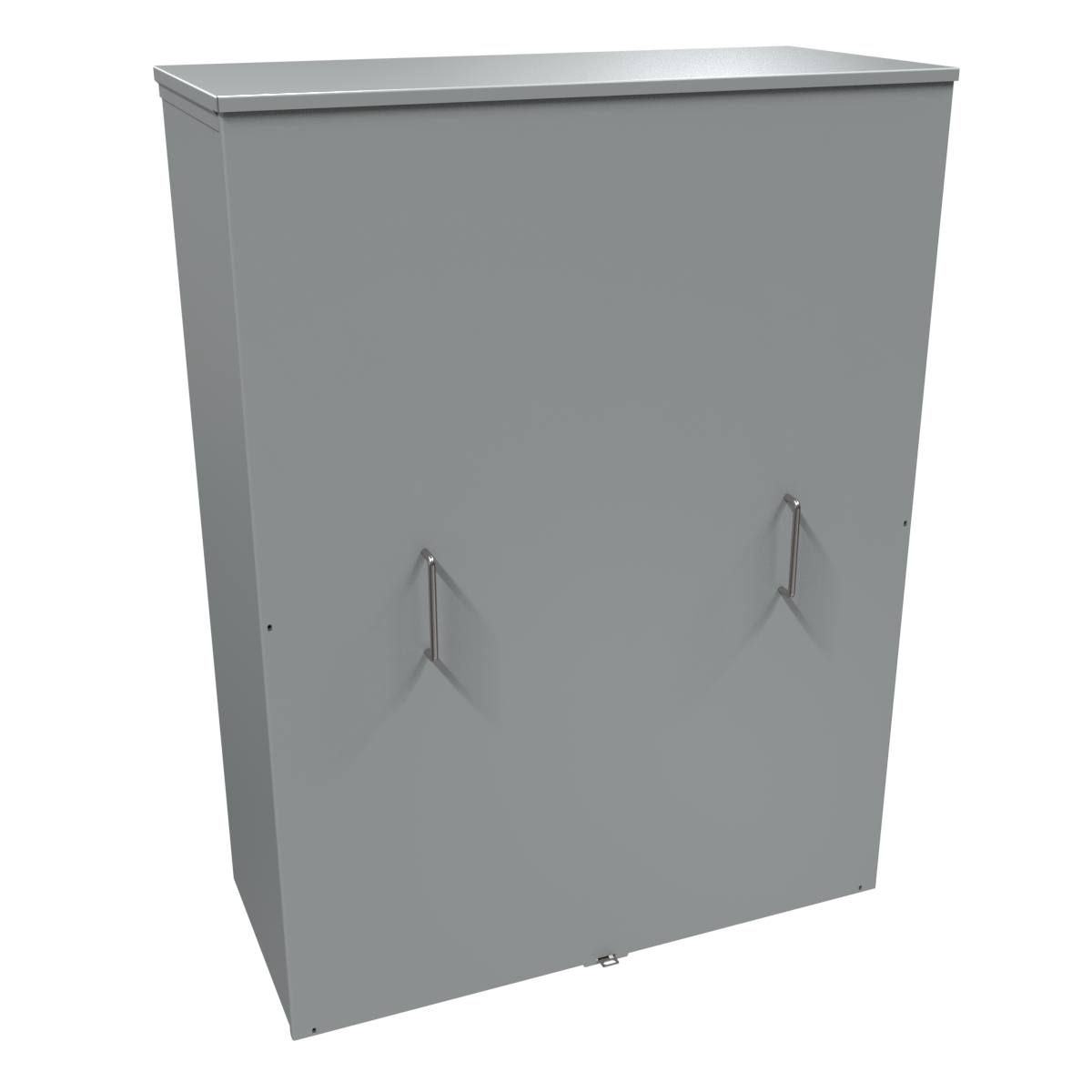

| C3R483616SC | 48.00 | 36.00 | 16.00 |
