Type 3R Mild Steel Metering Cabinets · C3RMC Series

Brand: Hammond Manufacturing · 6 part numbers

Hinge Door with Handle

■Designed for outdoor housing of metering transformers.
■CSA Approved, Type 12 or 3R To meet 3R, drain hole must be drilled in bottom of enclosure
■To meet 3R, drain hole must be drilled in bottom of enclosure
■Complies with NEMA Type 12 or 3R IEC 60529, IP54 or IP24
■NEMA Type 12 or 3R
■IEC 60529, IP54 or IP24

from $329.05

6 of 6 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents Additional information

Configure & price

Find your C3RMC Series part number

Filter 6 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

6 of 6 part numbers · 6 priced online

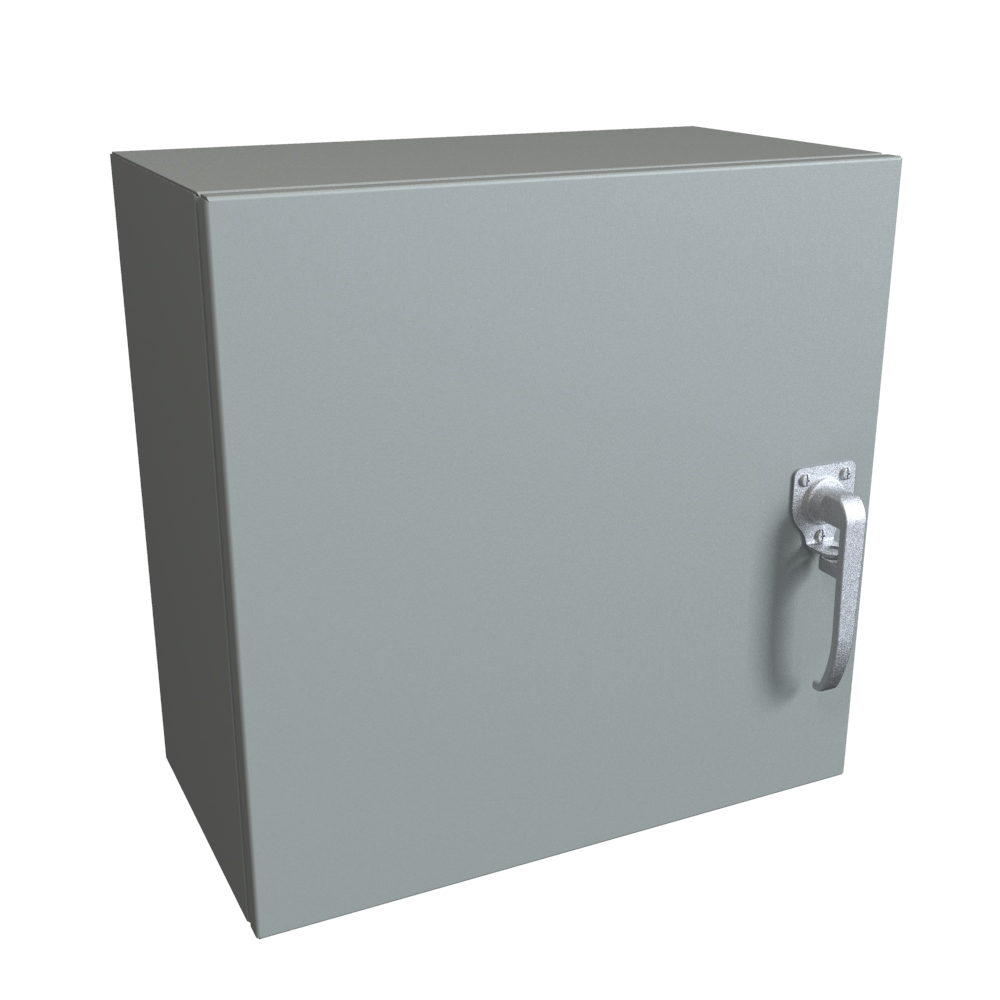

C3RMC202010

N3R Meter Cabinet

Type of Door Single

$341.95In stock

Buy now

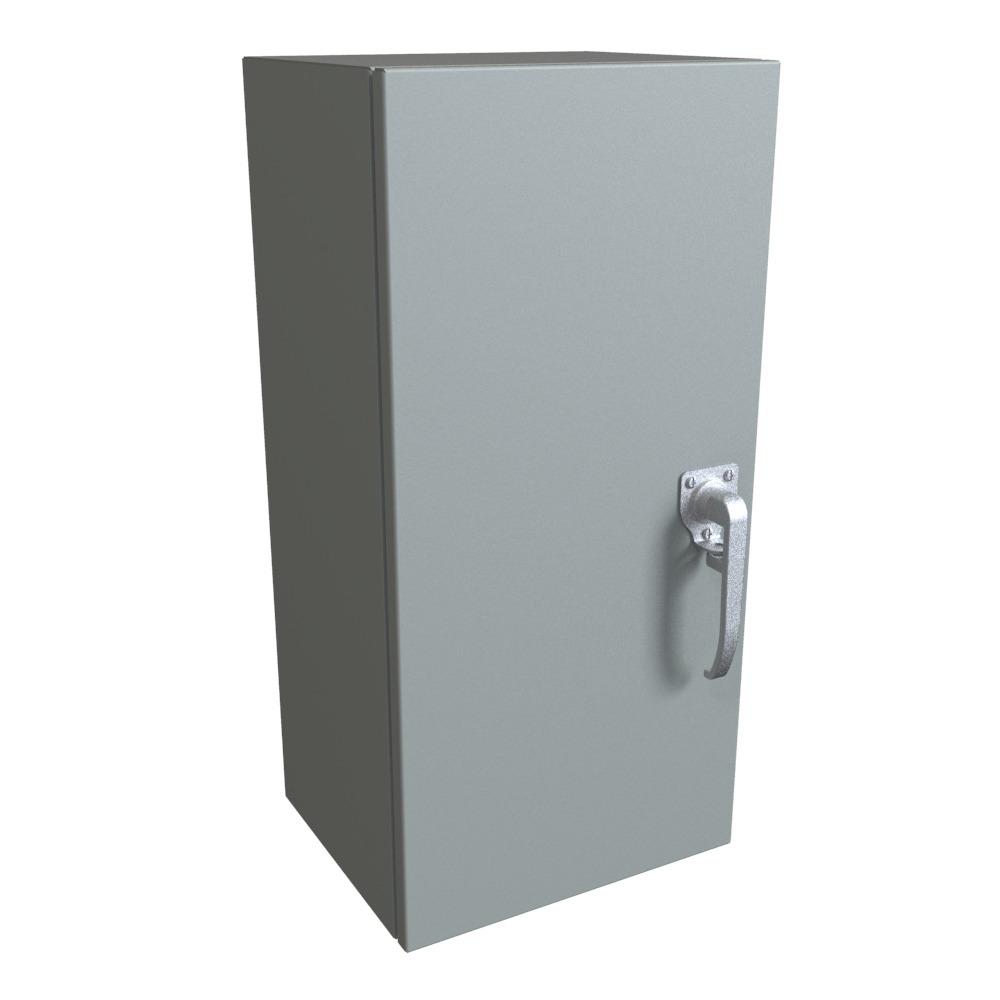

C3RMC271310

N3R Meter Cabinet

Type of Door Single

$329.05In stock

Buy now

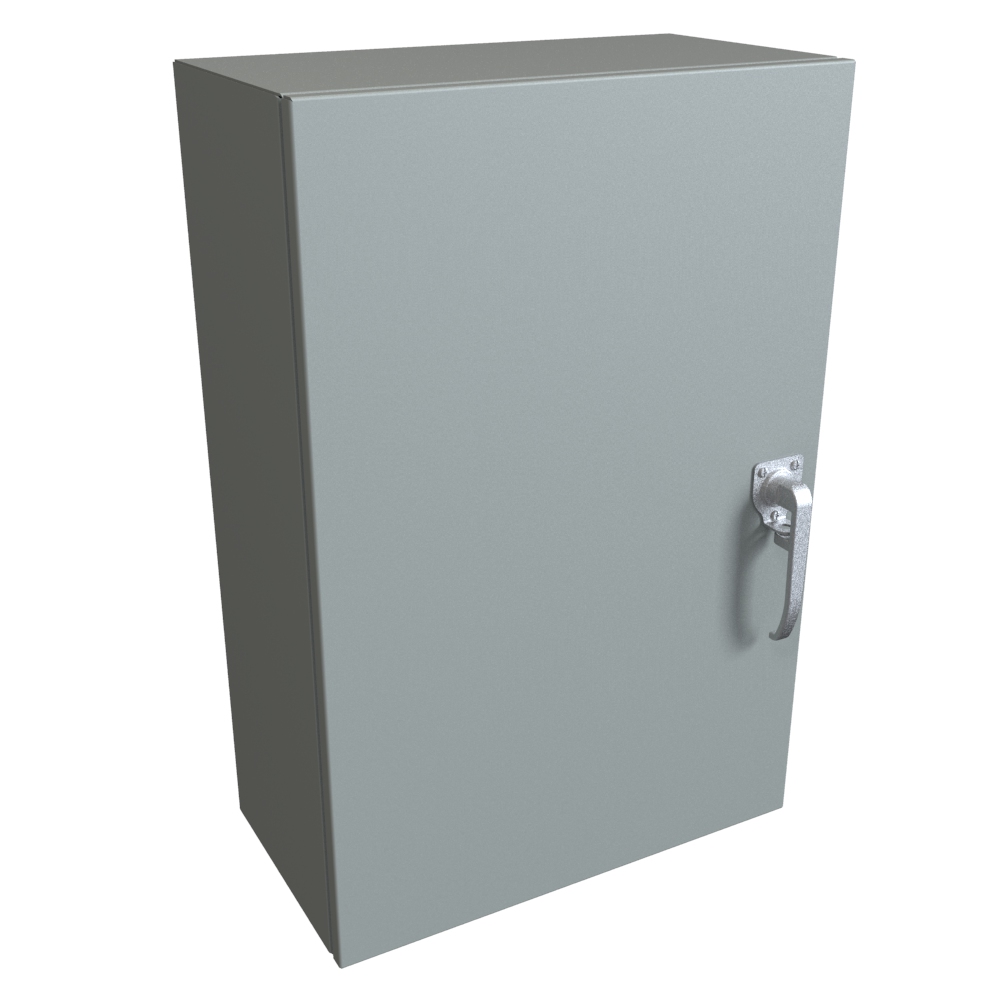

C3RMC302010

N3R Meter Cabinet

Type of Door Single

$468.18Backorder

Buy now

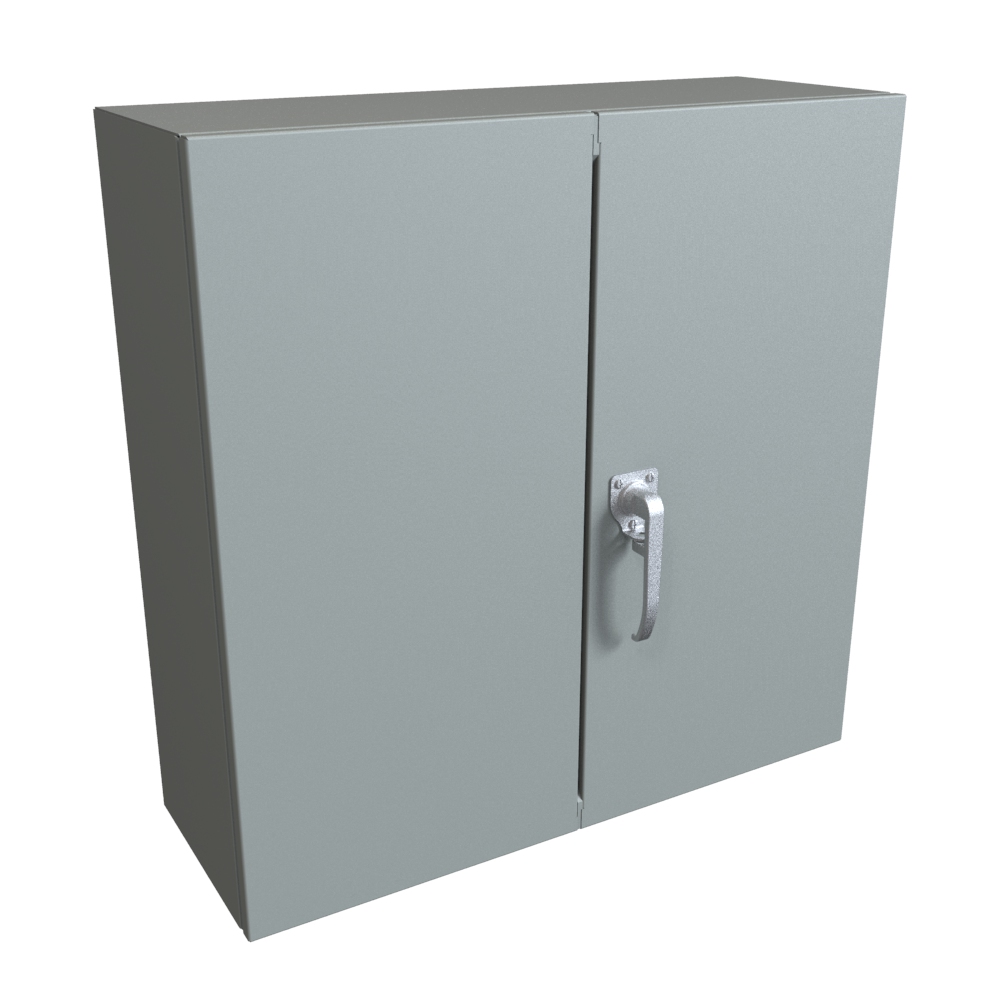

C3RMC303010

N3R Meter Cabinet

Type of Door Double

$717.38In stock

Buy now

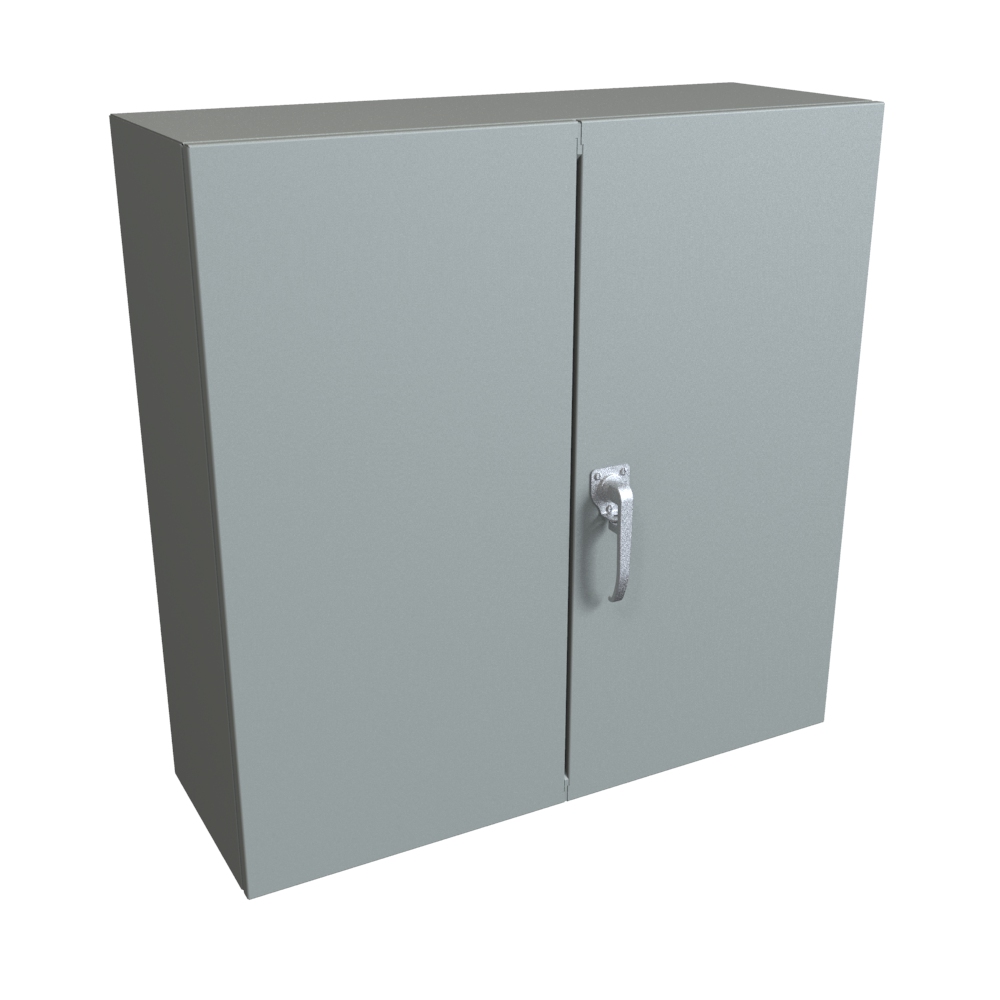

C3RMC363612

N3R Meter Cabinet

Type of Door Double

$1,117.59In stock

Buy now

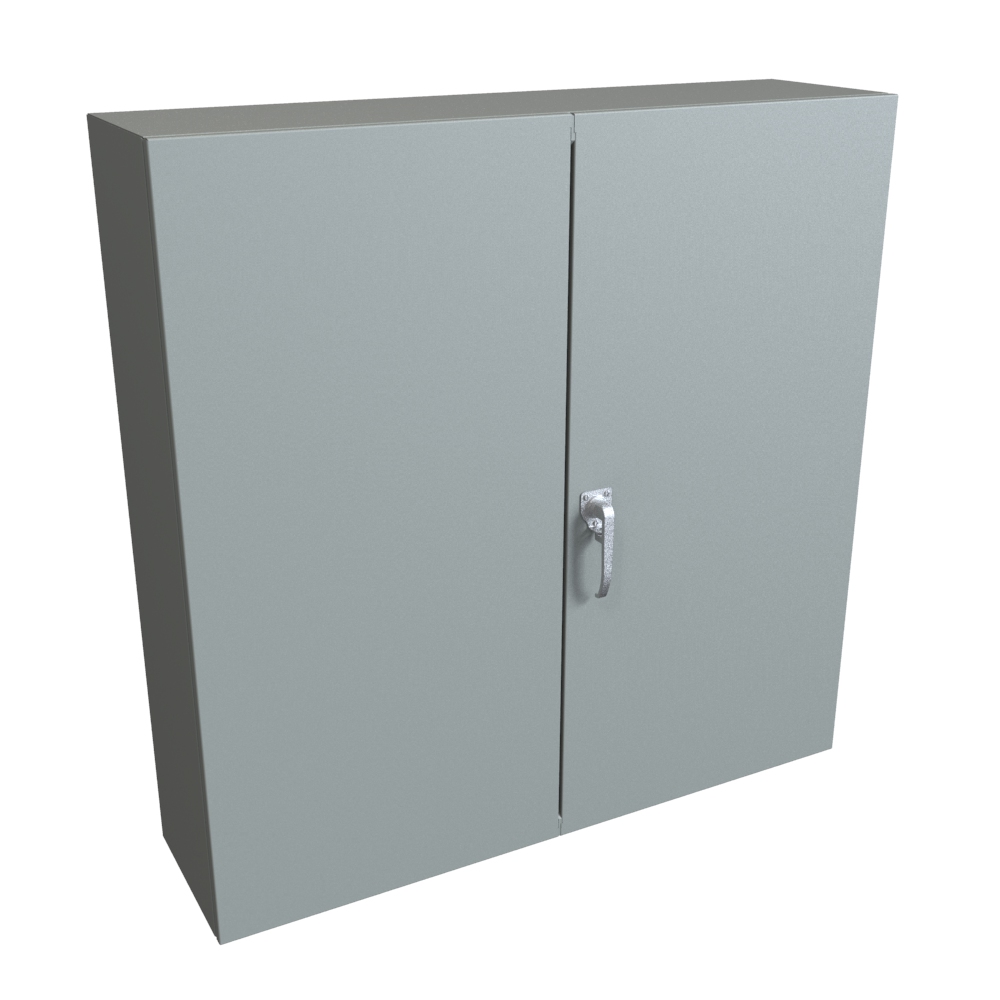

C3RMC484812

N3R Meter Cabinet

Type of Door Double

$1,898.56Backorder

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.	Type of · Door	Enclosure · H	Enclosure · W	Enclosure · D	Inner Panel · H	Inner Panel · W	Price	Order
C3RMC202010	Single	20.00	20.00	10.00	18.17	18.17	$341.95In stock	Buy now
C3RMC271310	Single	27.00	13.00	10.00	25.17	11.17	$329.05In stock	Buy now
C3RMC302010	Single	30.00	20.00	10.00	28.17	18.17	$468.18Backorder	Buy now
C3RMC303010	Double	30.00	30.00	10.00	28.17	28.17	$717.38In stock	Buy now
C3RMC363612	Double	36.00	36.00	12.00	34.17	34.17	$1,117.59In stock	Buy now
C3RMC484812	Double	48.00	48.00	12.00	46.17	46.17	$1,898.56Backorder	Buy now

Application

■Designed for outdoor housing of metering transformers.

Standards

■CSA Approved, Type 12 or 3R To meet 3R, drain hole must be drilled in bottom of enclosure
■To meet 3R, drain hole must be drilled in bottom of enclosure
■Complies with NEMA Type 12 or 3R IEC 60529, IP54 or IP24
■NEMA Type 12 or 3R
■IEC 60529, IP54 or IP24

Construction

■Offered in single and double door versions.
■Formed and seam welded from 14 or 16 gauge steel.
■Smooth, continuously welded seams ground smooth.
■Formed lip on enclosure to exclude flowing liquids and contaminants.
■Padlockable "L" style handle for 3 point latch system
■Oil resistant gaskets are permanently secured.
■Removable inner panel included.
■Collar studs provided for mounting inner panel.
■Doors may be easily removed for modifications and are interchangeable.
■Bonding stud provided on door and grounding stud installed in enclosure.
■Hinges are constructed from 304 stainless steel.
■Hinge pins are stainless steel.

Finish

■Cover and enclosure are phosphatized and finished with a recoatable ANSI 61 smooth Gray powder inside and out.
■Removable inner panel is finished in white powder coating.

Documents

Specification Sheet

Additional information

Part Details

Part No.	Type of · Door	Enclosure · H	Enclosure · W	Enclosure · D	Inner Panel · H	Inner Panel · W
C3RMC202010	Single	20.00	20.00	10.00	18.17	18.17
C3RMC271310	Single	27.00	13.00	10.00	25.17	11.17
C3RMC302010	Single	30.00	20.00	10.00	28.17	18.17
C3RMC303010	Double	30.00	30.00	10.00	28.17	28.17
C3RMC363612	Double	36.00	36.00	12.00	34.17	34.17
C3RMC484812	Double	48.00	48.00	12.00	46.17	46.17
