3R Hinge Cov 10X8X6
$63.68In stock
Buy now
Type 3R Painted Galvanized Steel Junction Box · C3R HCR SM Series
Brand: Hammond Manufacturing · 15 part numbers
Hinge Door with Snap Latch and w/ Knockouts
- ■Designed for use as a wiring/junction box.
- ■Provides protection against rain, sleet, snow and dripping water.
- ■UL-50 Type 3R
- ■CSA Type 3R
- ■Complies with NEMA Type 3R IEC 60529, IP24
- ■NEMA Type 3R
from $3.97
15 of 15 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your C3R HCR SM Series part number
Filter 8 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
8 of 8 part numbers · 8 priced online
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|

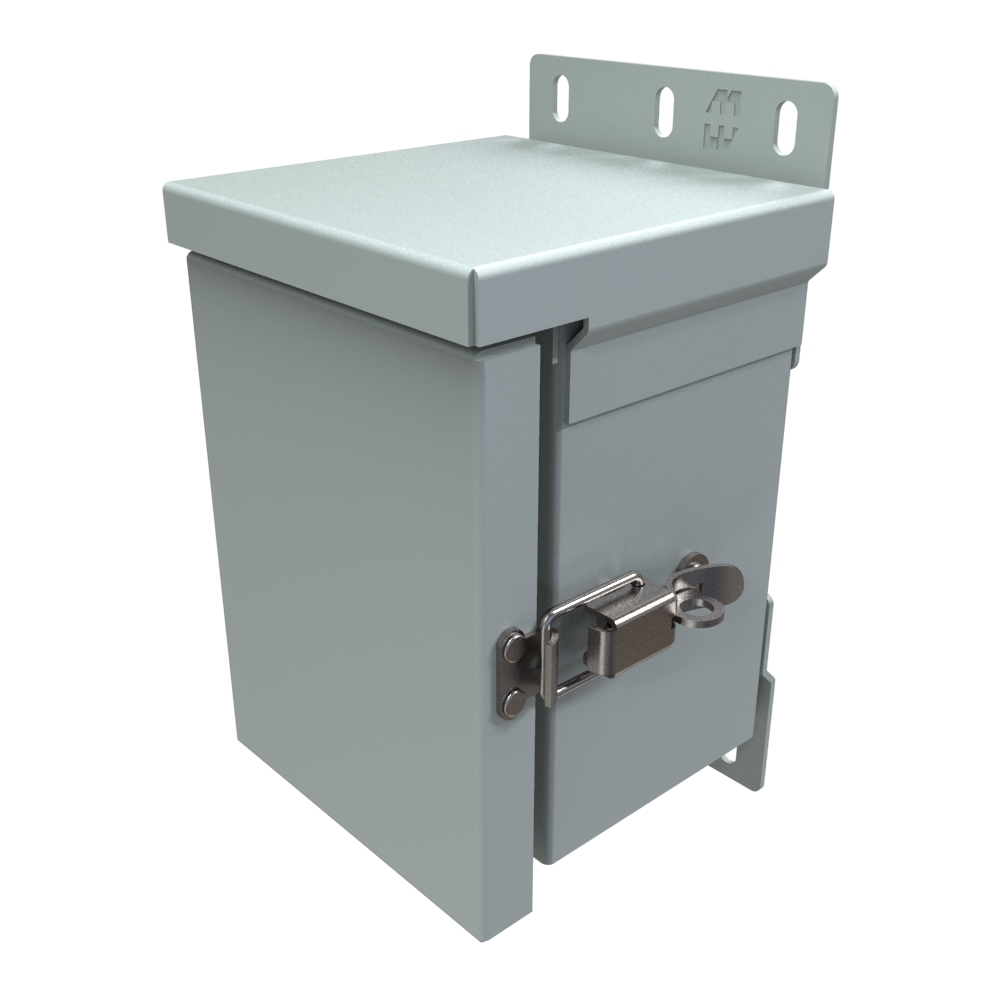

| C3R644HCR | 6.00 | 4.00 | 4.00 | N1JP64 | 4.25 | 2.25 | $51.47In stockC3R644HCR | Buy now |

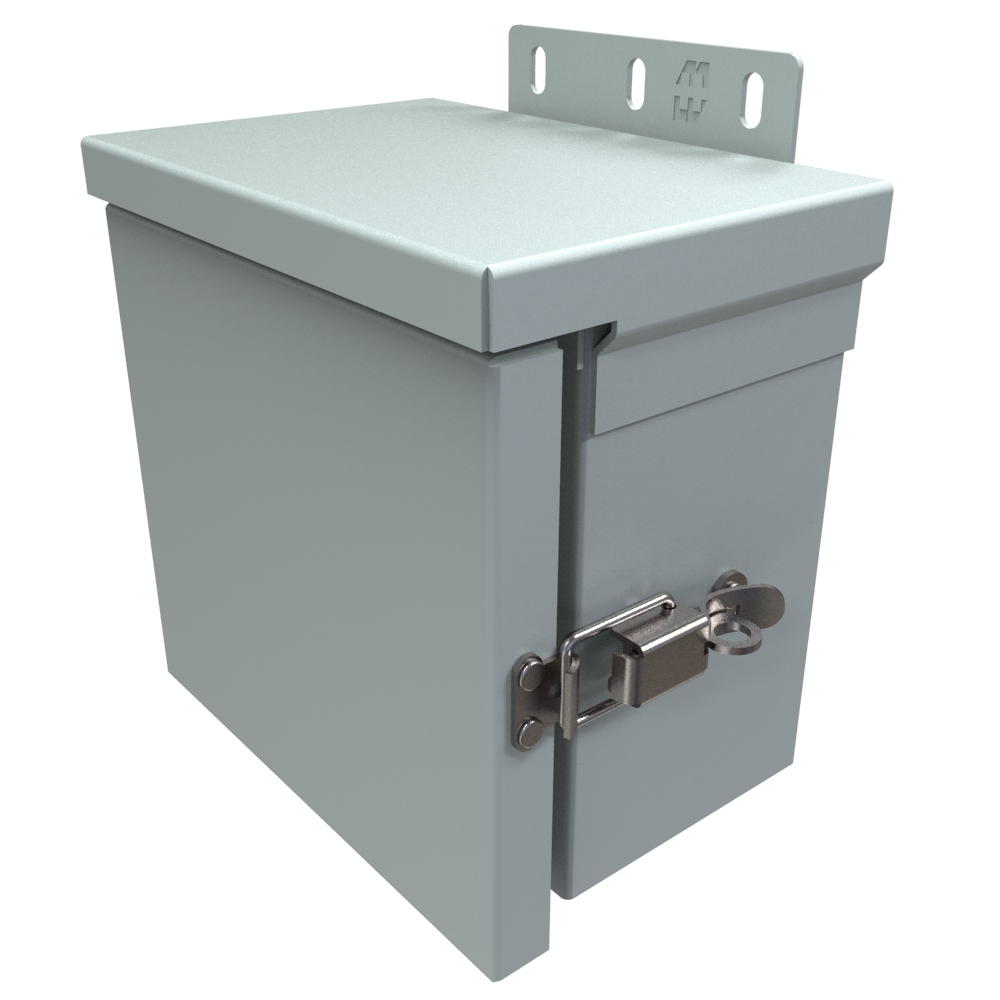

| C3R664HCR | 6.00 | 6.00 | 4.00 | N1JP66 | 4.25 | 4.25 | $41.06In stockC3R664HCR | Buy now |

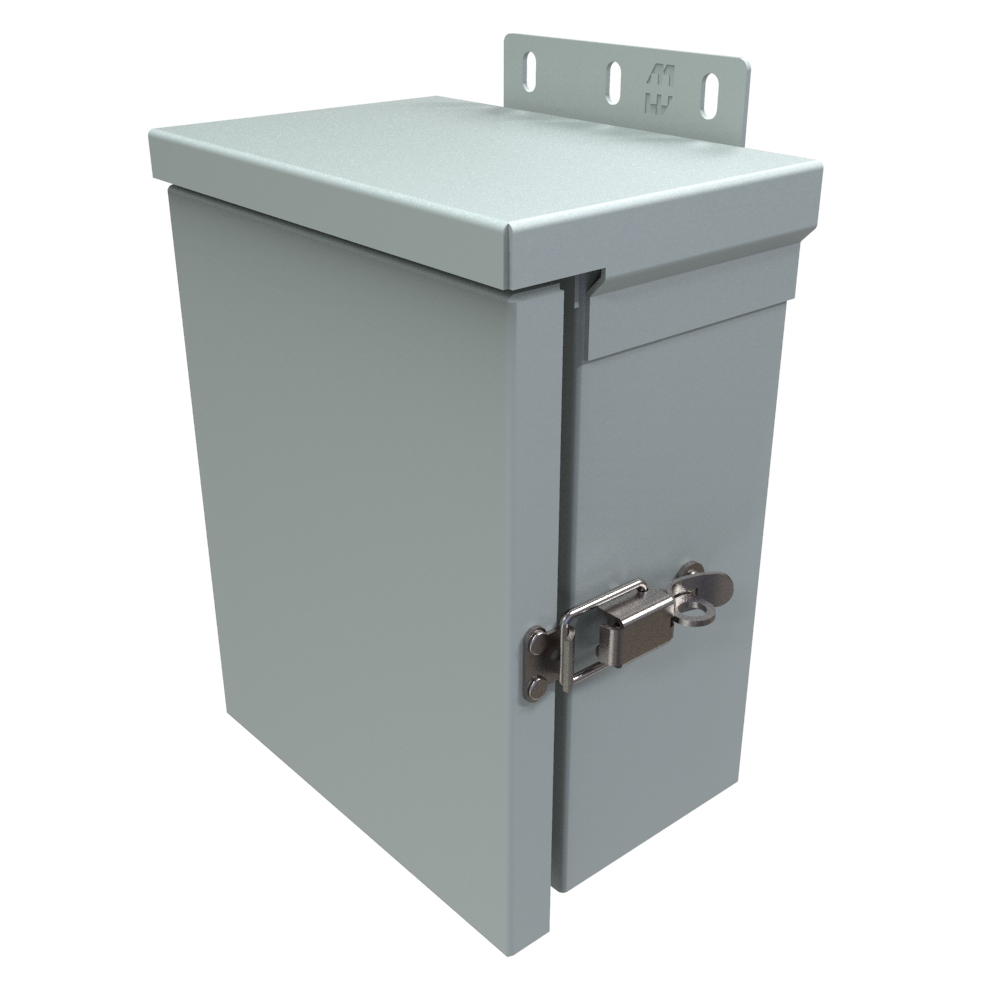

| C3R864HCR | 8.00 | 6.00 | 4.00 | N1JP86 | 6.25 | 4.25 | $45.90In stockC3R864HCR | Buy now |

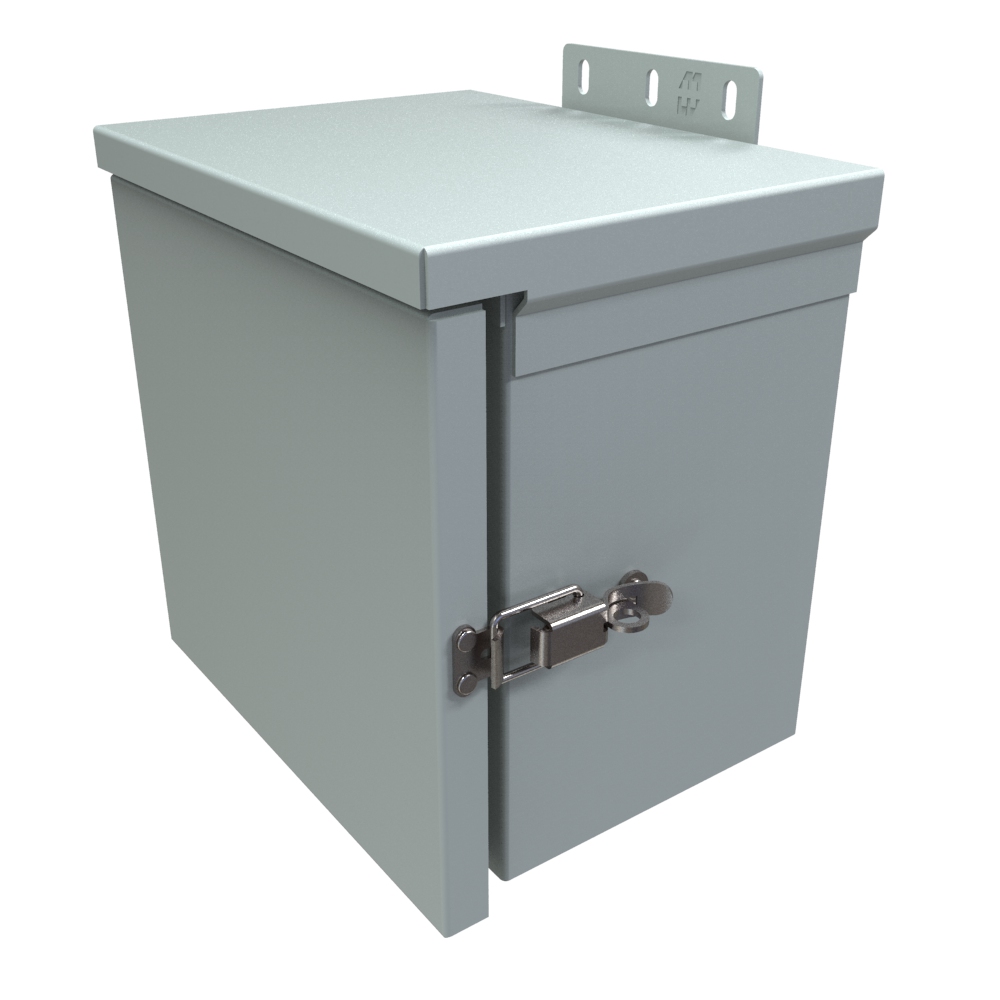

| C3R886HCR | 8.00 | 8.00 | 6.00 | N1JP88 | 6.25 | 6.25 | $58.15In stockC3R886HCR | Buy now |

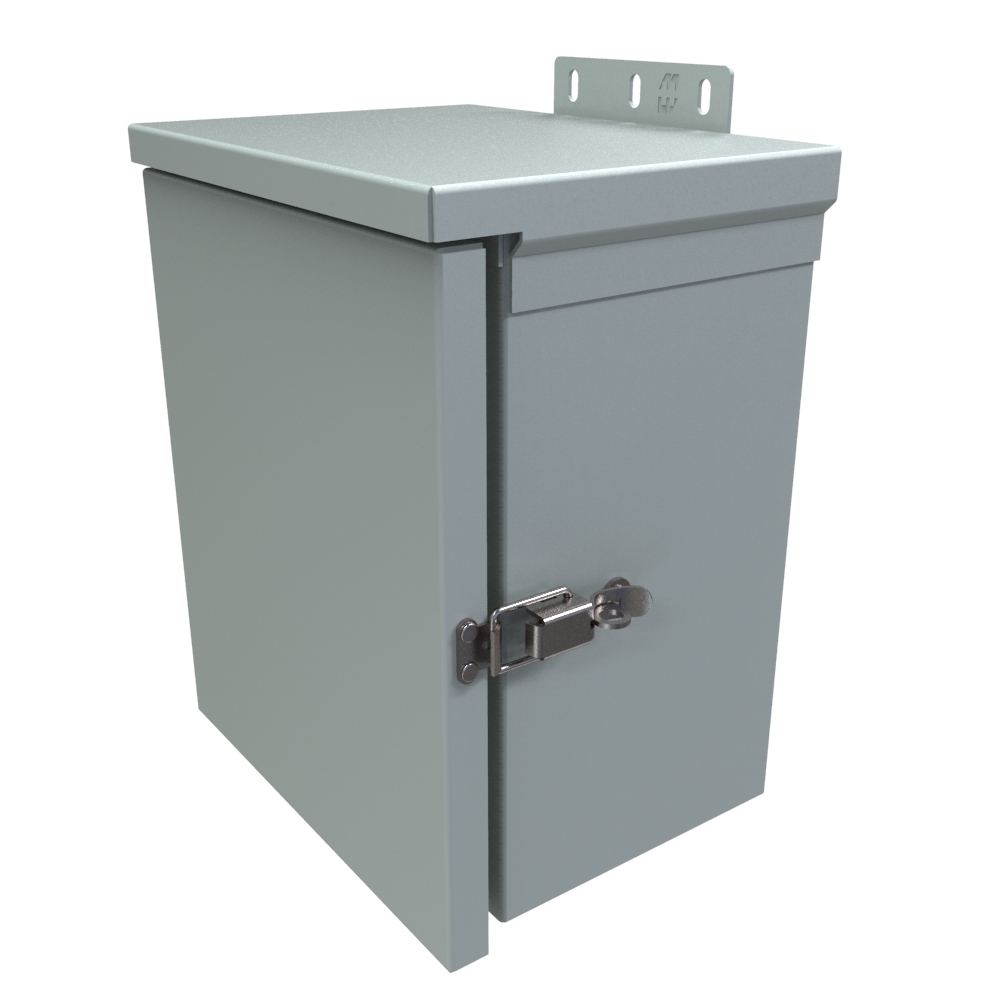

| C3R1086HCR | 10.00 | 8.00 | 6.00 | N1JP108 | 8.25 | 6.25 | $63.68In stockC3R1086HCR | Buy now |

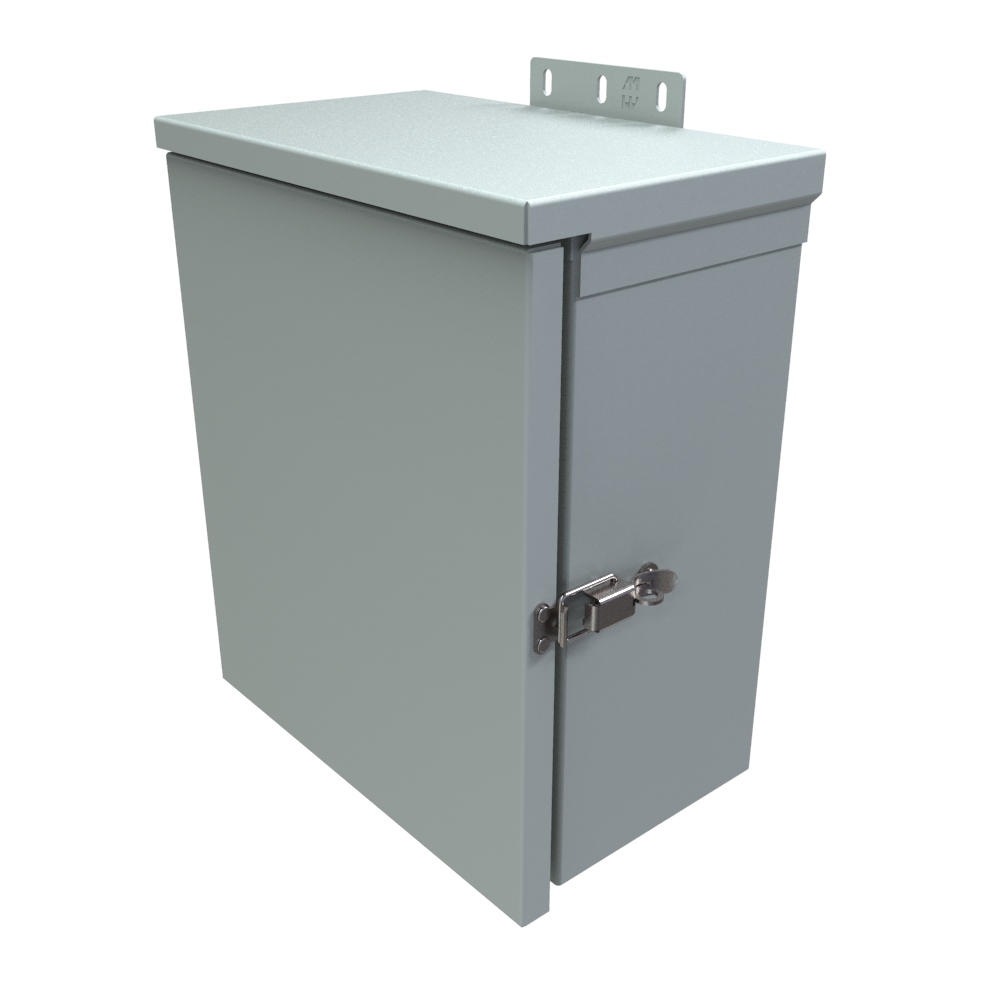

| C3R12106HCR | 12.00 | 10.00 | 6.00 | N1JP1210 | 10.25 | 8.25 | $77.65In stockC3R12106HCR | Buy now |

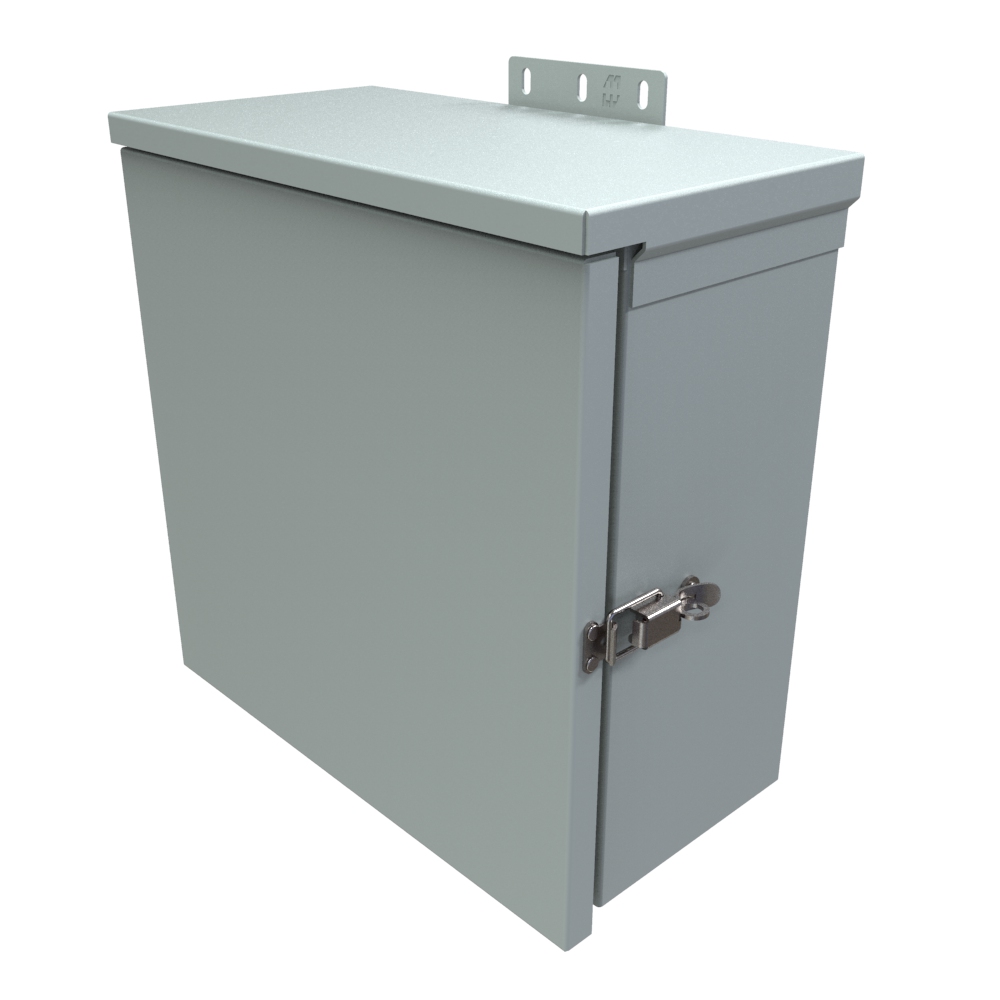

| C3R12126HCR | 12.00 | 12.00 | 6.00 | N1JP1212 | 10.25 | 10.25 | $85.32In stockC3R12126HCR | Buy now |

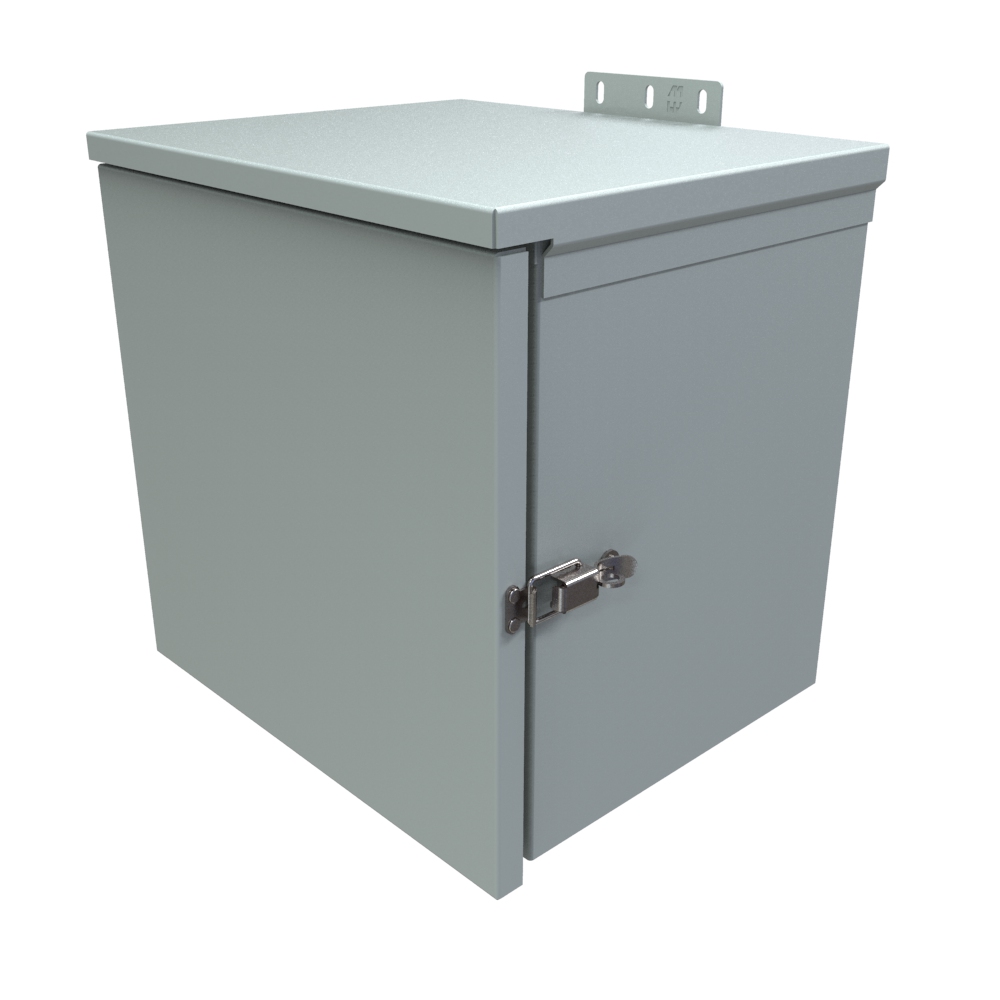

| C3R121210HCR | 12.00 | 12.00 | 10.00 | N1JP1212 | 10.25 | 10.25 | $170.46In stockC3R121210HCR | Buy now |
Application
- ■Designed for use as a wiring/junction box.
- ■Provides protection against rain, sleet, snow and dripping water.
Standards
- ■UL-50 Type 3R
- ■CSA Type 3R
- ■Complies with NEMA Type 3R IEC 60529, IP24
- ■NEMA Type 3R
- ■IEC 60529, IP24
Construction
- ■Formed and spot welded from 16 gauge galvanized steel.
- ■Drip-shield top and seam-free sides, front and back.
- ■Galvanized steel hinge has stainless steel pin.
- ■Provisions for padlocking on zinc-plated draw pull catch.

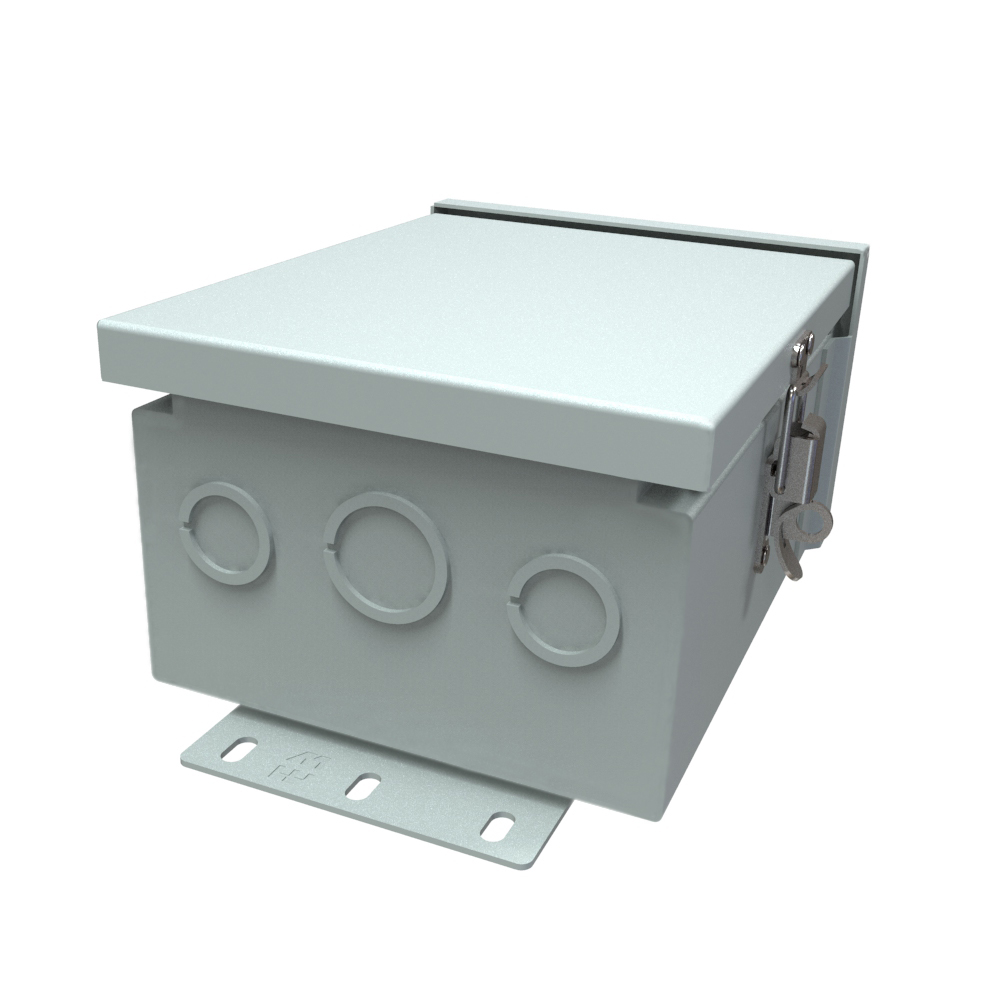

- ■Easily removed knockouts on bottom of enclosure.
- ■Panel studs provided for mounting optional panels.
- ■External mounting feet.
- ■Oil resistant gaskets are permanently secured.
Finish
- ■Enclosure and cover are finished in ANSI 61 gray powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W |
|---|---|---|---|---|---|---|
| C3R644HCR | 6.00 | 4.00 | 4.00 | N1JP64 | 4.25 | 2.25 |
| C3R664HCR | 6.00 | 6.00 | 4.00 | N1JP66 | 4.25 | 4.25 |
| C3R864HCR | 8.00 | 6.00 | 4.00 | N1JP86 | 6.25 | 4.25 |
| C3R886HCR | 8.00 | 8.00 | 6.00 | N1JP88 | 6.25 | 6.25 |
| C3R1086HCR | 10.00 | 8.00 | 6.00 | N1JP108 | 8.25 | 6.25 |
| C3R12106HCR | 12.00 | 10.00 | 6.00 | N1JP1210 | 10.25 | 8.25 |
| C3R12126HCR | 12.00 | 12.00 | 6.00 | N1JP1212 | 10.25 | 10.25 |
| C3R121210HCR | 12.00 | 12.00 | 10.00 | N1JP1212 | 10.25 | 10.25 |
