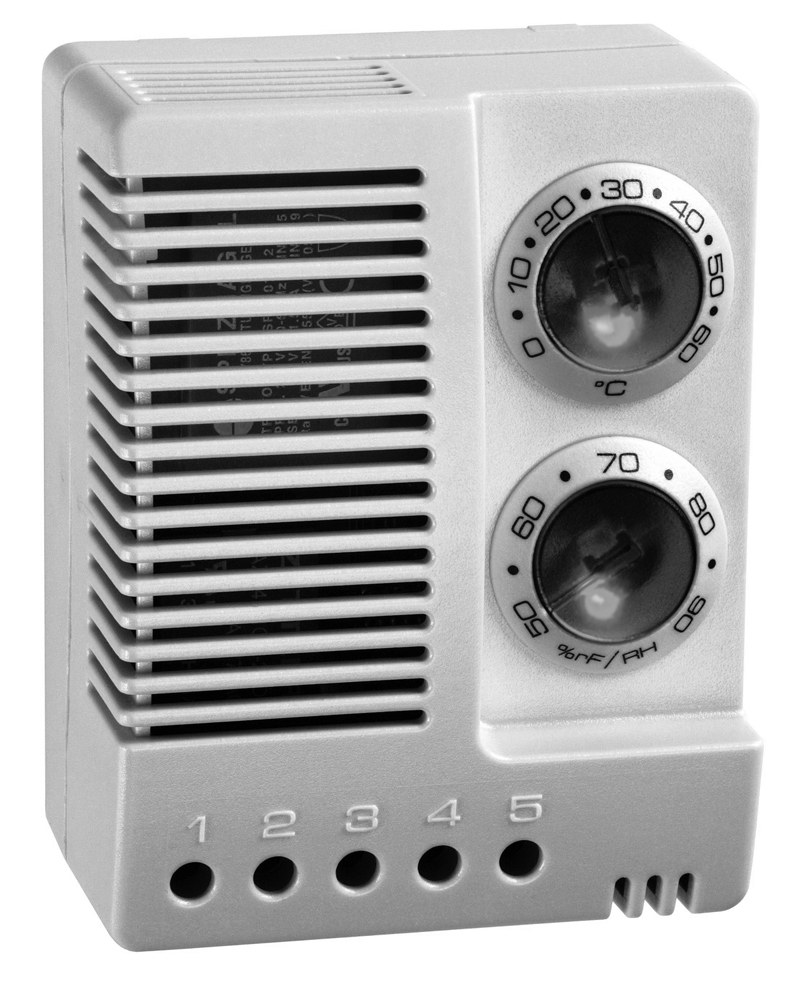

Humidity and Temperature Control · SKTH Series

Brand: Hammond Manufacturing · 2 part numbers

■Designed to provide both air temperature and humidity control as well as monitoring in electrical and electronic enclosures.
■Independently senses the relative humidity and temperature. Resistive and inductive loads (heaters or filter fans) can be switched.
■Highly effective in ATMs, parking control gates, ticket dispensers and traffic control systems where equipment is exposed to wide ranging outdoor elements.

from $310.41

2 of 2 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents Additional information

Configure & price

Find your SKTH Series part number

Filter 3 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

3 of 3 part numbers · 2 priced online

SKTH012009

Humity & Temp Thermostat

Temperature Displa +32 to + 140 F

$310.41In stock

Buy now

SKTH012009-C

Humity & Temp Thermostat C

Temperature Displa 0 to +60 C

$310.41In stock

Buy now

SKTH012009230

Humity & Temp Thermostat 230V

QuoteRequest a quote

Dimension tables (inches / mm)

Part No.	Dimensions · Height x Width x Depth	Temperature Display	Operating Voltage	Price	Order
SKTH012009	3.0 x 2.4 x 1.77	+32 to + 140 F	100 - 240 VAC 50/60 Hz (min 90 V , max 265 V)	$310.41In stock	Buy now
SKTH012009-C	3.0 x 2.4 x 1.77	0 to +60 C	100 - 240 VAC 50/60 Hz (min 90 V , max 265 V)	$310.41In stock	Buy now

col1	col2	Price	Order
Switching Difference ( temperature)	2K (+/- 1K at 25C (+77F) 50% RH )	Quote	Quote
Switching Difference ( humidity)	4% RH (+/- 1K at 25C (+77F) 50% RH )	Quote	Quote
Operating/Storage temperature	-40 °C to 60 °C (-40 °F to 140 °F)	Quote	Quote
Setting range (humidity)	50 to 90% RH	Quote	Quote
Reaction time	aprox 5 sec	Quote	Quote
Contact type	Change over ( relay)	Quote	Quote
Service life	NO/NC 30,000 cycles	Quote	Quote
Max Switching Relay output	10A Resistive / 1.6A inductive @ 240 VAC 0.6 @ 60 VDC	Quote	Quote
Max inrush current	AC 30 A for 10 sec	Quote	Quote
Case	Plastic UL 94V-O light Gray	Quote	Quote
Mounting	35 mm Din rail	Quote	Quote
Weight	3.5 oz . 100g	Quote	Quote
Protection	IP20	Quote	Quote
Approvals	UL file E164102 / UR componet / CE	Quote	Quote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Features

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

■Designed to provide both air temperature and humidity control as well as monitoring in electrical and electronic enclosures.
■Independently senses the relative humidity and temperature. Resistive and inductive loads (heaters or filter fans) can be switched.
■Highly effective in ATMs, parking control gates, ticket dispensers and traffic control systems where equipment is exposed to wide ranging outdoor elements.

Documents

Specification Sheet

Additional information

Part Details

Part No.	Dimensions · Height x Width x Depth	Temperature Display	Operating Voltage
SKTH012009	3.0 x 2.4 x 1.77	+32 to + 140 F	100 - 240 VAC 50/60 Hz (min 90 V , max 265 V)
SKTH012009-C	3.0 x 2.4 x 1.77	0 to +60 C	100 - 240 VAC 50/60 Hz (min 90 V , max 265 V)

Part Details

col1	col2
Switching Difference ( temperature)	2K (+/- 1K at 25C (+77F) 50% RH )
Switching Difference ( humidity)	4% RH (+/- 1K at 25C (+77F) 50% RH )
Operating/Storage temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Setting range (humidity)	50 to 90% RH
Reaction time	aprox 5 sec
Contact type	Change over ( relay)
Service life	NO/NC 30,000 cycles
Max Switching Relay output	10A Resistive / 1.6A inductive @ 240 VAC 0.6 @ 60 VDC
Max inrush current	AC 30 A for 10 sec
Case	Plastic UL 94V-O light Gray
Mounting	35 mm Din rail
Weight	3.5 oz . 100g
Protection	IP20
Approvals	UL file E164102 / UR componet / CE
