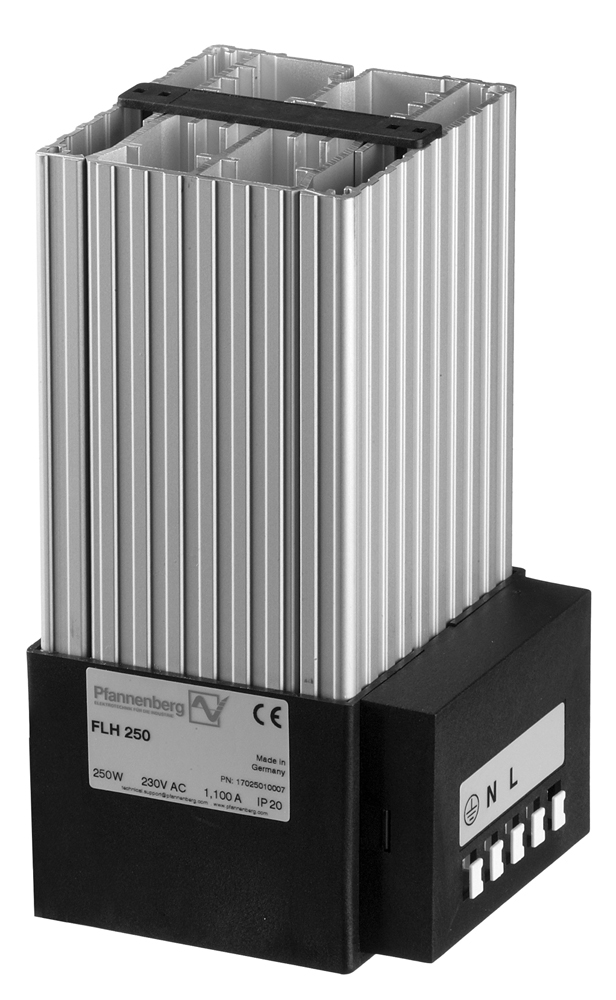

Axial Fanheater 250W
- Starting Current 2.2 A
QuoteRequest a quote
250-400 W Fan Heater · SHGL Series
Brand: Hammond Manufacturing · 2 part numbers
- ■For use when larger heating capacities or internal forced air circulation is required.
- ■Designed to prevent condensation or maintain minimum temperature in enclosures.
- ■Thermostats are also available.
from $366.81
1 of 2 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your SHGL Series part number
Filter 2 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
| col1 | col2 | Price | Order |
|---|---|---|---|
| Operating Voltage: | AC 110-120 V, 50/60 Hz | Quote | Quote |
| Circulation Power: | 20 CFM Free Blowing | Quote | Quote |
| Axial Fan: | Ball Bearing | Quote | Quote |
| Durability: | 30,000 hrs. at 68°F ambient temperature | Quote | Quote |
| Heating Element: | Resistance heating element with temperature limiter | Quote | Quote |
| Heating Body: | Extruded aluminum, black anodized | Quote | Quote |
| Connection: | 3 pole terminal for 12 AWG | Quote | Quote |
| Mounting: | Easily installed by clip mounting on 35 mm DIN rails (included) | Quote | Quote |
| Protection Class: | 1 (tested for grounding at 1250 V) | Quote | Quote |
| Protection: | IP20 | Quote | Quote |
| Approval: | UL Recognized Component, cUL Recognized Component, CE | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
Features
- ■For use when larger heating capacities or internal forced air circulation is required.
- ■Designed to prevent condensation or maintain minimum temperature in enclosures.
- ■Thermostats are also available.
Documents
Additional information
Part Details
| Part No. | Watts | Surface Temperature | Starting Current | Dimensions · Length x Width x Depth |
|---|---|---|---|---|
| SHGL04600 | 250 | 167°F | 2.2 A | 7.00 x 3.15 x 3.15 |
| SHGL04601 | 400 | 167°F | 3.5 A | 9.76 x 3.15 x 3.15 |
Part Details
| col1 | col2 |
|---|---|
| Operating Voltage: | AC 110-120 V, 50/60 Hz |
| Circulation Power: | 20 CFM Free Blowing |
| Axial Fan: | Ball Bearing |
| Durability: | 30,000 hrs. at 68°F ambient temperature |
| Heating Element: | Resistance heating element with temperature limiter |
| Heating Body: | Extruded aluminum, black anodized |
| Connection: | 3 pole terminal for 12 AWG |
| Mounting: | Easily installed by clip mounting on 35 mm DIN rails (included) |
| Protection Class: | 1 (tested for grounding at 1250 V) |
| Protection: | IP20 |
| Approval: | UL Recognized Component, cUL Recognized Component, CE |
