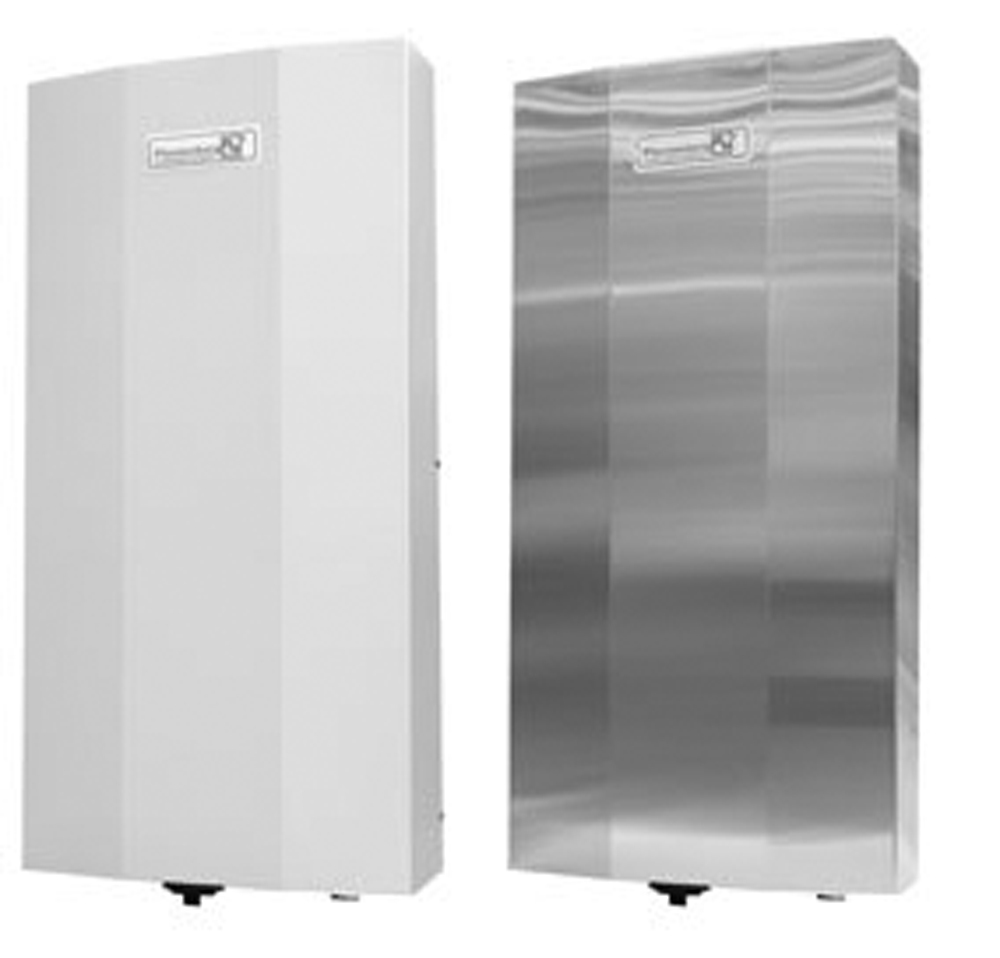

3000-6000 BTU/H Air/Water Heat Exchanger · PWS 3000 Series

Brand: Hammond Manufacturing · 8 part numbers

Type 3R, 4, 4X

■Designed to use various water sources to cool enclosures where ambient conditions involve high temperatures, harsh conditions or are subject to frequent wash-down.
■UL, cUL, and CE
■Complies with NEMA 3R, 4, 4X
■NEMA 3R, 4, 4X
■Compatible with chilled water/glycol, tower water and other circulated coolants
■Integrated thermostat & solenoid value with alarm contact provides automatic temperature control

from $1,663.56

8 of 8 part numbers priced · available on backorder · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents

Configure & price

Find your PWS 3000 Series part number

Filter 8 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

8 of 8 part numbers · 8 priced online

PWS3102A115N4LG

Aw Hx 1100W-3R/4-LT.GRAY

$1,663.56Backorder

Buy now

PWS3102A115N4SS

Aw Hx 100W-4/4X SS

$2,127.18Backorder

Buy now

PWS3102A230N4LG

Aw Hx 1100W-3R/4-LT.GRAY

$1,663.56Backorder

Buy now

PWS3102A230N4SS

Aw Hx 1100W-4/4X SS

$2,127.18Backorder

Buy now

PWS3152A115N4LG

Aw Hx 1700W-3R/4-LT.GRAY

$2,061.73Backorder

Buy now

PWS3152A115N4SS

Aw Hx 1700W-4/4X SS

$2,563.54Backorder

Buy now

PWS3152A230N4LG

Aw Hx 1700W-3R/4-LT.GRAY

$2,061.73Backorder

Buy now

PWS3152A230N4SS

Aw Hx 1700W-4/4X SS

$2,563.54Backorder

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part Number	H	W	D	Price	Order
PWS3102A115N4LG	32.05	15.80	6.28	$1,663.56Backorder	Buy now
PWS3102A230N4LG	32.05	15.80	6.28	$1,663.56Backorder	Buy now
PWS3102A115N4SS	32.05	15.80	6.28	$2,127.18Backorder	Buy now
PWS3102A230N4SS	32.05	15.80	6.28	$2,127.18Backorder	Buy now
PWS3152A115N4LG	36.65	11.78	8.11	$2,061.73Backorder	Buy now
PWS3152A230N4LG	36.65	11.78	8.11	$2,061.73Backorder	Buy now
PWS3152A115N4SS	36.65	11.78	8.11	$2,563.54Backorder	Buy now
PWS3152A230N4SS	36.65	11.78	8.11	$2,563.54Backorder	Buy now

Electrical Data	PWS3102	PWS3102 (2)	PWS3152	PWS3152 (2)	Price	Order
Rated Voltage	115	230	115	230	Quote	Quote
Frequency Hz	60	50/60	60	50/60	Quote	Quote
Power Consumption	52.9 W	58.0 W	55.7 W	58 W	Quote	Quote
Running Amps	0.57	0.29	0.56	0.29	Quote	Quote
Connection	Terminal Block	Terminal Block	Terminal Block	Terminal Block	Quote	Quote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Cooling Data	PWS3102	PWS3152	Price	Order
Cooling Capacity Enclosure +95F (+35C) Water +50F (+10C)	3753 BTU/h (1100 W)	5800 BTU/h (1700 W)	Quote	Quote
Adjustable Control Range (Factory setting +95F ( +35C)	+45 to +113 F +10 to +50 C	+46 to +122 F +8 to +50 C	Quote	Quote
Flow Rate at Rated Capacity	2 GPM 450 L/h	2GPM 450L/h	Quote	Quote
Operting Pressure	14.5 - 145 PSI 1 - 10 bar	14.5 - 145 PSI 1 - 10 bar	Quote	Quote
Ambient Air Temp	+ 36/149 F +2/+65 C	+ 36/149 F +2/+65 C	Quote	Quote
Air Volume	175 CFM 297 CM/h	175 CFM 297 CM/h	Quote	Quote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Description

■Designed to use various water sources to cool enclosures where ambient conditions involve high temperatures, harsh conditions or are subject to frequent wash-down.

Standards

■UL, cUL, and CE
■Complies with NEMA 3R, 4, 4X
■NEMA 3R, 4, 4X

Features

■Compatible with chilled water/glycol, tower water and other circulated coolants
■Integrated thermostat & solenoid value with alarm contact provides automatic temperature control
■Rugged (10 bar) copper tube / aluminum fin heat exchanger with 1/2" barb connection
■Side, door or internal mounting provides complete installation flexibility
■Low noise, maintenance-free design
■Exterior case, galvanized steel construction finish RAL7035 Light Gray or 304 SS
