Aa Hx 65W/C 115V 4X SS
- Voltage - Frequenc 115V 60 Hz
- Sample Performance 1300W (4400 BTU)
$3,655.30Backorder
Buy now

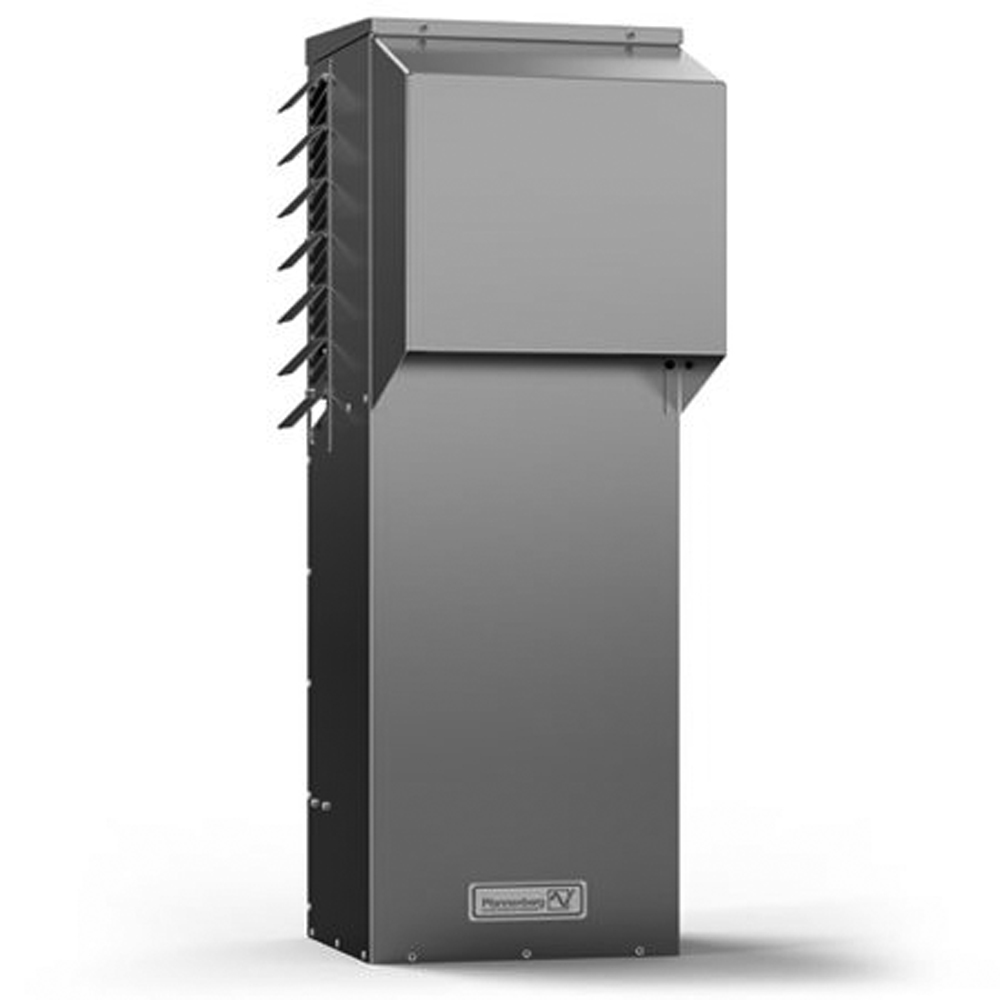

Air to Air Heat Exchangers - Type 4X · PKS4X Series
Brand: Hammond Manufacturing · 12 part numbers
- ■Designed for corrosive outdoor or washdown applications.
- ■Air to air heat exchangers provide superior technology when there is a lower surrounding air temperature compared to the target internal temperature (difference of at least 10°C/18°F).
- ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
- ■Superior energy efficiency and lower maintenance costs versus air conditioners.
- ■Maintains enclosure's NEMA 4X rating
- ■IP 56
from $3,655.30
12 of 12 part numbers priced · available on backorder · ships by ground · volume pricing on request
Configure & price
Find your PKS4X Series part number
Filter 12 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
12 of 12 part numbers · 12 priced online
Aa Hx 65W/C 230V 4X SS
- Voltage - Frequenc 230V 50/60 Hz
- Sample Performance 1300W (4400 BTU)
$3,709.87Backorder
Buy nowAa Hx 65W/C 460V 4X SS
- Voltage - Frequenc 400/460V 50/60 Hz
- Sample Performance 1300W (4400BTU)
$3,925.04Backorder
Buy nowAa Hx 100W/C 115V 4X SS
- Voltage - Frequenc 115V 60 Hz
- Sample Performance 2000W (6800 BTU)
$5,204.72Backorder
Buy nowAa Hx 100W/C 230V 4X SS
- Voltage - Frequenc 230V 50/60 Hz
- Sample Performance 2000W (6800 BTU)
$5,259.24Backorder
Buy nowAa Hx 100W/C 460V 4X SS
- Voltage - Frequenc 400/460V 50/60 Hz
- Sample Performance 2000W (6800 BTU)
$5,379.26Backorder
Buy nowAa Hx 150W/C 115V 4X SS
- Voltage - Frequenc 115V 60 Hz
- Sample Performance 3000W (10200 BTU)
$5,466.57Backorder
Buy nowAa Hx 150W/C 230V 4X SS
- Voltage - Frequenc 230V 50/60 Hz
- Sample Performance 3000W (10200 BTU)
$5,521.19Backorder
Buy nowAa Hx 150W/C 460V 4X SS
- Voltage - Frequenc 400/460V 50/60 Hz
- Sample Performance 3000W (10200 BTU)
$5,641.16Backorder
Buy nowAa Hx 180W/C 115V 4X SS
- Voltage - Frequenc 115V 60 Hz
- Sample Performance 3600W (12200 BTU)
$6,153.99Backorder
Buy nowAa Hx 180W/C 230V 4X SS
- Voltage - Frequenc 230V 50/60 Hz
- Sample Performance 3600W (12200 BTU)
$6,219.44Backorder
Buy nowAa Hx 180W/C 460V 4X SS
- Voltage - Frequenc 400/460V 50/60 Hz
- Sample Performance 3600W (12200 BTU)
$6,328.53Backorder
Buy nowDimension tables (inches / mm)
| Part No. | Voltage - Frequency | Cooling Capacity · W/°C | Cooling Capacity · W/°F | Dimensions · H | Dimensions · W | Dimensions · D | Sample Performance · ΔT = 20°C/36°F | Price | Order |
|---|---|---|---|---|---|---|---|---|---|
| PKS3134A115N4SS | 115V 60 Hz | 65 | 36 | 35.30 | 11.97 | 16.04 | 1300W (4400 BTU) | $3,655.30Backorder | Buy now |
| PKS3134A230N4SS | 230V 50/60 Hz | 65 | 36 | 35.30 | 11.97 | 16.04 | 1300W (4400 BTU) | $3,709.87Backorder | Buy now |
| PKS3134A460N4SS | 400/460V 50/60 Hz | 65 | 36 | 35.30 | 11.97 | 16.04 | 1300W (4400BTU) | $3,925.04Backorder | Buy now |
| PKS3204A115N4SS | 115V 60 Hz | 100 | 56 | 35.30 | 11.97 | 16.04 | 2000W (6800 BTU) | $5,204.72Backorder | Buy now |
| PKS3204A230N4SS | 230V 50/60 Hz | 100 | 56 | 35.30 | 11.97 | 16.04 | 2000W (6800 BTU) | $5,259.24Backorder | Buy now |
| PKS3204A460N4SS | 400/460V 50/60 Hz | 100 | 56 | 35.30 | 11.97 | 16.04 | 2000W (6800 BTU) | $5,379.26Backorder | Buy now |
| PKS3304A115N4SS | 115V 60 Hz | 150 | 83 | 35.30 | 11.97 | 16.04 | 3000W (10200 BTU) | $5,466.57Backorder | Buy now |
| PKS3304A230N4SS | 230V 50/60 Hz | 150 | 83 | 35.30 | 11.97 | 16.04 | 3000W (10200 BTU) | $5,521.19Backorder | Buy now |
| PKS3304A460N4SS | 400/460V 50/60 Hz | 150 | 83 | 35.30 | 11.97 | 16.04 | 3000W (10200 BTU) | $5,641.16Backorder | Buy now |
| PKS3364A115N4SS | 115V 60 Hz | 180 | 100 | 35.30 | 11.97 | 16.04 | 3600W (12200 BTU) | $6,153.99Backorder | Buy now |
| PKS3364A230N4SS | 230V 50/60 Hz | 180 | 100 | 35.30 | 11.97 | 16.04 | 3600W (12200 BTU) | $6,219.44Backorder | Buy now |
| PKS3364A460N4SS | 400/460V 50/60 Hz | 180 | 100 | 35.30 | 11.97 | 16.04 | 3600W (12200 BTU) | $6,328.53Backorder | Buy now |
Description
- ■Designed for corrosive outdoor or washdown applications.
- ■Air to air heat exchangers provide superior technology when there is a lower surrounding air temperature compared to the target internal temperature (difference of at least 10°C/18°F).
- ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
- ■Superior energy efficiency and lower maintenance costs versus air conditioners.
Standards
- ■Maintains enclosure's NEMA 4X rating
- ■IP 56
- ■UR, cUR and CE
Features
- ■Compact Standard Size: 35"H x 12"W x 16"D (louvers extend 1.5" on either side)
- ■R134a refrigerant.
- ■Thermostat control accessible from inside enclosure.
- ■EMI/RFI suppression meets CE.
- ■Door contact provision for power down when enclosure door is opened.
- ■Gasket, mounting kit and template for cutout and drilling are included.
- ■Can be mounted vertically or horizontally for application flexibility.
- ■Cover finished in unpainted 304 stainless steel
- ■See Manual/Technical Data Sheet for drilling template and full electrical specifications.
Documents
Additional information
Part Details
| Part No. | Voltage - Frequency | Cooling Capacity · W/°C | Cooling Capacity · W/°F | Dimensions · H | Dimensions · W | Dimensions · D | Sample Performance · ΔT = 20°C/36°F |
|---|---|---|---|---|---|---|---|
| PKS3134A115N4SS | 115V 60 Hz | 65 | 36 | 35.30 | 11.97 | 16.04 | 1300W (4400 BTU) |
| PKS3134A230N4SS | 230V 50/60 Hz | 65 | 36 | 35.30 | 11.97 | 16.04 | 1300W (4400 BTU) |
| PKS3134A460N4SS | 400/460V 50/60 Hz | 65 | 36 | 35.30 | 11.97 | 16.04 | 1300W (4400BTU) |
| PKS3204A115N4SS | 115V 60 Hz | 100 | 56 | 35.30 | 11.97 | 16.04 | 2000W (6800 BTU) |
| PKS3204A230N4SS | 230V 50/60 Hz | 100 | 56 | 35.30 | 11.97 | 16.04 | 2000W (6800 BTU) |
| PKS3204A460N4SS | 400/460V 50/60 Hz | 100 | 56 | 35.30 | 11.97 | 16.04 | 2000W (6800 BTU) |
| PKS3304A115N4SS | 115V 60 Hz | 150 | 83 | 35.30 | 11.97 | 16.04 | 3000W (10200 BTU) |
| PKS3304A230N4SS | 230V 50/60 Hz | 150 | 83 | 35.30 | 11.97 | 16.04 | 3000W (10200 BTU) |
| PKS3304A460N4SS | 400/460V 50/60 Hz | 150 | 83 | 35.30 | 11.97 | 16.04 | 3000W (10200 BTU) |
| PKS3364A115N4SS | 115V 60 Hz | 180 | 100 | 35.30 | 11.97 | 16.04 | 3600W (12200 BTU) |
| PKS3364A230N4SS | 230V 50/60 Hz | 180 | 100 | 35.30 | 11.97 | 16.04 | 3600W (12200 BTU) |
| PKS3364A460N4SS | 400/460V 50/60 Hz | 180 | 100 | 35.30 | 11.97 | 16.04 | 3600W (12200 BTU) |
