Chiller 2400W/8200BTU
- Cooling Capacity A 8189 BTU/H (2400 Watts)
- Voltage AC 60 Hz 230
- l/h 2.3 (520 l/h)
- Litres 3.0 (11L)
$7,312.89Backorder
Buy now
Water Chillers · EB-RACK Series
Brand: Hammond Manufacturing · 9 part numbers
- ■Designed to provide recirculated coolant for most industrial applications air/water heat exchangers, process cooling, machine hydraulics or motor cooling.
- ■CCE Series – UL 508-A, CE
- ■EB80-160 WT Series – UL 508-A, CE
- ■Pre-engineered packaged design includes refrigeration, cooling tank/pump and operating controls for plug and play operation

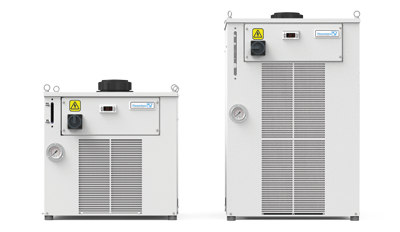

- ■CCE Series compact design for cooling capacities up to 22,000 BTU/H
- ■EB 2.0 Series for cooling capacities 27,000 to 151,000 BTU/H - Larger sizes and High Temperature units also available EB80-160WT standard features include: Programmable smart controller, Hot gas by-pass refrigerant circuit, internal hydraulic by-pass circuit, electrical tank level switch and more.
from $7,312.89
9 of 9 part numbers priced · available on backorder · ships by ground · volume pricing on request
Configure & price
Find your EB-RACK Series part number
Filter 18 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
18 of 18 part numbers · 9 priced online
Chiller 3500W/12000BTU
- Cooling Capacity A 12000 BTU/H (3500 Watts)
- Voltage AC 60 Hz 460 3 Phase
- l/h 6.0 (1360 l/h)
- Litres 7.0 (26L)
$9,057.02Backorder
Buy nowChiller 6500W/22000BTU
- Cooling Capacity A 22000 BTU/H (6500 Watts)
- Voltage AC 60 Hz 460 3 Phase
- l/h 6.0 (1360 l/h)
- Litres 7.0 (26L)
$11,069.56Backorder
Buy nowChiller 14000W/47750BTU
- Cooling Capacity A 47750 BTU/H (14000 Watts)
- Voltage AC 60 Hz 460 3 Phase
- l/h 10.0 (2270 l/h)
- Litres 19.0 (72L)
$15,095.03Backorder
Buy nowChiller 16000W/54500BTU
- Cooling Capacity A 54500 BTU/H (16000 Watts)
- Voltage AC 60 Hz 460 3 Phase
- l/h 11.0 (2498 l/h)
- Litres 19.0 (72L)
$15,765.87Backorder
Buy nowChiller 26100W/89053BTU
- Cooling Capacity A 89053 BTU/H (26100 Watts)
- Voltage AC 60 Hz 460 3 Phase
- l/h 22.0 (4496 l/h)
- Litres 18.49 (70L)
$27,841.89Backorder
Buy nowChiller 44400W/151492BTU
- Cooling Capacity A 151492 BTU/H (44400 Watts)
- Voltage AC 60 Hz 460 3 Phase
- l/h 48.0 (10902 l/h)
- Litres 52.83 (200L)
$32,538.21Backorder
Buy nowChiller 8000W/27000BTU
- Cooling Capacity A 27000 BTU/H (8000 Watts)
- Voltage AC 60 Hz 460 3 Phase
- l/h 6.0 (1360 l/h)
- Litres 13.0 (50L)
$13,082.48Backorder
Buy nowChiller 9500W/32400BTU
- Cooling Capacity A 32400 BTU/H (9500 Watts)
- Voltage AC 60 Hz 460 3 Phase
- l/h 7.0 (1590 l/h)
- Litres 13.0 (50L)
$14,021.74Backorder
Buy nowEB30WT
Chiller 4700 WATTS/16051 Btu
QuoteRequest a quote
EB60WT
Chiller 6500 WATTS/22199 Btu
QuoteRequest a quote
EB90WT
Chiller 10000 WATTS/34152 Btu
QuoteRequest a quote
EB150WT
Chiller 16660 WATTS/54643 Btu
QuoteRequest a quote
EB190WT
Chiller 21000 WATTS/71719 Btu
QuoteRequest a quote
EB250WT
Chiller 27700 WATTS/94600 Btu
QuoteRequest a quote
EB300WT
Chiller 32800 WATTS/112018 Btu
QuoteRequest a quote
EB350WT
Chiller 38300 WATTS/130801 Btu
QuoteRequest a quote
EB400WT
Chiller 44400 WATTS/151634 Btu
QuoteRequest a quote
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Model · Number (Part No.) | Cooling Capacity · Ambient +90F(+32C) Water +64F(+18C) | Voltage AC · 60 Hz | Pump Flow Rate · GPM (l/h) | Tank Capacity Gallons · (Litres) | Coolant Connections · (NPT-F) | Overall Dimensions · Height | Overall Dimensions · Width | Overall Dimensions · Depth | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| CCE6301 | 8189 BTU/H (2400 Watts) | 230 | 2.3 (520 l/h) | 3.0 (11L) | 1/2" | 22.50 | 19.40 | 23.62 | $7,312.89Backorder | Buy now |
| CCE6401 | 12000 BTU/H (3500 Watts) | 460 3 Phase | 6.0 (1360 l/h) | 7.0 (26L) | 3/4" | 36.27 | 26.61 | 23.62 | $9,057.02Backorder | Buy now |
| CCE6601 | 22000 BTU/H (6500 Watts) | 460 3 Phase | 6.0 (1360 l/h) | 7.0 (26L) | 3/4" | 36.27 | 26.61 | 23.62 | $11,069.56Backorder | Buy now |
| EB80WT | 27000 BTU/H (8000 Watts) | 460 3 Phase | 6.0 (1360 l/h) | 13.0 (50L) | 3/4" | 54.17 | 23.62 | 29.94 | $13,082.48Backorder | Buy now |
| EB95WT | 32400 BTU/H (9500 Watts) | 460 3 Phase | 7.0 (1590 l/h) | 13.0 (50L) | 3/4" | 54.17 | 23.62 | 29.94 | $14,021.74Backorder | Buy now |
| EB140WT | 47750 BTU/H (14000 Watts) | 460 3 Phase | 10.0 (2270 l/h) | 19.0 (72L) | 1" | 60.40 | 29.96 | 33.68 | $15,095.03Backorder | Buy now |
| EB160WT | 54500 BTU/H (16000 Watts) | 460 3 Phase | 11.0 (2498 l/h) | 19.0 (72L) | 1" | 60.40 | 29.96 | 33.68 | $15,765.87Backorder | Buy now |
| EB260WT | 89053 BTU/H (26100 Watts) | 460 3 Phase | 22.0 (4496 l/h) | 18.49 (70L) | 1-1/4" | 55.50 | 30.00 | 49.60 | $27,841.89Backorder | Buy now |
| EB440WT | 151492 BTU/H (44400 Watts) | 460 3 Phase | 48.0 (10902 l/h) | 52.83 (200L) | 1-1/2" | 55.70 | 31.00 | 65.70 | $32,538.21Backorder | Buy now |
Description
- ■Designed to provide recirculated coolant for most industrial applications air/water heat exchangers, process cooling, machine hydraulics or motor cooling.
Standards
- ■CCE Series – UL 508-A, CE
- ■EB80-160 WT Series – UL 508-A, CE
- ■Pre-engineered packaged design includes refrigeration, cooling tank/pump and operating controls for plug and play operation
- ■CCE Series compact design for cooling capacities up to 22,000 BTU/H
- ■EB 2.0 Series for cooling capacities 27,000 to 151,000 BTU/H - Larger sizes and High Temperature units also available EB80-160WT standard features include: Programmable smart controller, Hot gas by-pass refrigerant circuit, internal hydraulic by-pass circuit, electrical tank level switch and more.
- ■EB80-160WT standard features include: Programmable smart controller, Hot gas by-pass refrigerant circuit, internal hydraulic by-pass circuit, electrical tank level switch and more.
- ■Both series are suitable for indoor installations
- ■Several product options can be added - vary by unit, please ask for details
- ■Exterior case, galvanized steel frame coated with RAL7035 powder coated finish
