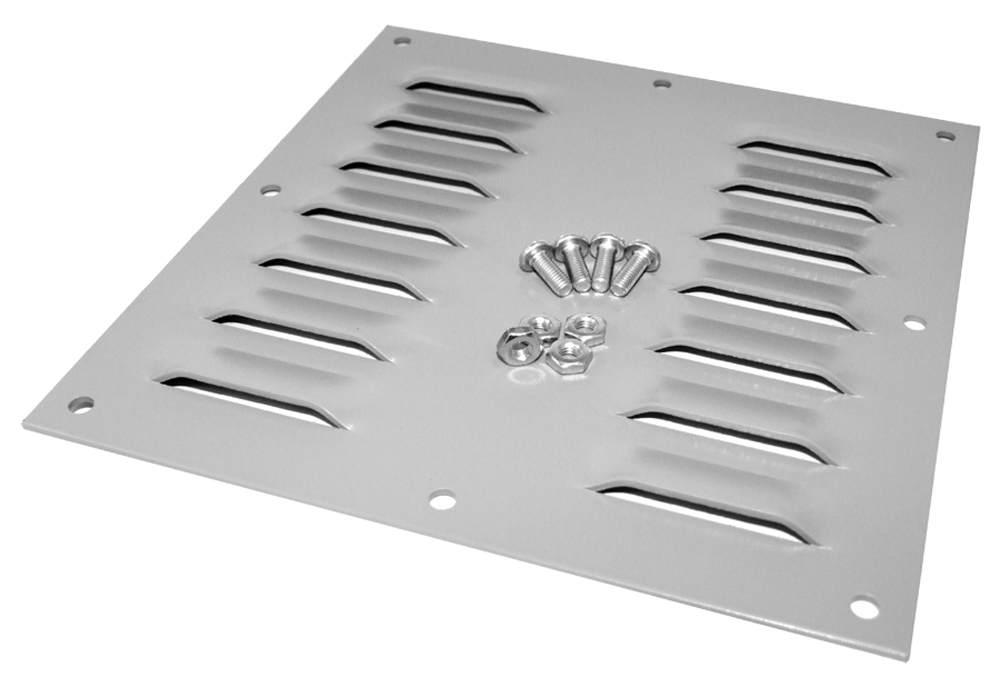

Type 1 Louvered Ventilating Plates · 1481L Series

Brand: Hammond Manufacturing · 3 part numbers

■Provides ventilation in enclosures where required.
■Easily installed in the field by cutting a square hole of the proper size and bolting the ventilator in place.
■14 gauge mild steel finished in ANSI 61 gray powder coat.
■Hole diameter is 0.22".

from $24.87

3 of 3 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents Additional information

Configure & price

Find your 1481L Series part number

Filter 3 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

3 of 3 part numbers · 3 priced online

1481L44

Vented Plate 5.6X5.5

$24.87In stock

Buy now

1481L66

Vented Plate 7.8X7.5

$29.56Backorder

Buy now

1481L88

Ventilating Plate

$36.25In stock

Buy now

Dimension tables (inches / mm)

Part No.	Plate Size · Height	Plate Size · Width	No. of · Louvers	No. of · Rows	Louvers · Length	Opening · Area (in2)	Price	Order
1481L44	5.62	5.50	4	1	4	4.5	$24.87In stock	Buy now
1481L66	7.87	7.50	14	2	2	5.3	$29.56Backorder	Buy now
1481L88	10.56	10.50	18	2	4	20.2	$36.25In stock	Buy now

Features

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

■Provides ventilation in enclosures where required.
■Easily installed in the field by cutting a square hole of the proper size and bolting the ventilator in place.
■14 gauge mild steel finished in ANSI 61 gray powder coat.
■Hole diameter is 0.22".
