Step Up Auto 100VA Dual Cord
$65.74In stock
Buy now
Step-Up (115VAC to 230VAC) · 176 Series
Brand: Hammond Manufacturing · 7 part numbers
Plug-In
- ■Single winding, does not provide isolation, for use where equipment is already isolated and only voltage change is required.
- ■World wide applications, 50 or 60 Hz. operation, step up (115VAC to 230VAC).
- ■Input is circuit breaker protected.
- ■Hi-pot tested to 2 KV RMS
- ■Input is connected to a 5 foot cord & standard grounded North American plug (NEMA 5-15P)
- ■Output - Due to U.L changes in 2007 - NEW production with the European (Shuko) parts would no longer be U.L. listed. Therefore, we replaced this output receptacle with a one foot long "pig tail" cord with a standard North American 3-wire, 250V receptacle (NEMA 6-15R) for any production after the first part of 2008. Receptacles have North American pins. See our 298G adaptor series for international pinout adaptor plugs.
from $65.74
7 of 7 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 176 Series part number
Filter 7 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
7 of 7 part numbers · 7 priced online
Step Up Auto 200VA Dual Cord
$85.13In stock
Buy nowStep Up Auto 300VA Dual Cord
$96.66In stock
Buy nowStep Up Auto 550VA Dual Cord
$135.32In stock
Buy nowStep Up Auto 750VA Dual Cord
$154.66In stock
Buy nowStep Up Auto 1000VA Dual Cord
$193.33In stock
Buy nowStep Up Auto 1500VA Dual Cord
$241.66Backorder
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Capacity · VA | Overall Dimensions · A | Overall Dimensions · B | Overall Dimensions · C | Overall Dimensions · D | Overall Dimensions · E | Wt. Lbs. | Price | Order |
|---|---|---|---|---|---|---|---|---|---|

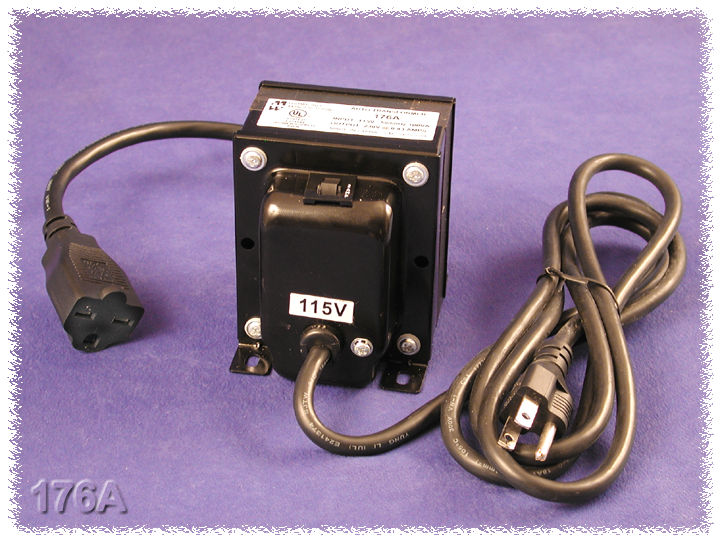

| 176A | 100 | 3.16 | 4.25 | 3.81 | 2.50 | 2.94 | 3.5 | $65.74In stock | Buy now |

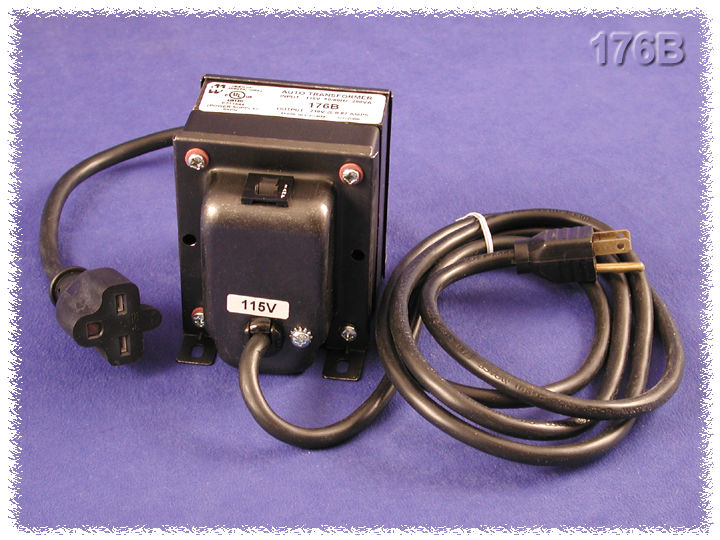

| 176B | 200 | 3.16 | 4.50 | 3.81 | 2.50 | 3.19 | 4.5 | $85.13In stock | Buy now |

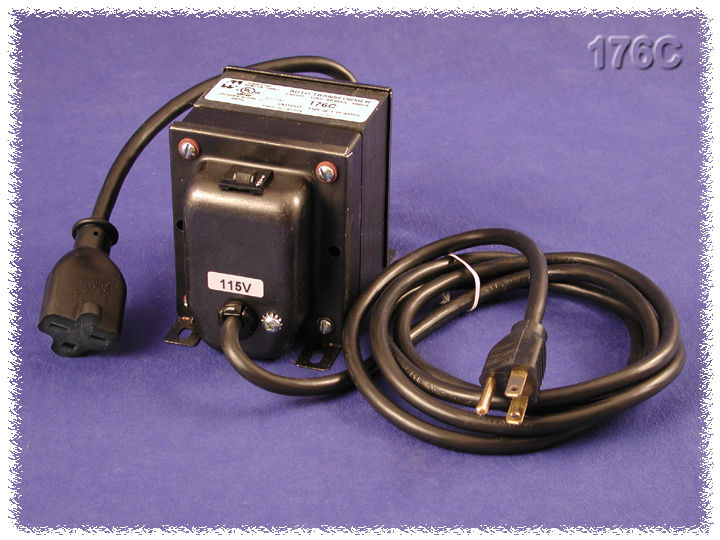

| 176C | 300 | 3.16 | 5.00 | 3.81 | 2.50 | 3.69 | 6 | $96.66In stock | Buy now |

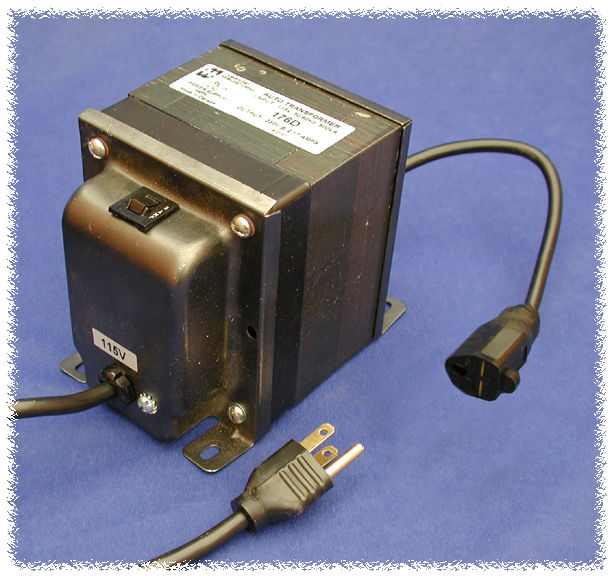

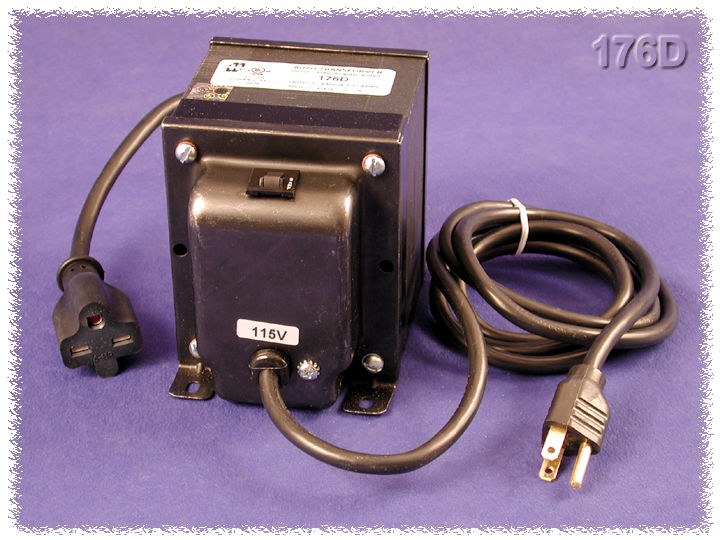

| 176D | 500 | 3.80 | 6.00 | 4.68 | 3.00 | 4.38 | 10 | $135.32In stock | Buy now |

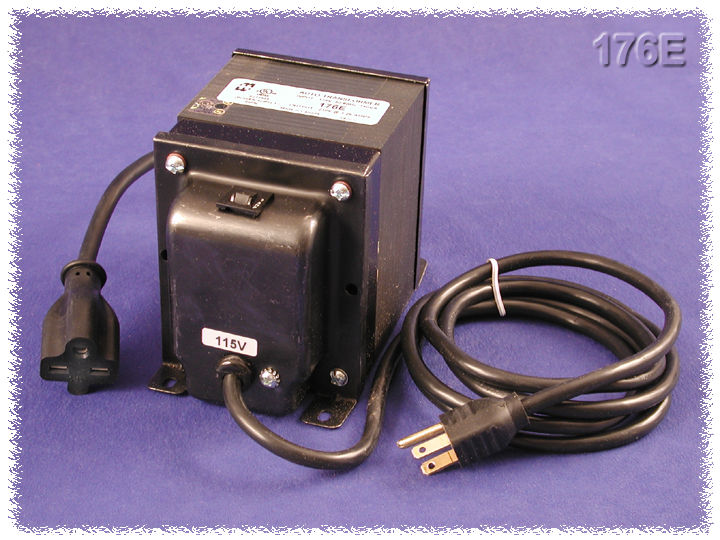

| 176E | 750 | 3.80 | 7.06 | 4.68 | 3.00 | 5.38 | 14 | $154.66In stock | Buy now |

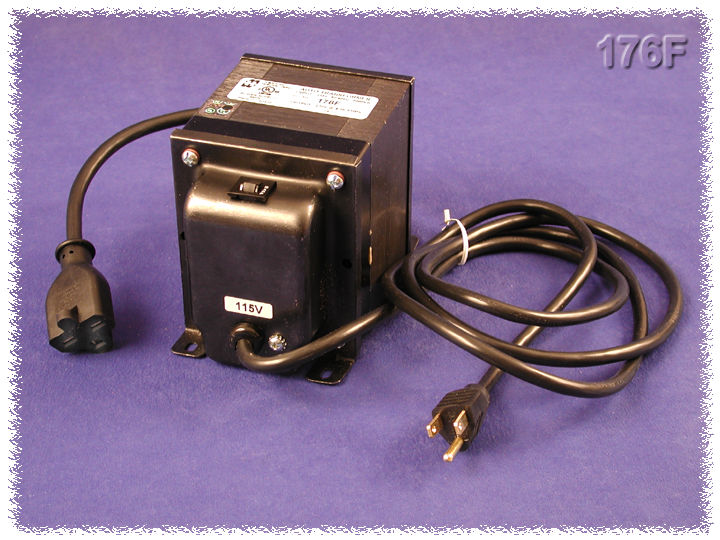

| 176F | 1000 | 3.80 | 7.06 | 4.68 | 3.00 | 5.38 | 14.5 | $193.33In stock | Buy now |

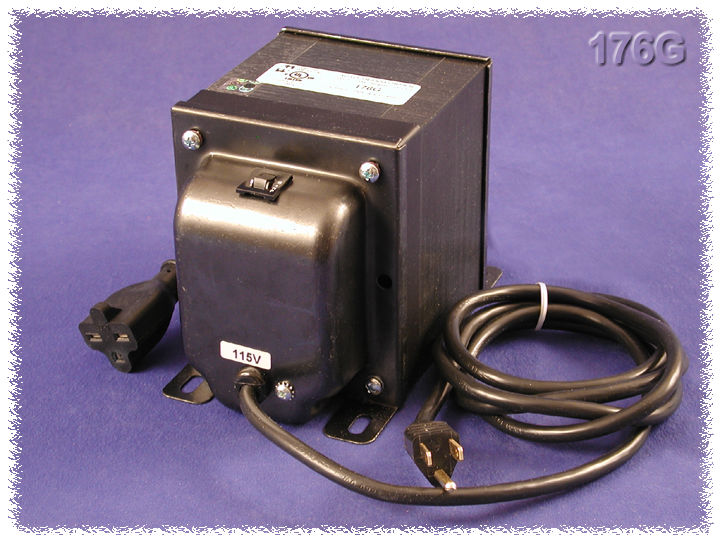

| 176G | 1500 | 4.40 | 6.63 | 5.39 | 3.50 | 6.09 | 22 | $241.66Backorder | Buy now |
Features
- ■Single winding, does not provide isolation, for use where equipment is already isolated and only voltage change is required.
- ■World wide applications, 50 or 60 Hz. operation, step up (115VAC to 230VAC).
- ■Input is circuit breaker protected.
- ■Hi-pot tested to 2 KV RMS
- ■Input is connected to a 5 foot cord & standard grounded North American plug (NEMA 5-15P)
- ■Output - Due to U.L changes in 2007 - NEW production with the European (Shuko) parts would no longer be U.L. listed. Therefore, we replaced this output receptacle with a one foot long "pig tail" cord with a standard North American 3-wire, 250V receptacle (NEMA 6-15R) for any production after the first part of 2008. Receptacles have North American pins. See our 298G adaptor series for international pinout adaptor plugs.
- ■Receptacles have North American pins. See our 298G adaptor series for international pinout adaptor plugs.
- ■North American Mark of Safety - C UL & UL listed (File #E211544).
- ■Indoor use only.
- ■Remember - These units do NOT convert line frequency
Documents
Additional information
Part Details
| Part No. | Capacity · VA | Overall Dimensions · A | Overall Dimensions · B | Overall Dimensions · C | Overall Dimensions · D | Overall Dimensions · E | Wt. Lbs. |
|---|---|---|---|---|---|---|---|
| 176A | 100 | 3.16 | 4.25 | 3.81 | 2.50 | 2.94 | 3.5 |
| 176B | 200 | 3.16 | 4.50 | 3.81 | 2.50 | 3.19 | 4.5 |
| 176C | 300 | 3.16 | 5.00 | 3.81 | 2.50 | 3.69 | 6 |
| 176D | 500 | 3.80 | 6.00 | 4.68 | 3.00 | 4.38 | 10 |
| 176E | 750 | 3.80 | 7.06 | 4.68 | 3.00 | 5.38 | 14 |
| 176F | 1000 | 3.80 | 7.06 | 4.68 | 3.00 | 5.38 | 14.5 |
| 176G | 1500 | 4.40 | 6.63 | 5.39 | 3.50 | 6.09 | 22 |
