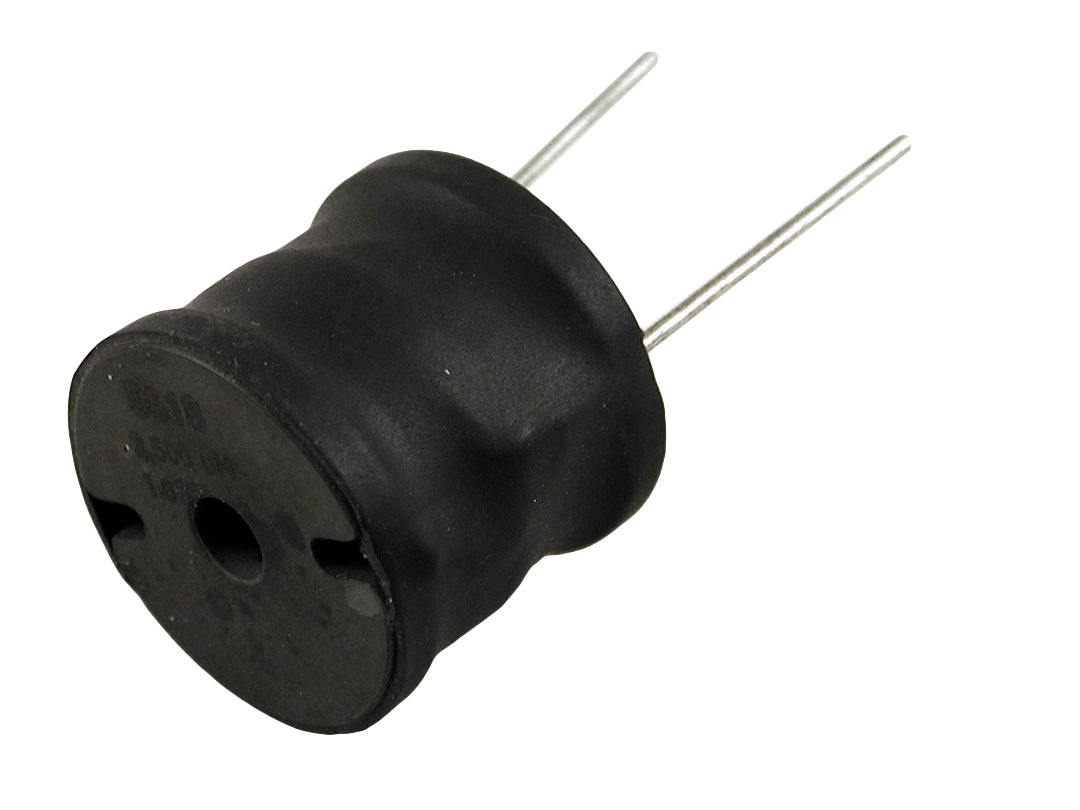

EMI/RFI Chokes 1539 Series

EMI/RFI Chokes · 1539 Series

Brand: Hammond Manufacturing · 32 part numbers

  • ■High saturation flux density ferrite bobbins.
  • ■1" long leads, tinned to within 1/8" of body.
  • ■Ideal for filtering or energy storage inductors.
  • ■Inductance measured at @ 1Khz. with 0 amps. D.C. current, typical inductance change is less than 5% @ twice rated current.

from $8.24

32 of 32 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your 1539 Series part number

Filter 32 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

32 of 32 part numbers · 32 priced online

1539M01

RF Choke

  • MHz 24.7
  • I - D.C. Max Amps 15
  • uH 5
  • R - D.C. Max Ohms 0.007
$8.24In stock
Buy now
1539M02

RF Choke

  • MHz 11.4
  • I - D.C. Max Amps 14
  • uH 10
  • R - D.C. Max Ohms 0.008
$10.16Backorder
Buy now
1539M03

RF Choke

  • MHz 6.2
  • I - D.C. Max Amps 8
  • uH 25
  • R - D.C. Max Ohms 0.023
$9.65In stock
Buy now
1539M04

RF Choke

  • MHz 4.1
  • I - D.C. Max Amps 6.6
  • uH 50
  • R - D.C. Max Ohms 0.034
$9.72In stock
Buy now
1539M05

RF Choke

  • MHz 2.4
  • I - D.C. Max Amps 4.5
  • uH 100
  • R - D.C. Max Ohms 0.072
$10.91In stock
Buy now
1539M06

RF Choke

  • MHz 1.6
  • I - D.C. Max Amps 2.9
  • uH 250
  • R - D.C. Max Ohms 0.173
$12.21In stock
Buy now
1539M07

RF Choke

  • MHz 1
  • I - D.C. Max Amps 2
  • uH 500
  • R - D.C. Max Ohms 0.378
$11.08In stock
Buy now
1539M08

RF Choke

  • MHz 0.7
  • I - D.C. Max Amps 1.3
  • uH 1000
  • R - D.C. Max Ohms 0.801
$11.19In stock
Buy now
1539M09

RF Choke

  • MHz 0.43
  • I - D.C. Max Amps 0.85
  • uH 2500
  • R - D.C. Max Ohms 2.04
$11.06In stock
Buy now
1539M10

RF Choke

  • MHz 26.7
  • I - D.C. Max Amps 20
  • uH 5
  • R - D.C. Max Ohms 0.005
$13.43In stock
Buy now
1539M11

RF Choke

  • MHz 15.6
  • I - D.C. Max Amps 17
  • uH 10
  • R - D.C. Max Ohms 0.006
$13.11In stock
Buy now
1539M12

RF Choke

  • MHz 5.2
  • I - D.C. Max Amps 14
  • uH 25
  • R - D.C. Max Ohms 0.009
$13.71In stock
Buy now
1539M13

RF Choke

  • MHz 3.6
  • I - D.C. Max Amps 10
  • uH 50
  • R - D.C. Max Ohms 0.017
$12.93In stock
Buy now
1539M14

RF Choke

  • MHz 2.2
  • I - D.C. Max Amps 7
  • uH 100
  • R - D.C. Max Ohms 0.034
$12.86In stock
Buy now
1539M15

RF Choke

  • MHz 1.2
  • I - D.C. Max Amps 4.6
  • uH 250
  • R - D.C. Max Ohms 0.083
$14.40In stock
Buy now
1539M16

RF Choke

  • MHz 0.89
  • I - D.C. Max Amps 3.7
  • uH 500
  • R - D.C. Max Ohms 0.129
$14.49In stock
Buy now
1539M17

RF Choke

  • MHz 0.58
  • I - D.C. Max Amps 2.5
  • uH 1000
  • R - D.C. Max Ohms 0.279
$14.38Backorder
Buy now
1539M18

RF Choke

  • MHz 0.35
  • I - D.C. Max Amps 1.6
  • uH 2500
  • R - D.C. Max Ohms 0.69
$14.50In stock
Buy now
1539M19

RF Choke

  • MHz 3.4
  • I - D.C. Max Amps 14
  • uH 50
  • R - D.C. Max Ohms 0.012
$19.09In stock
Buy now
1539M20

RF Choke

  • MHz 2
  • I - D.C. Max Amps 9.8
  • uH 100
  • R - D.C. Max Ohms 0.025
$18.38In stock
Buy now
1539M21

RF Choke

  • MHz 1.3
  • I - D.C. Max Amps 6.4
  • uH 250
  • R - D.C. Max Ohms 0.059
$18.59In stock
Buy now
1539M22

RF Choke

  • MHz 0.9
  • I - D.C. Max Amps 5
  • uH 500
  • R - D.C. Max Ohms 0.09
$19.15In stock
Buy now
1539M23

RF Choke

  • MHz 0.54
  • I - D.C. Max Amps 3.5
  • uH 1000
  • R - D.C. Max Ohms 0.195
$20.25In stock
Buy now
1539M24

RF Choke

  • MHz 0.34
  • I - D.C. Max Amps 2.2
  • uH 2500
  • R - D.C. Max Ohms 0.499
$20.17In stock
Buy now
1539M25

RF Choke

  • MHz 0.24
  • I - D.C. Max Amps 1.5
  • uH 5000
  • R - D.C. Max Ohms 1.08
$20.10In stock
Buy now
1539M26

RF Choke

  • MHz 1.8
  • I - D.C. Max Amps 14
  • uH 100
  • R - D.C. Max Ohms 0.018
$19.61Backorder
Buy now
1539M27

RF Choke

  • MHz 1
  • I - D.C. Max Amps 9
  • uH 250
  • R - D.C. Max Ohms 0.04
$20.36In stock
Buy now
1539M28

RF Choke

  • MHz 0.7
  • I - D.C. Max Amps 6.5
  • uH 500
  • R - D.C. Max Ohms 0.085
$19.83In stock
Buy now
1539M29

RF Choke

  • MHz 0.44
  • I - D.C. Max Amps 4.4
  • uH 1000
  • R - D.C. Max Ohms 0.183
$21.20In stock
Buy now
1539M30

RF Choke

  • MHz 0.26
  • I - D.C. Max Amps 2.8
  • uH 2500
  • R - D.C. Max Ohms 0.464
$21.10In stock
Buy now
1539M31

RF Choke

  • MHz 0.19
  • I - D.C. Max Amps 2.2
  • uH 5000
  • R - D.C. Max Ohms 0.714
$21.57Backorder
Buy now
1539M32

RF Choke

  • MHz 0.13
  • I - D.C. Max Amps 1.5
  • uH 10000
  • R - D.C. Max Ohms 1.55
$21.68In stock
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.Inductance L · uH +/- 10%Fo Min · MHzR - D.C. Max · OhmsI - D.C. Max · AmpsMaximum · Dim. AMaximum · Dim. BTyp. · Dim. CTyp. · Dim. DPriceOrder
1539M01524.70.007150.830.910.590.07$8.24In stockBuy now
1539M021011.40.008140.830.910.600.07$10.16BackorderBuy now
1539M03256.20.02380.830.910.570.04$9.65In stockBuy now
1539M04504.10.0346.60.830.910.650.04$9.72In stockBuy now
1539M051002.40.0724.50.830.910.690.04$10.91In stockBuy now
1539M062501.60.1732.90.830.910.650.04$12.21In stockBuy now
1539M0750010.37820.830.910.680.04$11.08In stockBuy now
1539M0810000.70.8011.30.830.910.660.04$11.19In stockBuy now
1539M0925000.432.040.850.830.910.710.04$11.06In stockBuy now
1539M10526.70.005201.221.110.940.08$13.43In stockBuy now
1539M111015.60.006171.221.110.950.08$13.11In stockBuy now
1539M12255.20.009141.221.110.930.08$13.71In stockBuy now
1539M13503.60.017101.221.110.990.07$12.93In stockBuy now
1539M141002.20.03471.221.110.850.05$12.86In stockBuy now
1539M152501.20.0834.61.221.110.970.05$14.40In stockBuy now
1539M165000.890.1293.71.221.111.120.05$14.49In stockBuy now
1539M1710000.580.2792.51.221.111.050.05$14.38BackorderBuy now
1539M1825000.350.691.61.221.111.050.05$14.50In stockBuy now
1539M19503.40.012141.501.111.230.08$19.09In stockBuy now
1539M2010020.0259.81.501.111.120.07$18.38In stockBuy now
1539M212501.30.0596.41.501.111.100.05$18.59In stockBuy now
1539M225000.90.0951.501.111.140.05$19.15In stockBuy now
1539M2310000.540.1953.51.501.111.360.05$20.25In stockBuy now
1539M2425000.340.4992.21.501.111.320.05$20.17In stockBuy now
1539M2550000.241.081.51.501.111.270.05$20.10In stockBuy now
1539M261001.80.018141.501.501.180.08$19.61BackorderBuy now
1539M2725010.0491.501.501.120.07$20.36In stockBuy now
1539M285000.70.0856.51.501.501.060.05$19.83In stockBuy now
1539M2910000.440.1834.41.501.501.230.05$21.20In stockBuy now
1539M3025000.260.4642.81.501.501.210.05$21.10In stockBuy now
1539M3150000.190.7142.21.501.501.320.05$21.57BackorderBuy now
1539M32100000.131.551.51.501.501.250.05$21.68In stockBuy now

Features

  • ■High saturation flux density ferrite bobbins.
  • ■1" long leads, tinned to within 1/8" of body.
  • ■Ideal for filtering or energy storage inductors.
  • ■Inductance measured at @ 1Khz. with 0 amps. D.C. current, typical inductance change is less than 5% @ twice rated current.

Documents

Specification Sheet
