EMI/RFI Chokes · 1538 Series

Brand: Hammond Manufacturing · 24 part numbers

■High saturation flux density ferrite rods.
■1" long leads, tinned to within 1/8" of body.
■Ideal for filtering or energy storage inductors.
■Inductance measured at @ 1Khz. with 0 amps. D.C. current, typical inductance change is less than 5% @ twice rated current.
■Ambient temperature range -60 C to +85 C

from $4.83

24 of 24 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents

Configure & price

Find your 1538 Series part number

Filter 24 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

24 of 24 part numbers · 24 priced online

1538M01

RF Choke

I - D.C. Max Amps 10
uH 5
R - D.C. Max Ohms 0.013
MHz 32.4

$6.46In stock

Buy now

1538M02

RF Choke

I - D.C. Max Amps 9
uH 10
R - D.C. Max Ohms 0.017
MHz 21.6

$5.84In stock

Buy now

1538M03

RF Choke

I - D.C. Max Amps 7
uH 27
R - D.C. Max Ohms 0.03
MHz 5.6

$5.78In stock

Buy now

1538M04

RF Choke

I - D.C. Max Amps 5.6
uH 50
R - D.C. Max Ohms 0.04
MHz 3.44

$6.04In stock

Buy now

1538M05

RF Choke

I - D.C. Max Amps 4.9
uH 100
R - D.C. Max Ohms 0.061
MHz 2.08

$6.30In stock

Buy now

1538M06

RF Choke

I - D.C. Max Amps 4.6
uH 150
R - D.C. Max Ohms 0.069
MHz 1.84

$4.83In stock

Buy now

1538M07

RF Choke

I - D.C. Max Amps 4
uH 250
R - D.C. Max Ohms 0.089
MHz 1.1

$6.25In stock

Buy now

1538M08

RF Choke

I - D.C. Max Amps 14
uH 5
R - D.C. Max Ohms 0.009
MHz 27.2

$5.81In stock

Buy now

1538M09

RF Choke

I - D.C. Max Amps 12
uH 10
R - D.C. Max Ohms 0.012
MHz 21.7

$6.14In stock

Buy now

1538M10

RF Choke

I - D.C. Max Amps 9
uH 27
R - D.C. Max Ohms 0.022
MHz 5.6

$6.91In stock

Buy now

1538M11

RF Choke

I - D.C. Max Amps 8
uH 50
R - D.C. Max Ohms 0.028
MHz 4.4

$7.61In stock

Buy now

1538M12

RF Choke

I - D.C. Max Amps 7.3
uH 68
R - D.C. Max Ohms 0.034
MHz 3.6

$6.86In stock

Buy now

1538M13

RF Choke

I - D.C. Max Amps 6.8
uH 100
R - D.C. Max Ohms 0.038
MHz 2.4

$7.28In stock

Buy now

1538M14

RF Choke

I - D.C. Max Amps 6.3
uH 150
R - D.C. Max Ohms 0.046
MHz 1.6

$8.51In stock

Buy now

1538M15

RF Choke

I - D.C. Max Amps 19
uH 5
R - D.C. Max Ohms 0.006
MHz 34.7

$6.20Backorder

Buy now

1538M16

RF Choke

I - D.C. Max Amps 16
uH 10
R - D.C. Max Ohms 0.008
MHz 20

$5.84In stock

Buy now

1538M17

RF Choke

I - D.C. Max Amps 12.5
uH 27
R - D.C. Max Ohms 0.014
MHz 6.2

$6.69In stock

Buy now

1538M18

RF Choke

I - D.C. Max Amps 10.5
uH 50
R - D.C. Max Ohms 0.02
MHz 3.8

$9.09Backorder

Buy now

1538M19

RF Choke

I - D.C. Max Amps 10
uH 68
R - D.C. Max Ohms 0.023
MHz 3.2

$7.07In stock

Buy now

1538M20

RF Choke

I - D.C. Max Amps 10
uH 100
R - D.C. Max Ohms 0.027
MHz 2.2

$9.24In stock

Buy now

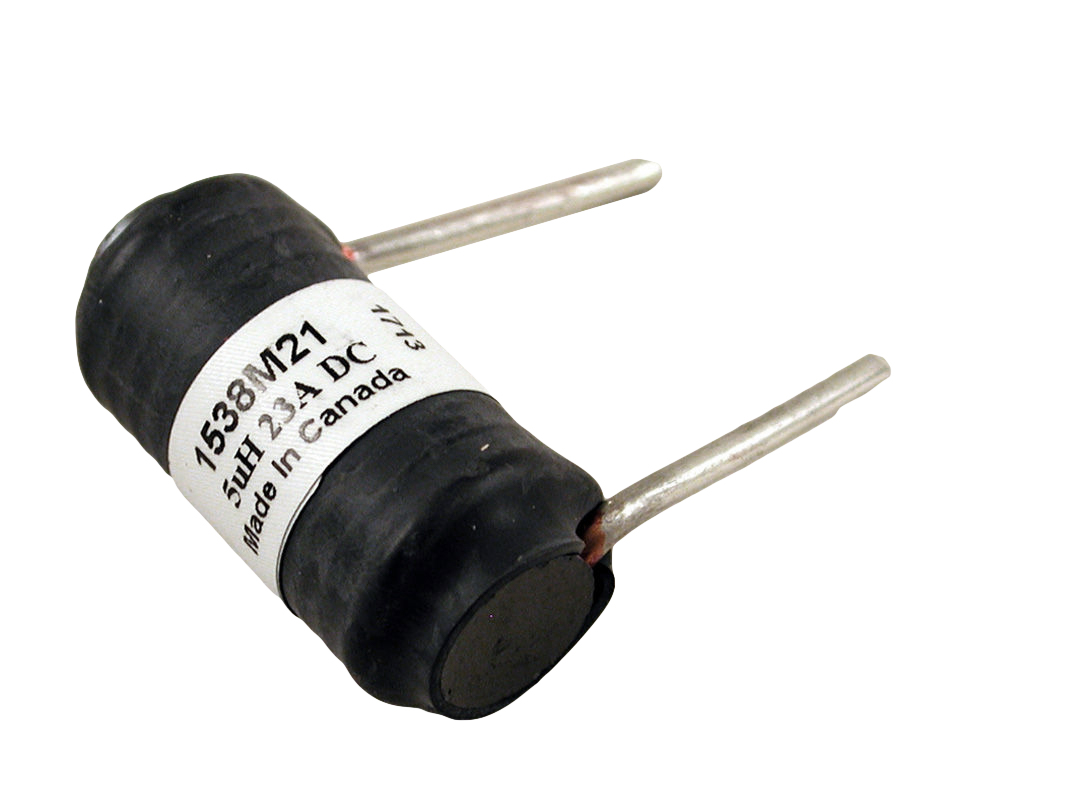

1538M21

RF Choke

I - D.C. Max Amps 23
uH 5
R - D.C. Max Ohms 0.004
MHz 30.8

$6.82In stock

Buy now

1538M22

RF Choke

I - D.C. Max Amps 20
uH 10
R - D.C. Max Ohms 0.006
MHz 20

$7.66In stock

Buy now

1538M23

RF Choke

I - D.C. Max Amps 15
uH 27
R - D.C. Max Ohms 0.01
MHz 6.4

$7.62Backorder

Buy now

1538M24

RF Choke

I - D.C. Max Amps 15
uH 50
R - D.C. Max Ohms 0.013
MHz 3.5

$9.65In stock

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.	Inductance L · uH +/- 10%	SRF · MHz	R - D.C. Max · Ohms	I - D.C. Max · Amps	Maximum · Dim. A	Maximum · Dim. B	Typ. · Dim. C	Typ. · Dim. D	Price	Order
1538M01	5	32.4	0.013	10	0.88	0.63	0.50	0.04	$6.46In stock	Buy now
1538M02	10	21.6	0.017	9	1.12	0.63	0.69	0.04	$5.84In stock	Buy now
1538M03	27	5.6	0.03	7	0.88	0.81	0.44	0.04	$5.78In stock	Buy now
1538M04	50	3.44	0.04	5.6	0.88	0.81	0.75	0.04	$6.04In stock	Buy now
1538M05	100	2.08	0.061	4.9	1.12	0.81	0.94	0.04	$6.30In stock	Buy now
1538M06	150	1.84	0.069	4.6	1.38	0.81	1.06	0.04	$4.83In stock	Buy now
1538M07	250	1.1	0.089	4	1.62	0.81	1.31	0.04	$6.25In stock	Buy now
1538M08	5	27.2	0.009	14	0.88	0.64	0.75	0.05	$5.81In stock	Buy now
1538M09	10	21.7	0.012	12	1.12	0.64	1.00	0.05	$6.14In stock	Buy now
1538M10	27	5.6	0.022	9	0.88	0.88	0.56	0.05	$6.91In stock	Buy now
1538M11	50	4.4	0.028	8	1.12	0.88	0.75	0.05	$7.61In stock	Buy now
1538M12	68	3.6	0.034	7.3	1.12	0.88	0.88	0.05	$6.86In stock	Buy now
1538M13	100	2.4	0.038	6.8	1.38	0.88	1.00	0.05	$7.28In stock	Buy now
1538M14	150	1.6	0.046	6.3	1.62	0.88	1.25	0.05	$8.51In stock	Buy now
1538M15	5	34.7	0.006	19	1.12	0.69	0.81	0.07	$6.20Backorder	Buy now
1538M16	10	20	0.008	16	1.38	0.94	1.22	0.07	$5.84In stock	Buy now
1538M17	27	6.2	0.014	12.5	1.12	0.94	0.69	0.07	$6.69In stock	Buy now
1538M18	50	3.8	0.02	10.5	1.38	0.94	0.94	0.07	$9.09Backorder	Buy now
1538M19	68	3.2	0.023	10	1.38	0.94	1.12	0.07	$7.07In stock	Buy now
1538M20	100	2.2	0.027	10	1.62	0.94	1.31	0.07	$9.24In stock	Buy now
1538M21	5	30.8	0.004	23	1.38	0.72	0.94	0.08	$6.82In stock	Buy now
1538M22	10	20	0.006	20	1.69	0.72	1.50	0.08	$7.66In stock	Buy now
1538M23	27	6.4	0.01	15	1.38	1.00	0.94	0.08	$7.62Backorder	Buy now
1538M24	50	3.5	0.013	15	1.62	1.00	1.12	0.08	$9.65In stock	Buy now
