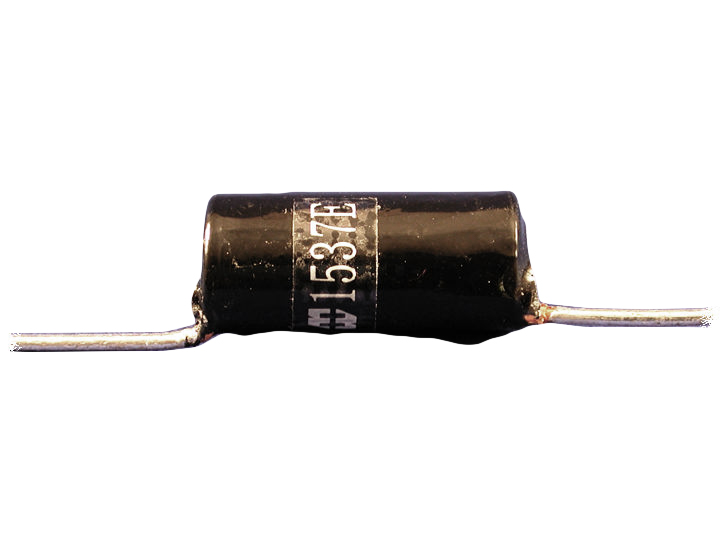

R.F. Chokes · 1537 Series

Brand: Hammond Manufacturing · 11 part numbers

High Current

■Large ferrite core for extended saturation point, optimum frequency range .01-2 Mhz.
■1.5" long leads (+/- 0.1")
■Test frequency 1 Khz.
■Core length 1.25"
■Coil is covered with vinyl insulation shrink sleeve.
■Operating Temperature -55 degrees C to + 135 degrees C

from $3.05

11 of 11 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents Additional information

Configure & price

Find your 1537 Series part number

Filter 11 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

11 of 11 part numbers · 11 priced online

1537E

Choke 10 Uh 20A

Lead Diameter Gaug 14
Amps 20

$3.05In stock

Buy now

1537F

Choke 20 Uh 12.5A

Lead Diameter Gaug 16
Amps 12.5

$3.05In stock

Buy now

1537G

Choke 30 Uh 8A

Lead Diameter Gaug 18
Amps 8

$3.05In stock

Buy now

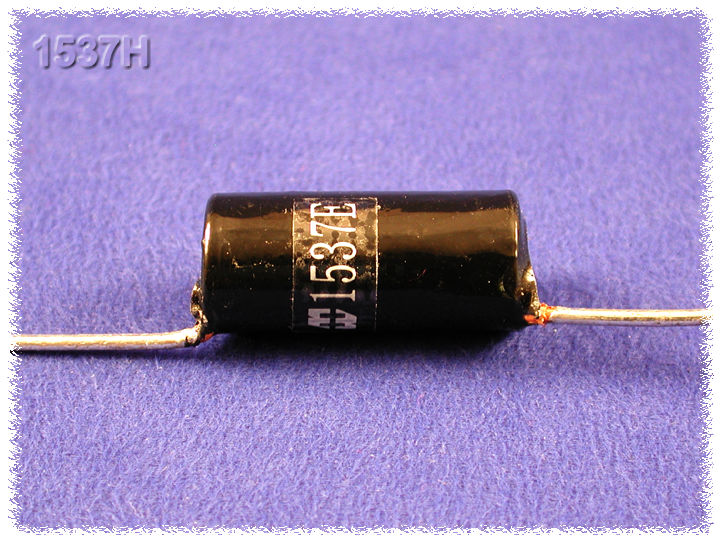

1537H

Choke 40 Uh 5A

Lead Diameter Gaug 20
Amps 5

$3.05In stock

Buy now

1537J

Choke 50 Uh 3.2A

Lead Diameter Gaug 20
Amps 3.2

$3.05In stock

Buy now

1537K

Choke 75 Uh 2A

Lead Diameter Gaug 20
Amps 2

$3.05In stock

Buy now

1537L

Choke 100 Uh 8A

Lead Diameter Gaug 18
Amps 8

$3.05In stock

Buy now

1537M

Choke 250 Uh 5A

Lead Diameter Gaug 18
Amps 5

$3.05In stock

Buy now

1537N

Choke 500 Uh 3.2A

Lead Diameter Gaug 20
Amps 3.2

$3.05In stock

Buy now

1537P

Choke 750 Uh 2A

Lead Diameter Gaug 20
Amps 2

$3.05In stock

Buy now

1537R

Choke 1000UH 1.25A

Lead Diameter Gaug 20
Amps 1.25

$3.05In stock

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.	Inductance · +/-5% · (uH)	Minimum · Q	D.C. · Resistance · (Ohms)	Maximum · D.C. Current · (Amps)	Coil · Diameter	Lead · Diameter · Gauge	Price	Order
1537E	10	4.5	0.006	20	0.63	14	$3.05In stock	Buy now
1537F	20	6.5	0.013	12.5	0.60	16	$3.05In stock	Buy now
1537G	30	5.3	0.024	8	0.58	18	$3.05In stock	Buy now
1537H	40	5.2	0.039	5	0.57	20	$3.05In stock	Buy now
1537J	50	3.4	0.064	3.2	0.56	20	$3.05In stock	Buy now
1537K	75	3.2	0.128	2	0.54	20	$3.05In stock	Buy now
1537L	100	10.5	0.05	8	0.71	18	$3.05In stock	Buy now
1537M	250	12	0.114	5	0.69	18	$3.05In stock	Buy now
1537N	500	11.6	0.26	3.2	0.65	20	$3.05In stock	Buy now
1537P	750	10	0.465	2	0.61	20	$3.05In stock	Buy now
1537R	1000	7.4	0.83	1.25	0.59	20	$3.05In stock	Buy now

Features

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch . Switch units to: mm

■Large ferrite core for extended saturation point, optimum frequency range .01-2 Mhz.
■1.5" long leads (+/- 0.1")
■Test frequency 1 Khz.
■Core length 1.25"
■Coil is covered with vinyl insulation shrink sleeve.
■Operating Temperature -55 degrees C to + 135 degrees C

Documents

Specification Sheet

Additional information

Part Details

Part No.	Inductance · +/-5% · (uH)	Minimum · Q	D.C. · Resistance · (Ohms)	Maximum · D.C. Current · (Amps)	Coil · Diameter	Lead · Diameter · Gauge
1537E	10	4.5	0.006	20	0.63	14
1537F	20	6.5	0.013	12.5	0.60	16
1537G	30	5.3	0.024	8	0.58	18
1537H	40	5.2	0.039	5	0.57	20
1537J	50	3.4	0.064	3.2	0.56	20
1537K	75	3.2	0.128	2	0.54	20
1537L	100	10.5	0.05	8	0.71	18
1537M	250	12	0.114	5	0.69	18
1537N	500	11.6	0.26	3.2	0.65	20
1537P	750	10	0.465	2	0.61	20
1537R	1000	7.4	0.83	1.25	0.59	20
