Ventilated Transformer Enclosure · 516 Series

Brand: Hammond Manufacturing · 1 part number

■Heavy duty (0.1” thick) aluminum base and top - for extra strength (front & back panel will not push in from mounted buttons, controls, connectors , etc.).

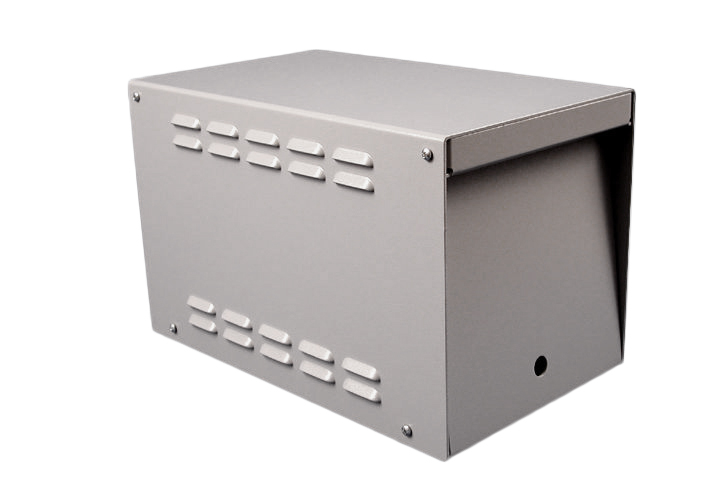

■Sides include four horizontal rows of louvers for ventilation.

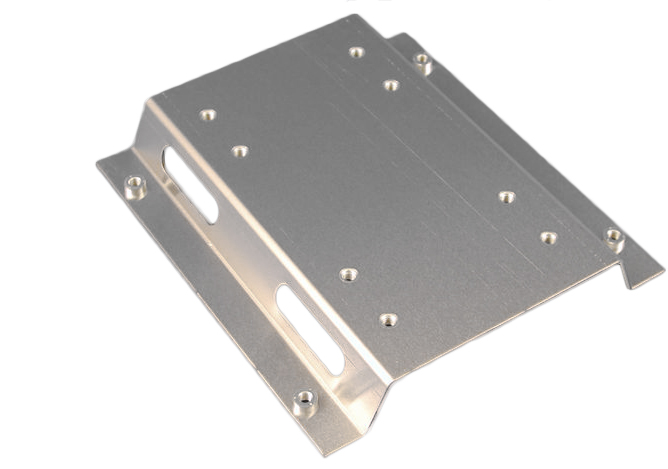

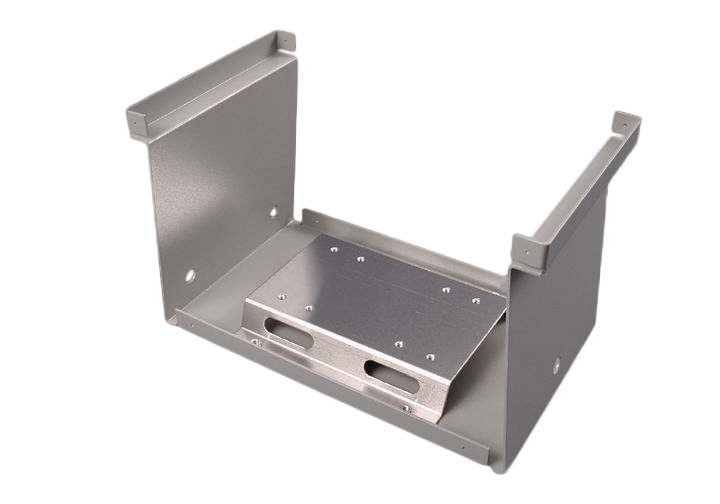

■Includes heavy duty (0.1” thick) aluminum raised mounting panel. Mounting surface includes 8 press nuts for mounting & a 5” (127 mm) x 8.63” (219 mm) area.

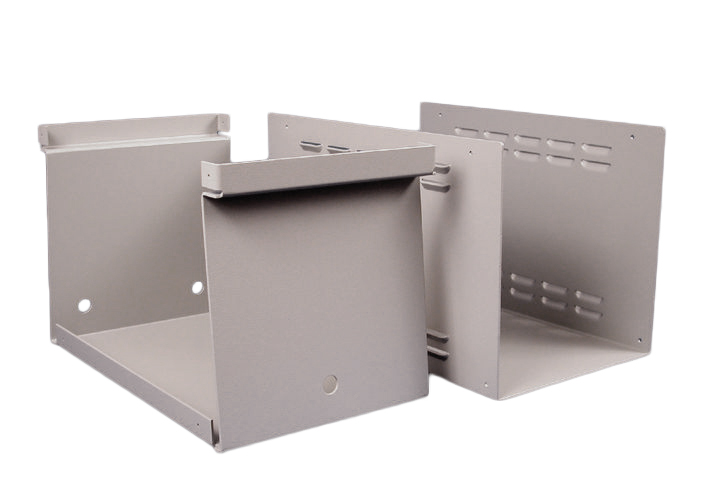

■Front and back are recessed near the top with flange to act as built-in lifting handles (see photo features below).
■Sold pre-assembled in lightly textured, dark grey powder coat finish.
■Comes with three cord grommets for front & rear holes and required assembly hardware.

from $160.18

1 of 1 part numbers priced · available on backorder · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents Additional information

Configure & price

Find your 516 Series part number

Filter 1 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

1 of 1 part numbers · 1 priced online

516-0010

Transformer Case

$160.18Backorder

Buy now

Dimension tables (inches / mm)

Enclosures

Units shown: inch . Switch units to: mm

Part Number	Width	Length	Depth	Price	Order
516-0010	8.50	14.38	9.25	$160.18Backorder	Buy now

Key Features:

■Heavy duty (0.1” thick) aluminum base and top - for extra strength (front & back panel will not push in from mounted buttons, controls, connectors , etc.).
■Sides include four horizontal rows of louvers for ventilation.
■Includes heavy duty (0.1” thick) aluminum raised mounting panel. Mounting surface includes 8 press nuts for mounting & a 5” (127 mm) x 8.63” (219 mm) area.
■Front and back are recessed near the top with flange to act as built-in lifting handles (see photo features below).
■Sold pre-assembled in lightly textured, dark grey powder coat finish.
■Comes with three cord grommets for front & rear holes and required assembly hardware.
■Assembled with 8 self-tapping Philips head screws.
■Replacement screws SC18609-50 (Pkg. of 50, Philips head - #8 x 3/8” screws).
