Aluminum Diecast Enclosure
- Type Water-Tight, EMI/ RFI
- Material Aluminum (Die-Cast Alloy)
$68.53In stock
Buy now
Watertight EMI/RFI Shielded · R110-111 Series
Brand: Hammond Manufacturing · 17 part numbers
conFORM Series
- ■Diecast aluminum material (GD Al Si 12/DIN 1725).
- ■Comes with silicone-free TPE gasket installed.
- ■Stainless steel lid hardware included.
- ■An EMI/RFI gasket is not required as lid to box connection is inside the gasket seal. Patented metal-to-metal system with integrated teeth in the enclosure bottom provide a lasting shield.
- ■Patented metal-to-metal system with integrated teeth in the enclosure bottom provide a lasting shield.
- ■Recommended operating temperature range is -40ºC up to +80ºC (-40ºF to 176ºF).
from $23.10
17 of 17 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your R110-111 Series part number
Filter 15 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
15 of 15 part numbers · 15 priced online
Aluminum Diecast Enclosure
- Type Water-Tight, EMI/ RFI
- Material Aluminum (Die-Cast Alloy)
$74.61In stock
Buy nowAluminum Diecast Enclosure
- Type Water-Tight, EMI/ RFI
- Material Aluminum (Die-Cast Alloy)
$80.61In stock
Buy nowAluminum Diecast Enclosure
- Type Water-Tight, EMI/ RFI
- Material Aluminum (Die-Cast Alloy)
$125.66In stock
Buy nowAluminum Diecast Enclosure
- Type Water-Tight, EMI/ RFI
- Material Aluminum (Die-Cast Alloy)
$150.55In stock
Buy nowAluminum Diecast Enclosure
- Type Water-Tight, EMI/ RFI
- Material Aluminum (Die-Cast Alloy)
$173.24Backorder
Buy nowAluminum Diecast Enclosure
- Type Water-Tight, EMI/ RFI
- Material Aluminum (Die-Cast Alloy)
$198.20In stock
Buy nowRolec Efk 081 Enclosure
- Type Water-Tight, EMI/ RFI
- Material Aluminum (Die-Cast Alloy)
$61.67Backorder
Buy nowAluminum Diecast Enclosure
- Type Water-Tight, EMI/ RFI
- Material Aluminum (Die-Cast Alloy)
$69.51Backorder
Buy now
Aluminum Diecast Enclosure
- Type Water-Tight, EMI/ RFI
- Material Aluminum (Die-Cast Alloy)
$76.20In stock
Buy nowRolec Ek Box
- Type Water-Tight, EMI/ RFI
- Material Aluminum (Die-Cast Alloy)
$97.46In stock
Buy now
Aluminum Diecast Enclosure
- Type Water-Tight, EMI/ RFI
- Material Aluminum (Die-Cast Alloy)
$128.18In stock
Buy nowRolec 166X166X60MM Emi/Rfi Box
- Type Water-Tight, EMI/ RFI
- Material Aluminum (Die-Cast Alloy)
$154.41Backorder
Buy nowAluminum Diecast Enclosur
- Type Water-Tight, EMI/ RFI
- Material Aluminum (Die-Cast Alloy)
$180.65Backorder
Buy now

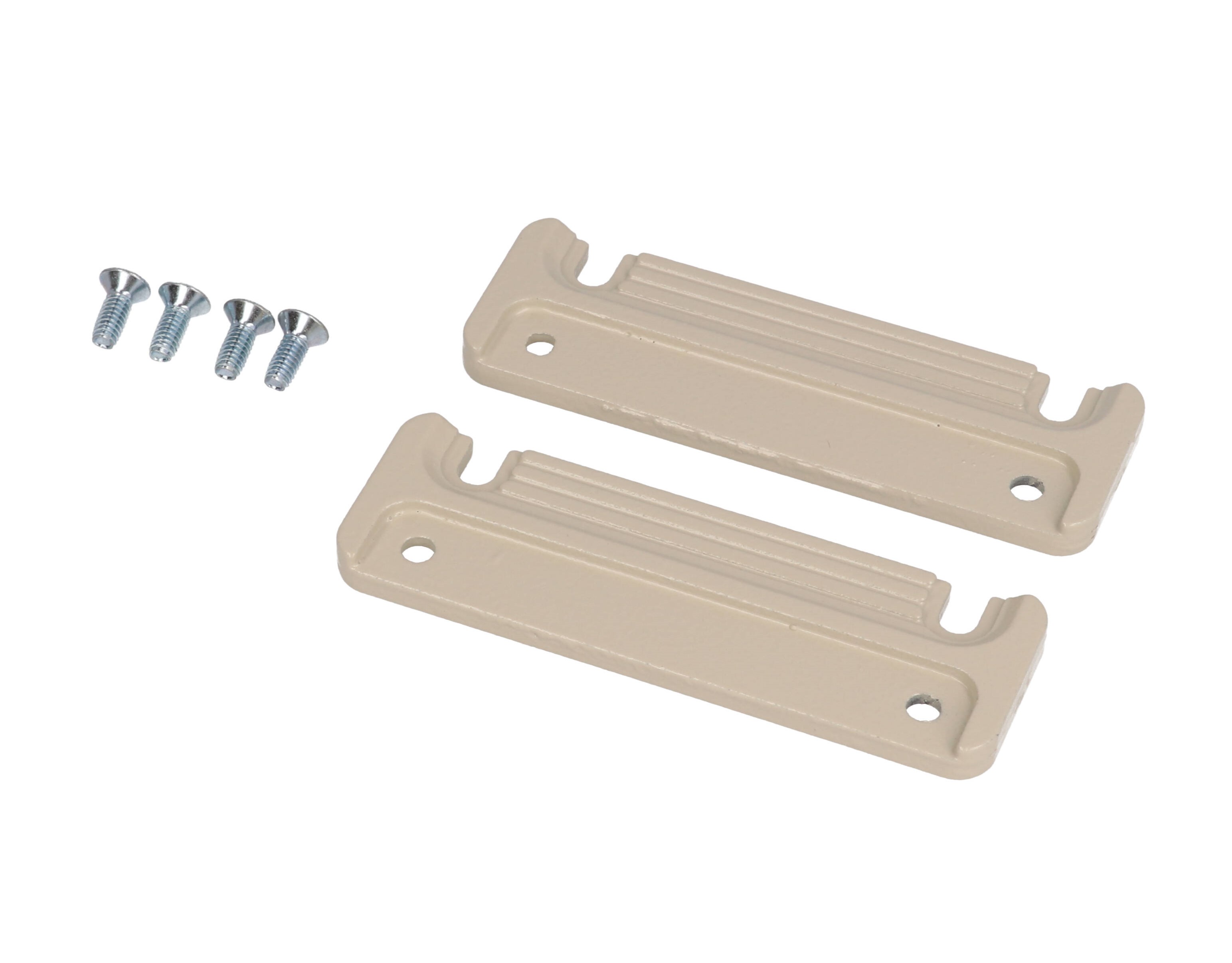

External Feet (RAL7032)
- Type Mounting Feet
- Material Aluminum
$23.10In stock
Buy nowDimension tables (inches / mm)
| Part No. | Length (mm) | Width (mm) | Depth With Lid (mm) | Mounting Feet (Part No.) | Price | Order |
|---|---|---|---|---|---|---|
| R111-081-000 | 84 | 79 | 44 | R501-000-010 | $61.67BackorderR111-081-000 | Buy now |

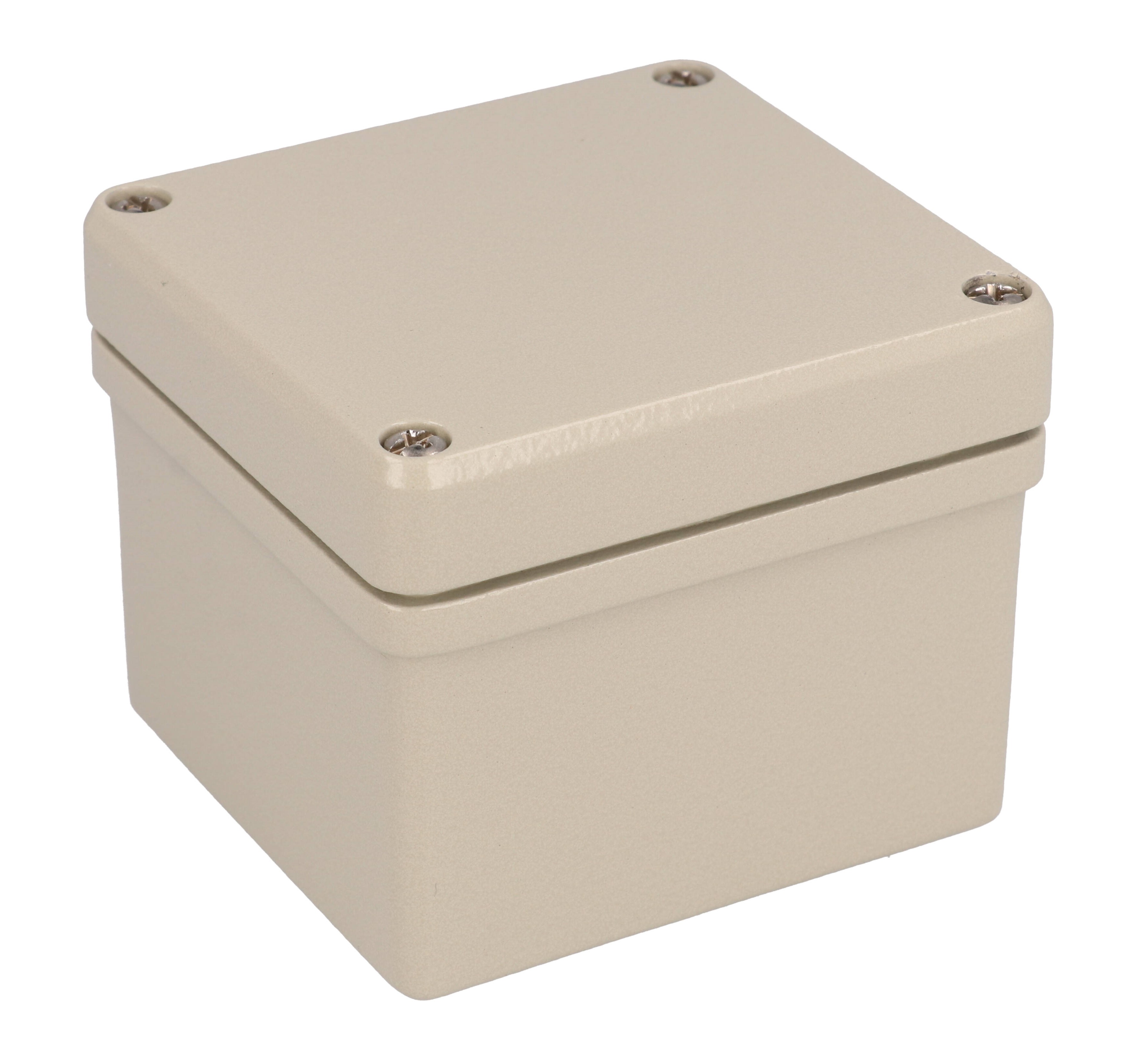

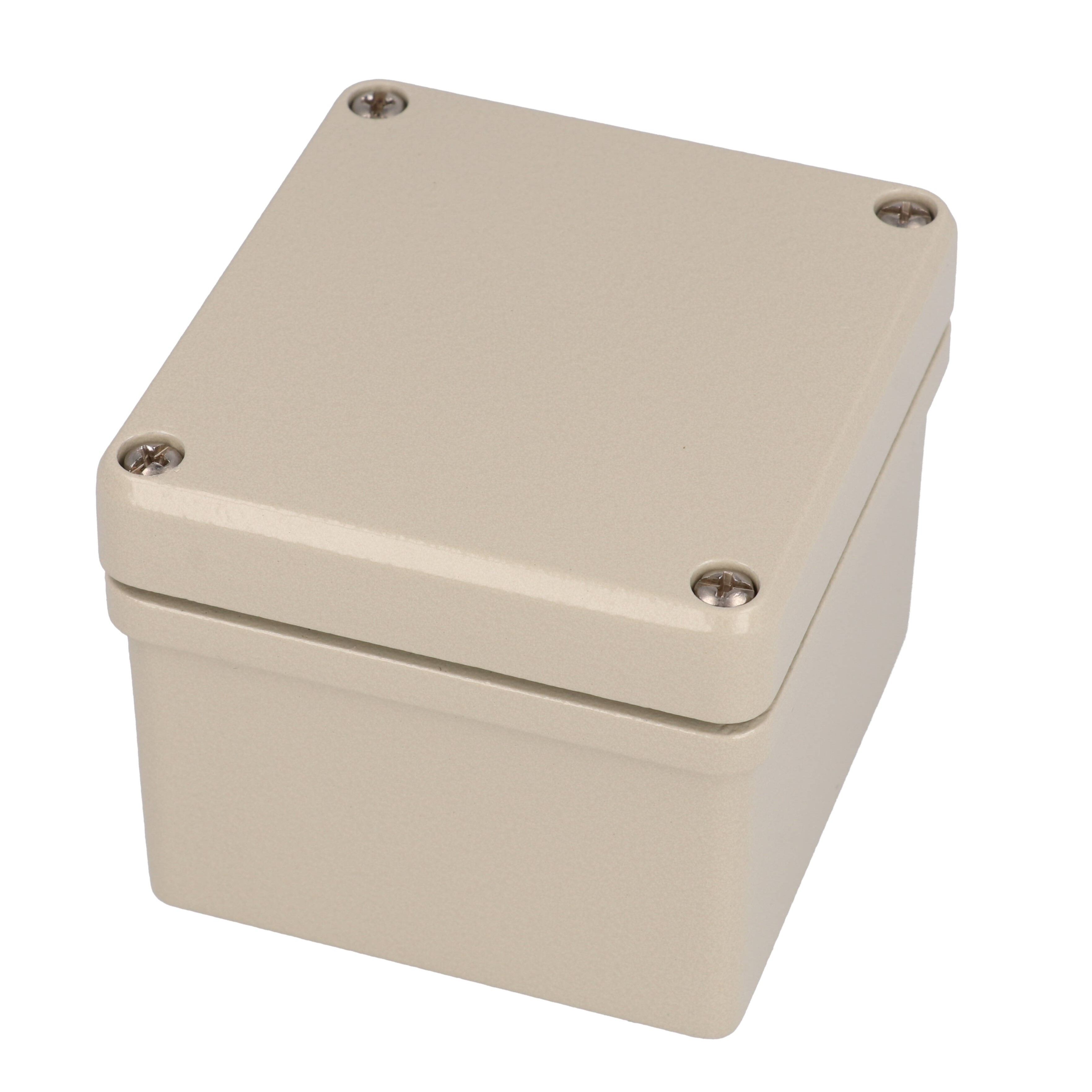

| R110-081-000 | 84 | 79 | 67 | R501-000-010 | $68.53In stockR110-081-000 | Buy now |
| R111-082-000 | 84 | 129 | 44 | R501-000-010 | $69.51BackorderR111-082-000 | Buy now |
| R110-082-000 | 84 | 129 | 67 | R501-000-010 | $74.61In stockR110-082-000 | Buy now |

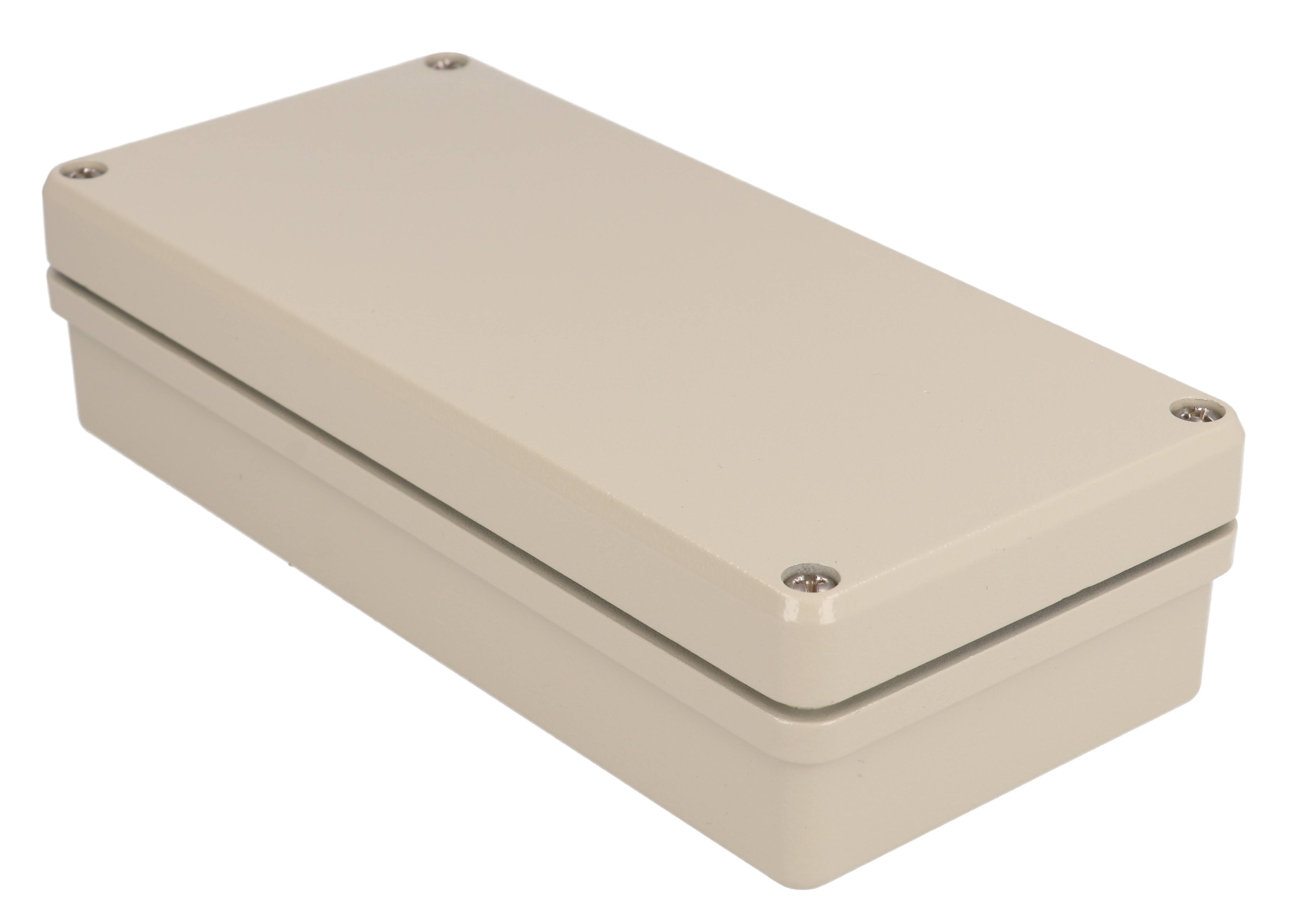

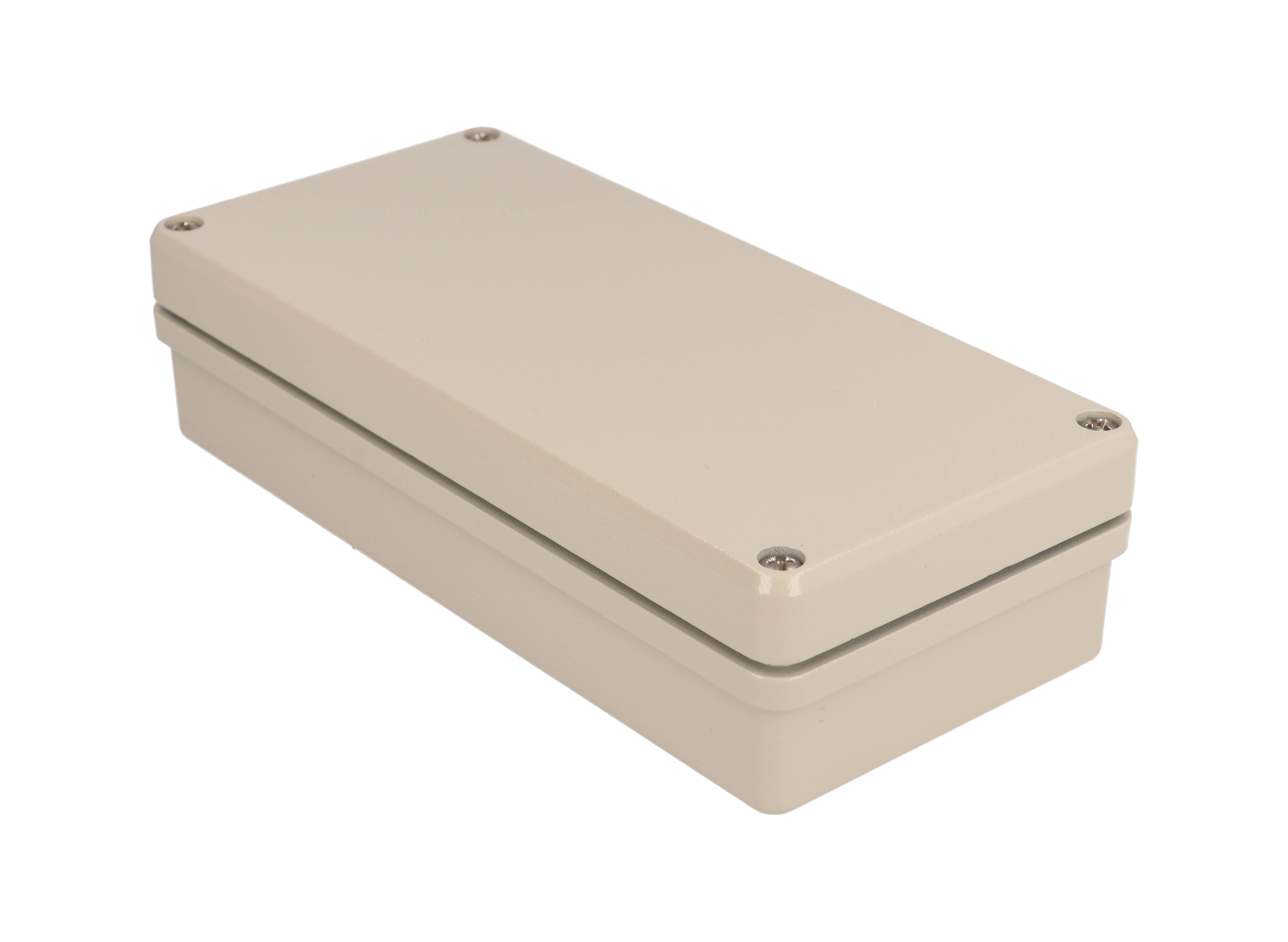

| R111-083-000 | 84 | 179 | 44 | R501-000-010 | $76.20In stockR111-083-000 | Buy now |
| R110-083-000 | 84 | 179 | 67 | R501-000-010 | $80.61In stockR110-083-000 | Buy now |
| R111-121-000 | 125.5 | 127.5 | 60 | R501-000-011 | $97.46In stockR111-121-000 | Buy now |
| R110-121-000 | 125.5 | 127.5 | 90 | R501-000-011 | $125.66In stockR110-121-000 | Buy now |

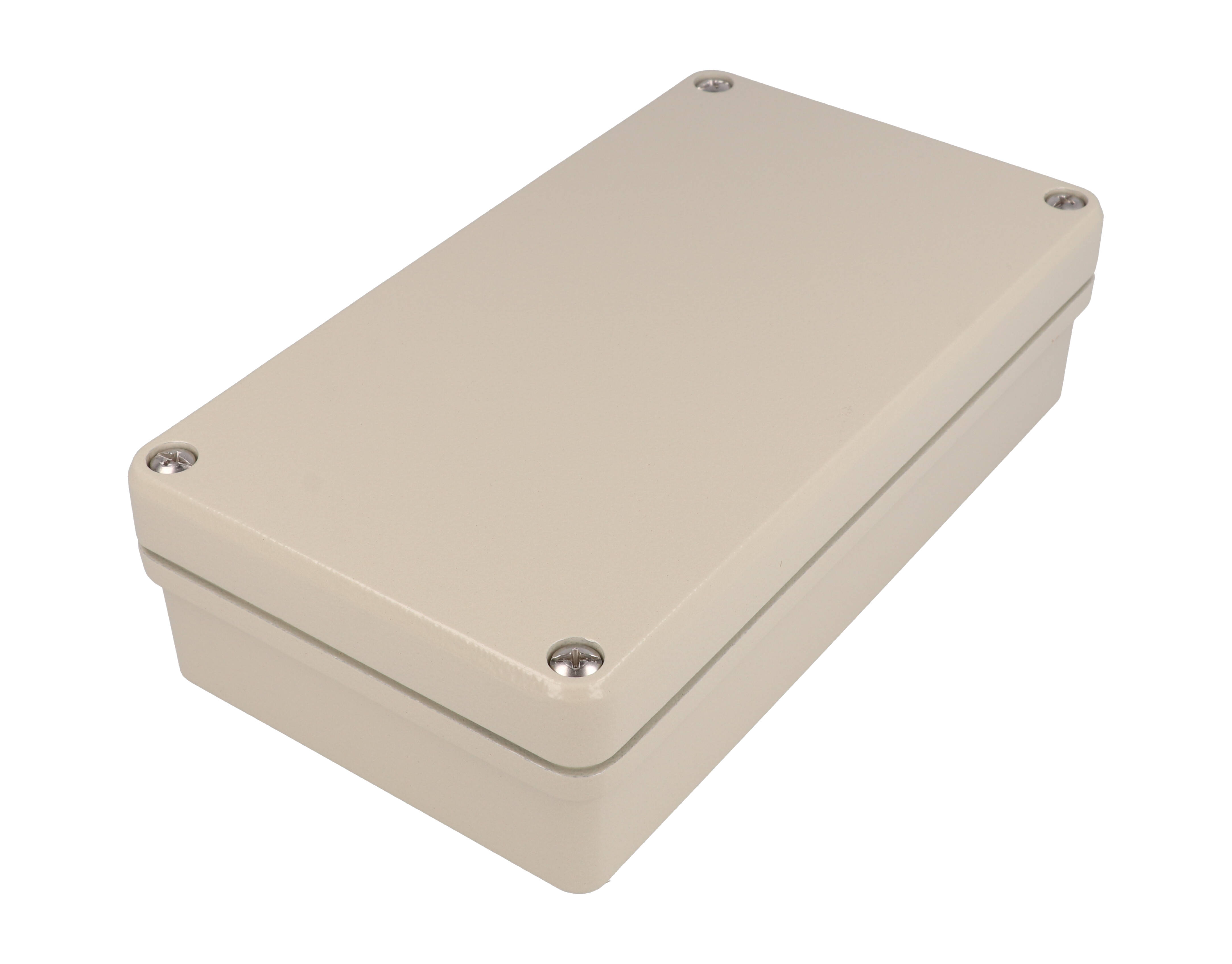

| R111-123-000 | 125.5 | 225.5 | 60 | R501-000-011 | $128.18In stockR111-123-000 | Buy now |
| R110-123-000 | 125.5 | 225.5 | 90 | R501-000-011 | $150.55In stockR110-123-000 | Buy now |
| R111-161-000 | 166 | 166 | 60 | R501-000-012 | $154.41BackorderR111-161-000 | Buy now |
| R110-161-000 | 166 | 166 | 100 | R501-000-012 | $173.24BackorderR110-161-000 | Buy now |
| R111-162-000 | 166 | 266 | 66 | R501-000-012 | $180.65BackorderR111-162-000 | Buy now |
| R110-162-000 | 166 | 266 | 100 | R501-000-012 | $198.20In stockR110-162-000 | Buy now |
Key Features:
- ■Diecast aluminum material (GD Al Si 12/DIN 1725).
- ■Comes with silicone-free TPE gasket installed.
- ■Stainless steel lid hardware included.
- ■An EMI/RFI gasket is not required as lid to box connection is inside the gasket seal. Patented metal-to-metal system with integrated teeth in the enclosure bottom provide a lasting shield.
- ■Patented metal-to-metal system with integrated teeth in the enclosure bottom provide a lasting shield.
- ■Recommended operating temperature range is -40ºC up to +80ºC (-40ºF to 176ºF).
- ■Optional external mounting feet made from zinc diecast can be turned through 90º.
- ■Finished in tough, textured polyester powder coat in light beige RAL 7032. Can be supplied unpainted on special order.
- ■Can be supplied unpainted on special order.
- ■Degree of protection: NEMA 4X, IP66, DIN 40050.
- ■CSA certified Type 4 for use with industrial control equipment.
Photo Features
- ■EMI/RFI enclosure body connection to lid is made inside the gasket seal. This eliminates corrosion problems that can appear later.
- ■Lid EMI/RFI edge extends into enclosure and contacts teeth in enclosure body for a positive contact.
- ■Gasket is outside of EMI/RFI contact points and inside of lid and mounting holes. No expensive conducting gasket required!
- ■Screw and mounting holes are located outside of gasket seal.
- ■Internal mounting shelves placed along both sides of enclosure include blind holes and grounding screws. There are many mounting holes for self tapping screws in both the enclosure and the lid which can also be used for mounting PC boards or plates.
- ■Enclosure holes are threaded for easy installation and disassembly.
Documents
Additional information
Part Details
| Part No. | Length (mm) | Width (mm) | Depth With Lid (mm) | Mounting Feet |
|---|---|---|---|---|
| R111-081-000 | 84 | 79 | 44 | R501-000-010 |
| R110-081-000 | 84 | 79 | 67 | R501-000-010 |
| R111-082-000 | 84 | 129 | 44 | R501-000-010 |
| R110-082-000 | 84 | 129 | 67 | R501-000-010 |
| R111-083-000 | 84 | 179 | 44 | R501-000-010 |
| R110-083-000 | 84 | 179 | 67 | R501-000-010 |
| R111-121-000 | 125.5 | 127.5 | 60 | R501-000-011 |
| R110-121-000 | 125.5 | 127.5 | 90 | R501-000-011 |
| R111-123-000 | 125.5 | 225.5 | 60 | R501-000-011 |
| R110-123-000 | 125.5 | 225.5 | 90 | R501-000-011 |
| R111-161-000 | 166 | 166 | 60 | R501-000-012 |
| R110-161-000 | 166 | 166 | 100 | R501-000-012 |
| R111-162-000 | 166 | 266 | 66 | R501-000-012 |
| R110-162-000 | 166 | 266 | 100 | R501-000-012 |
