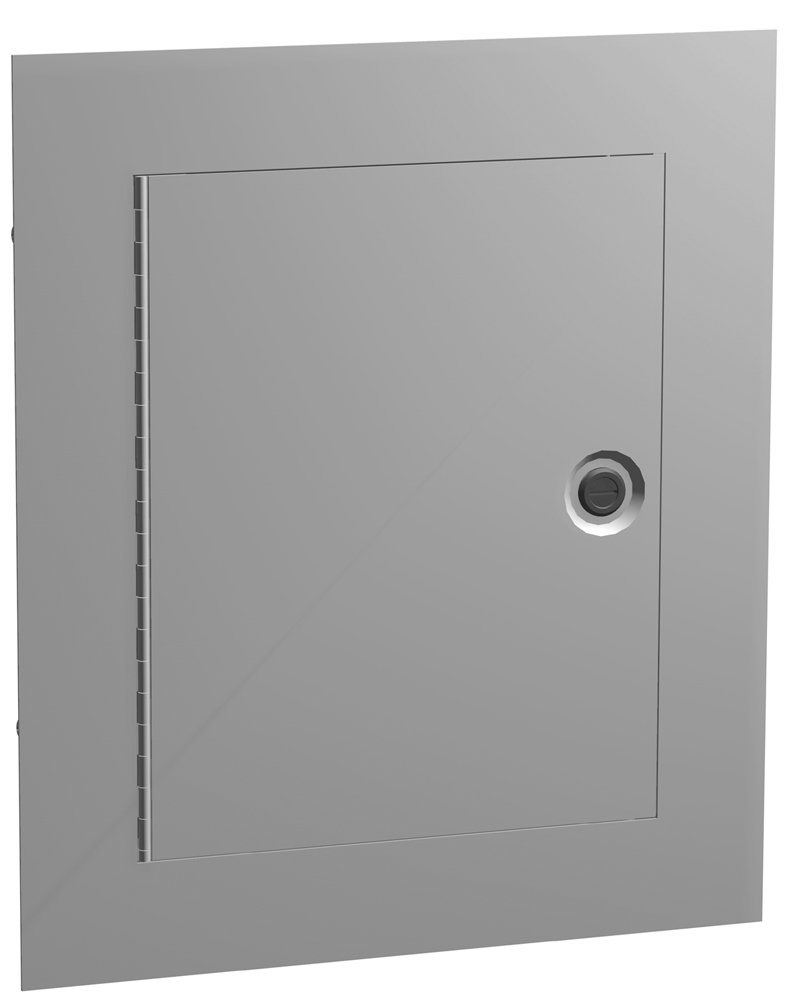

Flush Mounting Enclosure 10X8X4
$119.59In stock
Buy now
Type 1 Mild Steel 3 Piece Flushmount Enclosure · N1W F Series
Brand: Hammond Manufacturing · 6 part numbers
Hinge Door with Quarter Turn
- ■Flushmount electrical enclosure designed for indoor use to enclose controls, instruments, and components which do not require oil-tight or dust-tight protection.
- ■Ideal for applications where components may be easily mounted and wired prior to installation of wrapper and door.
- ■UL 50 Type 1
- ■CSA Type 1
- ■Complies with NEMA Type 1 IEC 60529, IP20
- ■NEMA Type 1
from $116.25
6 of 6 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your N1W F Series part number
Filter 6 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
6 of 6 part numbers · 6 priced online
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|
| N1WF864 | 8.00 | 6.00 | 4.00 | $116.25In stock | Buy now |
| N1WF1084 | 10.00 | 8.00 | 4.00 | $119.59In stock | Buy now |
| N1WF12104 | 12.00 | 10.00 | 4.00 | $125.31In stock | Buy now |
| N1WF16124 | 16.00 | 12.00 | 4.00 | $180.36In stock | Buy now |
| N1WF20164 | 20.00 | 16.00 | 4.00 | $259.11In stock | Buy now |
| N1WF24204 | 24.00 | 20.00 | 4.00 | $246.93In stock | Buy now |
Application
- ■Flushmount electrical enclosure designed for indoor use to enclose controls, instruments, and components which do not require oil-tight or dust-tight protection.
- ■Ideal for applications where components may be easily mounted and wired prior to installation of wrapper and door.
Standards
- ■UL 50 Type 1
- ■CSA Type 1
- ■Complies with NEMA Type 1 IEC 60529, IP20
- ■NEMA Type 1
- ■IEC 60529, IP20
Construction
- ■Three piece assembly consisting of a base, wrapper, and door.
- ■Components are attached and secured with metal screws.
- ■14 gauge reverse formed base acts as mounting surface (no separate inner panel) and provides clearance for mounting hardware.
- ■Punched for left or right hinging of the door and ease of assembly.
- ■Wrapper is formed from 16 gauge steel, with no knock-outs in the sides.
- ■Flush mounting door assembly formed from 16 gauge steel.
- ■Door is fastened with a slotted quarter turn latch.
- ■A bonding stud is provided on the door and a grounding screw is provided for the enclosure.
Finish
- ■Base, wrapper and door are finished in ANSI 61 gray powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D |
|---|---|---|---|
| N1WF864 | 8.00 | 6.00 | 4.00 |
| N1WF1084 | 10.00 | 8.00 | 4.00 |
| N1WF12104 | 12.00 | 10.00 | 4.00 |
| N1WF16124 | 16.00 | 12.00 | 4.00 |
| N1WF20164 | 20.00 | 16.00 | 4.00 |
| N1WF24204 | 24.00 | 20.00 | 4.00 |
